Cetta 35, 50 Interior Blinds - Economy

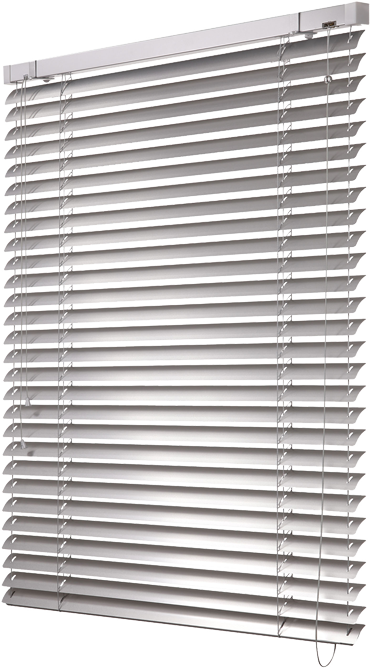

Cetta Economy represents the economic version of the interior blind with lamellas with widths of 35 mm or 50 mm. They are recommended for interior use in flats, manufacturing halls, administrative buildings and large premises where the emphasis is on functionality and aesthetics. The lamellas are in the form of the letter “C“, and are without folders at the ends. The lamellas for the blinds are located in the steel rope or a freely hanging blind without guiding can be selected.  Easy control, uncompromising functionality and a competitive price - this is Cetta Economy.

The exterior shading technology creates an optimal environment in terms of lighting and thermal conditions and is a key part of the construction in terms of energy savings. In the traditional concept, the interior blinds also fulfil a shading function; in an untraditional concept they are a modern accessory for windows and function as interior jewellery.

Advantages and preferences

  • economic version of the construction,
  • two widths of lamellas: 35 mm and 50 mm,
  • simple cord control with brake
  • double sided tilting of lamellas
  • guiding by rope or freely hanging blinds,
  • arbitrary regulation of intensity of the light,
  • easy assembly into the ceiling or on the wall.

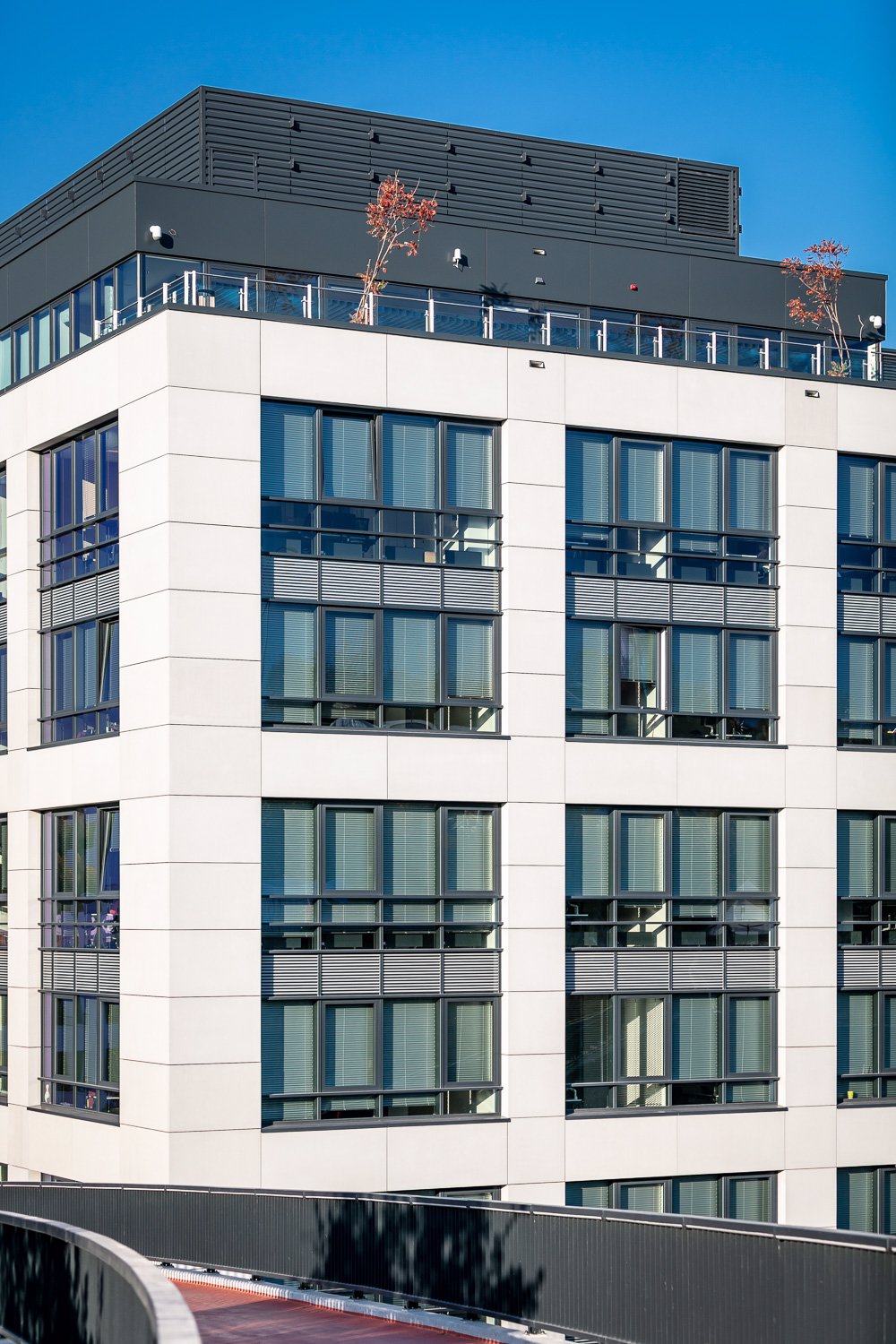

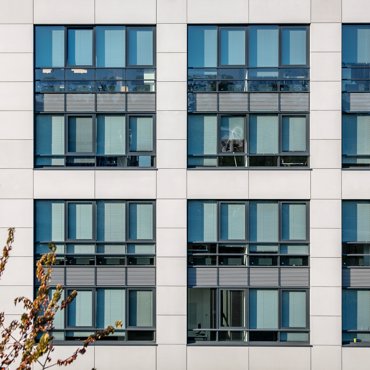

References

Variability of the construction

  • with 35 mm lamella
  • with 50 mm lamella

Method of control

  • manually – lifting cord with brake for lifting and lowering; cord with tilting unit for tilting the lamellas.
    The brake can stop the blind in any position..

Guaranteed dimensions

  • Minimum width: 400 mm
  • Maximum width: 3,150 mm
  • Maximum height: 3,000 mm
  • Maximum area: 6 m2

Untypical dimensions – not produced.

Technical parameters

Specification of Cetta 35

Upper profile Lower profile Lamella Side guiding Ladder Cord
Assembly
cord / lever Steel wire
Trade name
Dimension (mm)
Material
P 528
40 × 40
Fe
9155
P 302
35 × 10
Fe
9156
P 304
0,23 × 35
Al
9157
P 501
ø 2,2
Fe/PVC
P 301
26 × 38
PES
A 34
ø 1,4
PES
into the ceiling, on the wall
Colour Standard:
RAL 9003 white
RAL 9006 silver
Other RAL in spraying
According to actual pattern
ISOTRA a.s.
grey white, grey grey

Specification of Cetta 50

Upper profile Lower profile Lamella Side guiding Ladder Cord Assembly
cord / lever Steel wire
Trade name
Dimension (mm)
Material
P 528
40 × 40
Fe
9155
P 508
49 × 12
Fe
9158
P 529
0,23 × 50
Al
9159
P 501
ø 2,2
Fe/PVC
P 509
42 × 54
PES
A 34
ø 1,4
PES
into ceiling, on the wall
Colour Standard:
RAL 9003 white
RAL 9006 silver
Other RAL in spraying
According to actual pattern
ISOTRA a.s.
grey grey white

Colour variant of the profile

9154

Other RAL – available on request.

Plastic covers for the upper profile are in a milk colour.

Plastic covers for the lower profile for Cetta 50 are in white and grey; for Cetta 35 in a clear colour.

  • RAL 9006 RAL 9006
  • RAL 9003 RAL 9003

Colours for lamelas

Basic colours for lamellas Cetta 35 Economy

  • RAL 0001 RAL 0001
  • RAL 0014 RAL 0014

Extra charge colours for lamellas Cetta 35 Economy

  • RAL 4459 RAL 4459

Basic colours for lamellas Cetta 50 Economy

  • RAL 0001 RAL 0001
  • RAL 0014 RAL 0014
  • RAL 7016 RAL 7016
  • RAL 9007 RAL 9007

Extra charge colours for lamellas Cetta 50 Economy

  • RAL 0606 RAL 0606
  • RAL 4459 RAL 4459
  • RAL 4806 RAL 4806
  • RAL 4851 RAL 4851
  • RAL 7113 RAL 7113

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

Assembly versions

  • into the ceiling
  • on the wall
