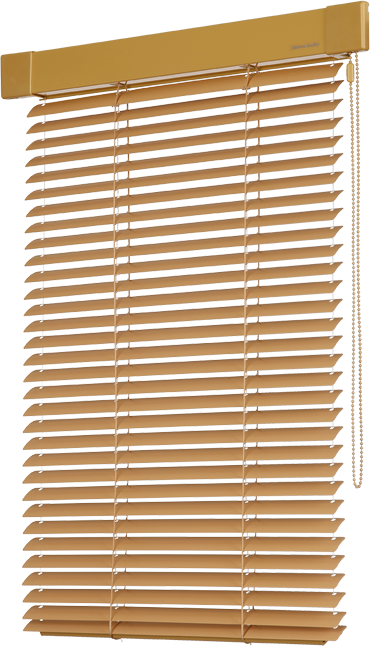

ISOTRA System Classic – blinds not only for EURO windows

The warming light, cooling shade and everything between is offered by the ISOTRA System Classic interior shading. The uncluttered design, functionality and high-quality aluminium construction are the basic characteristics of this much sought after blind. The ISOTRA System Classic interior shading is the optimal solution for traditional and non-standard windows.

Compared with the ISOTRA System Hit and HIT II interior shading, the ISOTRA System Classic has an aluminium lower and upper profile that ensures greater strength and a longer service life. Therefore, it is recommended as the blind for EURO windows, as well as for other plastic and aluminium window types.

Advantages and preferences

  • profiles from extruded aluminium – recommended as the blind for EURO windows
  • non-standard version for bevel and broken windows
  • colour constructions of the profile according to the RAL pattern.

References

Manner of control

  • manually – by chain (ø 3.2 mm, ø 4.5 mm)
    The blind can be fitted with a brake to prevent falling of lamellas due to their own weight.

Guaranteed dimensions

  • minimum width: 300 mm
  • maximum width: 2,000 mm
  • maximum height: 2,200 mm
  • maximum area: 2.5 m2
We also produce non-standard dimensions of the ISOTRA System Classic interior shading for bevel and broken windows. Recommended blinds for Euro windows and for non-standard dimensions.

Technical parameters


UPPER PROFILE LOWER PROFILE LAMELLA LAMELLA SIDE GUILDING ASSEMBLY BRAKE
CONSTRUCTION WIDTH (MM) THICKNESS
Business name
Dimensions (mm)
Material
IS 08
27 x 48 x 0,2
Al
646
IS 16
20 x 8 x 0,9
Al
645
whole shading
standard
standard
25
25
16
0,21 / 0,18
0,21 / 0,18
0,21
silon ø 0,8 mm for window wing on the basis of the order
Colour

Standard
RAL 8014 brown
RAL 9010 white

Surcharge
RAL 8004 chestnut
RAL 9006 silver
RAL 1002 pine
RAL 1015 ivory

according to the actual sampler silon - clear

Plastic components in the colour of the profile.
Ladder and cord which are colour coordinated with the lamella.

Profile colour

3890

Standard

Show all colour of lamella Hide extended selection colour of lamella

Surcharge

Show all colour of lamella Hide extended selection colour of lamella

Colour lamella

Dimension 16 mm × 0,21 mm

Show all colour of lamella Hide extended selection colour of lamella

Dimension 25 mm × 0,18 mm

Show all colour of lamella Hide extended selection colour of lamella

Dimension 25 mm × 0,21 mm

Show all colour of lamella Hide extended selection colour of lamella

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

Assembly options

  • for window wing

Height of roll-up

Height of blind (mm) Height of blind (mm)
lamella25 mm - strip/ thin chain lamella25 mm CS*- strip/ thin chain
500 50 50
1000 60 65
1500 70 80
2000 80 95
2500 90 115

Height of the packet = height of the lowered blind, including the upper profile
CS* = whole-shading construction
