Horizontal blinds

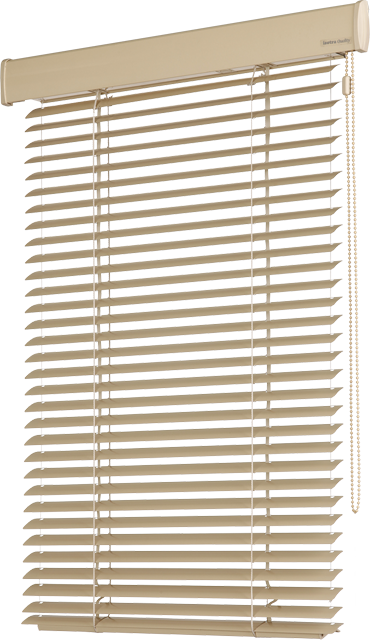

Neoisolite blind

Neoisolite aluminium blinds combine simple elegance with an industrial purpose. The option to tilt out blinds from the window wing enables the whole window to be cleaned. The sophisticated design of the Neoisolite blind is highly appreciated by both men and women.

The precise construction and palette of various shades offers unlimited options for interiors in terms of style and colour and to give it just the right atmosphere. In the case of the Neoisolite blind, the upper and the lower profile and the lamellas can be harmonized with wood imitation.

I am interested in this product

Advantages

Benefits & advantages

elegant design
assembly using corner clamps
option to tilt out the blind for easier window washing
profiles for extruded aluminium
colour of the profile according to the RAL sampler or coated in renolite

Explore

Colour variants

Basic colours profiles

Colour performance Renolit at extra charge profiles

Basic colours lamella dimension 25 mm × 0,18 mm

other colours

Basic colours lamella dimension 25 mm × 0,21 mm

other colours

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

Methods

Handling

manually
by thin chain (Ø 3,2 mm) or thick chain (Ø 4,5 mm) for pulling up, pulling down and tilting, textile strap

The color of the chain is reconciled with the color of the profile.

Guaranteed

Dimensions

minimum width
400 mm

maximum width
2000 mm

maximum height
2200 mm

maximum area
2,5 m²

Non-standard dimensions for bevel and broken windows are not produced.

Technical parameters

	Upper profile		Lower profile	Lamella			Side guilding	Assembly	Brake
	Upper profile		Lower profile	Construction	Width (mm)	Thickness	Side guilding	Assembly	Brake
Business name	IL 101	IL 102	IS 16	whole shading	25	0,21 / 0,18	silon Ø 0,8 mm	for window wing	no
Dimensions (mm)	27 × 47 × 0,9	10 × 49 × 0,9	20 × 8 × 0,9	standard	25	0,21 / 0,18
Material	Al	Al	Al	standard	16	0,21
Cross-section
Colour	Standard: RAL 1002 RAL 1015 RAL 8004 RAL 8014 RAL 9006 RAL 9010 Surcharge: other RAL colors sprayed Renolit - according to the sampler			according to the actual sampler			silon – clear

Plastic components in the colour of the profile.
Ladder and cord which are colour coordinated with the lamella.

Assembly options

for window wing
a key feature of Neoisolite blinds is the option to tilt out from the holders for easier window washing

Height of roll-up

Height of packet
Height of the blind (mm)	Lamella 25	Lamella 25 CS*
500	55 mm	60 mm
1000	65 mm	70 mm
1500	75 mm	80 mm
2000	95 mm	100 mm
2500	115 mm	120 mm

Height of the packet = height of the lowered blind, including the upper profile.
CS* = whole-shading construction.
Hereby stated values are only indicative.

Notice

Notice for slats in wood colour imitations
Please note that when selecting slats in any wood colour imitation (793-797, 81-87), different bevelled stripes may be visible at a certain light refraction. This effect must be taken into account in advance. Complaints made for this reason will not be considered.

Download

Control and maintenance manual

Control by chain and maintenance manual

Leaflet Interior blinds

Leaflet Sun protection systems

Measurement and assembly manual

Order form

Technical manual
