Screen roller blinds SCREEN ZIP

The ZIP SCREEN is a unique screen system. With its sophisticated technical design, it creates a modern touch to administrative buildings and family homes. Thanks to the special stitching of the fabric in the side guidance, the ZIP SCREEN basically increases the roller blind’s resistance to wind. When in the closed position, it partially replaces a insect screens and when the blackout type of material is used, it ensures darkness effectively.

Selecting the technical fiber, Satiné, (glass fiber covered with PVC) or Soltis (polyester fiber with a PVC layer), it is possible to ensure maximum protection against sun rays and heat penetration, ensure the optimal level of day light inside and ensures optimal contact with the outdoor surroundings. The built-in motor drive highlights the modern design of the system and its overall comfort. These useful features are what make the SCREEN ZIP system a technologically top-of-the-line system on the screen blind market, which effectively accessorizes the technological concept of passive buildings in the shading field.

I am interested in this product

Advantages

Benefits & advantages

decorative and modern building exterior element
minimal light penetration thanks to the absolute fabric tension
wind resistance class 3
heat regulating effect
insect protection in closed position
frame colour as per the RAL chart (except of plastic parts)
electric control

Get

Inspiration

Explore

Colour variants

Basic colours profile

Special fabrics for screen roller

other colours

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

Methods

Handling

electric drive
remote control or switch

manually
handle with self-braking worm-worm wheel mechanism

Fabric selection

The materials offered for screen blinds are as follows

glass fiber covered with a PVC layer
polyester fiber with a PVC layer

Serge

Specifically weaved screen fabrics, that are very flexible and therefore suitable to interiors as well as exteriors.
They consist of 58,8 % PVC and 41,5 % glass fibre.

Satiné, Satiné Blackout

PVC-coated fibreglass provides excellent dimension stability, protection against fire and chemicals, UV stability and excellent resistance to weather conditions.
In the basic version, the fabric is composed of 42 % fiberglass and 58 % PVC coating (except for the blackout-type fabrics).

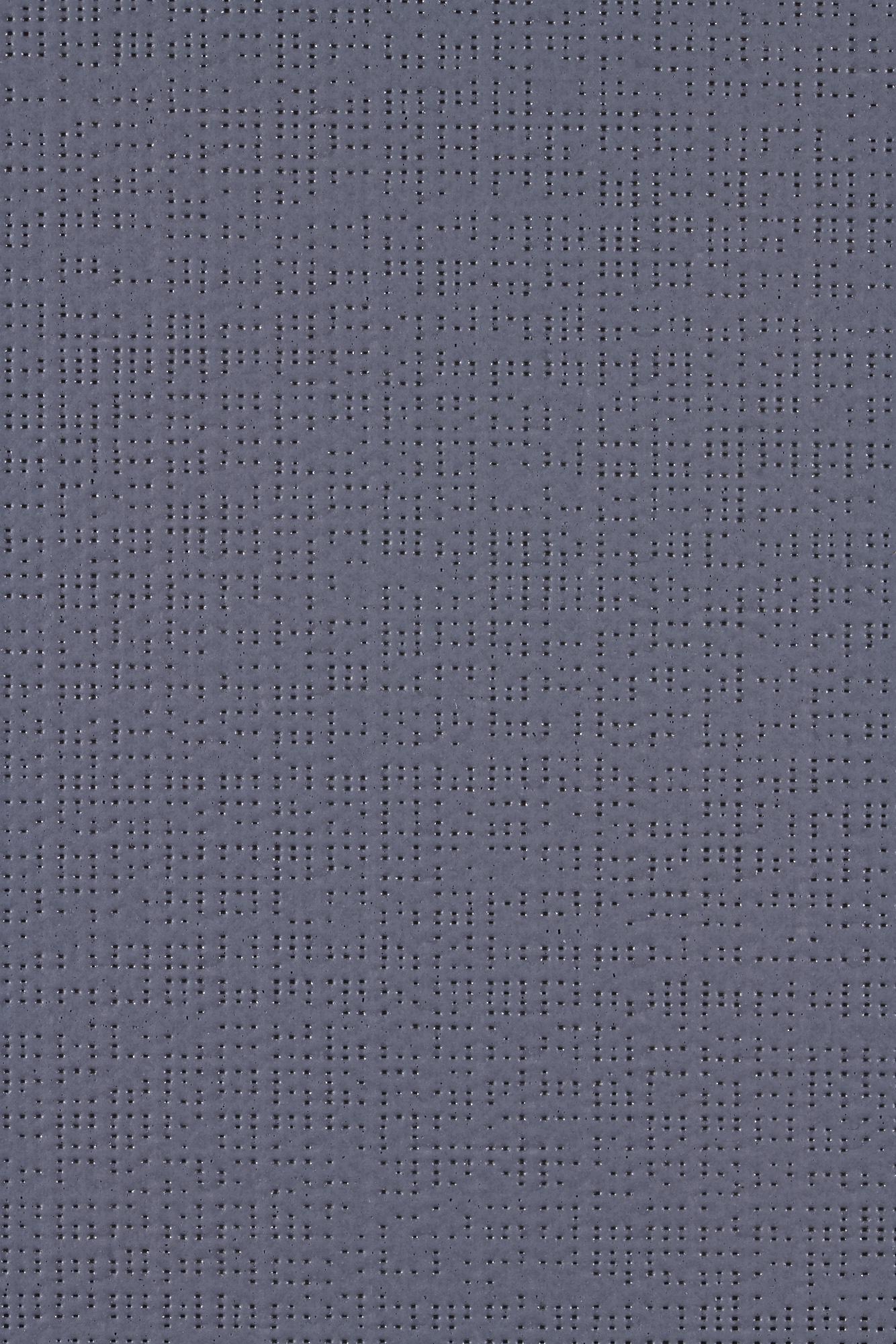

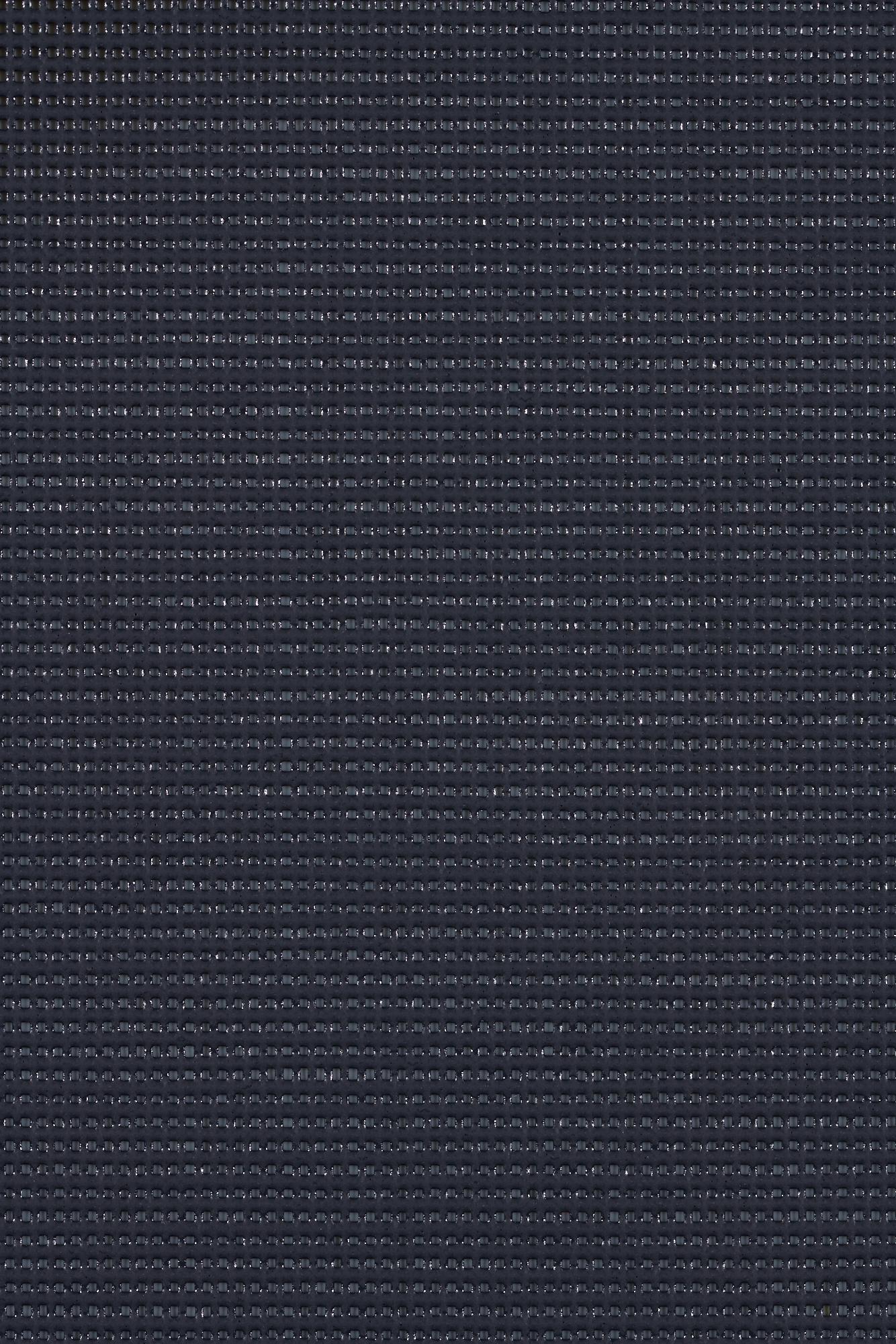

Soltis 86, 92, B92, 99, B99

The material is made from a fabric woven from a high-strength polyester fibre, with surface treatment by pigmented PVC. The material is pre-stressed using the Precontraint technology in two directions, ensuring high dimensional stability and strength.
Further advantages of the material include excellent heat--insulating properties, optimal visual and lighting properties, colour fastness (UV-stability), and flame resistance (B1, M1).
Soltis 99 and B99 can only be used indoors

SCR 4005

internal and external use
lower price with keeping high quality standard

Cristal Plus 500 FSR

The fabric is made of PVC -P compound (PVC + plasticizers + additives). It´s a thermoplastic material, it means that the polymer chains change behaviour depending on the temperatures.
In the temperature range 55 °C / –10 °C the fabric does not change its structure.
The material also has a very low thermal conductivity, which means that it does not absorb too much heat, and will not overheat.

ZIP system

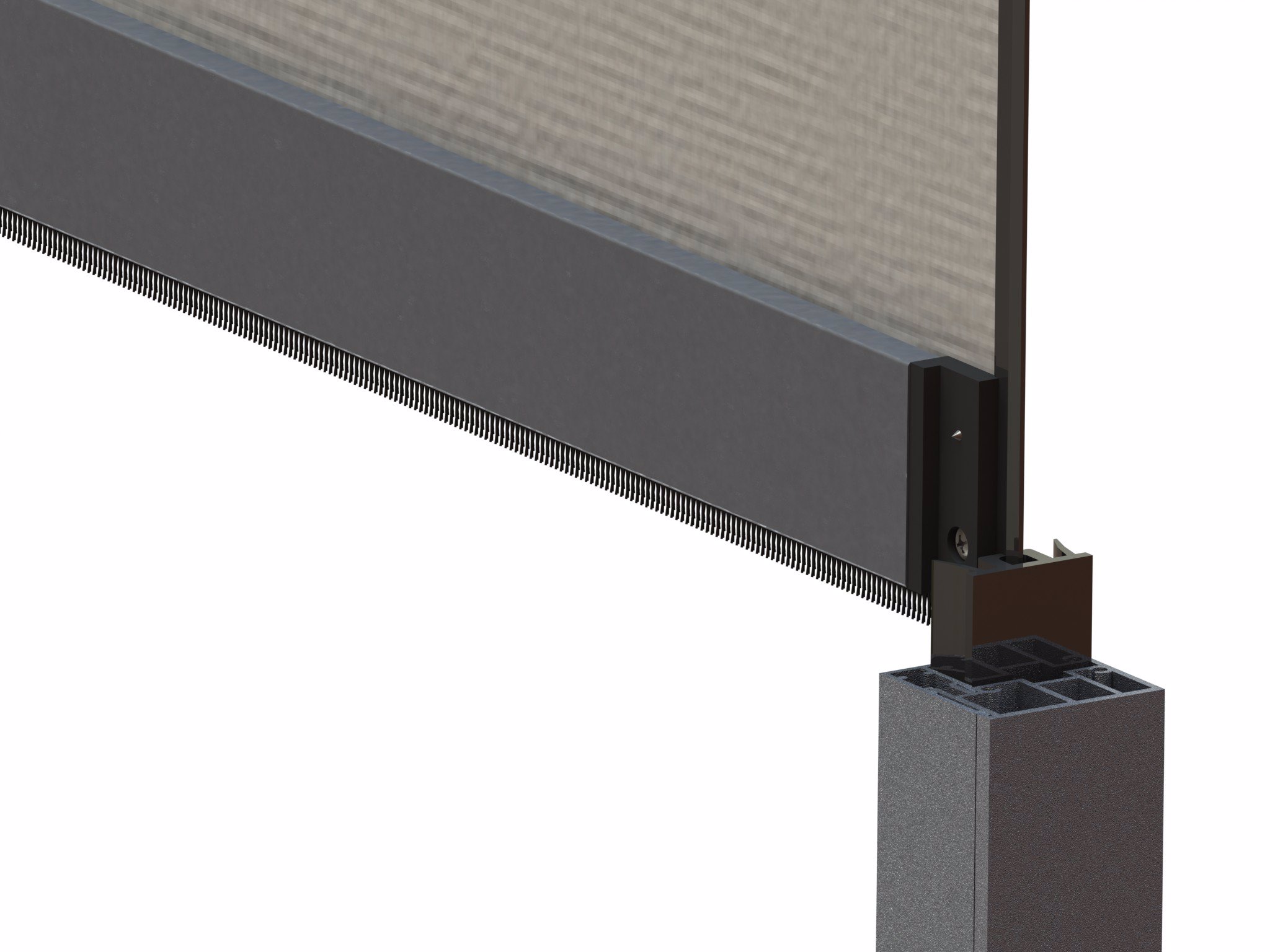

Introduces a unique system for attaching fabric. The screen fabric is equipped with a special ZIP system application, which enables it to be seamlessly attached, stretched out and lead through the guidance. As a result of this equipment, the system is very stable and wind resistant

Guaranteed dimensions

Design	Width (mm)		Height (mm)		Guaranteed area (m²)
Design	min	max	min	max
motor	800	4500	500	3000	13,5
handle	800	500	500	3000	13,5

We do not manufacture atypical dimensions.

Technical parameters

	Upper profile			Lower profile	Side guidance guide rail	Assembly
	box	box	Winding cylinder	Lower profile	Side guidance guide rail	Assembly
Business name	C 105	CT 105	MR 024/1	FZ 47	GS 40	into the ceiling (into the window opening), on the wall (in front of the window opening)
Dimension (mm)	103 × 116,5	104,5 × 116,5	Ø 78 mm	20 × 47,4	40 × 42,2
Material	Al	Al	Fe	Al	Al
Cross-section
Colour	Standard: RAL 9006 light silver RAL 9007 dark silver RAL 7016 anthracite coal grey other RAL colors upon request*

*except of plastic parts

Assembly options

into the window opening (ceiling)
in front of the window opening (wall)

Download

Control and maintenance manual

Leaflet Screen blinds

Leaflet Sun protection systems

Measurement and assembly manual

Order form

Technical manual
