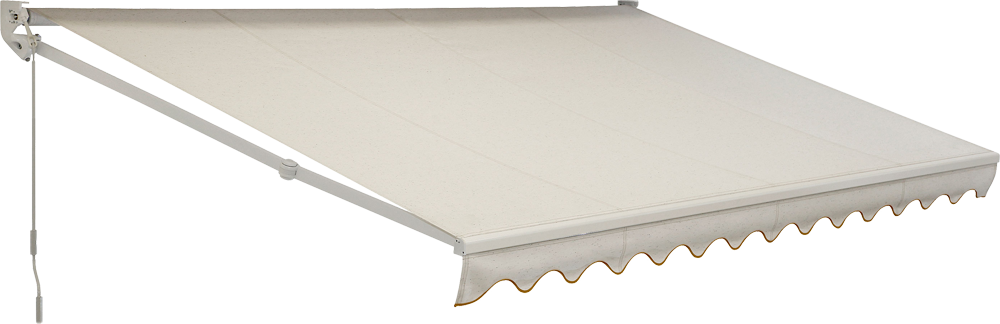

Terrace awning without load-bearing profile JASMINA

JASMINA is a lightweight horizontal awning which stands out for its lightness and airiness thanks to its simple design without any carrying profile. It is widely used for shading terraces, balconies or restaurants. The outdoor awning Jasmina will reliably protect you not only against sunrays; due to a special surface treatment Cleangard applied  to the fabric, it is able to cope also with moderate rain. The awning structure consists of two side brackets be-tween which there is a cylinder made of zinc-coated steel that  serves for winding the fabric.  Arms are ended with a front profile containing a drip ledge to drain rain water and are attached to these brackets. Folding arms are made of special aluminium  alloy and their positioning is optimally scalable.

The awning can be sheltered by a canopy made of zinccoated sheet metal which protects the fabric against atmospheric influences and enhances the overall aesthetic appearance of the awning. Awning  fabrics DICKSON are resistant against fungi and keep high colour durability thanks to the special treatment.

Advantages and benefits

  • roofing for small and large terraces and galleries,
  • wide ranging collection of DICSKON fabrics with special CLEANGUARD surface treatment and 10 year guarantee,
  • SUNACRYL fibre and the solution dyed acrylic technology used ensures high colour stability of the awning fabrics,
  • electric control option and choice of sun/wind sensor,
  • maximum ejection 3.5 m,
  • the awning arms are from special aluminium alloy.

References

Manner of control

  • manually – by handle (or by handle with winding booster)
  • electric drive – remote control or switch

Wide ranging offer of accessories (sensor sun/wind, emergency lever, switch with integrated electronics, waterproof switch on the wall, etc.).

Technical parameters - Jasmina

Awning without load-bearing profile

Markýza Jasmína

The construction of the awning consists of two side consoles between which there is a galvanized cylinder that reels up the fabric. On these consoles the arms are terminated by the profile with a drip ledge for the out-flowing of rain water; the expansion arms are produced from special aluminium alloy and insertion is optimally graded.

Extension
1,5 m; 1,75 m; 2 m; 2,25 m; 2,5 m; 2,75 m; 3 m
Maximum extension 3 m
Maximum width 4,8 m
Minimum width
Extension + 0.5 m
Arm type
Folding, aluminium, with springs and belt
Motion angle 20° – 75°
Winding shaft size
70 mm, 78 mm
Structure colour standard white RaL 9016, other RaL colours
Pelmet Height 21 cm (+/- 0.5 cm)
Manual control Handle 150 cm, 180 cm, 220 cm, 250 cm
Electric control
Motor, motor with emergency handle, remote control,
automatic wind / sun sensor
Canopy
On request
Assembly To the facade or into the ceiling
Printing on awning On request

Non-standard dimensions are not produced.

Cloth selection

We offer a wide ranging palette of DICKSON fabrics

  • The special CLEANGUARD surface treatment uses an ultramodern system of protection of awning fabrics -NPP (Nanotechnology Protection Process). This technology makes the fabric maximum waterproof and protects the fabric against water and dirt in the long-term,
  • Elimination up to 95 % of sun solar radiation / heat,
  • Stable colours
  • SUNACRYL fibre and the solution dyed acrylic technology used ensures high colour stability of the awning fabrics
  • Awning fabrics are not toxic so are harmless to health and the environmentally friendly character is guaranteed,
  • We provide a guarantee for resistance to mould and stability of colours (min. 7/8 stability of colours after exposure to ultraviolet beams and weather conditions according to standards NF ISO 105 B02 and NF EN ISO 105 B04) for all fabrics during 10 years.

Pattern chart of fabrics

show all fabric patterns hide extended selection of fabric patterns

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

Cloth selection

Awning cloths are available in various decorations in 100% acrylic material.
All cloths are impregnated with TEFLON or SCOTCHGUARD, which ensures complete protection and gives the cloth complete water resistance. In addition, the impregnation prevents dirt penetrating the material.

Assembly options

  • on the wall
  • into the ceiling
  • into the roof
