Horizontal blinds

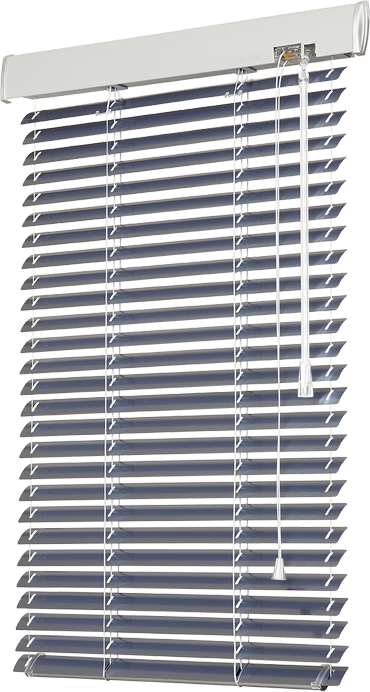

System 25 blinds

The variable System 25 window blinds can be fully adapted to your requirements. The unique system offers four control options, a wide range of colours and a sophisticated functional design. Select the colour shade of the lamellas and from one of 15 available colours for the upper cover profile! (It is possible to coordinate everything with wood imitation). The rounded cover profile compared with Isolite plus blinds is optional; therefore, the blind can be selected with or without the upper cover profile.

The System 25 interior window blind is also available in
non-standard versions – to fulfil your wishes and requirements.

I am interested in this product

Advantages

Benefits & advantages

construction with and without upper profile cover
variable system for opening – cord, chain, level, engine
non-typical variant for bevel and broken windows
in between glass panes option
colour of the profile according to the RAL sampler or coated in renolite

Get

Inspiration

Explore

Colour variants

Basic colours profiles

other colours

Colour at extra charge profiles

Colour performance Renolit at extra charge profiles

Colour performance Isotra System Decoral 1 at extra charge profiles

other colours

Colour performance Isotra System Decoral 2 at extra charge profiles

Basic colours lamella dimension 25 mm × 0,18 mm

other colours

Basic colours lamella dimension 25 mm × 0,21 mm

other colours

* standard for SYSTEM 25M only, surcharge for others

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

Method of control

SYSTEM 25S, 25SM – cord – wand
Cord for raise and lower (color equal with slat color), hexagonal wand for slats tilting (transparent color).

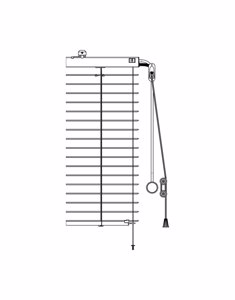

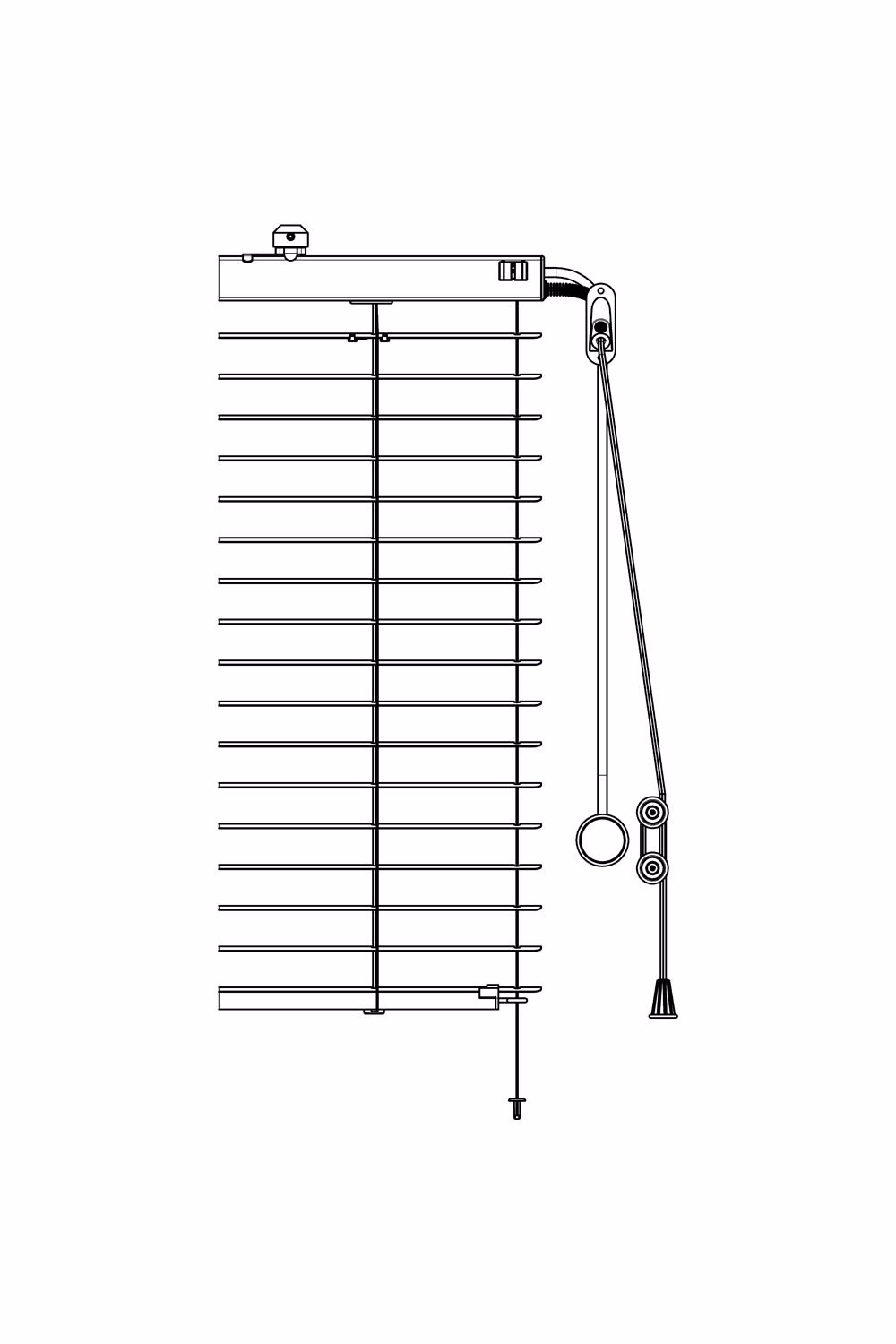

SYSTEM 25SW – In-between glass blind with turn-button for slats tilting..
Tilt knob for lamellas tilting.
SYSTEM 25R – chain
Chain 3.2mm diameter for raise, lower and tilt (color equal with slat color).
SYSTEM 25K – handle
For raise, lower and tilt (grey color).
SYSTEM 25L (large) – chain
Chain 4.5mm diameter for raise, lower and tilt (color equal with slat color).
SYSTEM 25M – motor
Electric motor: switch for raise, lower and tilt (white color)
Remote control for raise, lower and tilt (white, silver, black, blue-white color options)
Plastic components in the colour of the profile. Ladder and cord which are colour coordinated with the lamella.

The atypical version is produced only in SYSTEM 25S, 25SM and 25SW

Guaranteed dimensions

	min. width (mm)	max. width (mm)	max. height (mm)	max. guaranteed area
SYSTEM 25S	300	2000	2200	2,5 m²
SYSTEM 25SW	300	2000	2200	2,5 m²
SYSTEM 25R	300	2000	2200	2,5 m²
SYSTEM 25K	400	2000	2200	2,5 m²
SYSTEM 25L	400	2000	2200	4,4 m²
SYSTEM 25M	400 (handle, engine textile tape), 600 (engine cord))	2000	2200	4,4 m²

Technical parameters

System 25 is a blind that comes in two different constructions (with or without the covered profile) and four different control options. It has a unique and versatile assembly.

	Upper profile	Lower profile	Covered profile (variant)**	Lamella			Side guilding	Brake
	Upper profile	Lower profile	Covered profile (variant)**	Construction	Width (mm)	Thickness	Side guilding	Brake
Business name	SR 08 / 1	SR 16 / 1	IL 201	whole shading	25	0,21 / 0,18	silon Ø 0,8 mm	standard
Dimensions (mm)	25 × 24 × 0,4	25 × 10 × 0,4	10 × 49 × 0,9	standard	25	0,21 / 0,18	silon Ø 1,2 mm
Material	Fe	Fe	Al	standard	16	0,21	steel wire Ø 0,9 mm
Cross-section
Colour	Standard: RAL 1002 Beige RAL 1015 Ivory RAL 8003 Golden oak RAL 8004 Chestnut RAL 8014 Brown RAL 9006 Silver RAL 9010 White RAL 1013 pearl white* RAL 7016 anthracite gray RAL 7047 light gray* RAL 9005 black Extra Charges: Other RAL Renolit - according to actual sampler Isotra System Decoral - according to actual sampler			according to the actual sampler			silon – clear steel wire – grey

**not applicable for SYSTEM 25L
Plastic components in the colour of the profile.
Ladder and cord which are colour coordinated with the lamella.

Assembly options

for window hole (ceiling) – only the pro version without the covering profile
in front of the window hole (wall) – for version with the cover profile
for window frame

Height of roll-up

Height of packet
Height of blind (mm)	Lamella 25	Lamella 25 CS*
500	55 mm	60 mm
1000	65 mm	70 mm
1500	75 mm	80 mm
2000	95 mm	100 mm
2500	115 mm	120 mm

Height of the packet = height of the lowered blind, including the upper profile.
CS* = whole-shading construction.
Hereby stated values are only indicative.

Notice

Notice for slats in wood colour imitations
Please note that when selecting slats in any wood colour imitation (793-797, 81-87), different bevelled stripes may be visible at a certain light refraction. This effect must be taken into account in advance. Complaints made for this reason will not be considered.

Download

Control and maintenance manual

Leaflet Interior blinds

Leaflet Sun protection systems

Measurement and assembly manual

Measurement and assembly manual - horizontal semi-windows blinds

Order form System 25K

Order form System 25L

Order form System 25M

Order form System 25R

Order form System 25S

Order form System 25SC

Order form System 25SM

Order form System 25SW

Technical manual
