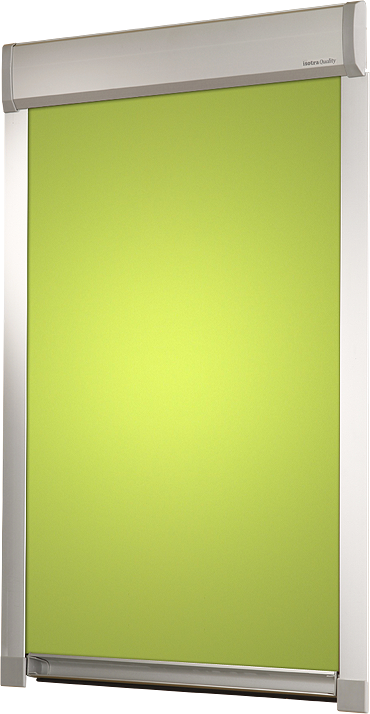

R-lite roller blinds for roof windows

Roller blinds for R-Lite roof windows are attractive fabric interior roller blinds recommended for all types of roof windows. A high-quality construction with aluminium leading bars combined with a suitably selected fabric ensures fluent regulation of light. You can select fabrics with or without patterns with the fully shading effect of fabric that partially penetrates the light.

The roller blinds for roof windows in children’s rooms can be fitted with fabrics with various cheery motifs designed especially for children. Some types of fabrics are available with special fireproof treatment. For roller blinds for high roof windows, a control bar can be used for your ease of use.

Advantages and benefits

  • perfect shading of the interior
  • for all types of roof windows
  • leading bars prevent light penetrating the sides of the window
  • profiles and leading bars from satin anodized aluminium or in white color
  • easy control using the bar for difficult-to-access windows.

References

Method of control

  • manually – the blinds are lowered and lifted using the lower profile. The control bar can be used to control difficult to access blinds.

Guaranteed dimensions

  • minimum width: 300 mm
  • maximum width: 1,200 mm
  • maximum height: 1,400 mm
  • maximum area: 1.5 m2
  • Non-standard dimensions are not produced.

Technical parameters


UPPER PROFILE Lower profile Leading bar Brake assembly
Business name
Dimensions (mm)
Material
LB 03
48,8 × 65,3 × 1,2
Al
3505
LB 06
30 × 24 × 1
Al
3506
LB 04
29,7 × 26,5 × 1
Al
3507

cord ø 1.4mm
serves as brake

into the window wing
roof window
Colour elox, 9003 white white

Plastic components in the RAL 7040, RAL 9003 colour.

Profile colour

4317

  • elox elox
  • RAL 9003 RAL 9003

Cloth selection

Fabrics for roof windows are available in the material construction:

  • 100% PES
  • 100% PES Satin
  • 100% Trevira CS
  • Glass fibre-PVC

Pattern chart of fabrics

show all fabric patterns hide extended selection of fabric patterns

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

Assembly options

  • into the window wing roof window
