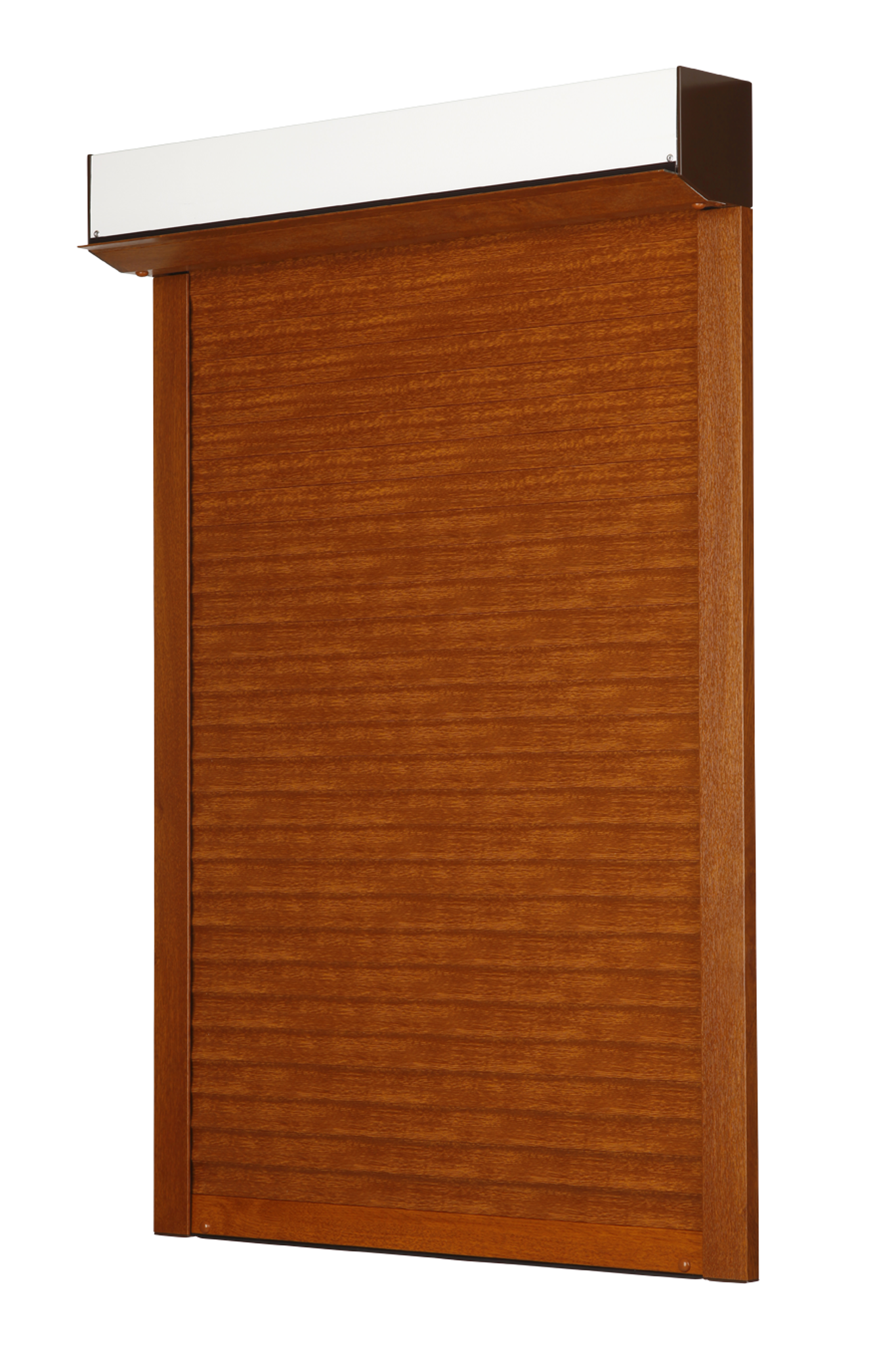

Vivera roller blinds for external use

Vivera is a popular standard type of blind for external use.  The major advantage of this external roller blind is the high level of shading, its ability to decrease the level of external noise and the high thermo-regulation effect.  Plastic lamellas filled with PUR foam when closed, form a self-contained area that completely shades the interior and creates a difficult to pass obstacle in the case of intruders. Vivera external roller blinds are designed for additional assembly (i.e. during heat insulation or reconstruction of the house) or under the heat-insulation system (under-plaster option). A practical addition to an exterior roller blind is the insect screen which can be separately controlled by the roller blind (Vivera-Sectra) control.

The exterior shading technology creates an optimal environment in terms of lighting and thermal conditions and is a key part of the construction in terms of energy savings.  In the traditional concept, exterior blinds fulfil the shading and security function, whereas in the non-traditional concept, they are an architectonic element of administrative buildings and adorn family houses.

Advantages and benefits

  • high level of shading and decrease outside noise levels
  • thermoregulation and protective effect
  • electric control option
  • it is recommended for additional assembly on the window frame or the façade
  • under-plaster option is recommended under the façade or the heat-insulation system
  • aluminium lamellas filled with PUR foam or plastic lamellas
  • option of combining a Vivera-Sectra integrated insect screen
  • guaranteed area of up to 8,5 m2.

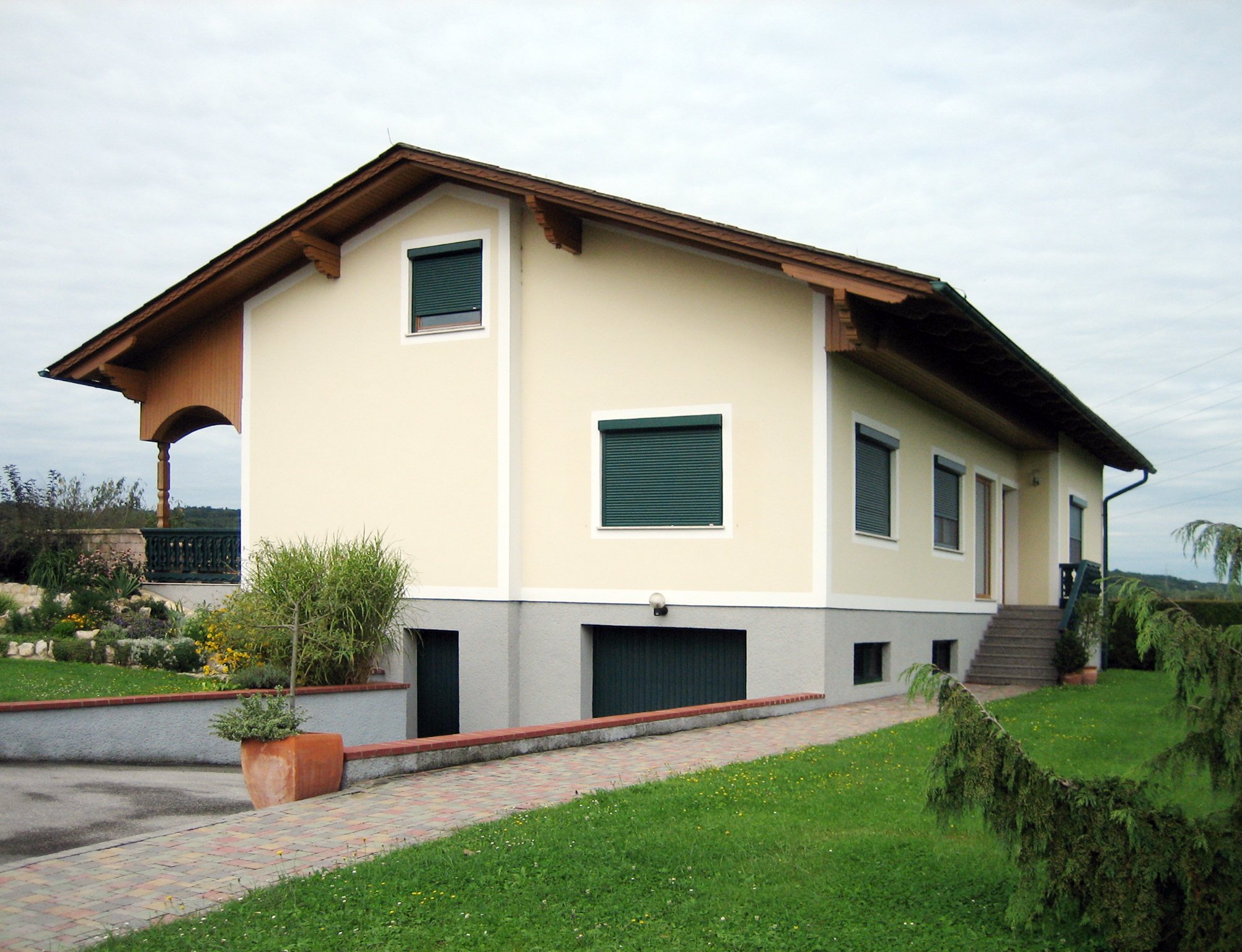

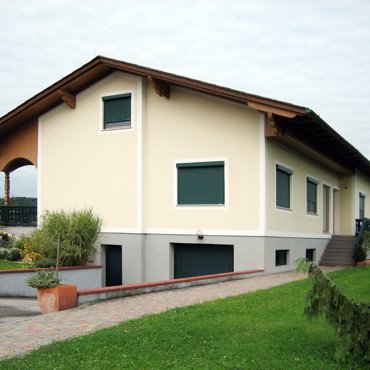

References

Manner of control

  • manually – by strip (strip roller), cord (cord roller), handle, roller with handle, spring
  • by electric drive – switch or remote control unit.

Guaranteed Vivera dimensions

  • minimum width: 450 mm (motor), 500 mm (handle)
  • maximum width: 4,000 mm
  • maximum height: 4,3600 mm
  • maximum area: 8,5 m2

Guaranteed Vivera-Sectra dimensions (with built-in screen)

  • minimum width: 450 mm (motor), 500 mm (handle)
  • maximum width: 1,800 mm
  • maximum height: 2,500 mm
  • maximum area: 3 m2 (downwind side) / 2 m2 (upwind)

Non-standard dimensions for bevel and broken windows are not produced.

Technical parameters

Blind lamellas can have different thicknesses from PVC or Al material.

Lamella M317 M328 RM37 MY442
Al
6560
Al
6561
PVC
6563
Al
6562
Technical data (mm)
cover height 37 37 36,6 42
thickness 7,6 7,8 7,8 9,3
thickness of material 0,3 0,28 0,7 0,3
weight 2,8 Kg/m2 2,6 Kg/m2 3,6 Kg/m2 2,85 Kg/m2
maximum width 2900 2700 2000 4000
maximum area 6,5 m2 5,8 m2 2,9 m2 8,5 m2

The size of the box and the diameter of the shaft are stated on the basis of the height of the roller blind.
Available box sizes: 125, 138, 150, 165, 180, 205
Diameter of the shaft: 40 mm, 60 mm

Basic colours for slats

Al lamella 317 Al lamella 328 Plastic lamella RM37 Al lamella MY442
lamella box guiding rail end rail lamella box guiding rail end rail lamella box guiding rail end rail lamella box guiding rail end rail
01 white
02 grey
03 dark brown
04 beige
07 natural
13 moss green
22 golden oak
27 creamy white
38 anthracite grey
84 ivory
01 white
03 dark brown
RAL 9006
RAL 7016
01 white
03 dark brown
RAL 9006
RAL 7016
01 white
03 dark brown
RAL 9006
RAL 7016
01 white
02 grey
03 dark brown
04 beige
07 natural
13 moss green
22 golden oak
27 creamy white
30 Jamaica brown
35 sand beige
38 anthracite grey
84 ivory
86 nut
01 white
03 dark brown
RAL 9006
RAL 7016
01 white
03 dark brown
RAL 9006
RAL 7016
01 white
03 dark brown
RAL 9006
RAL 7016
01 white 01 white 01 white 01 white
03 dark brown
01 white
03 dark brown
07 natural
22 golden oak
38 anthracite grey
01 white
03 dark brown
RAL 9006
RAL 7016
01 white
03 dark brown
RAL 9006
RAL 7016
01 white
03 dark brown
RAL 9006
RAL 7016

Basic colours version for slats

  • 01 white 01 white
  • 02 grey 02 grey
  • 03 dark brown 03 dark brown
  • 04 beige 04 beige
  • 07 natural 07 natural
  • 13 moss green 13 moss green
  • 22 golden oak 22 golden oak
  • 23 light grey 23 light grey
  • 27 creamy white 27 creamy white
  • 30 Jamaica brown 30 Jamaica brown
  • 35 sand beige 35 sand beige
  • 38 anthracite grey 38 anthracite grey
  • 84 ivory 84 ivory
  • 86 nutt 86 nutt
  • RAL 7016 RAL 7016
  • RAL 9006 RAL 9006

Colour version for an extra charge (lamella)

Al lamella 317 Al lamella 328 Plastic lamella RM37 Al lamella MY442
05 dark beige
11 oak
12 teak
14 purplish red
28 fir green
37 velvet grey
39 steel blue
85 aluminium grey
87 steel imitation
X  other (consultation with SR is necessary)
81 mahagony
82 irish oak
X other (consultation with SR is necessary)
X other (consultation with SR is necessary) X other (consultation with SR is necessary)
  • 05 dark beige 05 dark beige
  • 11 oak 11 oak
  • 12 tea 12 tea
  • 14 purplish red 14 purplish red
  • 28 fir green 28 fir green
  • 37 velvet grey 37 velvet grey
  • 81 mahagon 81 mahagon
  • 82 irish oak 82 irish oak
  • 85 aluminium 85 aluminium
  • 87 grey 87 grey

Basic colour version (box, guiding rail, end rail)

  • RAL 8014 RAL 8014
  • RAL 9003 RAL 9003
  • RAL 7016 RAL 7016
  • RAL 9006 RAL 9006

Colour performance at extra charge (cover box, guiding rail, end rail)

  • Renolit 3069 Renolit 3069
  • Renolit 3152 Renolit 3152
  • Renolit 2052 Renolit 2052
  • Renolit 2178 Renolit 2178
  • Renolit 2065 Renolit 2065
  • Renolit 2179 Renolit 2179

Colour performance Isotra System Decoral 1 at extra charge (cover box, guiding rail)

  • ISD110 ISD110
  • ISD120 ISD120
  • ISD130 ISD130
  • ISD140 ISD140
  • ISD150 ISD150
  • ISD160 ISD160
  • ISD210 ISD210
  • ISD220 ISD220
  • ISD230 ISD230
  • ISD310 ISD310
  • ISD152 ISD152
  • ISD154 ISD154
  • ISD200 ISD200
  • ISD212 ISD212
  • ISD214 ISD214
  • ISD222 ISD222

Colour performance Isotra System Decoral 2 at extra charge (cover box, guiding rail)

  • ISD500 ISD500
  • ISD510 ISD510
  • ISD600 ISD600
  • ISD610 ISD610
  • ISD620 ISD620
  • ISD630 ISD630
  • ISD640 ISD640
  • ISD700 ISD700

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

Assembly options

  • on the interior or exterior window frame
  • on the window frame under the façade or heat insulation (for under-plaster option)
  • into the Porotherm lintel (for under-plaster option)

It is necessary to consider assembly into a lintel in the plans for a family house.
