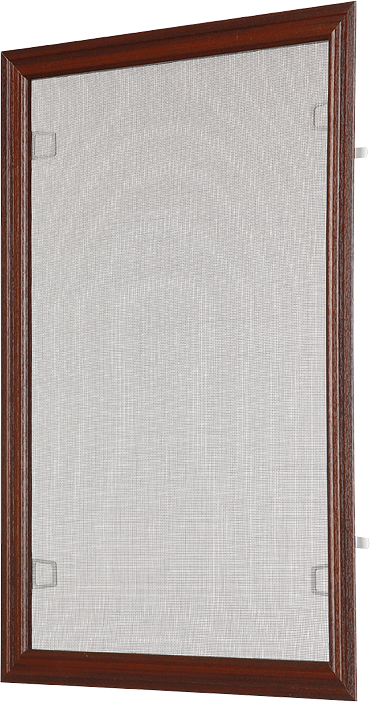

Insect window screens - Type C

How to successfully combat flying insects?  A combination of a suitable interior and exterior shading technology with an insect screen. Type C screens rank among the group of window screens where assembly does not require any intervention into the window frame and can be easily attached to and dismantled from the window frame using rotary clamps.  Individual types of C screens differ by the form and size of the profile.

If you have windows without drip moulding or non-standard windows, any type C screen is the ideal solution.  The fixed aluminium frame on the screen can be in wood imitation, coated in Renolite foil or in any RAL colour.

Advantages and benefits

  • aluminium frame
  • assembly does not require any intervention into the window frame
  • recommended for windows without drip moulding
  • the colour of the frame is according to the RAL sampler, in wood imitation or coated in Renolite
  • option of a non-standard version for type C1 and C2 screens.

References

Guaranteed dimensions

  • minimum width: 300 mm
  • maximum width: 2000 mm
  • minimum height: 300 mm
  • maximum height: 2000 mm
  • maximum area: 3,6 m2
  • note: aluminium reinforcement is delivered from the width/height of 1401mm
    Non-standard dimensions are produced only for screens C1 and C2.

Technical parameters – C1


Frame Max.guaranteed dimensions Method of fixation Number of assembly clamps Size of clamps(mm) Corner Screen
internal external grey black reinforced white (up to the width 160cm)
Business name Dimensions (mm) Material
SC 101
31 × 12
Al
7298
3,6 m2
rotary clamp 4/6* 15, 17, 18, 20, 22, 24, 26, 28, 30, 32
Yes Yes Yes Yes Yes Yes
Colour RAL 9003 white (double sided)
RAL 8019 brown (double sided)
RAL 7016 anthracite gray (double-sided)
other RAL (double sided)
Renolite (single sided)

Renolit 1192 Oregon
Renolit 2052 Dark oak
Renolit 2065 Mahagoni
Renolit 2178 Golden oak
Renolit 2179 Nut
Renolit 3042 Sorrento balsamico
Renolit 3043 Cherry amaretto
Renolit 3069 Pine tree
Renolit 3152 Douglasie
Renolit 3211 Irish oak
Renolit 3214 Soft cherry
Renolit 4240 Winchester XA

Non-standard versions are not produced. Non-standard screens are always fitted with reinforcement and internal corners.
* Six clamps are used if it is over the height of 1 401 mm. The clamps are always allocated on the vertical sides of the screen (unless specified otherwise).
A set of rotary clamps contains: 1× right clamp, 1× left clamp, 2× rivets.
Note: aluminium reinforcement is used from the width/height of 1 200 mm.

Technical parameters – C2


Frame Max.
guaranteed dimensions
Method of fixation Number of assembly clamps Size of clamps(mm) Corner Screen
internal external Grey black reinforced white (up to the width 160 cm)
Business name Dimensions (mm) Material SC 101/1
31 × 11
Al
7299
3,6 m2
rotary clamp 4/6* 15, 17, 18, 20, 22, 24, 26, 28
Yes No Yes Yes Yes Yes
Colour RAL 9003 white (double sided)
RAL 8019 brown (double sided)
RAL 7016 anthracite gray (double-sided)
other RAL (double sided)
Renolite (single sided)

Renolit 1192 Oregon
Renolit 2052 Dark oak
Renolit 2065 Mahagoni
Renolit 2178 Golden oak
Renolit 2179 Nut
Renolit 3042 Sorrento balsamico
Renolit 3043 Cherry amaretto
Renolit 3069 Pine tree
Renolit 3152 Douglasie
Renolit 3211 Irish oak
Renolit 3214 Soft cherry
Renolit 4240 Winchester XA

Non-standard versions are not produced.
* Six clamps are used if it is over the height of 1 401 mm. The clamps are always allocated on the vertical sides of the screen (unless specified otherwise).
A set of rotary clamps contains: 1× right clamp, 1× left clamp, 2× rivets.
Aluminium reinforcement is used from the width/height of 1 200 mm.
The base for Renolite is in white and brown.

Technical parameters – C10


Frame Max.
guaranteed dimensions
Method of fixation Number of assembly clamps Size
of clamps
(mm)
Corner Screen
internal External Grey black reinforced white
(up to the width 160 cm)
Business name
Dimensions (mm)
Material
SC 601
33 × 12
Al
7301
3,6 m2 rotary clamp 4/6* 15, 17, 18, 20, 22, 24, 26, 28, 30
Yes Yes Yes Yes Yes Yes
Colour RAL 9003 white (double sided)
RAL 8019 brown (double sided)
RAL 7016 anthracite gray (double-sided)
other RAL (double sided)
wood imitation (double sided)
Renolite (single sided and double sided)

Renolit 1192 Oregon
Renolit 2052 Dark oak
Renolit 2065 Mahagoni
Renolit 2178 Golden oak
Renolit 2179 Nut
Renolit 3042 Sorrento balsamico
Renolit 3043 Cherry amaretto
Renolit 3069 Pine tree
Renolit 3152 Douglasie
Renolit 3211 Irish oak
Renolit 3214 Soft cherry
Renolit 4240 Winchester XA

Non-standard versions are not produced. Non-standard screens are always fitted with reinforcement and internal corners.
* Six clamps are used if it is over the height of 1 401 mm. The clamps are always allocated on the vertical sides of the screen (unless specified otherwise).
A set of rotary clamps contains: 1x right clamp, 1× left clamp, 2× rivets.
Note: aluminium reinforcement is used from the width / height of 1 200 mm.

Technical parameters – C11


Frame Max.
guaranteed dimensions
Method of fixation Number of assembly clamps Size
of clamps(mm)
Corner Screen
internal external Grey black reinforced

white

(up to the width 160 cm)

Business name
Dimensions (mm)
Material
SC 602
37 × 11
Al
7301
3,6 m2
rotary clamp 4/6* 15, 17, 18, 20, 22, 24, 26, 28, 30
Yes No Yes Yes Yes Yes
Colour RAL 9003 white (double sided)
RAL 8019 brown (double sided)
RAL 7016 anthracite gray (double-sided)
other RAL (double sided)
Renolite (single sided)

Renolit 1192 Oregon
Renolit 2052 Dark oak
Renolit 2065 Mahagoni
Renolit 2178 Golden oak
Renolit 2179 Nut
Renolit 3042 Sorrento balsamico
Renolit 3043 Cherry amaretto
Renolit 3069 Pine tree
Renolit 3152 Douglasie
Renolit 3211 Irish oak
Renolit 3214 Soft cherry
Renolit 4240 Winchester XA

Non-standard versions are not produced.
* Six clamps are used if it is over the height of 1 401 mm. The clamps are always allocated on the vertical sides of the screen (unless specified otherwise).
A set of rotary clamps contains: 1× right clamp, 1× left clamp, 2× rivets.
Aluminium reinforcement is used from the width / height of 1 200 mm.
The base for Renolite is in white and brown.

Technical parameters – C20


Frame Max.
guaranteed dimensions
Method of fixation Number of assembly clamps Size
of clamps(mm)
Corner Screen
internal external Grey black reinforced

white

Business name
Dimensions (mm)
Material
SC 620
34 × 8
Al
7301
3,6 m2
rotary clamp 4/6* 15, 17, 19, 21, 23
Yes No Yes Yes Yes Yes
Colour RAL 9003 white (double sided)
RAL 8019 brown (double sided)
other RAL (double sided)
wood imitation (double sided)
Renolit (single sided)

Renolit 1192 Oregon
Renolit 2052 Dark oak
Renolit 2065 Mahagoni
Renolit 2178 Golden oak
Renolit 2179 Nut
Renolit 3042 Sorrento balsamico
Renolit 3043 Cherry amaretto
Renolit 3069 Pine tree
Renolit 3152 Douglasie
Renolit 3211 Irish oak
Renolit 3214 Soft cherry
Renolit 4240 Winchester XA
Non-standard versions are not produced.
* Six clamps are used if it is over the height of 1 401 mm. The clamps are always allocated on the vertical sides of the screen (unless specified otherwise).
A set of rotary clamps contains: 1x right clamp, 1× left clamp, 2× rivets.
Note: aluminium reinforcement is used from the width / height of 1 200 mm.

Colours

7330

Basic RAL colour for the frame

  • RAL 7016* RAL 7016*
  • RAL 8019 RAL 8019
  • RAL 9003 RAL 9003

* C1, C2, C10

Colour version for the frame for an extra charge

  • Renolit 1192 Renolit 1192
  • Renolit 2178 Renolit 2178
  • Renolit 2179 Renolit 2179
  • Ren. 3042* Ren. 3042*
  • Ren. 3043* Ren. 3043*
  • Renolit 3069 Renolit 3069
  • Renolit 3152 Renolit 3152
  • Renolit 3211 Renolit 3211
  • Renolit 3214 Renolit 3214
  • Renolit 2052 Renolit 2052
  • Renolit 2065 Renolit 2065
  • Renolit 4240 Renolit 4240

Colour performance Isotra System Decoral 1 at extra charge (frame profile)

  • ISD110 ISD110
  • ISD120 ISD120
  • ISD130 ISD130
  • ISD140 ISD140
  • ISD150 ISD150
  • ISD160 ISD160
  • ISD210 ISD210
  • ISD220 ISD220
  • ISD230 ISD230
  • ISD310 ISD310
  • ISD152 ISD152
  • ISD154 ISD154
  • ISD200 ISD200
  • ISD212 ISD212
  • ISD214 ISD214
  • ISD222 ISD222

Colour performance Isotra System Decoral 2 at extra charge (frame profile)

  • ISD500 ISD500
  • ISD510 ISD510
  • ISD600 ISD600
  • ISD610 ISD610
  • ISD620 ISD620
  • ISD630 ISD630
  • ISD640 ISD640
  • ISD700 ISD700

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

Other RAL colours and wood imitation – on request.
C10 and C11 screens are not produced in wood imitation.
* only for screen C2.

Assembly options

  • on the window frame using rotary clamps (without drilling)
