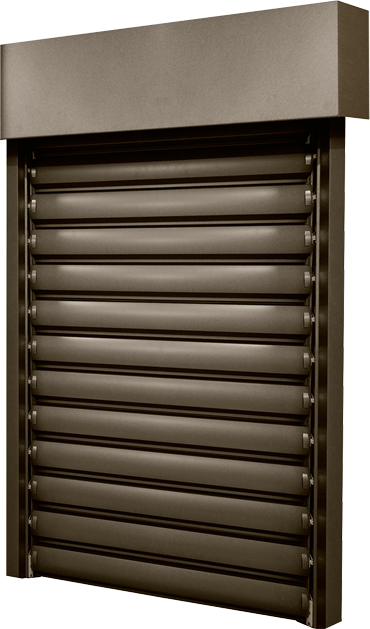

Titan 90 external horizontal blinds

TIAN 90 is the absolute top product among the exterior blinds. The chain blind TITAN 90 is the exterior blind with safety elements which protects the facility from violent intrusion. The whole system including the slat shape was newly developed by the ISOTR A development workplace. All control and safety elements are not freely accessible (they are hidden in the guiding rails), which means that in the activated andenclosed state it prevents the blind handling from outsider.

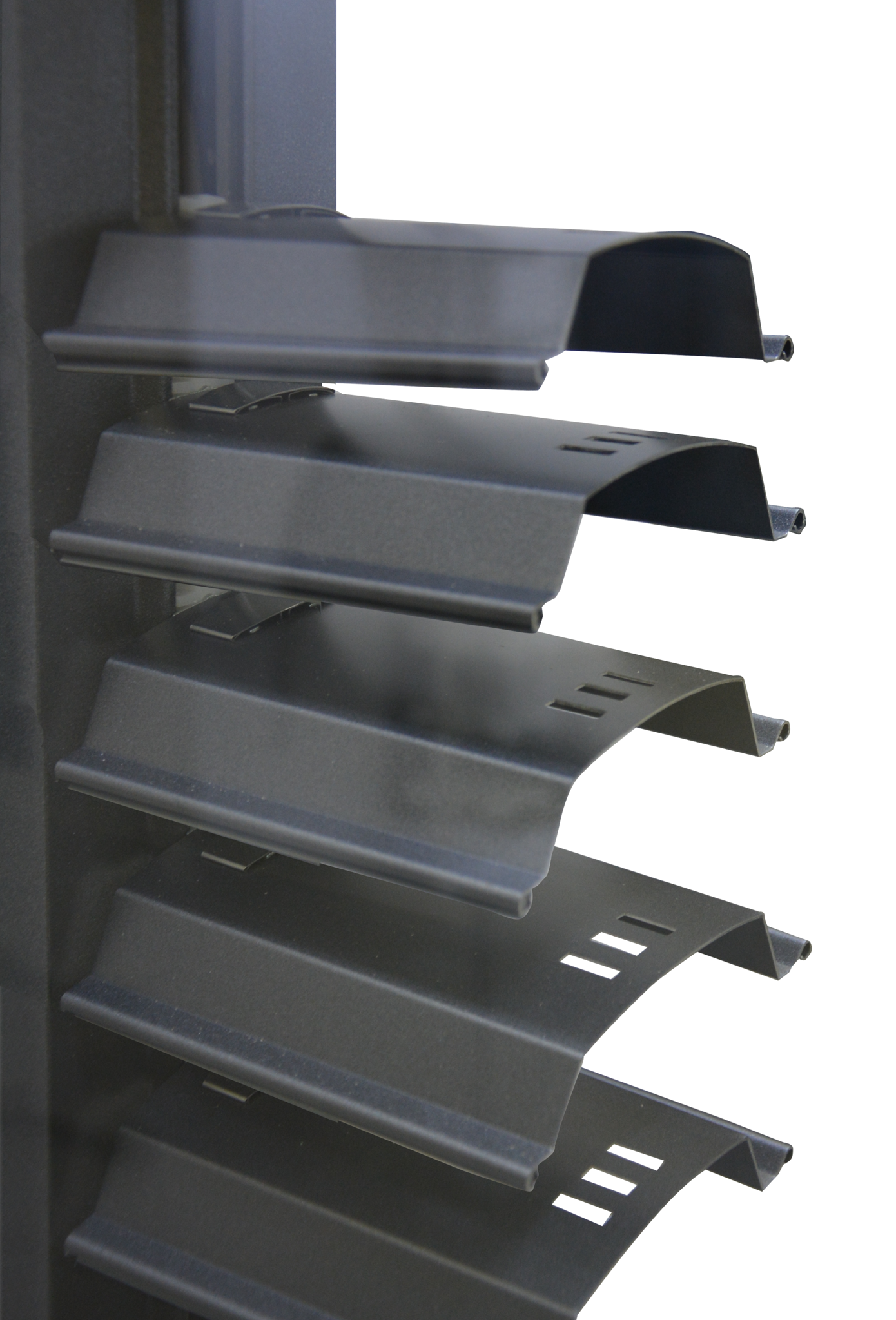

The new special shape of the slat results in the slat inter-locking in enclosed state without leaving any gaps, therefore it is impossible to manuály open the slats from outside and enter the building via a broken window. This type of slat is controlled only by motor.

If the blind hits an obstacle during the downwards movement, the rest of the rolled blind remains in the obstacle position even after removing the obstacle (no free fall), and it also prevents manual handling of the blind upwards.

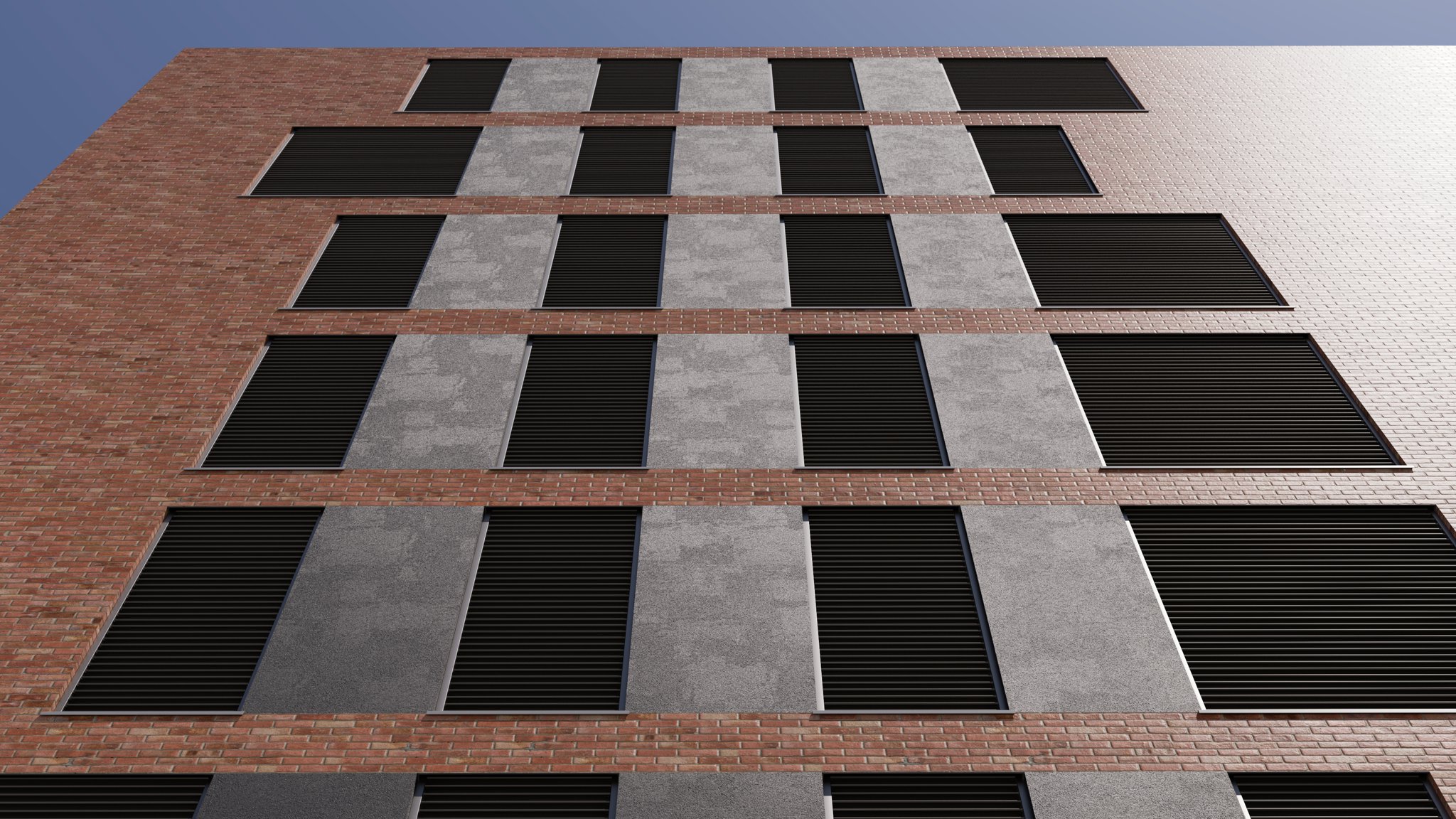

The exterior shading technology creates an optimal environment in terms of lighting and thermal conditions and is a key part of the construction in terms of energy savings. In the traditional concept, exterior shading fulfils the shading and security function, whereas in the non-traditional concept, they are an architectonic element of administrative buildings and adorn family houses.

Advantatges and benefits

  • High level of resistance to violent intrusion,
  • high level of wind resistance,
  • self-supporting blind,
  • blinds using independent system for lifting and tilting of slats,
  • packet stopping in contact with any obstacle and the rest of the rolled blind remains in the obstacle position even after removing the obstacle, no free fall,
  • easy and quick replacement of damaged slats,
  • own technologies, including component production and rolling mills,
  • modern design.

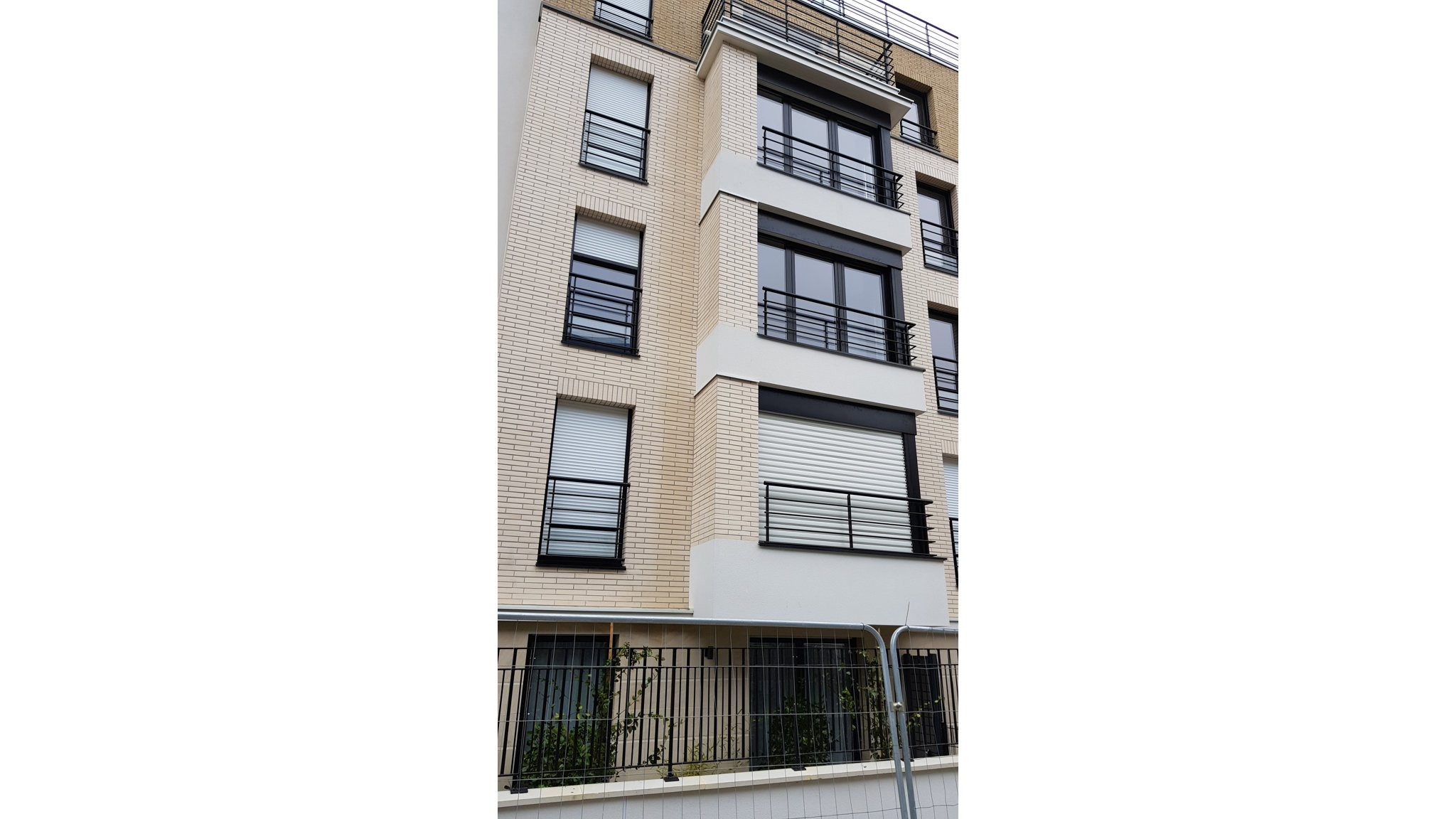

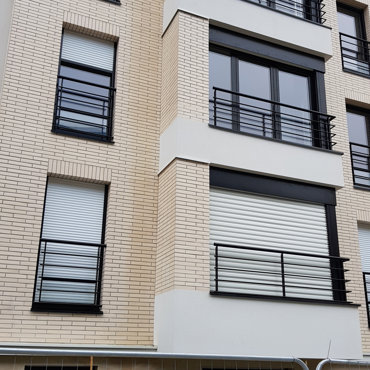

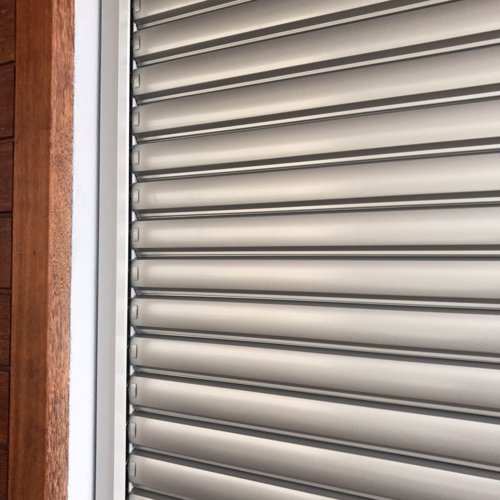

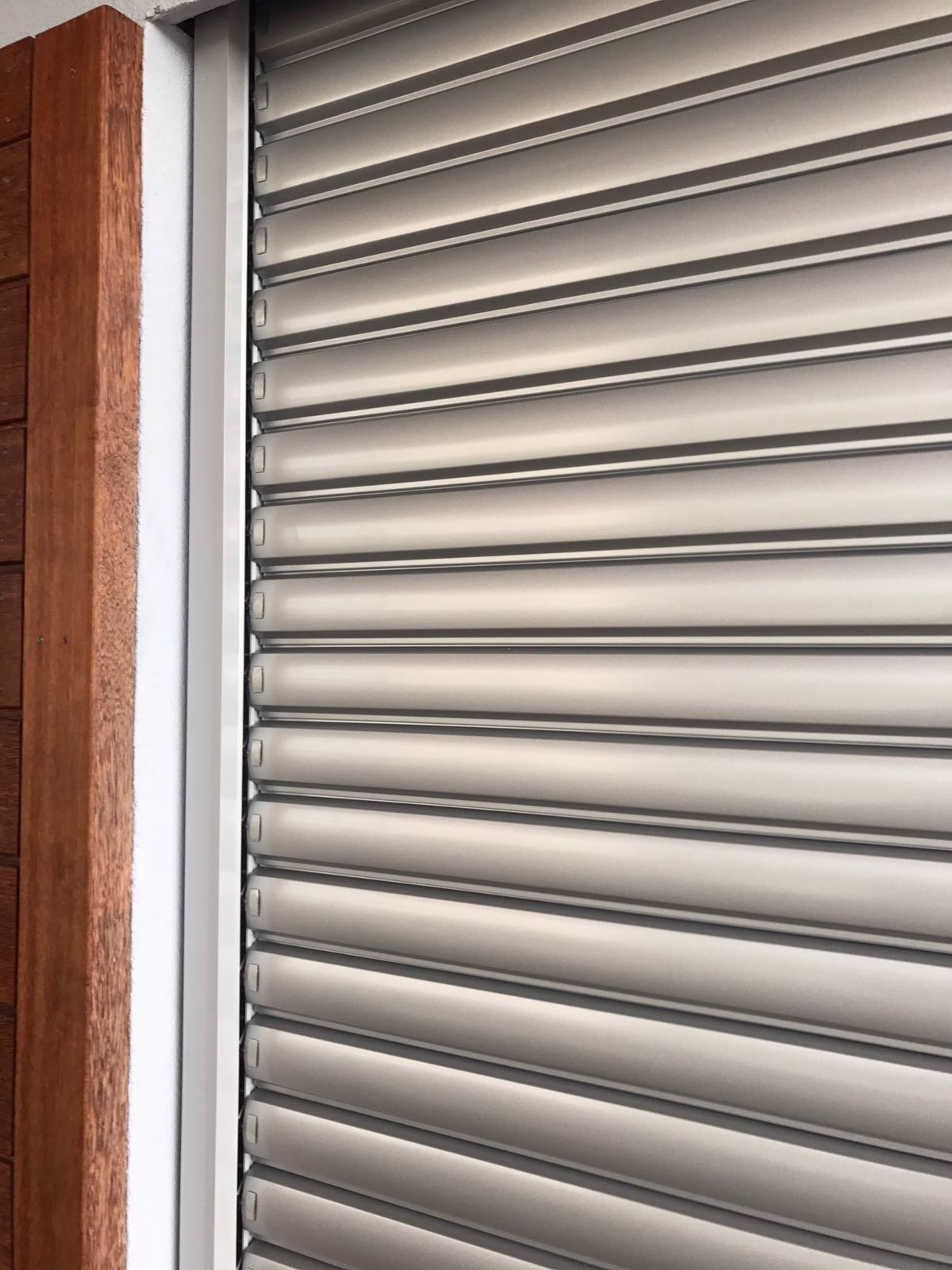

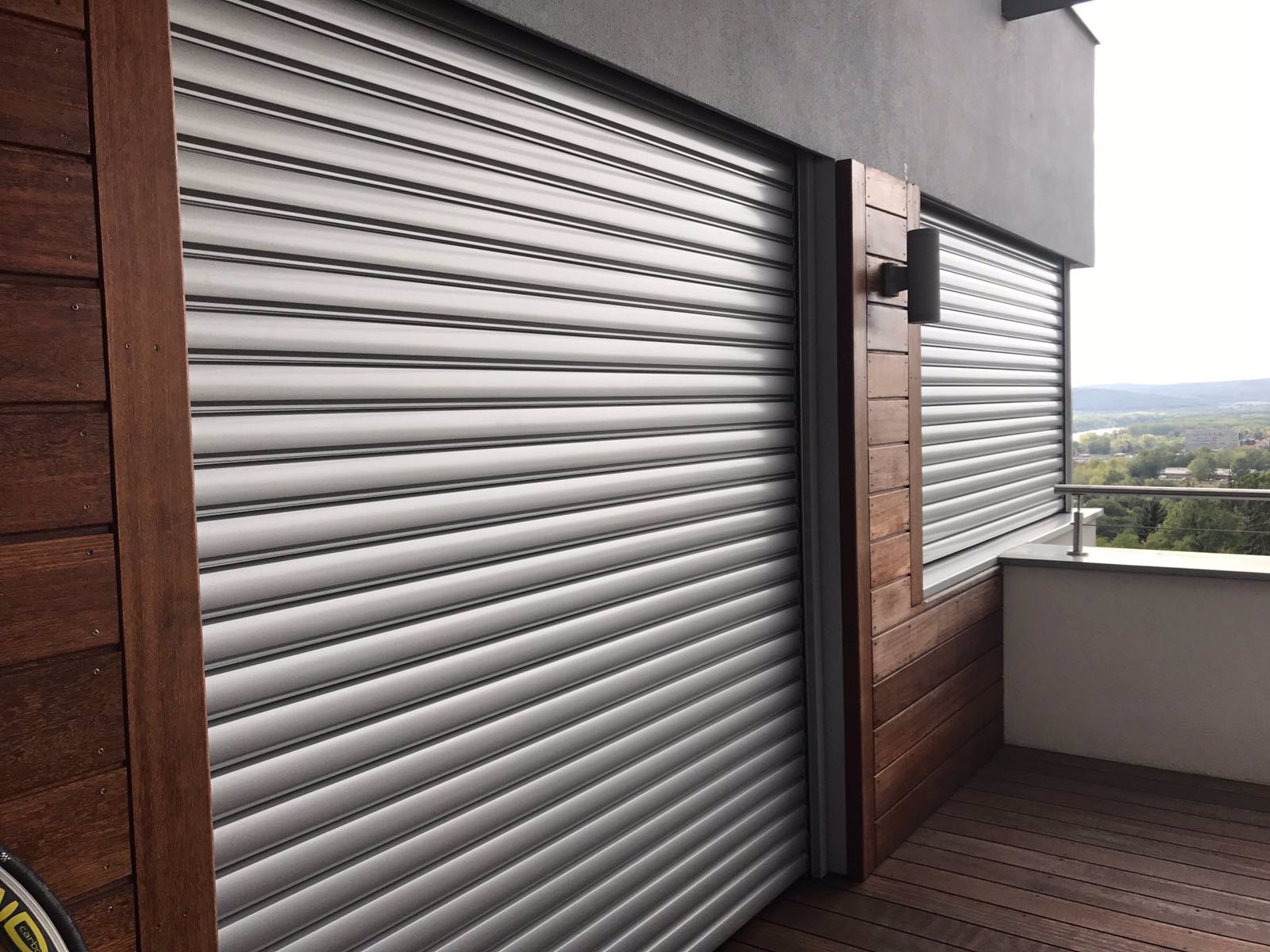

References

Manner of control

  • electrically – by remote control unit or switch

Guaranteed dimensions

  • minimum width: 600 mm
  • maximum width: 2,800 mm*
  • maximum height: 4,000 mm
  • maximum area: 8 m2

* Note: The wider the blind, the lower its wind resistance class – see Wind resistance, further down the page.

We do not make atypical designs.

Technical parameters

Drawing of Titan 90

Titan 90 Head Rail Bottom Rail Slat Guiding Channel
Commercial
Name
Dimension
(mm)
Material
P001/1
56 × 58
Fe
- - O 123/XXXX
0,60 × 122,8
Al
199541
P 018/81 PU52
80 × 49,2
Al
Color Standard:
galvanized steel plate
other RAL colors sprayed
According to current
ISOTRA a.s. scheme
Varnished in RAL colors

Colours

199540

Basic RAL colours for Titan 90 slats
  • 7048 7048
  • 9006 9006
  • 9007 9007
  • 9010 9010
  • DB 703 DB 703

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

Wind resistence

Wind resistance tests performed by Centrem stavebního inženýrství, a.s. in Zlín according to ČSN EN 13659.

Essential characteristics Performance (According to width of construction hole) Standard
Up to 2,4 m 2,4 – 4 m 4 – 4,5 m  4,5 – 5,0 m  5,0 – 5,5 m 5,5 – 6,0 m
Wind resistance 6 6 6 6 6 6 EN 13659+A1
9 9 9 9 9 9 Beaufort
Max. wind speed 88 88 88 88 88 88 km/h
