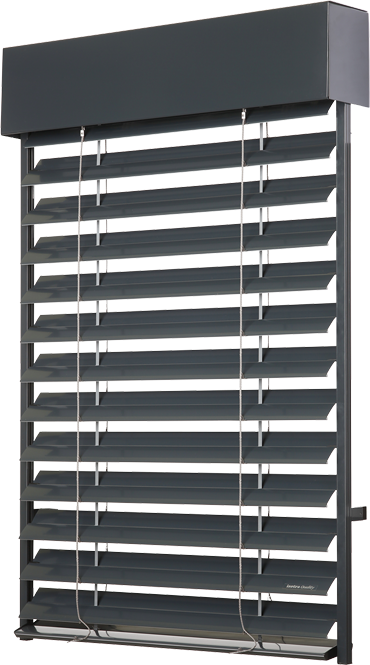

Zetta 90 external horizontal blinds

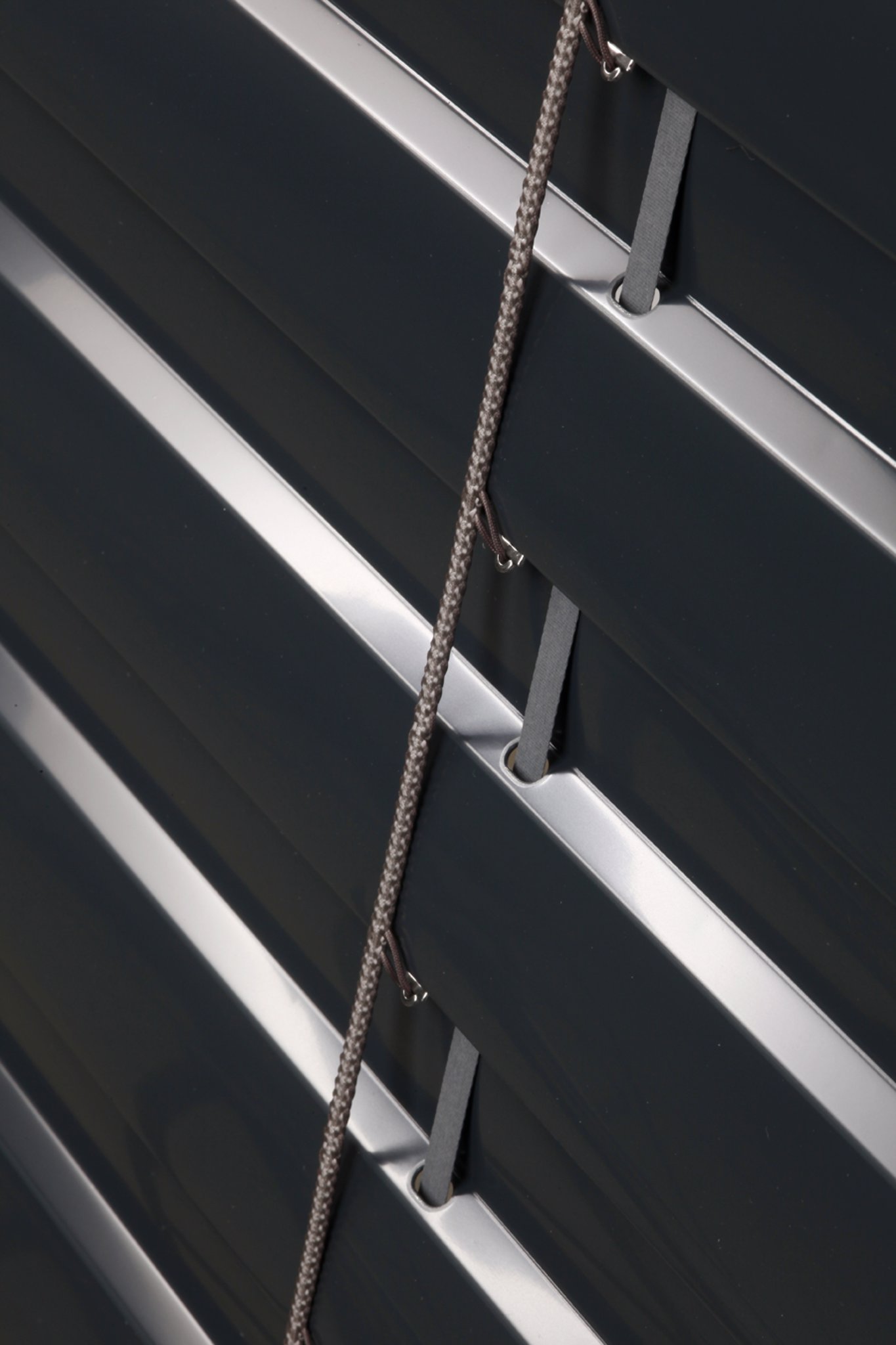

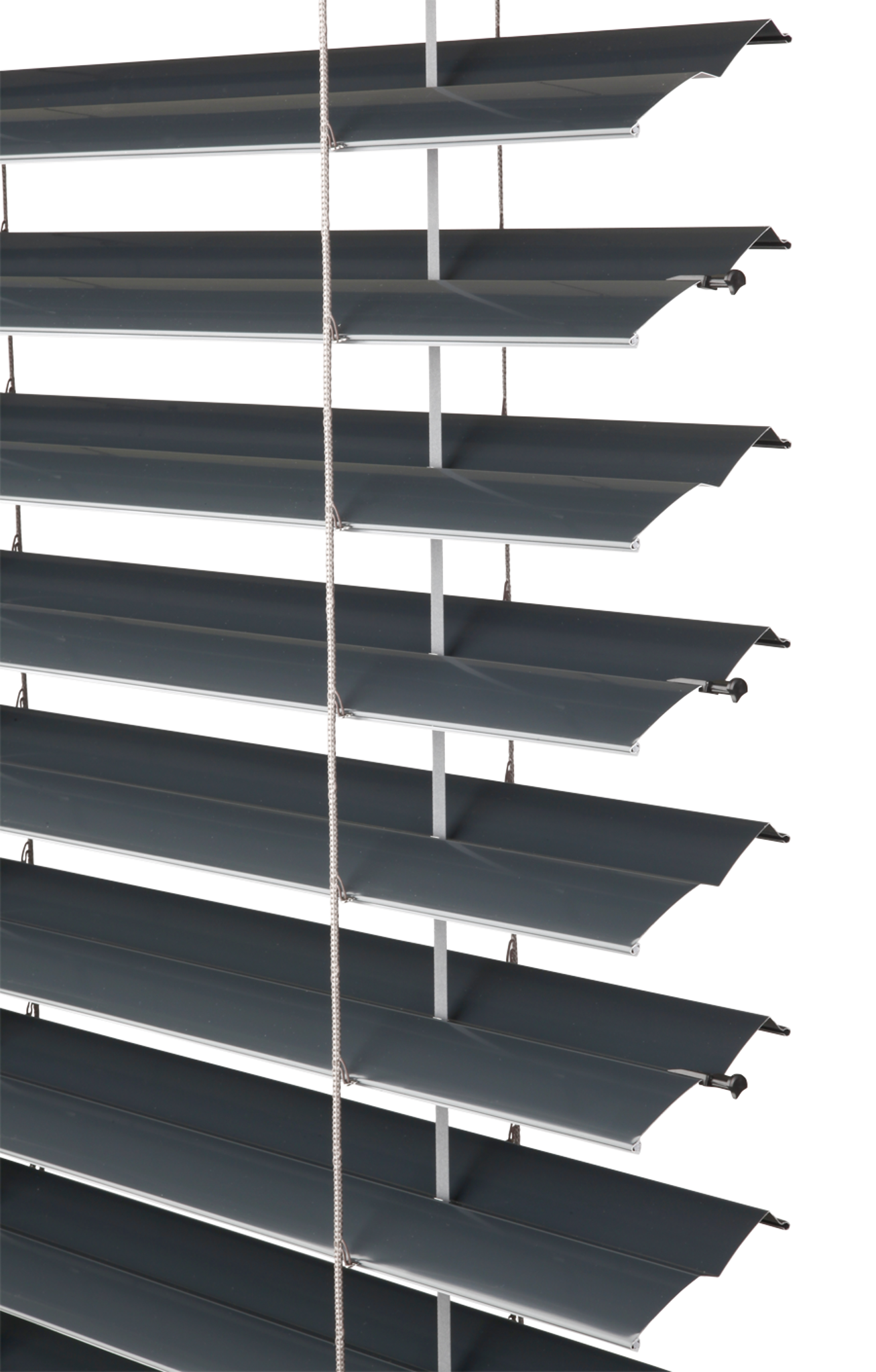

Zetta 90 exterior shading is technologically the most advantageous external window blind in the area of exterior shading technology recommended for shading family houses and administrative buildings. Lamellas with a width of 9 cm are in the form of the letter “Z”. When closed, the lamellas create a self-contained area which ensures perfect shading; the rubber impressed along the whole lamella increases the thermo-regulation of the blinds. Compared with Zetta 70 blinds, Zetta 90 external window blinds 90 are recommended for shading large areas because the lamellas give a visually larger impression. Aluminium guiding bars ensure the stability of the blind during windy conditions and function as a supporting element for securing the property against break-ins. The variability of the assembly, the modern technical design and perfect shading enables this external horizontal blind to create a unique shading element for all types of objects.

The exterior shading technology creates an optimal environment in terms of lighting and thermal conditions and is a key part of the construction in terms of energy savings. In the traditional concept, exterior shading fulfils the shading and security function, whereas in the non-traditional concept, it is an architectonic element of administrative buildings and adorns family houses.

Advantages and benefits

  • high level of shading
  • thermoregulation and protective effect
  • decrease in the level of outside noise
  • lower profile from the extruded aluminium
  • electric control option
  • decrease in the noise from the blinds (impressed rubber)
  • guaranteed area of up to 24 m2.

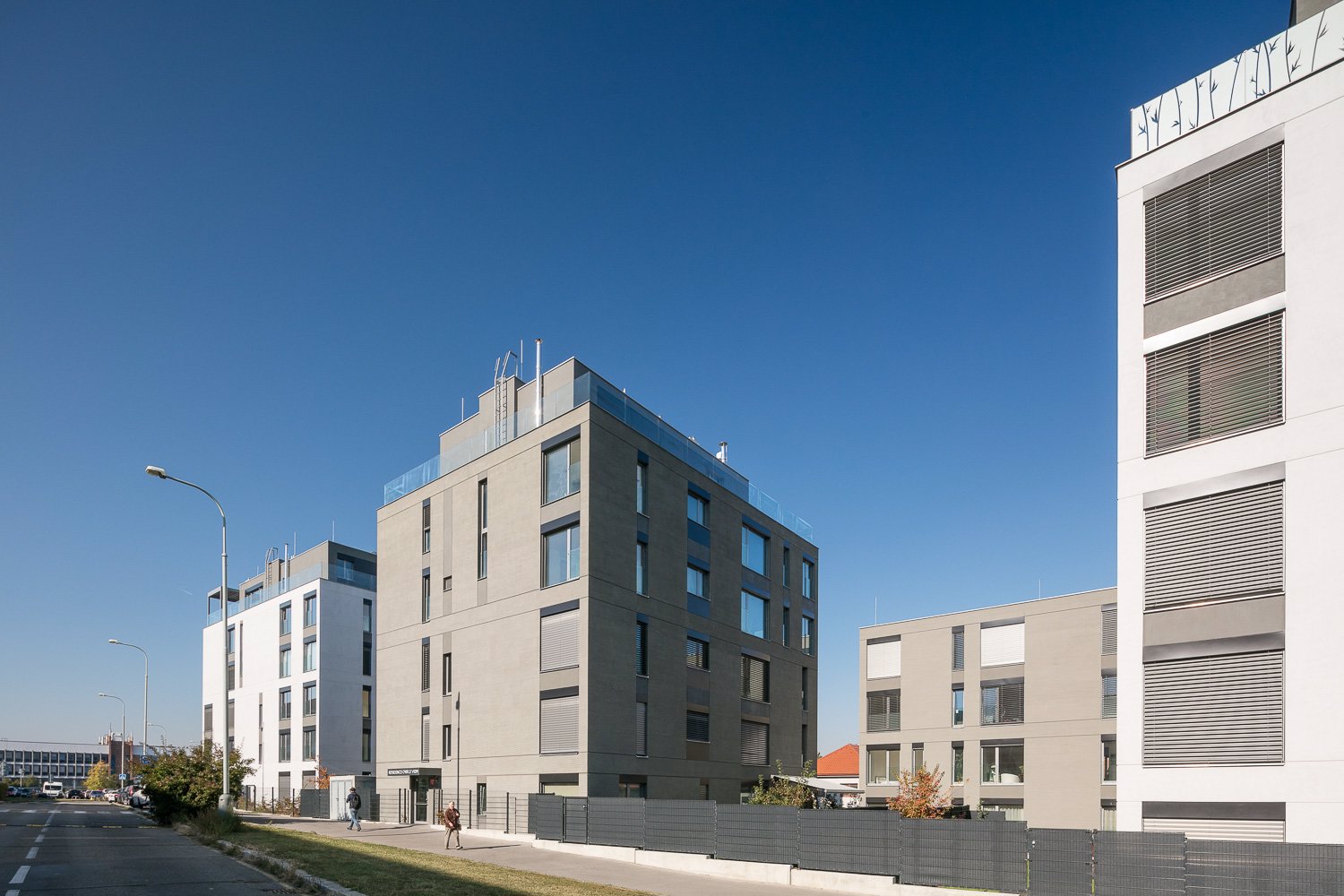

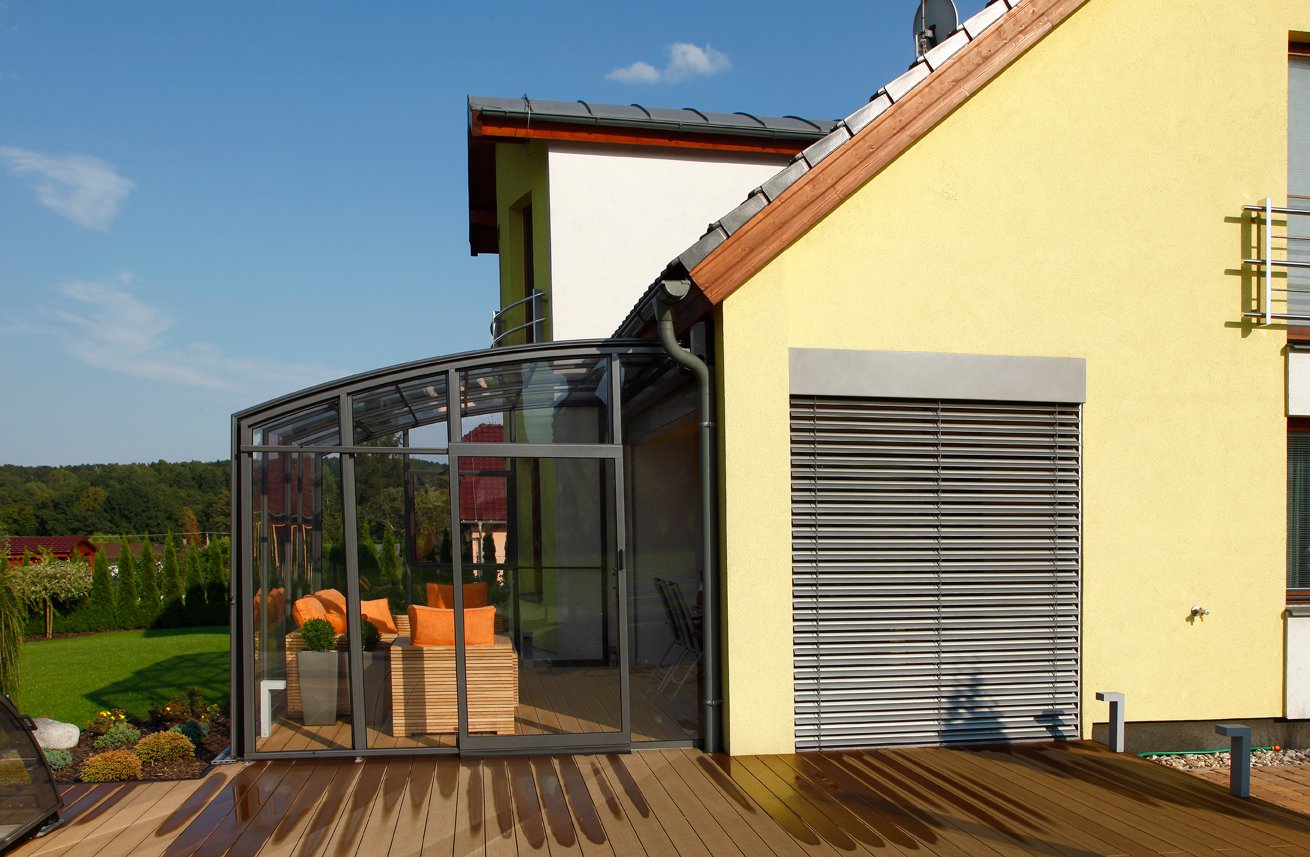

References

Manner of control

  • manually – by handle
  • electrically – by remote control unit or switch

Guaranteed dimensions

  • minimum width: 600 mm
  • maximum width: 4,000 mm (for handle control) / 6,000* mm (for motor control)
  • maximum height: 4,000 mm
  • maximum area: 8 m2 (for handle control) / 24 m2 (for motor control)

* Note: The wider the blind, the lower its wind resistance class – see Wind resistance, further down the page.

Non-standard dimensions are not produced.

Technical parameters

Drawing of Zetta 90 lamella

Upper profile Lower profile Lamella Side guiding Ladder Textile strip
Leading bar
Business name Dimensions (mm) Material P 001
56 × 58
Fe
6053
P 001/2
56 × 60
Al
6053
P 012/1
93 × 14
Al
6054
P 037
0,42 × 113
Al
6055
P 029/1
80 × 9,5
PES
P 028
8 × 0,34
PES
Colour Standard: galvanized sheet Other RAL sprayed Standard: satin anodized sheet Other RAL sprayed
According to the actual
sampler from ISOTRA a.s.
Standard: satin anodized sheet Other RAL sprayed white grey

Colours

6070

Basic RAL colours for lamellas

  • 1015 1015
  • 3000 S 3000 S
  • 5014 5014
  • 7016 7016
  • 7035 7035
  • 7038 7038
  • 7048 7048
  • 8014 8014
  • 9005 9005
  • 9006 9006
  • 9007 9007
  • 7022 7022
  • 9010 9010
  • 9016 9016
  • DB 703 DB 703
  • VSR 780 VSR 780

RAL colours for lamellas at an extra charge

  • 3004 3004
  • 5002 5002
  • 6005 6005
  • 9002 9002
  • DB 702 DB 702
  • W 210 W 210

Colour performance Isotra System Decoral 1 at extra charge (cover box, guiding rail, guiding rail holder, head + bottom rail)

  • ISD110 ISD110
  • ISD120 ISD120
  • ISD130 ISD130
  • ISD140 ISD140
  • ISD150 ISD150
  • ISD160 ISD160
  • ISD210 ISD210
  • ISD220 ISD220
  • ISD230 ISD230
  • ISD310 ISD310
  • ISD152 ISD152
  • ISD154 ISD154
  • ISD200 ISD200
  • ISD212 ISD212
  • ISD214 ISD214
  • ISD222 ISD222

Colour performance Isotra System Decoral 2 at extra charge (cover box, guiding rail, guiding rail holder, head + bottom rail)

  • ISD500 ISD500
  • ISD510 ISD510
  • ISD600 ISD600
  • ISD610 ISD610
  • ISD620 ISD620
  • ISD630 ISD630
  • ISD640 ISD640
  • ISD700 ISD700

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

Zetta 90 construction versions

Windstabil

  • Exterior blind with higher wind resistanse class

Supportive guiding wires

Blind width (mm) Supportive guiding wires
up to 1499 2 pcs (fixed to the side guiding rail)
1500 – 1999 2 pcs (fixed to the side guiding rail + 1 pc in the middle)
2000 - 3000 2 pcs (fixed to the side guiding rail + 2 pcs in the middle)

Wind resistance table

Essential characteristics Performance
Width of construction hole L (mm) L <= 2 000 2 000 < L <= 3 000 3 000 < L <= 4 000 4 000 < L <= 4 500 4 500 < L <= 5 000 5 000 < L <= 5 400
Standard EN/Beaufort 13659 Beaufort 13659 Beaufort 13659 Beaufort 13659 Beaufort 13659 Beaufort 13659 Beaufort
Wind resistance class 5 8 4 7 3 6 2 5 1 4 0 3
Max. wind speed vmax (km/h) 74 61 49 38 28 19
Max. effective height wing Hmax = 2500 mm
Width of construction hole L (mm) L <= 2 000 2 000 < L <= 3 000 3 000 < L <= 4 000 4 000 < L <= 4 500 4 500 < L <= 5 000 5 000 < L <= 5 400
Wind resistance class 4 7 3 6 2 5 1 4 0 3 0 2
Max. wind speed vmax (km/h) 61 49 38 28 19 11
Max. effective height wing Hmax = 4000 mm
Additional thermal resistance ΔR 0,08 (m2.K/W)
Total solar energy transmittance gtot 0,032 - 0,094  (according to chosen slat colour)*

Assembly options

Basic types of assembly

  • Assembly into created pocket (ceiling/wall)
  • Assembly into reveal on the window frame (ceiling/wall)
  • Assembly on expanding window profile (ceiling/wall)

Montáž do vytvořené kapsy Montáž do špalety na rám okna Montáž na rozšiřovací profil okna

These three types of assembly can be in two versions: cover box visible cover box incorporated into heat-insulation system or peripheral shell.

Specific assembly

  • Self-bearing variant (fixation of the blind on guiding bars)
  • Façade variant (round cassette; assembly on the façade)
  • Assembly into Heluz lintel (built-in guiding bars)
  • Assembly into Porotherm lintel (recommended for separate constructions)
  • The self-supporting blind with packet of slats outside the head rail

It is necessary to consider assembly into a lintel in the plans for a family house.

The self-supporting blind with packet of slats outside the head rail Bravo

Guaranteed dimensions for Zetta 90 blinds Bravo

  • minimum width: 600 / 720* mm
  • maximum width: 3,500 / 1,800* mm
  • maximum height: 2,500 mm
  • maximum area: 9 m2 / 3* m2

*design with insect screen
Note: The maximum height of blind, which the box of 210 mm is suitable for.

The self-supporting blind Viva

Guaranteed dimensions for Zetta 90 blinds Viva

  • minimum width: 600 / 720* mm
  • maximum width: 3,500 / 1,800* mm
  • maximum height: 3,000 / 2,500* mm
  • maximum area: 9 m2 (for motor control) / 3* m2

*design with insect screen
Note: The maximum height of blind, which the box of 300 mm is suitable for.

Zetta 90 into a lintel

Guaranteed dimensions for Zetta 90 blinds into a lintel

  • minimum width: 600 mm
  • maximum width: 3,850 mm
  • maximum height: 1,900 mm
  • maximum area: 8 m2

Wind resistance

Wind resistance tests performed by Centrem stavebního inženýrství, a.s. in Zlín according to ČSN EN 13659.

Guiding channel

Essential characteristics Performance
Wind resistance Width of construction hole L (mm) L <= 2 000 2 000 < L <= 3 000 3 000 < L <= 4 000 4 000 < L <= 4 500
Standard EN/Beaufort 13659 Beaufort 13659 Beaufort 13659 Beaufort 13659 Beaufort
Wind resistance class 4 7 3 6 2 5  1 4
Max. wind speed vmax (km/h)  61  49  38  28
Max. effective height wing  Hmax = 4000 mm
Width of construction hole L (mm) 4 500 < L <= 5 000 5 000 < L <= 5 500  5 500 < L <= 5 800 5 800 < L <= 6 000
Wind resistance class 3 0 2 0 0 0
Max. wind speed vmax (km/h) 19 11 5 1
Max. effective height wing Hmax = 4000 mm
Additional thermal resistance ΔR 0,08 (m2.K/W)
Total solar energy transmittance gtot 0,032 - 0,094 (according to chosen slat colour)*

Guiding rope

Essential characteristics Performance
Width of construction hole L (mm) L <= 2 000 2 000 < L <= 3 000  3 000 < L <= 4 000 4 000 < L <= 4 500 4 500 < L <= 4 800 4 800 < L <= 5 000 5 000 < L <= 6 000
Standard EN/Beaufort 13659 Beaufort 13659 Beaufort 13659 Beaufort 13659 Beaufort 13659 Beaufort 13659 Beaufort 13659 Beaufort
Wind resistance class 3     2   5 1 4 0 3 0 2 1 0 0
Max. wind speed vmax (km/h)  49  38   28  19  11 5 1
Max. effective height wing Hmax = 2500 mm
Width of construction hole L (mm) L <= 2 000 2 000 < L <= 3 000 3 000 < L <= 4 000 4 000 < L <= 4 500 4 500 < L <= 4 800  4 800 < L <= 5 000 5 000 < L <= 6 000
Wind resistance class 2 5 1 4 0 3 2 0 0 0
Max. wind speed vmax (km/h) 38     28  19 11 5 1 0
Max. effective height wing Hmax = 4000 mm
Additional thermal resistance ΔR 0,08 (m2.K/W)
Total solar energy transmittance gtot 0,032 - 0,094 (according to chosen slat colour)*
