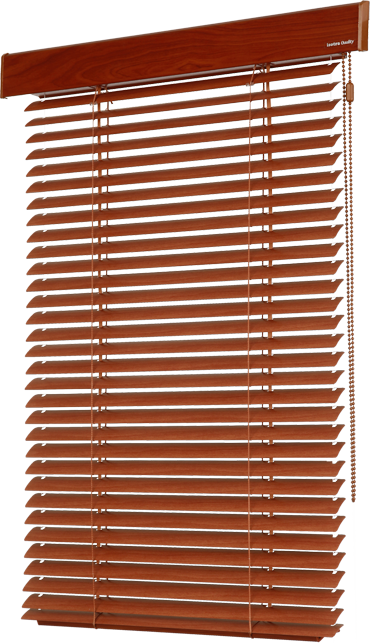

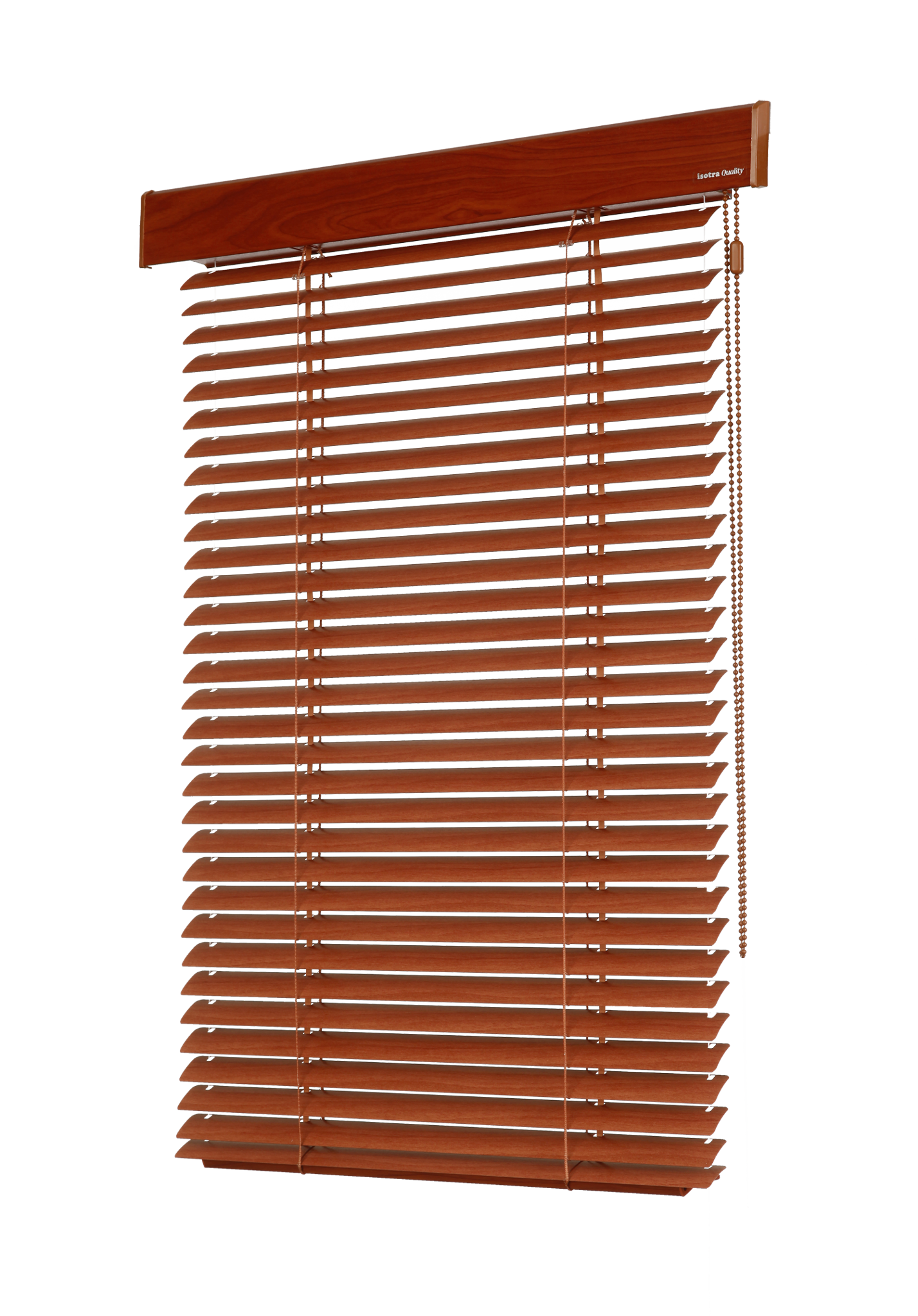

Isolite windows blinds

The charm of your interior will be completed by an Isolite interior shading that combines the modern design of the upper profile and the precise construction of each lamella.

This perfection is also supported by harmonization of the upper profile, lower profile and lamella with wood imitation.

Advantages and preferences

  • modern design
  • profiles for extruded aluminium
  • non-standard version for bevel and broken windows
  • colour of the profile according to the RAL sampler or coated in renolite
  • electric control option
  • planetary gear for easy control of above-dimensional blinds.

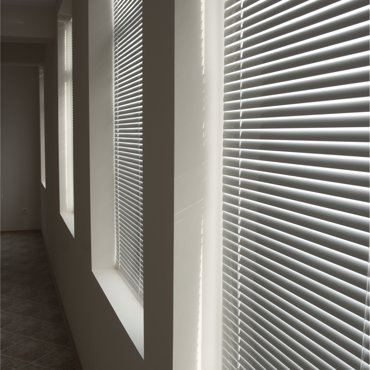

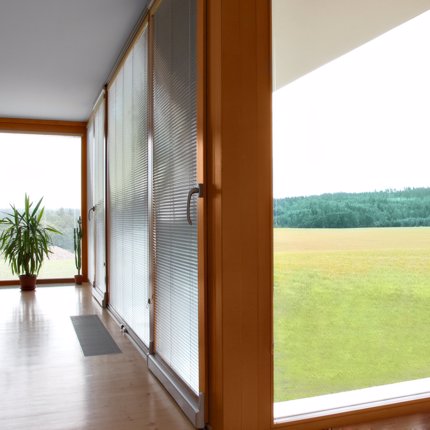

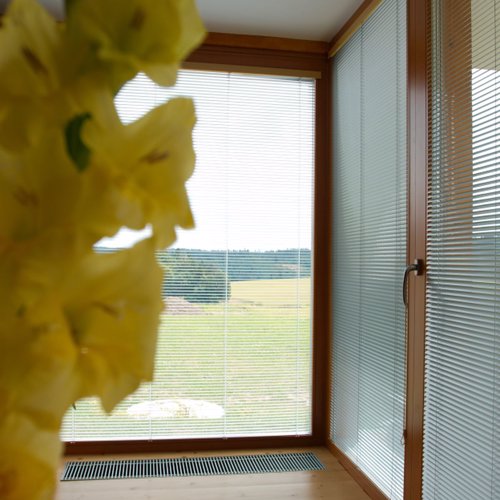

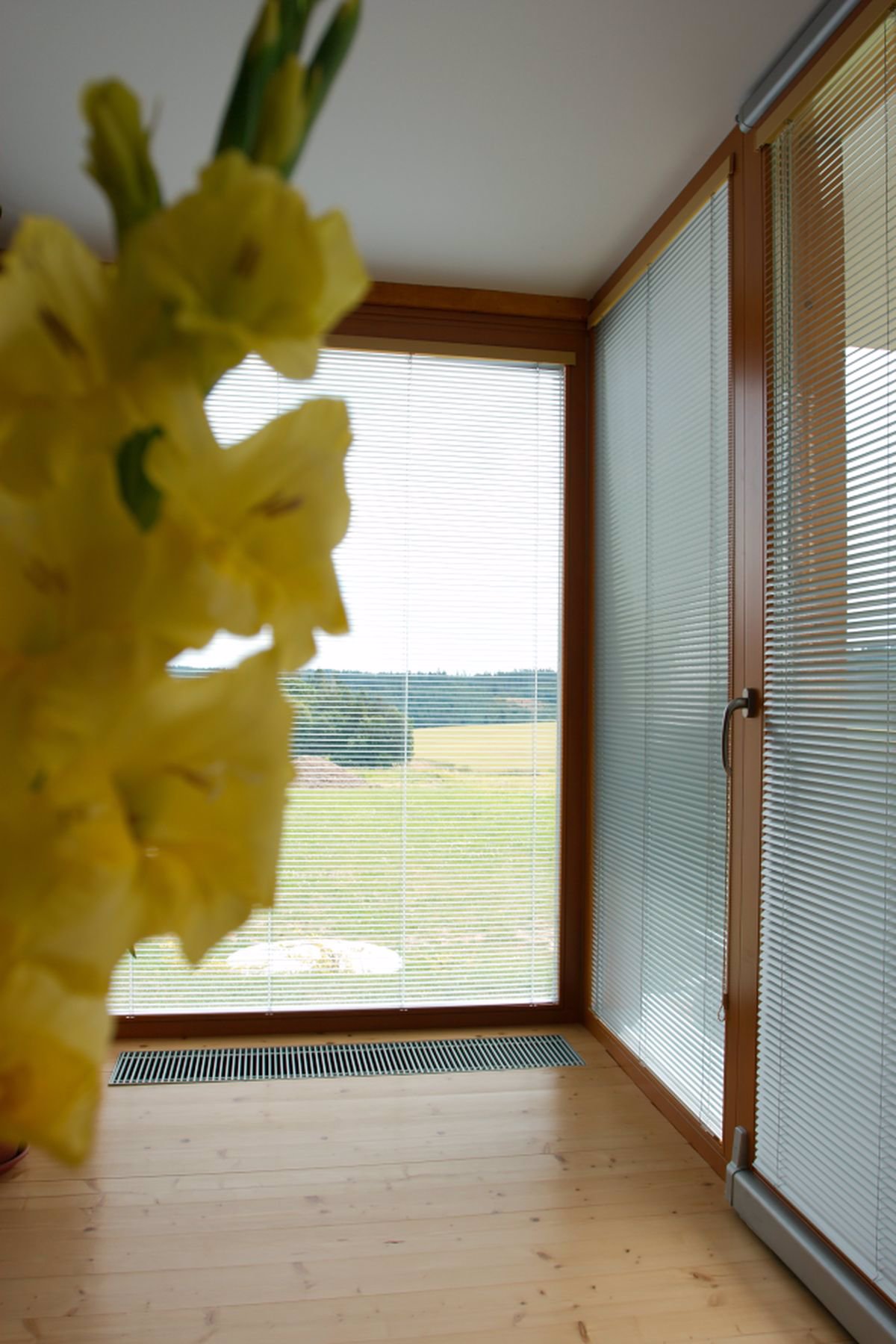

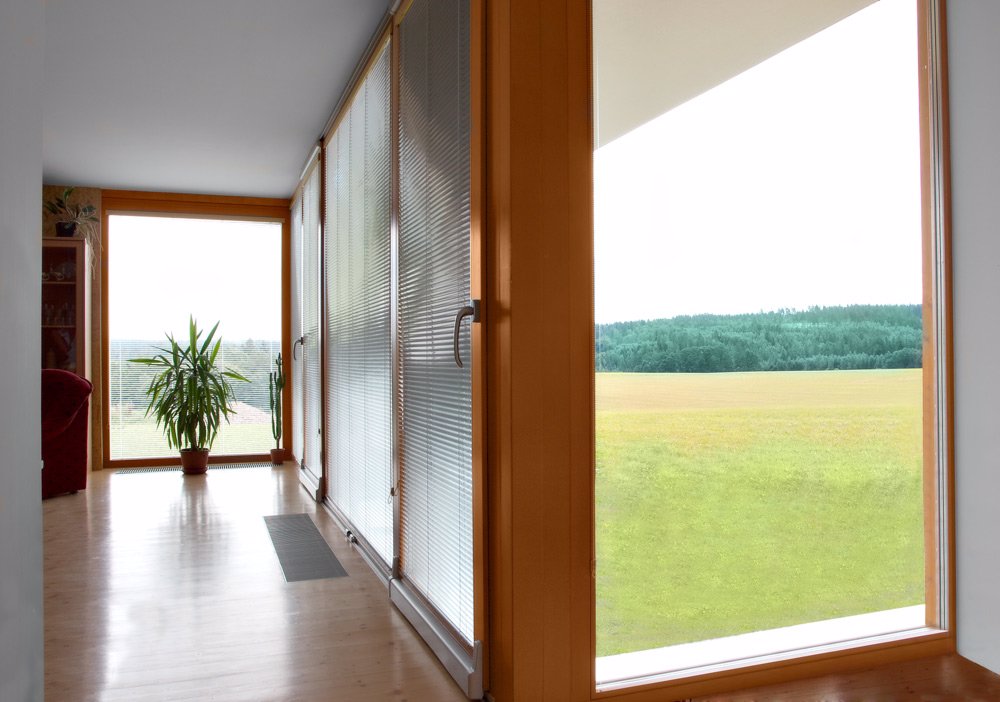

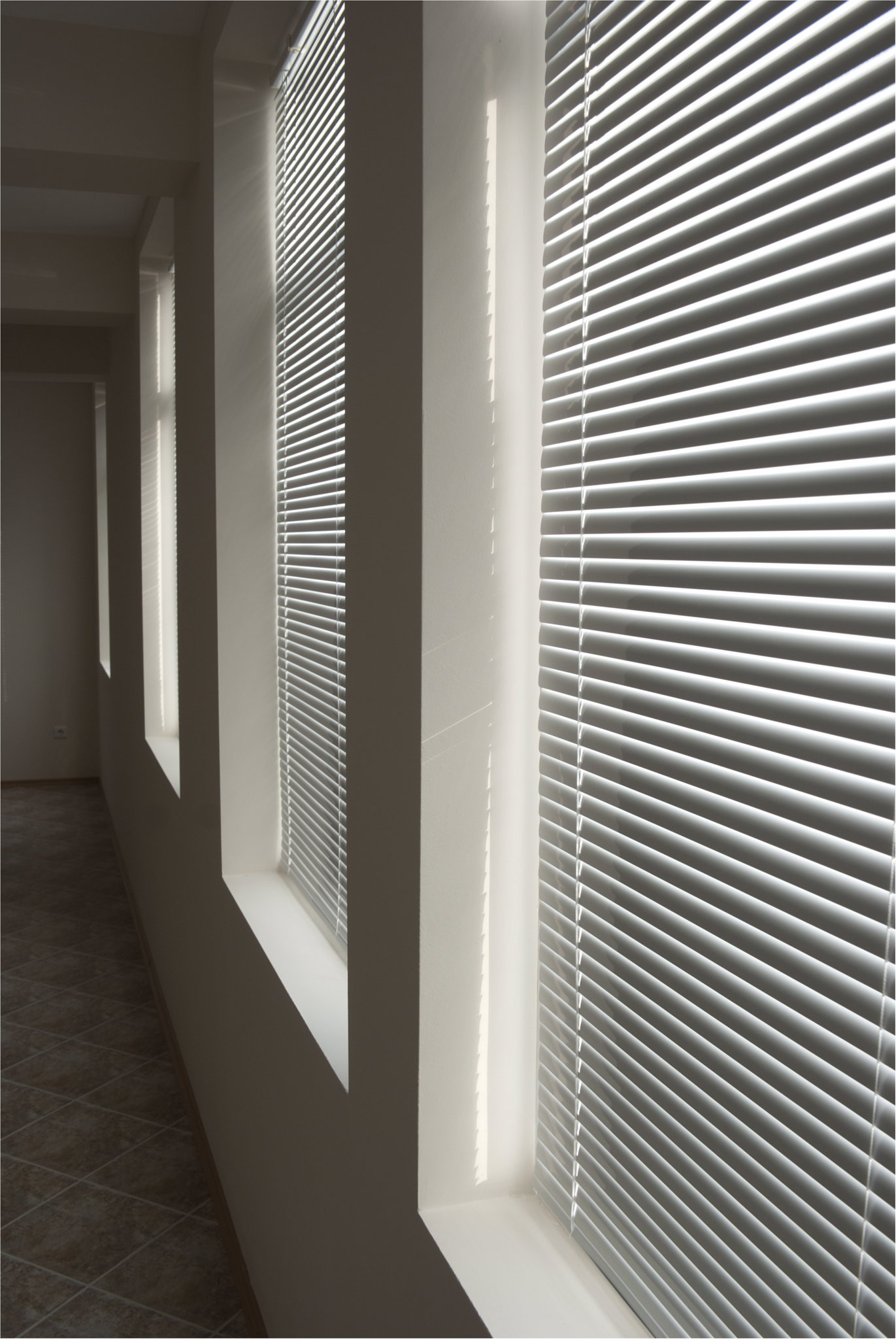

References

Method of control

  • manually – by chain (ø 3.2 mm, ø 4.5 mm)
    The blind can be fitted with a brake to prevent falling of lamellas due to their own weight.
  • electric drive – remote control or switch

Guaranteed dimensions

  • minimum width: 300 mm (chain), 400 mm (engine)
  • maximum width: 2,000 mm
  • maximum height: 2,200 mm
  • maximum area: 2.5 m2

Technical parameters


UPPER PROFILE LOWER PROFILE LAMELLA SIDE GUILDING ASSEMBLY BRAKE
CONSTRUCTION WIDTH (MM) THICKNESS
Business name
Dimensions (mm)
Material
IL 101
27 × 47 × 0,9
Al
712
IL 102
9 × 48 × 0,9
Al
713
IS 16
20 × 8 × 0,9
Al
714
whole shading
standard
standard
25
25
16
0,21 / 0,18
0,21 / 0,18
0,21
silon ø 0,8 mm for window wing on the basis of the order
Colour RAL 9010 white
RAL 1015 ivory
RAL 1002 nut pine
RAL 9006 solver
RAL 8004 chestnut
RAL 8014 brown
Renolite 3069 pine
Renolite 1192 Oregon
Renolite 3152 leaf miner
Renolite 2178 golden oak
Renolite 3214 Soft cherry
Renolite 3042 Sorento balsamico
Renolite 3211 Irish oak
Renolite 3043 Cherry amareto
Renolite 2179 Nut
according to the actual sampler silon - clear

Plastic components in the colour of the profile.
Ladder and cord which are colour coordinated with the lamella.

Profile colour

7040

  • RAL 1002 RAL 1002
  • RAL 1015 RAL 1015
  • RAL 8004 RAL 8004
  • RAL 8014 RAL 8014
  • RAL 9006 RAL 9006
  • RAL 9010 RAL 9010
  • Renolit 2178 Renolit 2178
  • Renolit 2179 Renolit 2179
  • Renolit 3042 Renolit 3042
  • Renolit 3043 Renolit 3043
  • Renolit 3069 Renolit 3069
  • Renolit 3152 Renolit 3152
  • Renolit 3211 Renolit 3211
  • Renolit 3214 Renolit 3214
  • Renolit 2052 Renolit 2052
  • Renolit 2065 Renolit 2065
  • Renolit 1192 Renolit 1192
  • Renolit 4240 Renolit 4240

Colour performance Isotra System Decoral 1  at extra charge (cover profile)

  • ISD110 ISD110
  • ISD120 ISD120
  • ISD130 ISD130
  • ISD140 ISD140
  • ISD150 ISD150
  • ISD160 ISD160
  • ISD210 ISD210
  • ISD220 ISD220
  • ISD230 ISD230
  • ISD310 ISD310
  • ISD152 ISD152
  • ISD154 ISD154
  • ISD200 ISD200
  • ISD212 ISD212
  • ISD214 ISD214
  • ISD222 ISD222

Colour performance Isotra System Decoral 2 at extra charge (cover profile)

  • ISD500 ISD500
  • ISD510 ISD510
  • ISD600 ISD600
  • ISD610 ISD610
  • ISD620 ISD620
  • ISD630 ISD630
  • ISD640 ISD640
  • ISD700 ISD700


Colour lamella

Dimension 25 mm × 0,18 mm

Show all colour of lamella Hide extended selection colour of lamella


Dimension 25 mm × 0,21 mm

Show all colour of lamella Hide extended selection colour of lamella

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

Assembly options

  • for window wing

Height of roll-up

height of the blind (mm) Height of blind (mm)
lamella25 mm - strip / thin chain lamella25 mm CS*- strip/ thin chain
500 50 50
1000 60 65
1500 70 80
2000 80 95
2500 90 115

Height of the packet = height of the lowered blind, including the upper profile
CS* = whole-shading construction
