Carport ARTOSI
Product gallery
The Carport ARTOSI is a timeless shelter with an innovative design, developed with emphasis on precision, quality of workmanship and possibility of individual modifications, which will ensure the protection of your car against the adverse effects of the weather. The aluminium construction, which is identical to the construction of the ARTOSI bioclimatic pergola, is supplemented with a load-bearing plate (RAL 9006) or polycarbonate. The ARTOSI shelter roof has integrated water drainage inside the construction with no need for further modifications, with optional LED lighting located around the entire perimeter, controlled by a motion sensor or using IO technology. The shelter can also be delivered in a roofless version (only stands and perimeter frame).

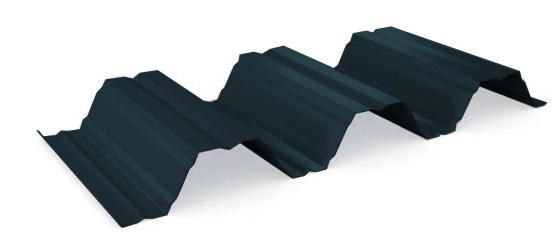

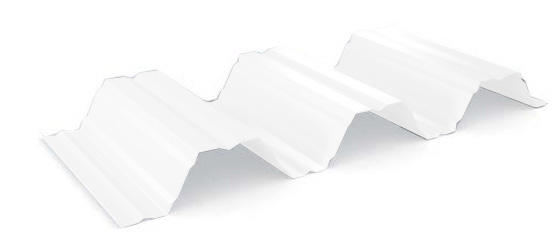

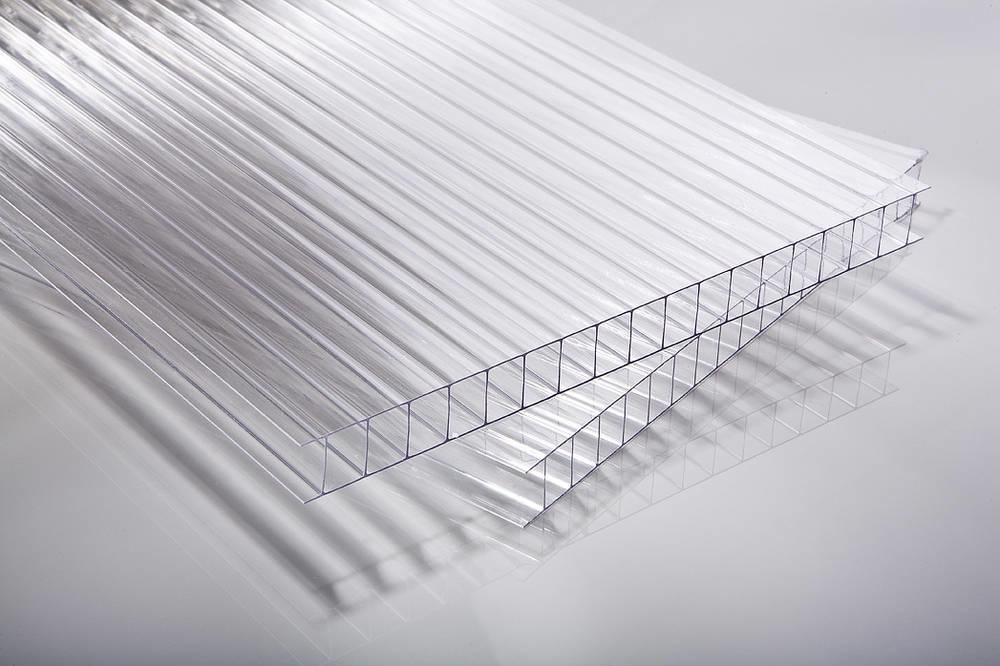

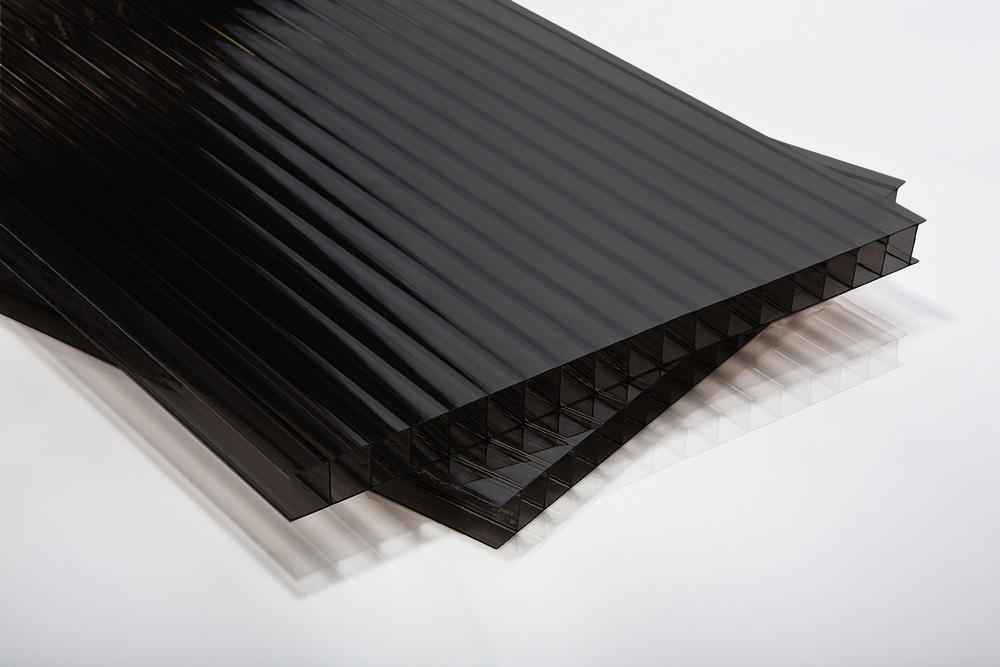

The shelter roof is manufactured with high precision and installation is therefore easy and fast. You can choose a free-standing or wall-anchored design. We offer ARTOSI shelter roof in twelve basic construction colours identical to the standard colours of the ARTOSI pergola, where the roof can be made of galvanized trapezoidal plate or polycarbonate in three colours. The maximum load capacity is 150 kg/m2, we guarantee wind resistance up to 120 km/h and water drainage of 50 l/m2h. The standard warranty is 5 years for construction, 2 years for LED lighting.
.Benefits & advantages
- coordination with the ARTOSI bioclimatic pergola
- integrated water drain
- LED lighting
- easy and quick assembly
- high load-bearing capacity of the roof and resistance to wind
- drainage of water flow up to 50 l/m2h
- warranty up to 5 years
Colour variants
Guaranteed dimensions
| Type of roofing | Length (mm) | width (mm) | Height (mm) | Area (m2) | ||
|---|---|---|---|---|---|---|
| min | max | min | max | max | max | |
| Trapezoidal roof | 1200 | 7000 | 1000 | 6500 | 3000 | 45,5 |
| Polycarbonate roof | 1200 | 7000 | 1000 | 5500 | 3000 | 38,5 |
| Roofless | 1200 | 7000 | 1000 | 6000 | 3000 | 42 |
Assembly options
- freestanding
- anchored to the wall along the shorter side
- anchored to the wall along the longer side
