The ARTOSI SLIDE PANELS side walls represent a unique shading solution perfectly convenient to the ARTOSI bioclimatic pergola or the ARTOSI Carport. The side walls act as a shading and decorative element at the same time, protecting against adverse weather and noise, thus increasing user comfort and your privacy.
ARTOSI SLIDE PANELS represents a sliding wall system, where the panels run on the lower rail and are guided by the upper rail. Stability is ensured by the lateral guide rails.
The system stands out for its very easy operation and minimal maintenance requirements. The movement/opening can be solved either to one side or centrally as a curtain. A great advantage is the easy installation of the sliding walls, which complements the modular construction of the ARTOSI bioclimatic pergola or ARTOSI Carport.
The individual aluminium elements of the sliding panels can be colour-tuned with the ARTOSI pergola or carport, because the offer of standard colours is identical. Any RAL colour can be chosen for painting, and for panels, Decoral technology is also available.
Benefits & advantages
- luxurious design
- shading and decorative element
- aluminium frame and filling – long service life
- easy operation
- maintenance-free operation
- fast, easy and safe assembly
- high user comfort

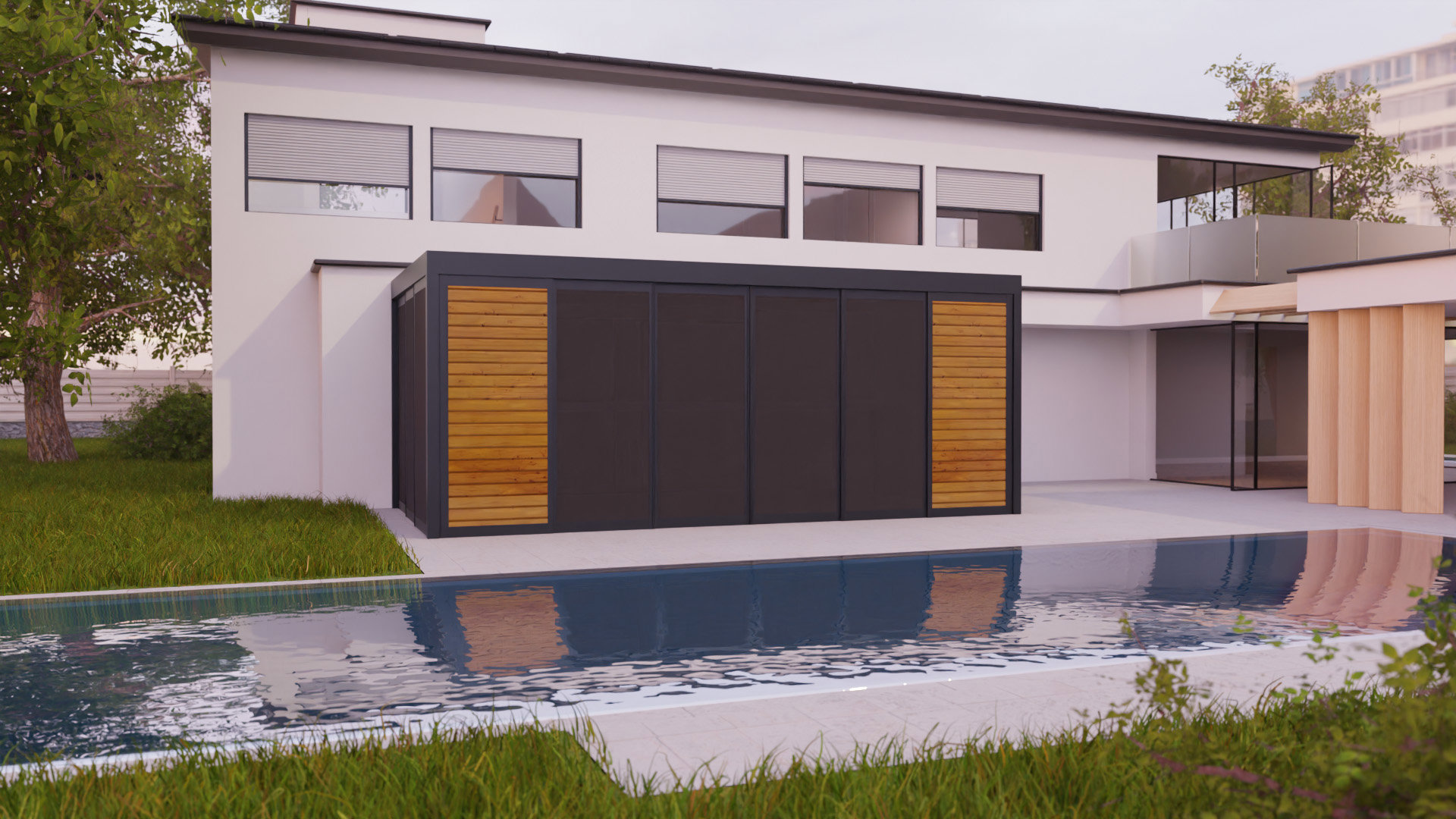

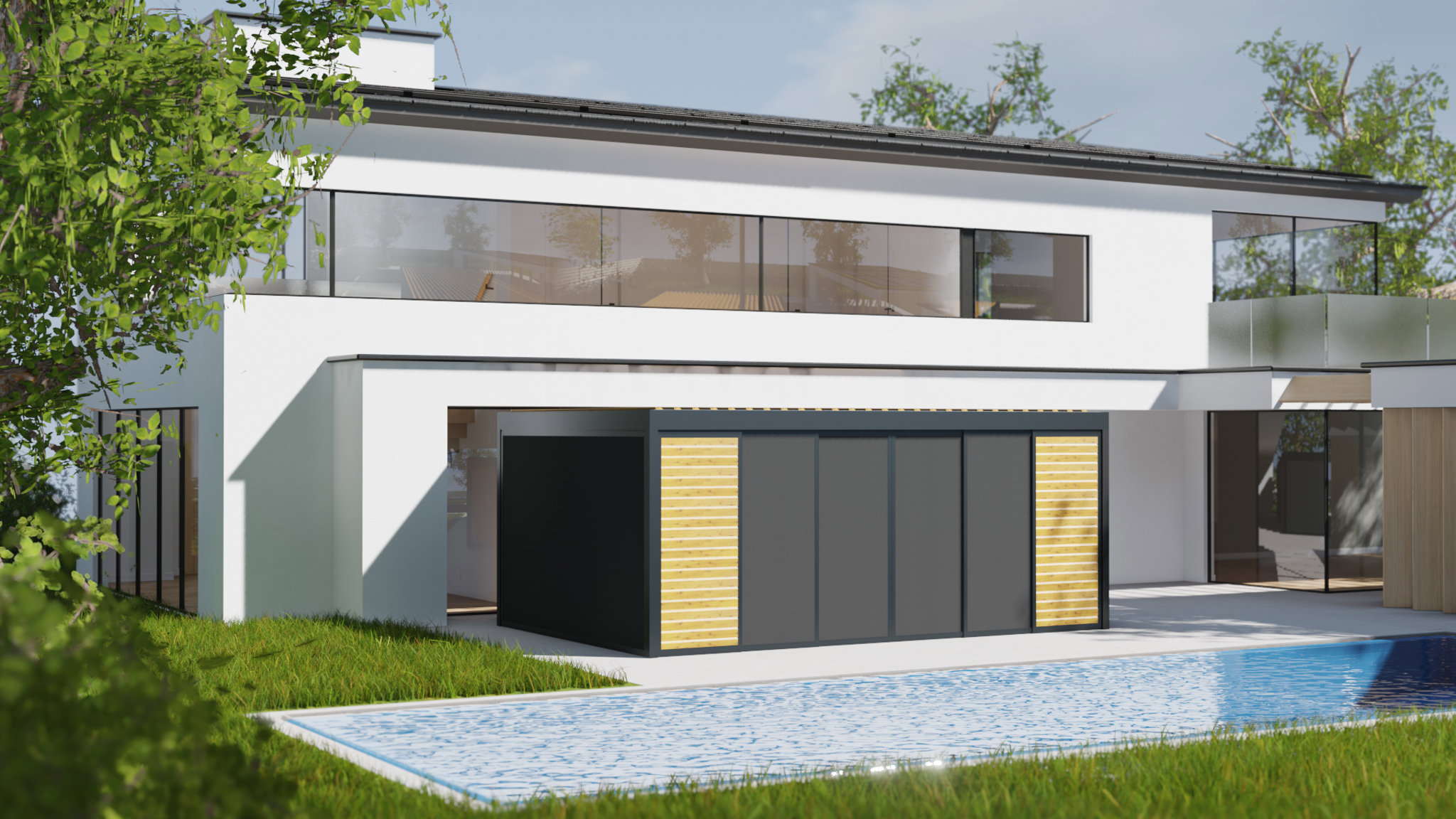

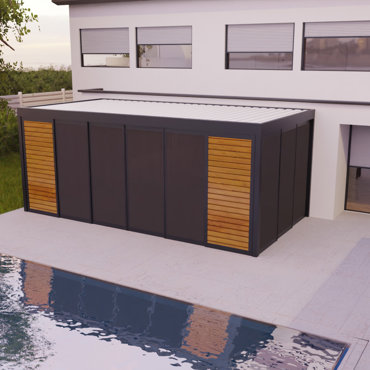

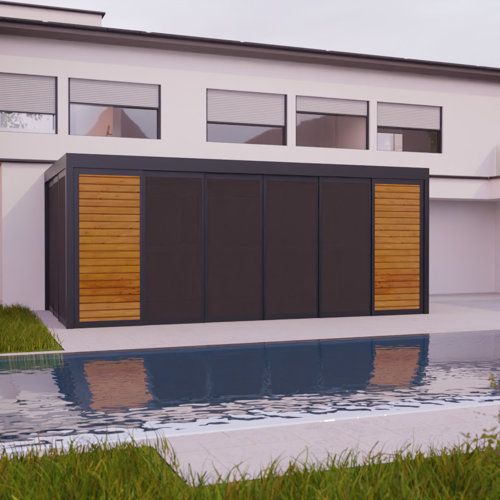

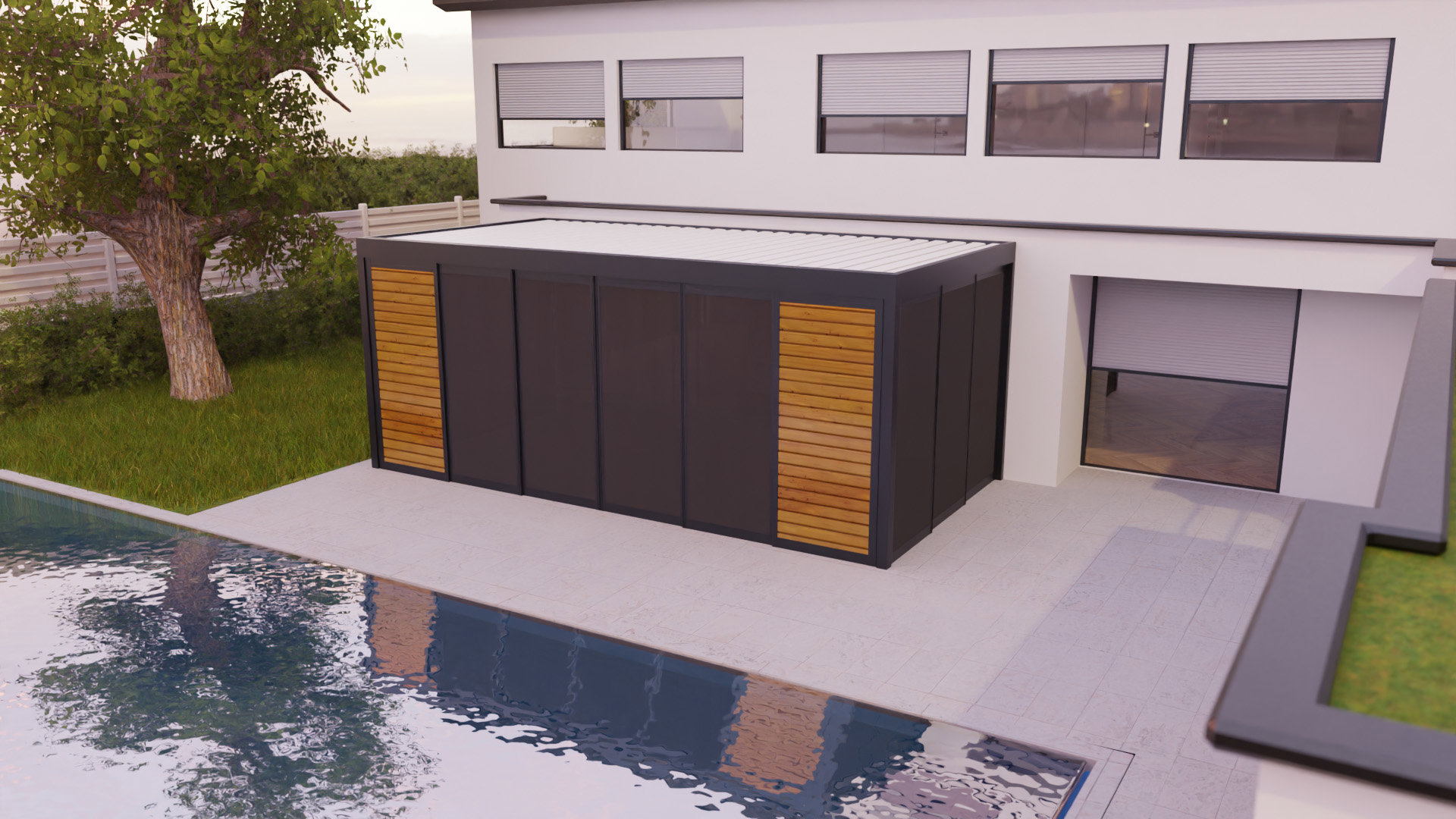

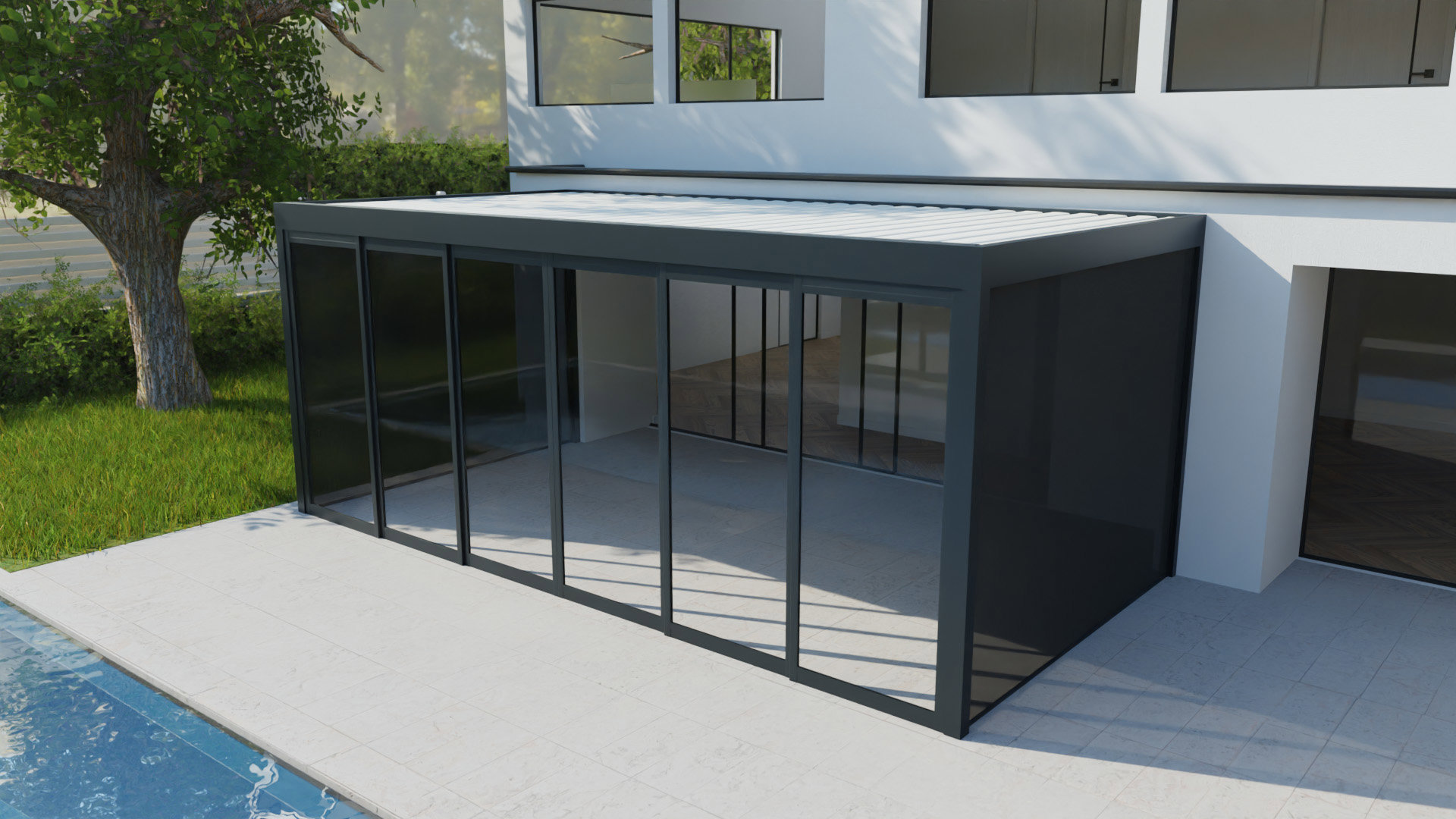

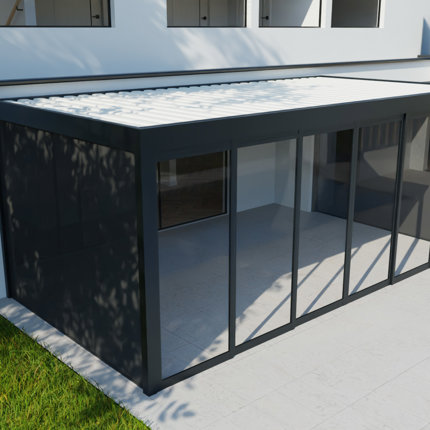

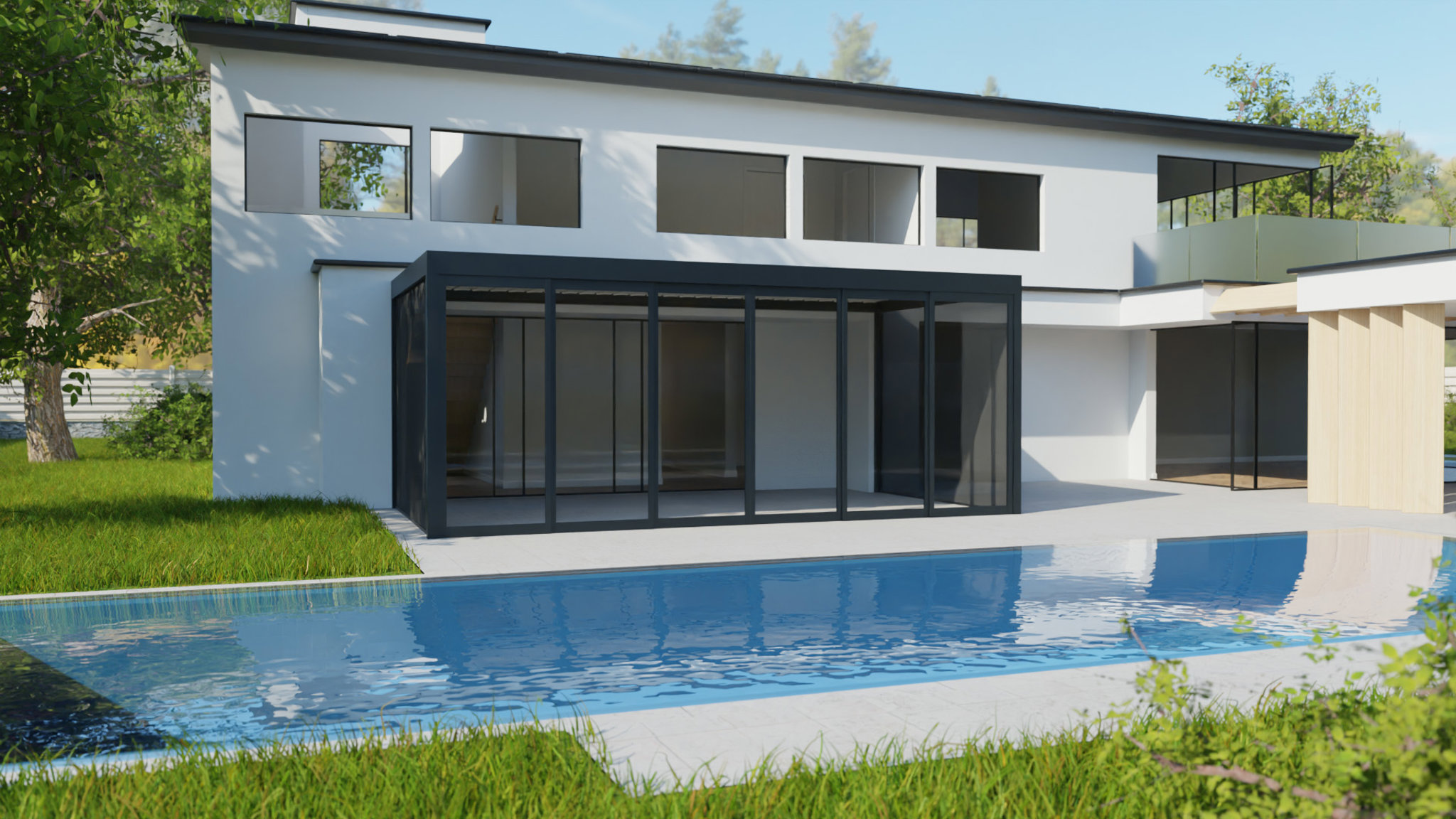

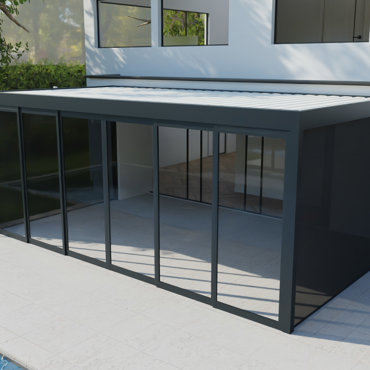

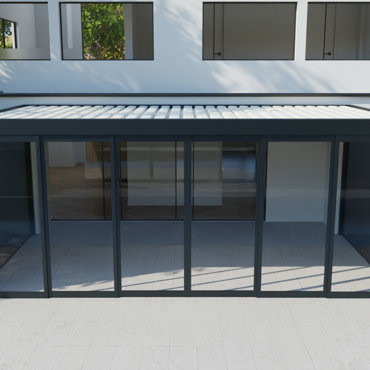

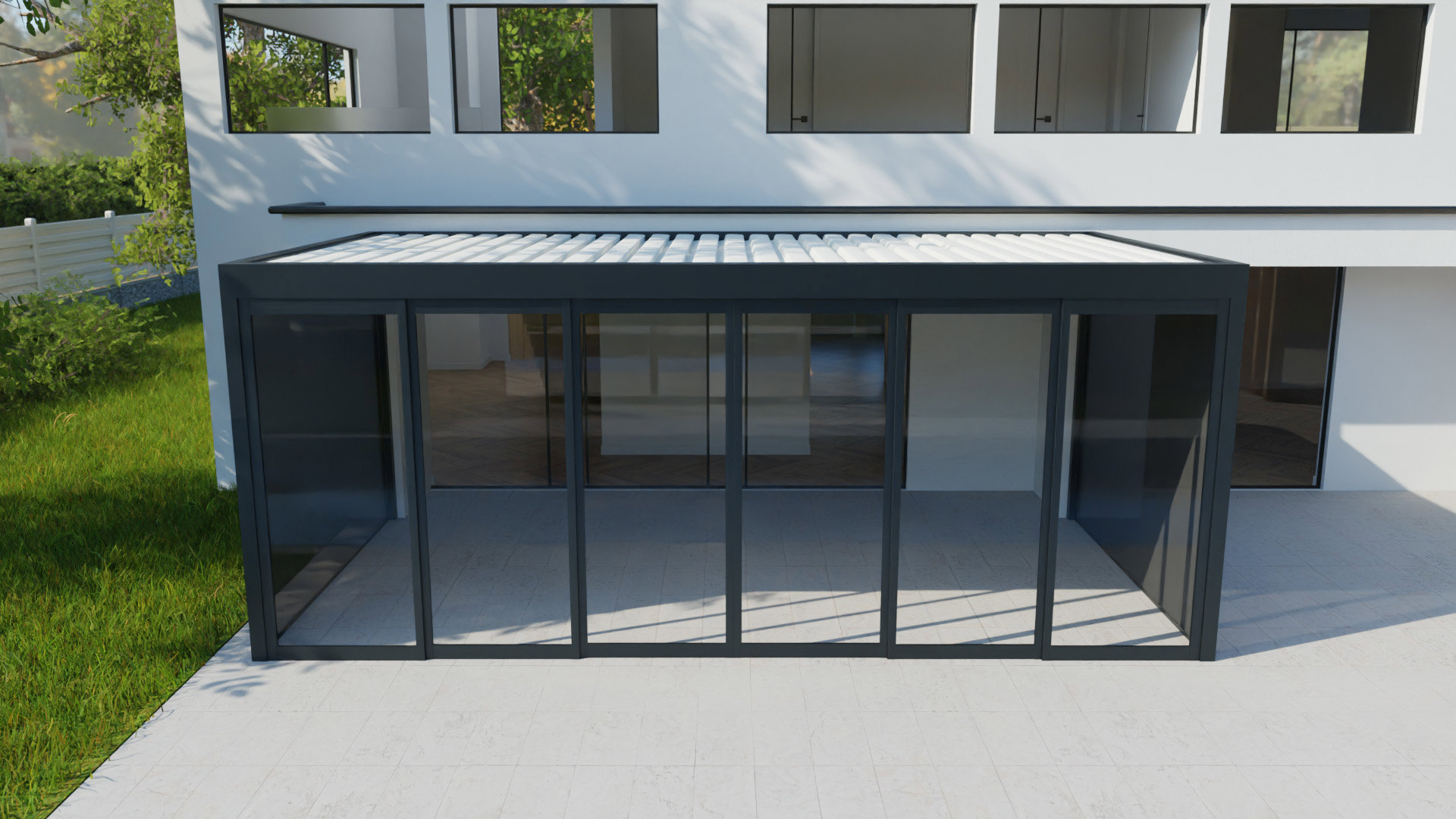

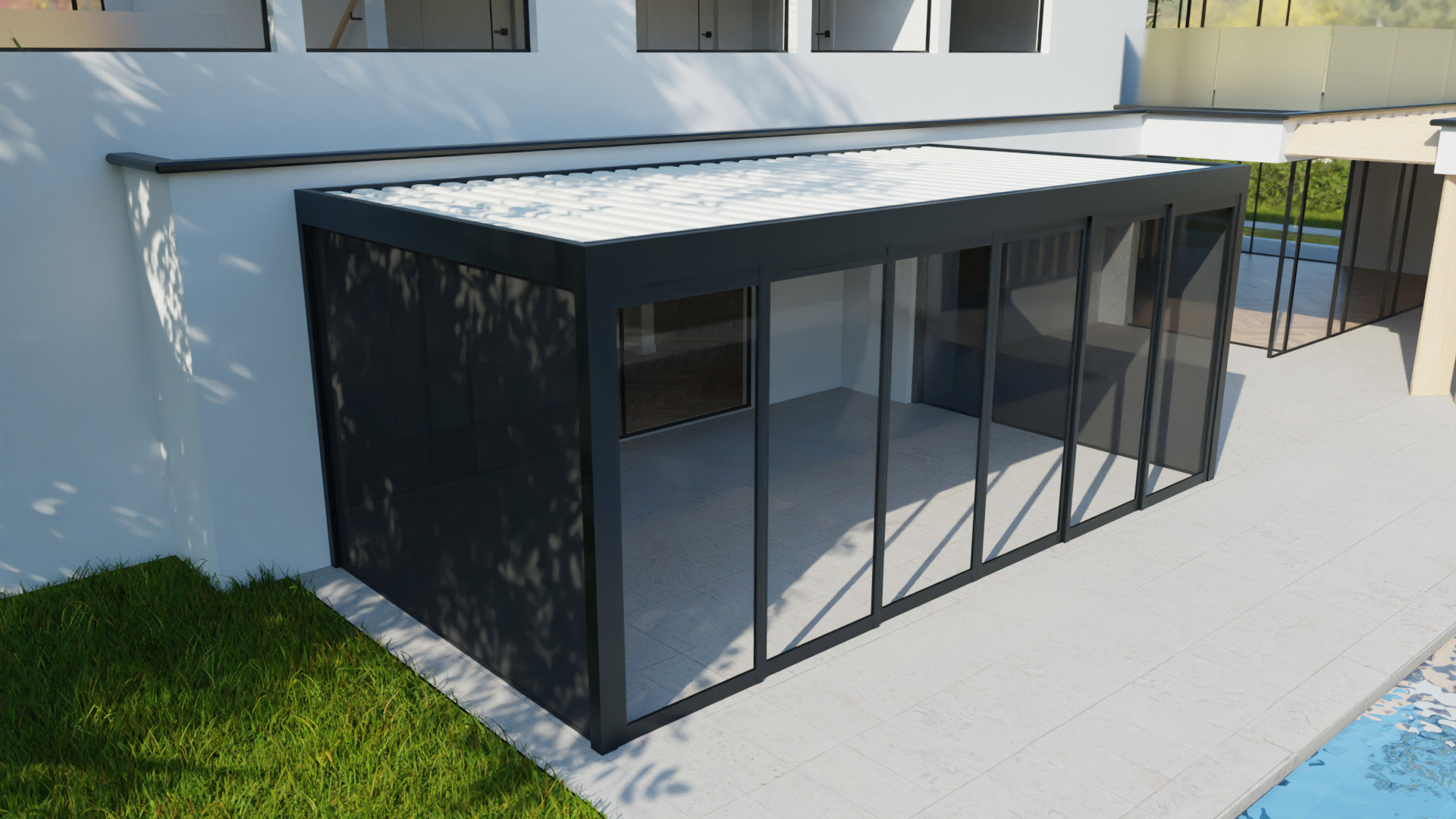

Inspiration

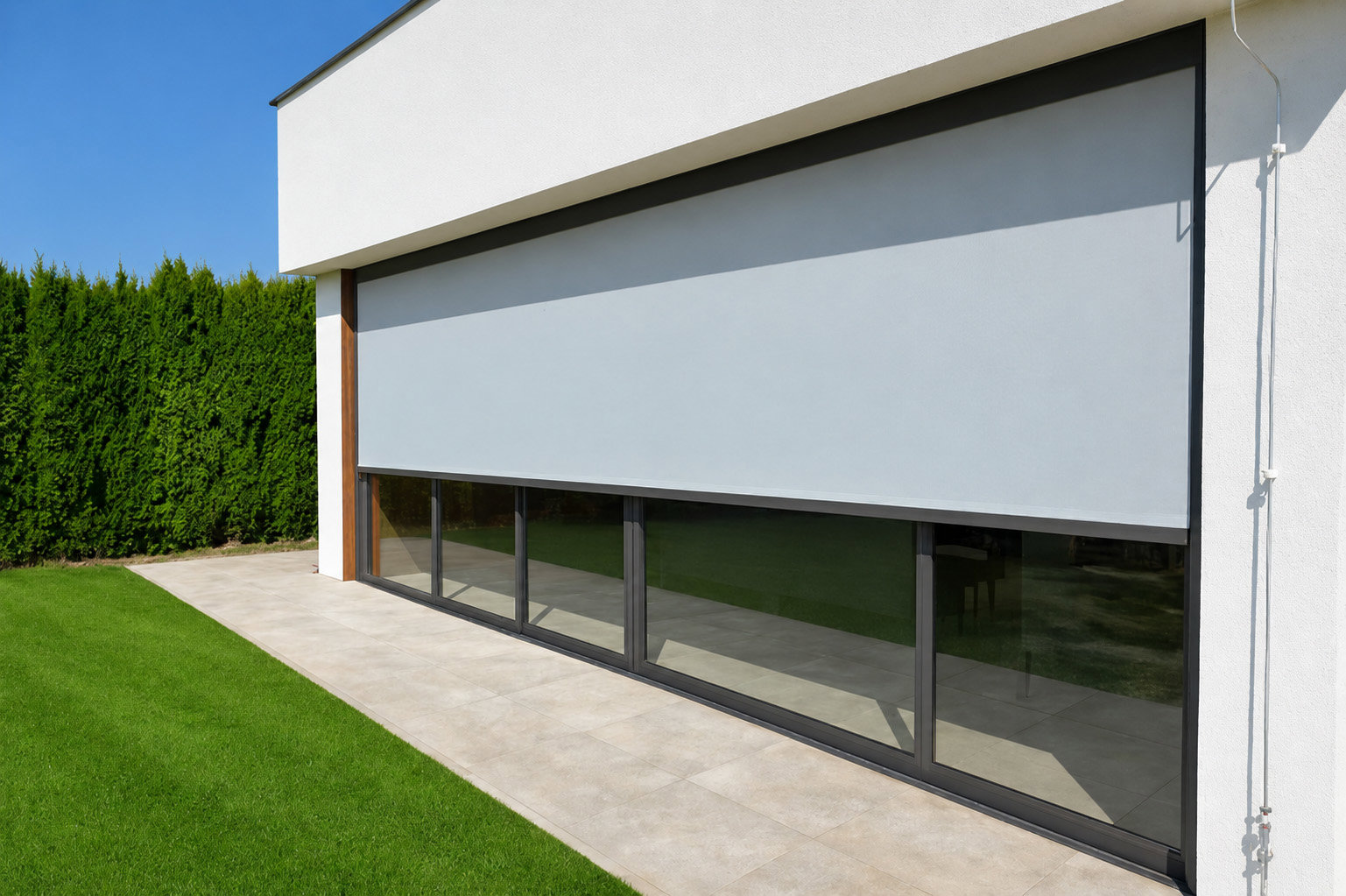

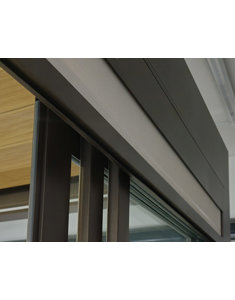

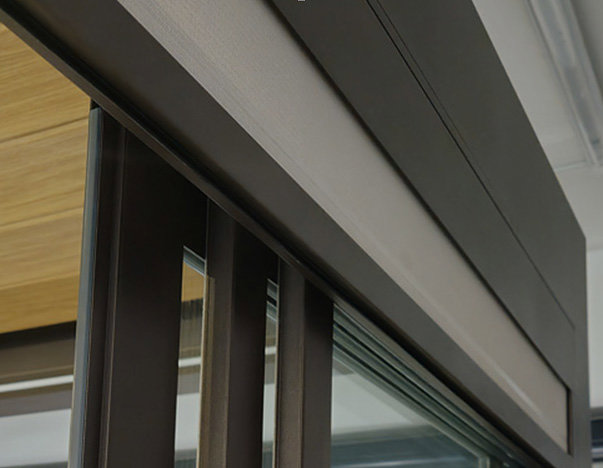

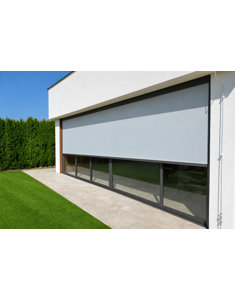

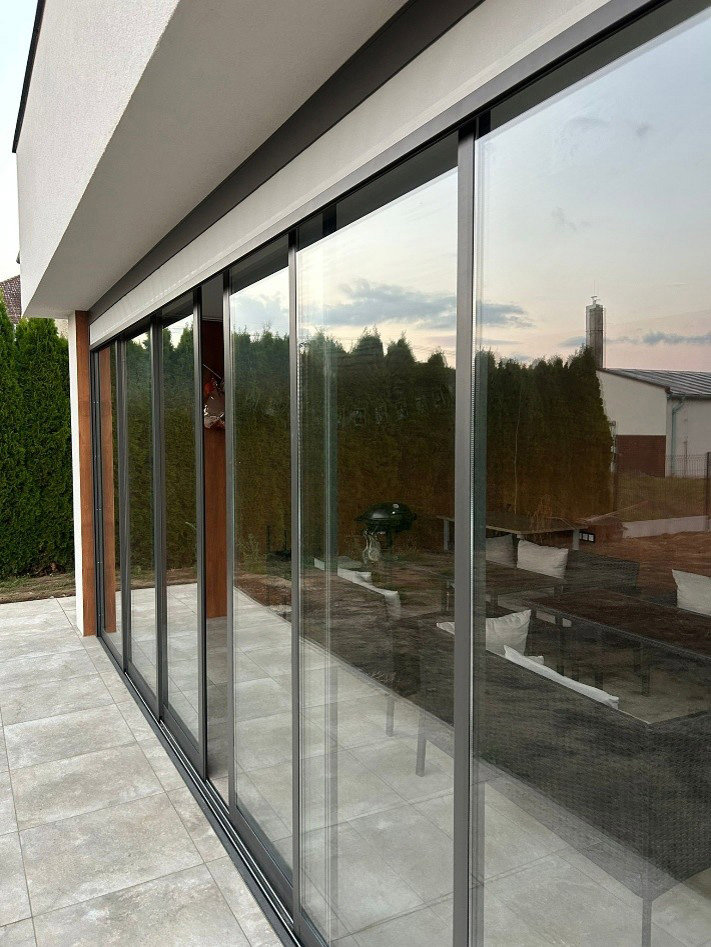

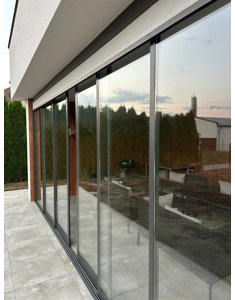

ARTOSI SLIDE PANELS with integrated screen roller
The ARTOSI SLIDE PANELS system can be installed beneath the box of the ALFA-ZIP or ALFA PLUS-ZIP screen roller shutters. This solution allows the sliding panels to be used to enclose the space of the ARTOSI pergola or any other suitable structural opening.
A profile (flap) with integrated guide rail for the sliding panel system is intended for this design. The result is a functional and aesthetically clean solution that combines the benefits of screen shading and sliding panels within single ARTOSI bioclimatic pergola system. This solution is also suitable for ARTOSI pergolas that have already been installed.
Colour variants
Standard colours frames, upper rails, (lower rails always in elox - anodized), slats
Additional colours Isotra Decoral System 1 lamely
Additional colours Isotra Decoral System 2 lamely
clearance sale
new
Handling
| Width (mm) | Height (mm) | |||
|---|---|---|---|---|
| min. | max. | min. | max. | |
| One panel | 500 | 1250 | 550 | 2700 |
| Shading area | 1000 | 7000 | 550 | 2700 |
Standard fillings in the following versions

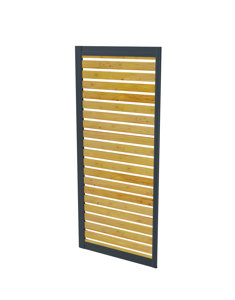

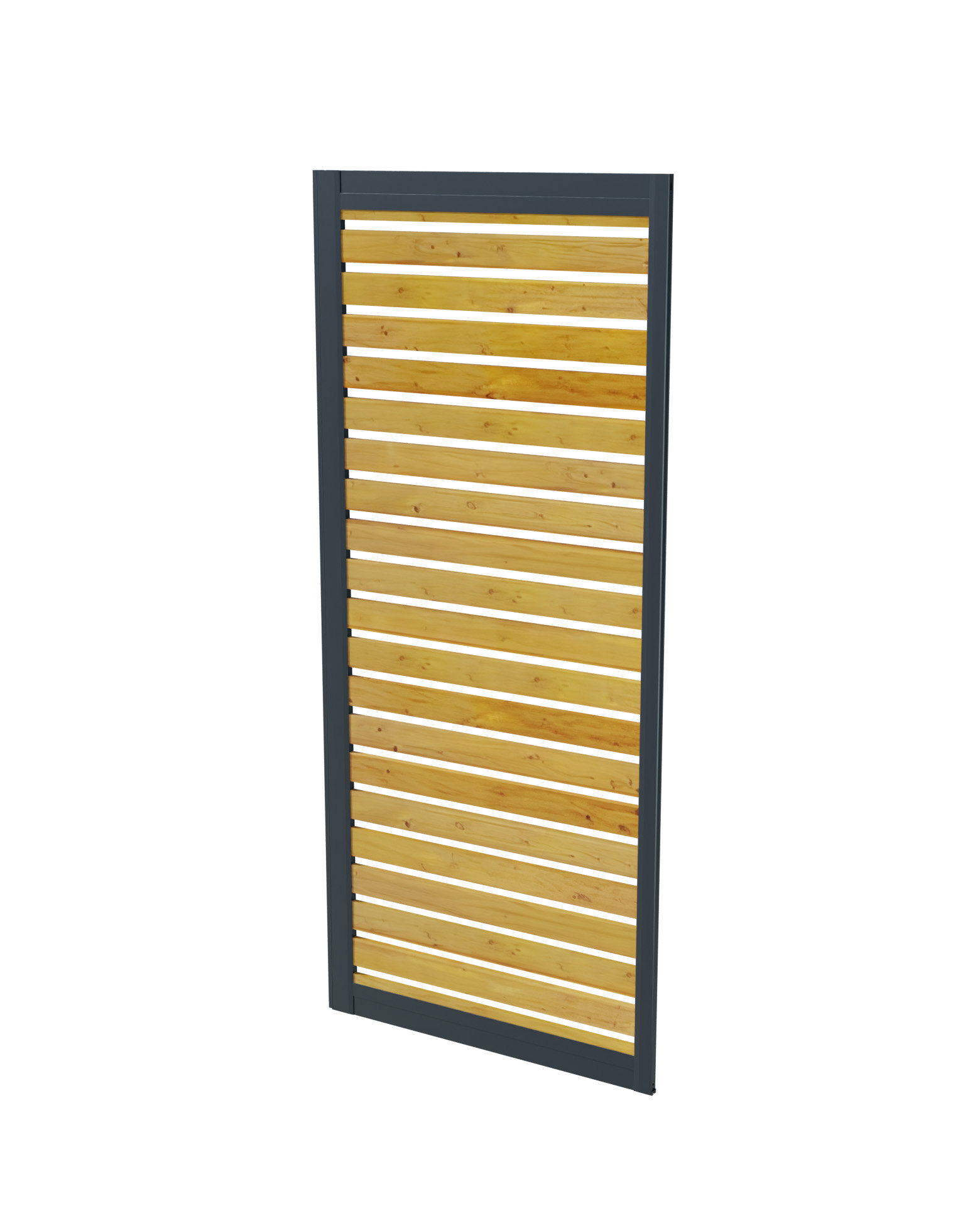

- fixed slat

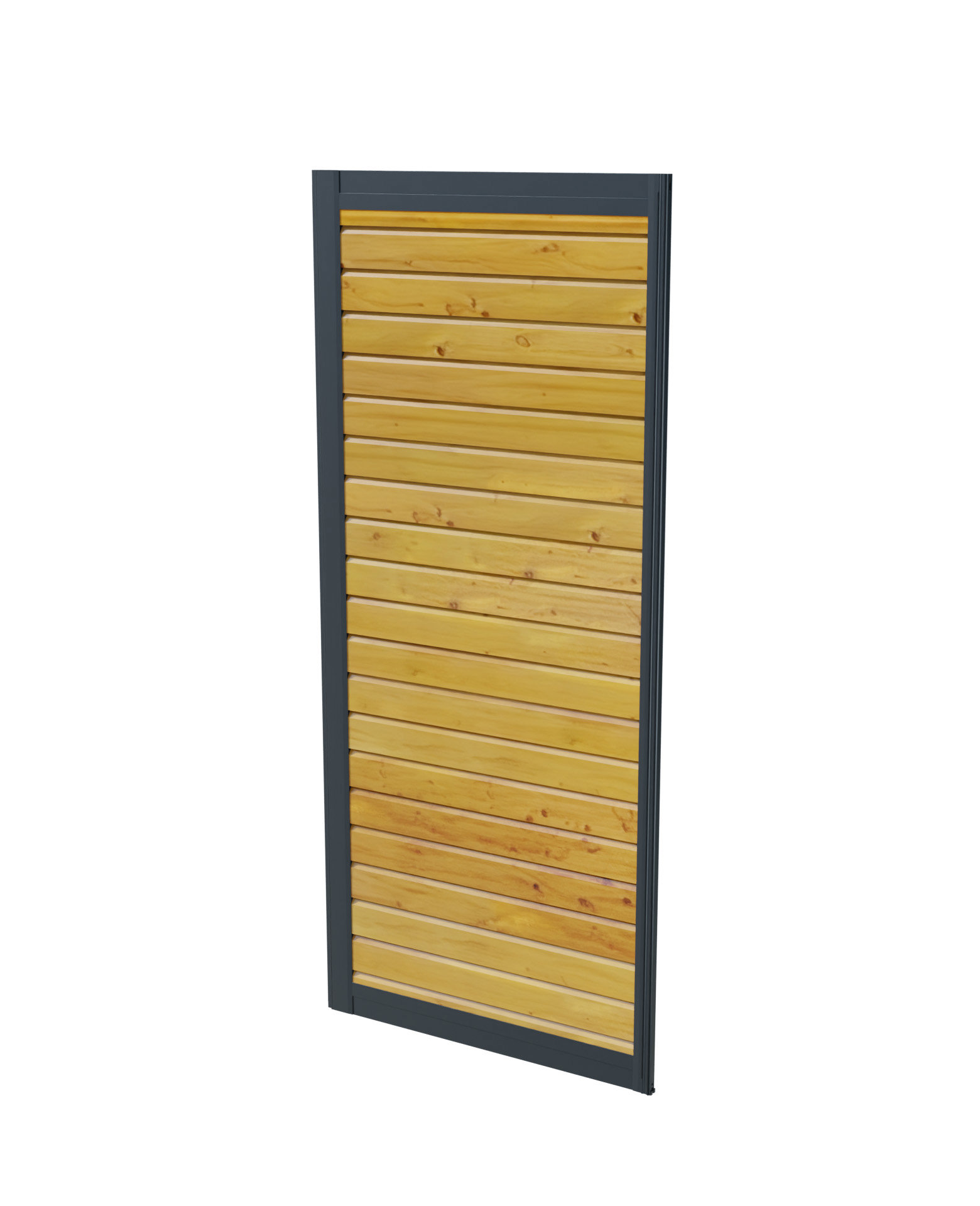

- bevelled slat

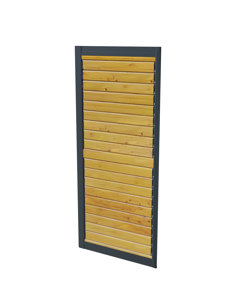

- bevelled rotating slat

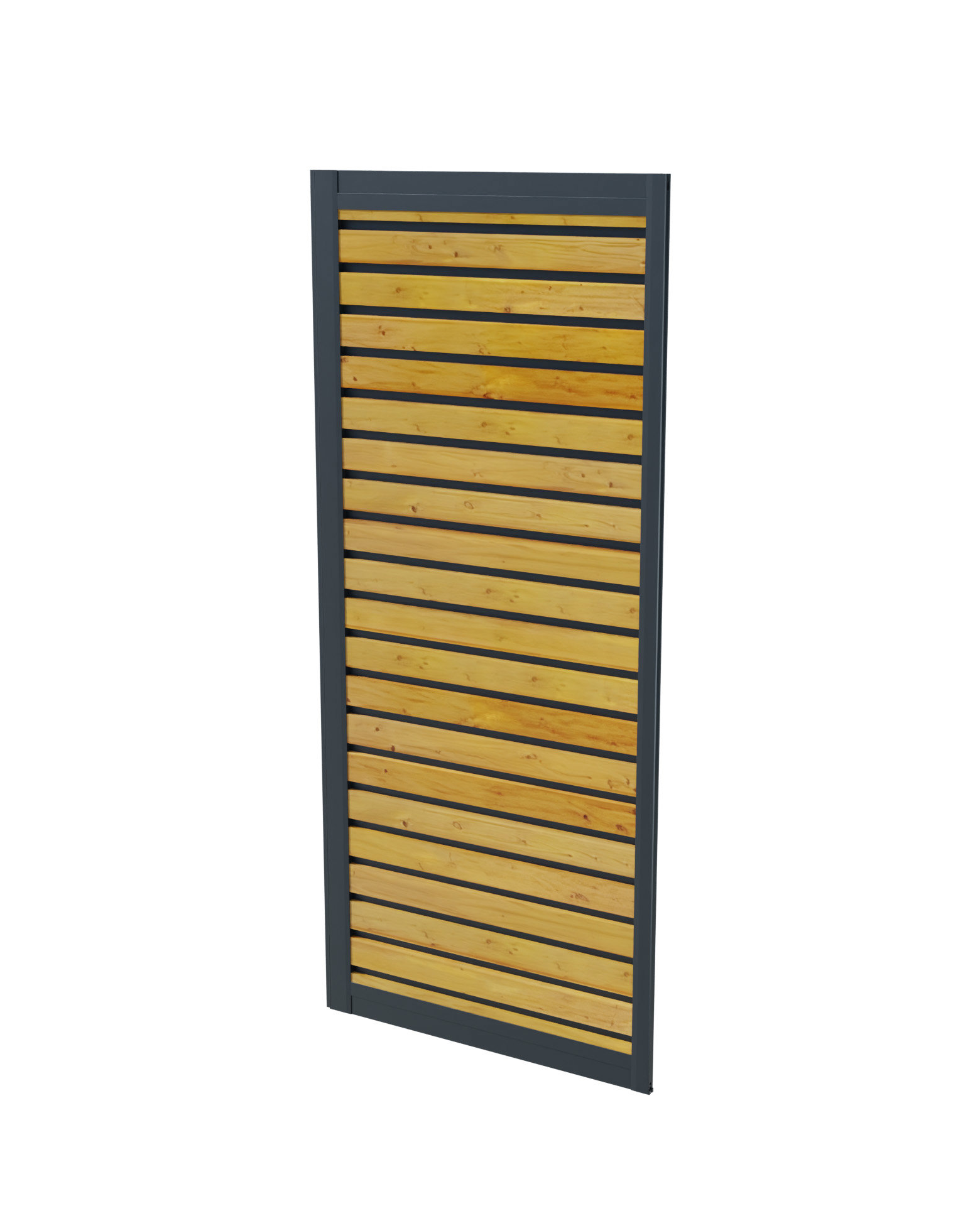

- fixed slat with fabric

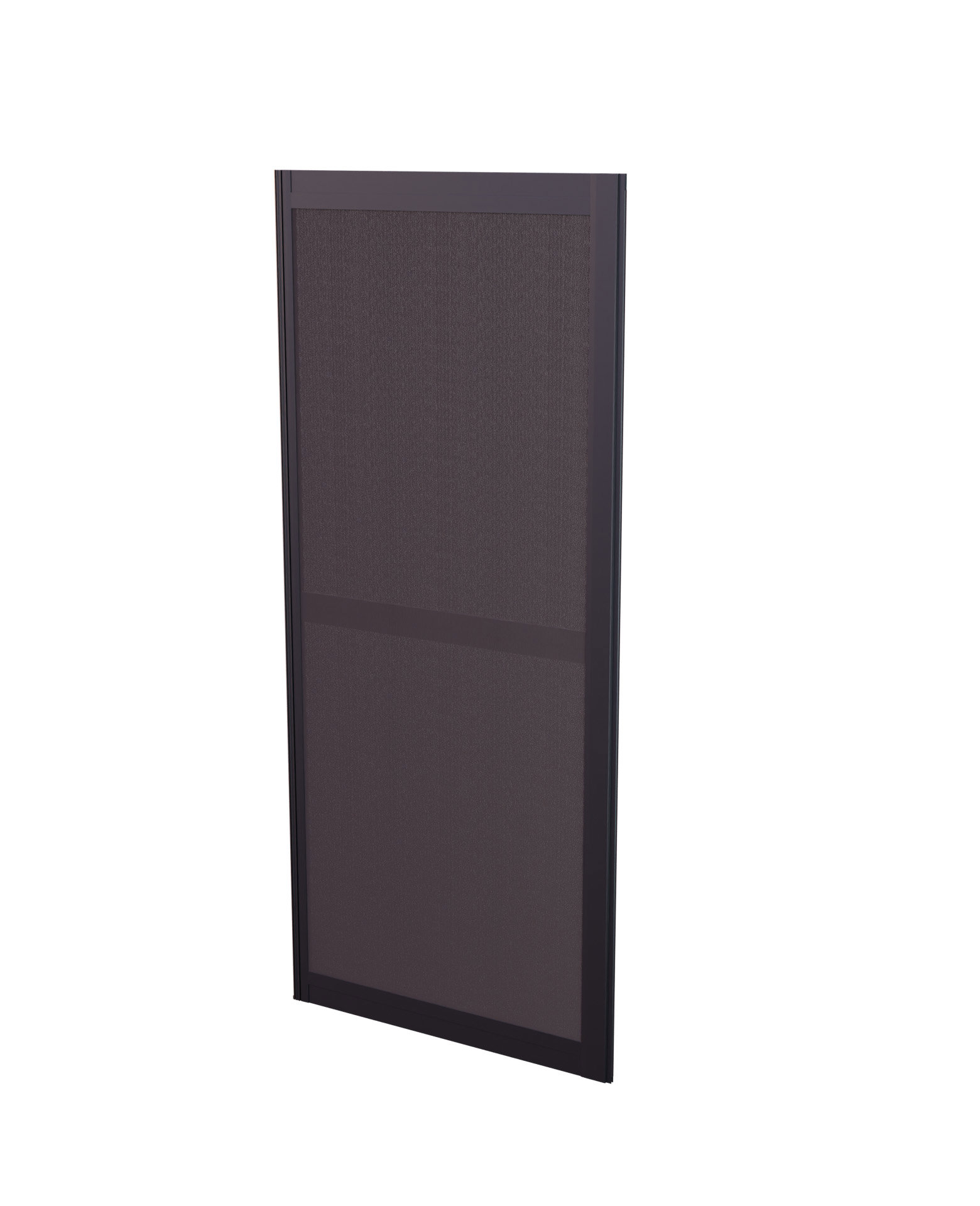

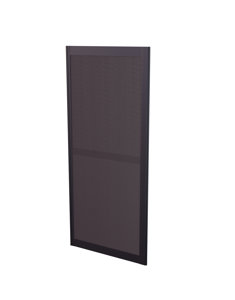

- panel with fabric

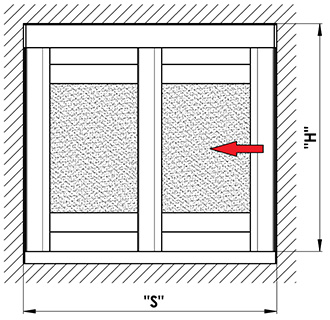

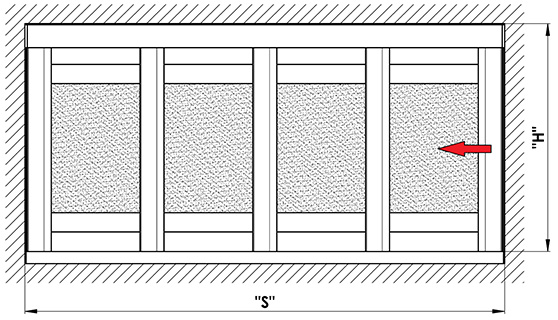

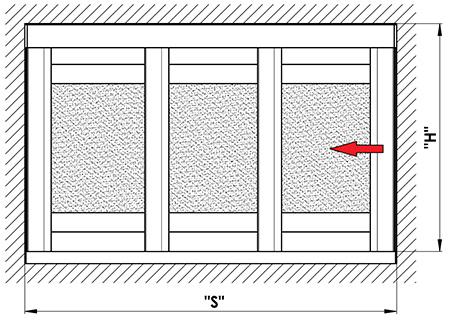

Panel arrangement: stacking to the left
| Opening size | Width S (mm) | Height H (mm) | ||
|---|---|---|---|---|
| min. | max. | min. | max | |
| 2 panels (2-L) | 1000 | 2500 | 550 | 2700 |
| 3 panels (3-L) | 1500 | 3750 | 550 | 2700 |
| 4 panels (4-L) | 2000 | 5000 | 550 | 2700 |

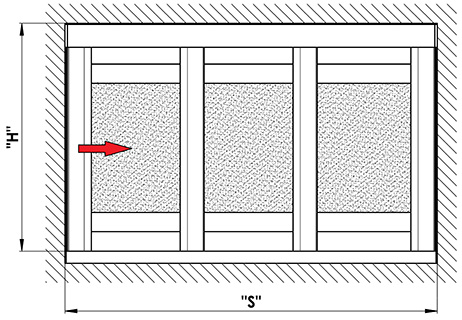

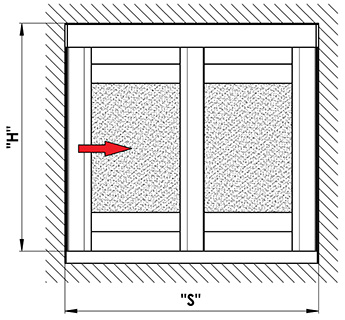

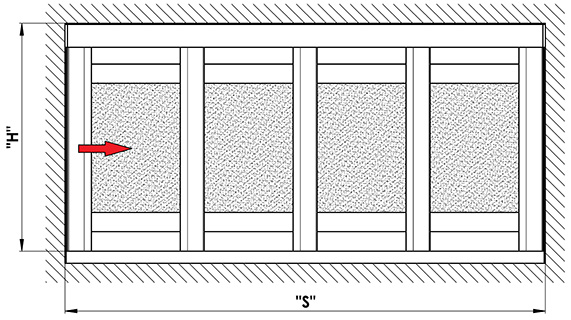

Panel arrangement: stacking to the right
| Opening size | Width S (mm) | Height H (mm) | ||
|---|---|---|---|---|
| min. | max. | min. | max | |
| 2 panels (2-P) | 1000 | 2500 | 550 | 2700 |
| 3 panels (3-P) | 1500 | 3750 | 550 | 2700 |
| 4 panels (4-P) | 2000 | 5000 | 550 | 2700 |

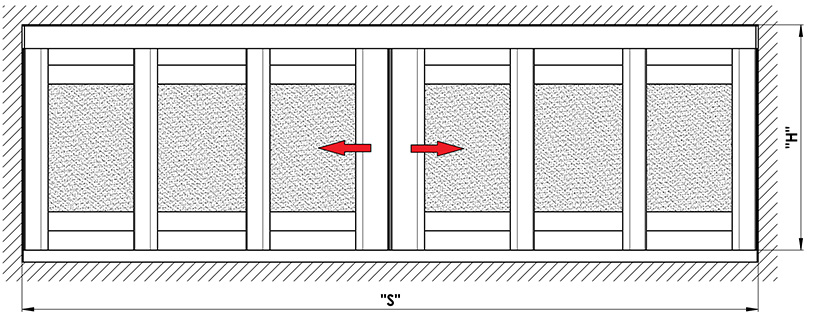

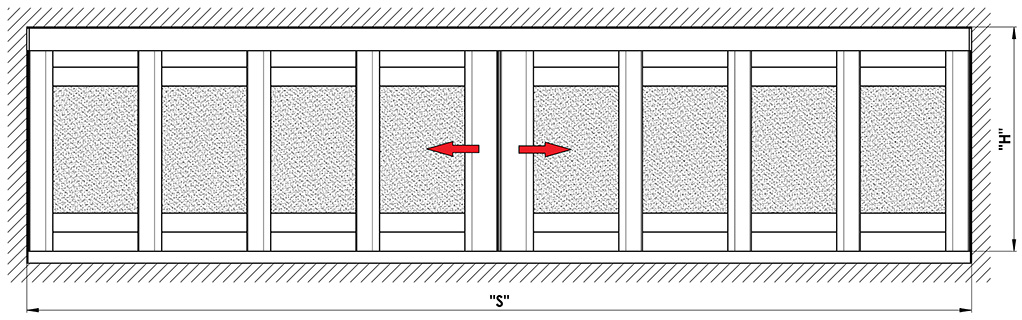

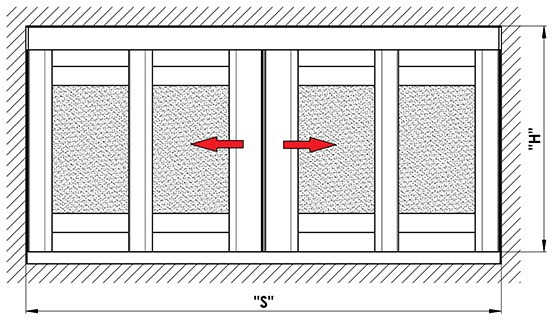

Panel arrangement: left and right stacking (curtain)
| Opening size | Width S (mm) | Height H (mm) | ||
|---|---|---|---|---|
| min. | max. | min. | max | |
| 2 panels (2+2-LP) | 2000 | 5000 | 550 | 2700 |
| 3 panels (3+3-LP) | 3000 | 7000 | 550 | 2700 |
| 4 panels (4+4-LP) | 4000 | 7000 | 550 | 2700 |
