Front window roller blinds
Front window roller blinds to the lintel Heluz
Decrease of thermal losses, easy installation and a high level of shading are the main advantages of external blinds. These advantages of exterior shading technology can be strengthened by the installation of the blind into the Heluz lintel, which is load-bearing and forms the pocket for external blinds and shutters. The area with the blind is protected against dirt by dense brushes; maintenance is via the removable revision valve. Blinds into the Heluz lintel are designed for new buildings and, due to the box located in the lintel, assembly can be during or after full completion of the construction.
When closed, aluminium lamellas filled with PUR foam form a self-contained area that completely shades the interior and creates a difficult to pass obstacle in the case of intruders. The guiding bars can be built into the reveal fixed on the window frame. Blinds into the Heluz lintel are supplied in a range of colours. Lamellas can be harmonized with the colour of the frame, including the wood imitation version or a shade matching the colour of the façade. The exterior shading technology creates an optimal environment in terms of lighting and thermal conditions and is a key part of the construction in terms of energy savings. Exterior shading also fulfils an aesthetic function, particularly in modern constructions, where they can often be a dominant architectonic feature.
Advantages
Benefits & advantages
- high level of shading and a decrease in the level of the outside noise
- thermoregulation and protective effect
- elimination of thermal bridges
- electric control option
- aluminium lamellas filled with PUR foam
- guaranteed area of up to 8,5 m2
Explore
Colour variants
Basic colours box, guiding rail, end rail
Basic colours Al lamellas 317
Basic colours Al lamellas 328
Basic colours Al lamellas 442
Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.
Methods
Handling
manually
by strip
by strip

by electric drive
switch or remote control unit
switch or remote control unit

Guaranteed
Dimensions
Guaranteed dimensions for lamella M328
minimum width600 mm
maximum width
2900 mm
2900 mm
maximum height
2800 mm
2800 mm
maximum area
6,5 m2 (motor), 3,2 m2 (belt)
6,5 m2 (motor), 3,2 m2 (belt)
Guaranteed dimensions for lamella M328
minimum width600 mm
maximum width
2700 mm
2700 mm
maximum height
3000 mm
3000 mm
maximum area
5,8 m2 (motor), 3,5 m2 (belt)
5,8 m2 (motor), 3,5 m2 (belt)
Guaranteed dimensions for lamella MY442
minimum width600 mm
maximum width
4000 mm
4000 mm
maximum height
2300 mm
2300 mm
maximum area
8,5 m2
8,5 m2
Non-standard dimensions are not produced.

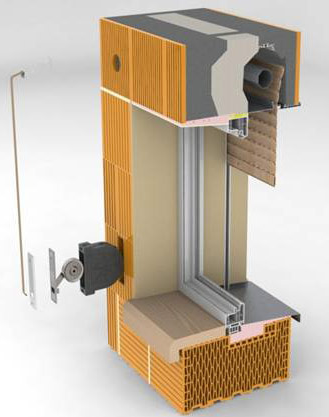

The roller blinds are completely hidden in the lintel when pulled out.
The roller blinds are completely hidden in the lintel when pulled out.
Technical parameters
Lamella | M317 | M328 | MY442 |
---|---|---|---|
Material | Al | Al | Al |
Cross-section | ![]() |
![]() |
![]() |
Technical data (mm) | |||
cover height | 37 | 37 | 42 |
thickness | 7,6 | 7,8 | 9,3 |
thickness of material | 0,3 | 0,28 | 0,3 |
weight | 2,8 kg/m2 | 2,6 kg/m2 | 2,85 kg/m2 |
max. width | 2900 | 2700 | 4000 |
max. area | 6,5 m2 | 5,8 m2 | 8,5 m2 |
Diameter of the shaft: 60 mm
Basic colour version
Basic colour version
Al lamella M317 | Al lamella M328 | Al lamella MY442 | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
lamella | box | guide rails | end rails | lamella | box | guide rails | end rail | lamella | box | guide rails | end rail |
01 white 02 light grey 03 dark brown 04 light beige 07 natural 13 moss green 22 gold oak 23 light grey 27 creamy white 38 anthracite grey 84 ivory |
01 white 03 dark brown RAL 9006 RAL 7016 |
01 white 03 dark brown RAL 9006 RAL 7016 |
01 white 03 dark brown RAL 9006 RAL 7016 |
01 white 02 light grey 03 dark brown 04 light beige 07 natural 13 moss green 22 golden oak 27 creamy white 30 Jamaica brown 35 sand beige 38 anthracite grey 84 ivory 86 nut |
01 white 03 dark brown RAL 9006 RAL 7016 |
01 white 03 dark brown RAL 9006 RAL 7016 |
01 white 03 dark brown RAL 9006 RAL 7016 |
01 white 03 dark brown 07 natural 22 gold oak 38 anthracite grey 81 mahagony |
01 white 03 dark brown RAL 9006 RAL 7016 |
01 white 03 dark brown RAL 9006 RAL 7016 |
01 white 03 dark brown RAL 9006 RAL 7016 |
Assembly options
The form of control (motor, belt) influences the form of assembly of the control mechanism passage.
- insertion of the guiding bars into the reveal
- attaching the guiding bars to the window frame (on the reveal).
