Window screens

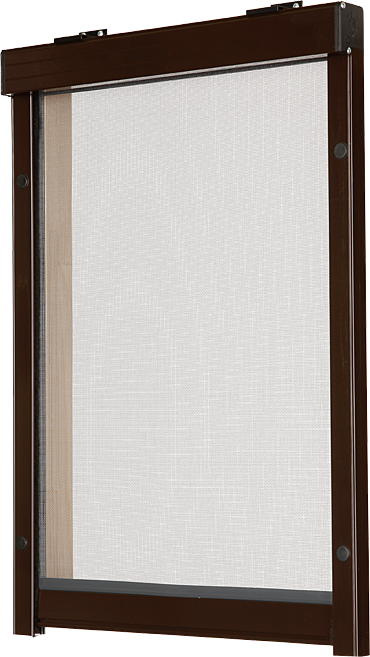

Roll insect screen - Type F10, G10

F10 and G10 anti-insect roll screens are special screens recommended for traditional and double-wing windows and balcony doors. If necessary, the screen can be rolled in any horizontal (F10) or vertical (G10) position. The anti-insect roll screens can be fixed into a reveal or directly on the window frame.

In the case of assembly on the frame, take into consideration that the box will slightly protrude into the clear area of the window. Roll windows cannot be assembled without minor intervention into the window frame. The aluminium box is available in any RAL colour.

I am interested in this product

Advantages

Benefits & advantages

option of lifting and lowering the screen, horizontally and vertically
extruded aluminium box
recommended for two-wing windows and balcony doors
frame colour is according to RAL sampler

Get

Inspiration

Explore

Colour variants

Basic colours frame

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

Guaranteed

Dimensions

For screen F10

minimum width
500 mm

maximum width
1700 mm

minimum height
500 mm

maximum height
2400 mm

maximum area
3,6 m²

For screen G10

minimum width
500 mm

maximum width
1400 mm

minimum height
1400 mm

maximum height
2500 mm

maximum area
3 m²

Technical parameters

Technical parameters - typ F10

	Frame	Max. guaranteed dimensions	Method of fixation	Number of assembly clamps	Corner		Screen
	Frame	Max. guaranteed dimensions	Method of fixation	Number of assembly clamps	internal	external	grey	black	reinforced	white*
Business name	SC 504 horiz. box	3,6 m² max. v. 2400 mm max. š. 1700 mm	box holders on the frame / into reveal	according to dimensions	No	No	Yes	No	No	No
Dimensions (mm)	50 × 42
Material	Al
Cross-section
Colour	Standard: RAL 9003 white RAL 8019 brown Surcharge: other RAL colours sprayed (double sided)

Non-standard dimensions are not produced.
* It is valid for the white mesh that one of the measures (width or height) have to be smaller than 1 450 mm.

Technical parameters - typ G10

	Frame	Max. guaranteed dimensions	Method of fixation	Number of assembly clamps	Size of clamps (mm)	Corner		Screen
	Frame	Max. guaranteed dimensions	Method of fixation	Number of assembly clamps	Size of clamps (mm)	internal	external	grey	black	reinforced	white*
Business name	SC 504 horiz. box	3 m² max. v. 2500 mm max. š. 1400 mm	box holders on the frame / into reveal	according to dimensions	No	No	Yes	No	No	No
Dimensions (mm)	50 × 42
Material	Al
Cross-section
Colour	Standard: RAL 9003 white RAL 8019 brown RAL 7016 anthracite gray Surcharge: other RAL colours sprayed (double sided)

Non-standard dimensions are not produced.
* It is valid for the white mesh that one of the measures (width or height) have to be smaller than 1 450 mm.

Assembly options

into the reveal or on the window frame (requires drilling into the frame)

Download

Control and maintenance manual

Leaflet Insect screens

Leaflet Sun protection systems

Measurement and assembly manual F10

Measurement and assembly manual G10

Order form

Technical manual
