Advantages

Benefits & advantages

  • simple and modern design
  • a wide range of colour shades of fabrics
  • easy handling and assembly
  • electric control option
  • shading of large areas (up to 17.5 m2 depending on the type of fabric and the diameter of the pipe)
  • suitable as a blind for plastic windows ( but also other types of windows)
Explore

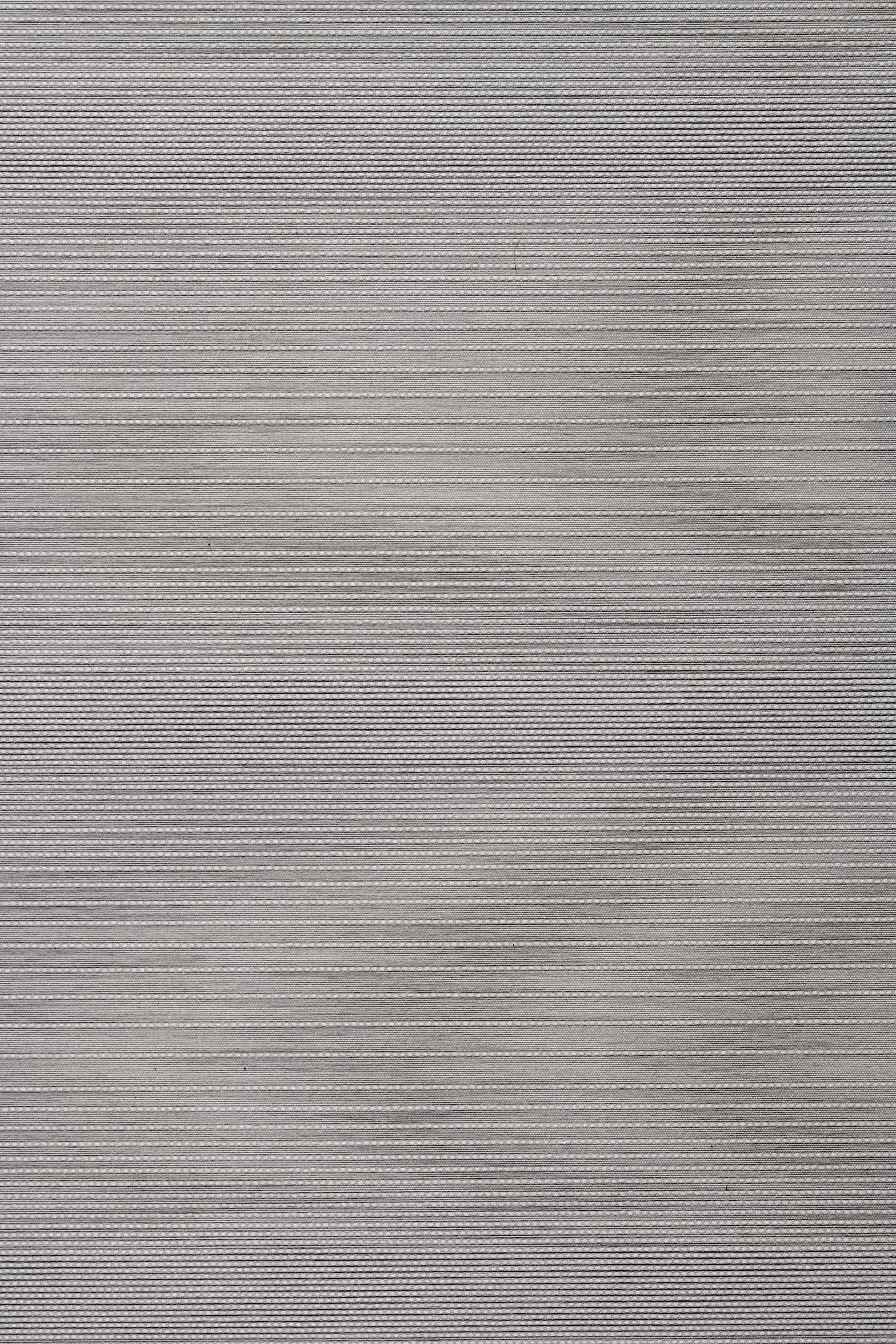

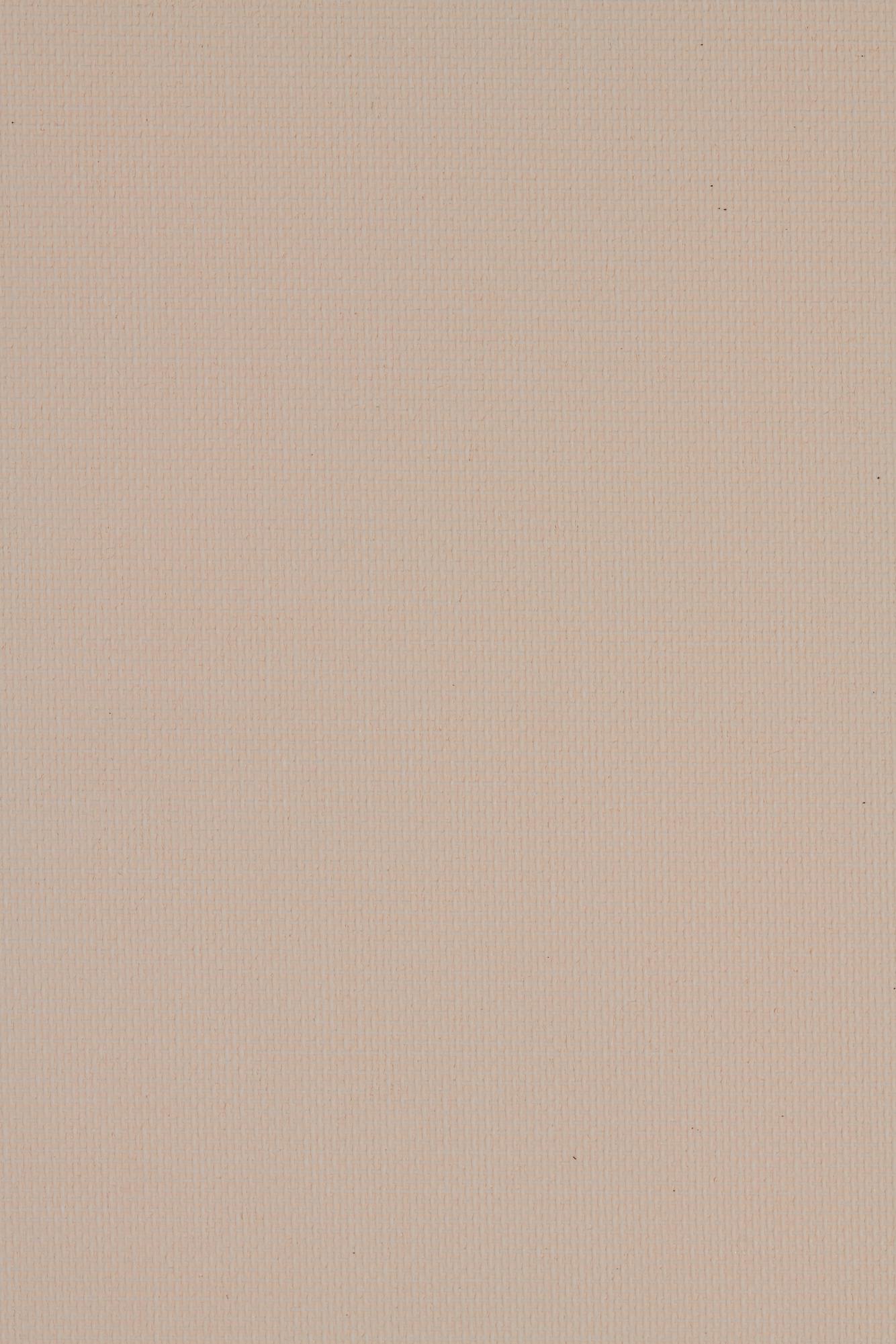

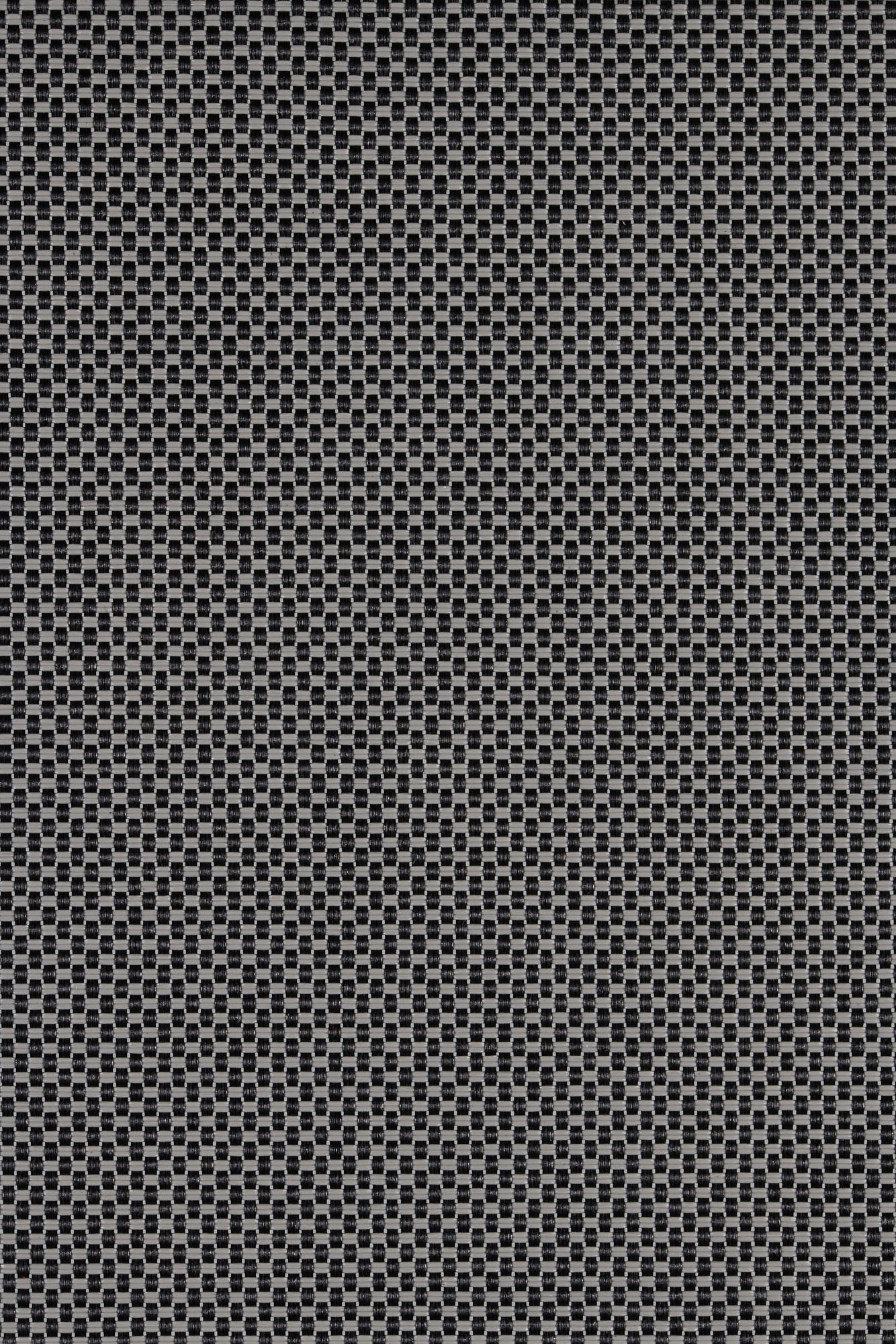

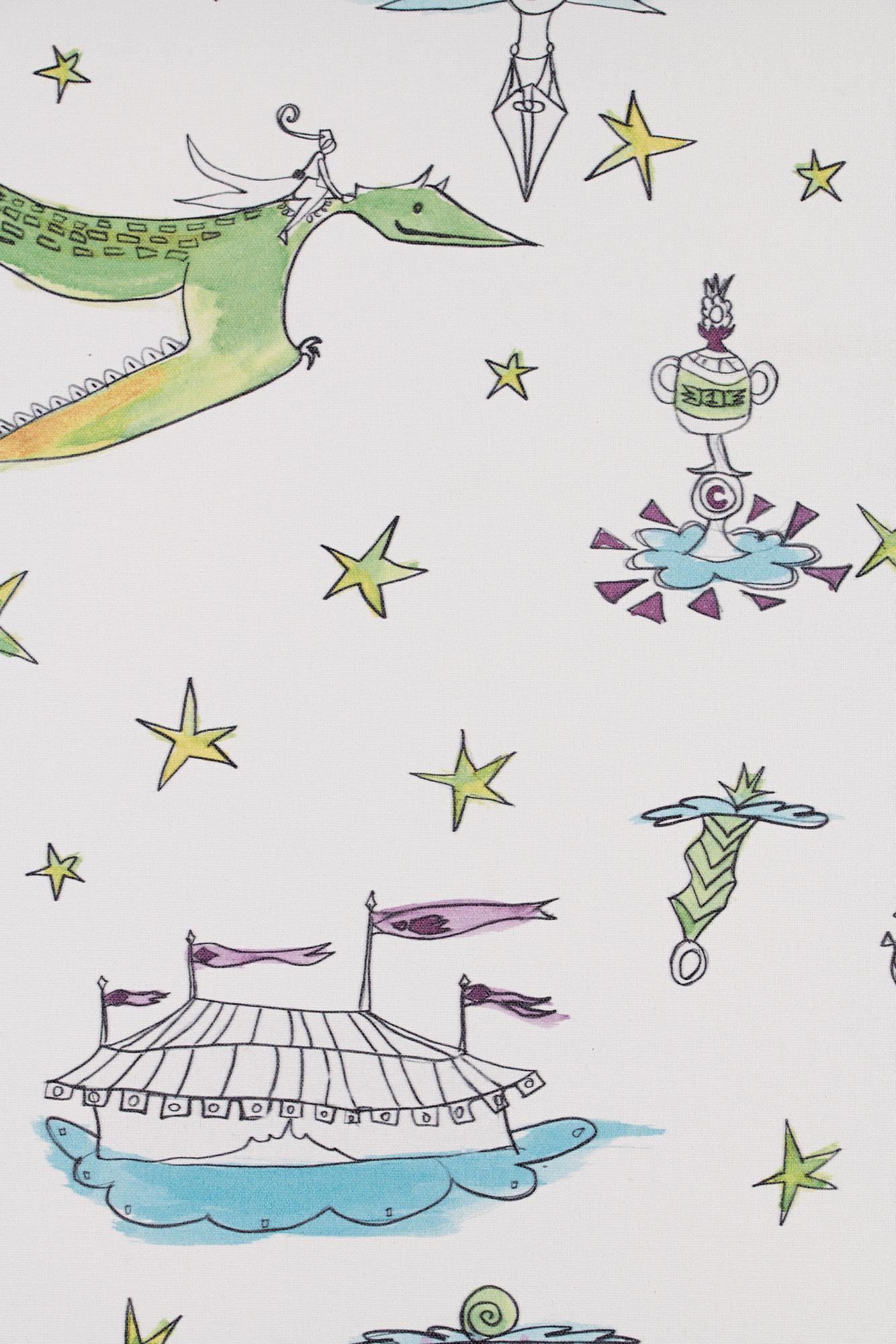

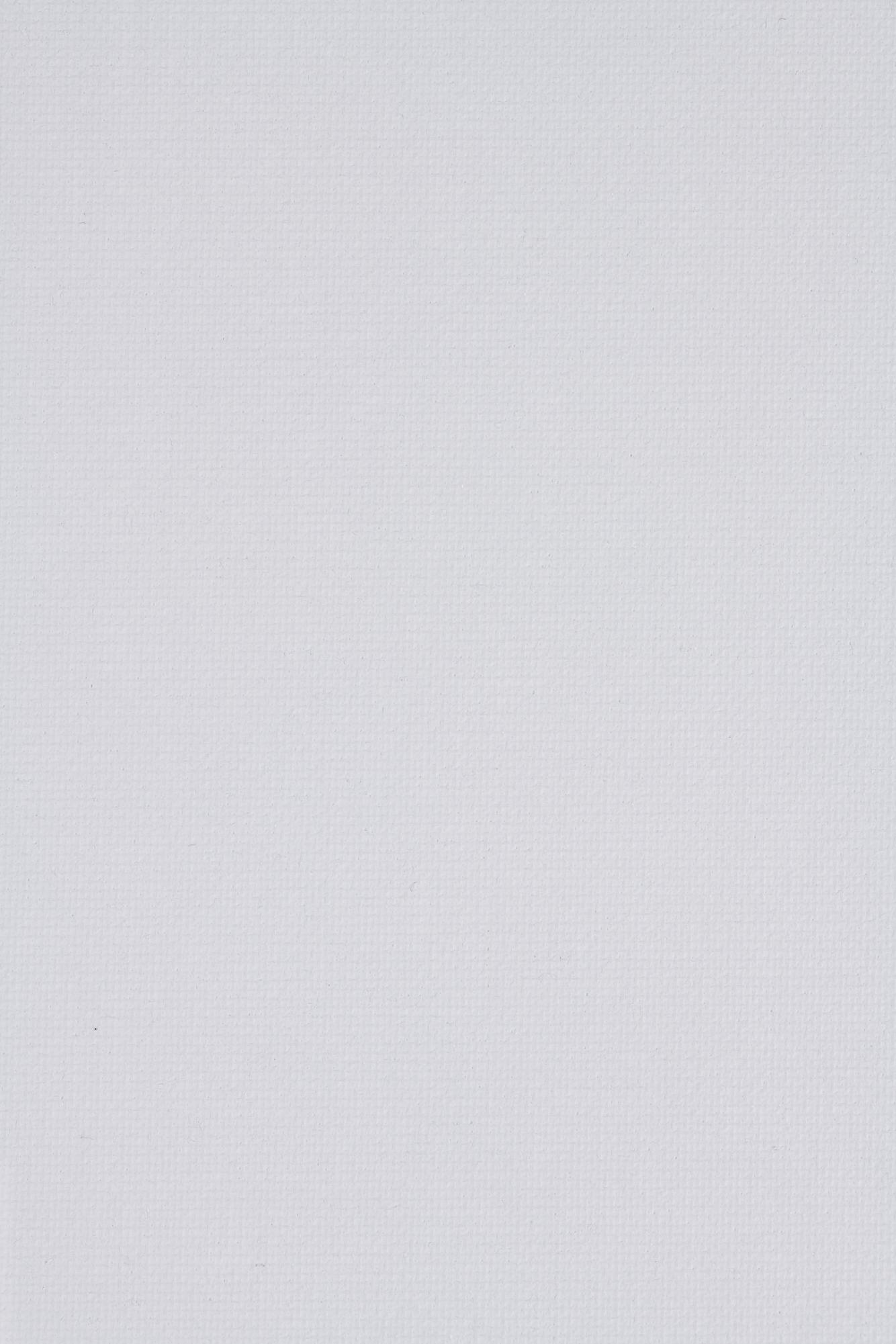

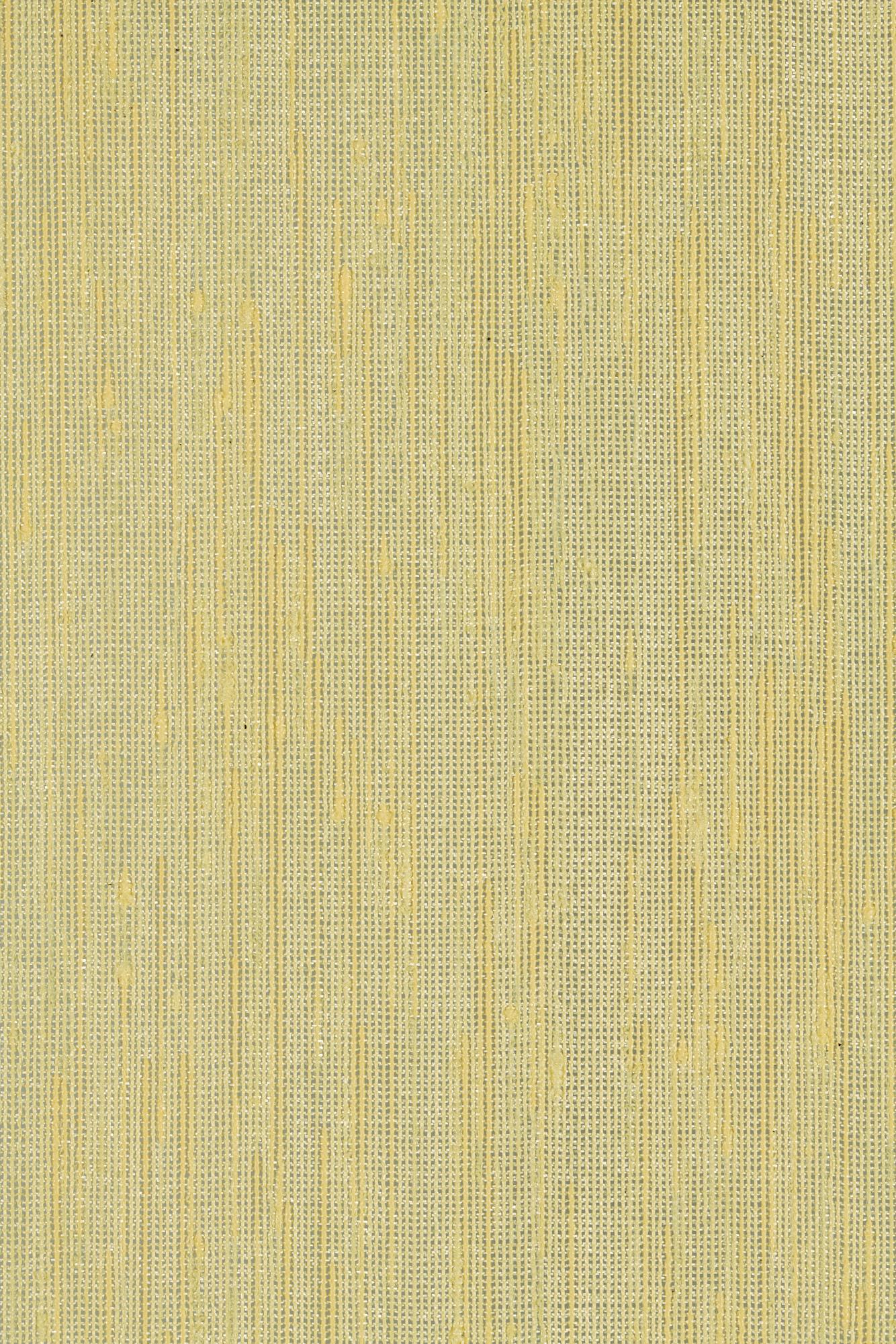

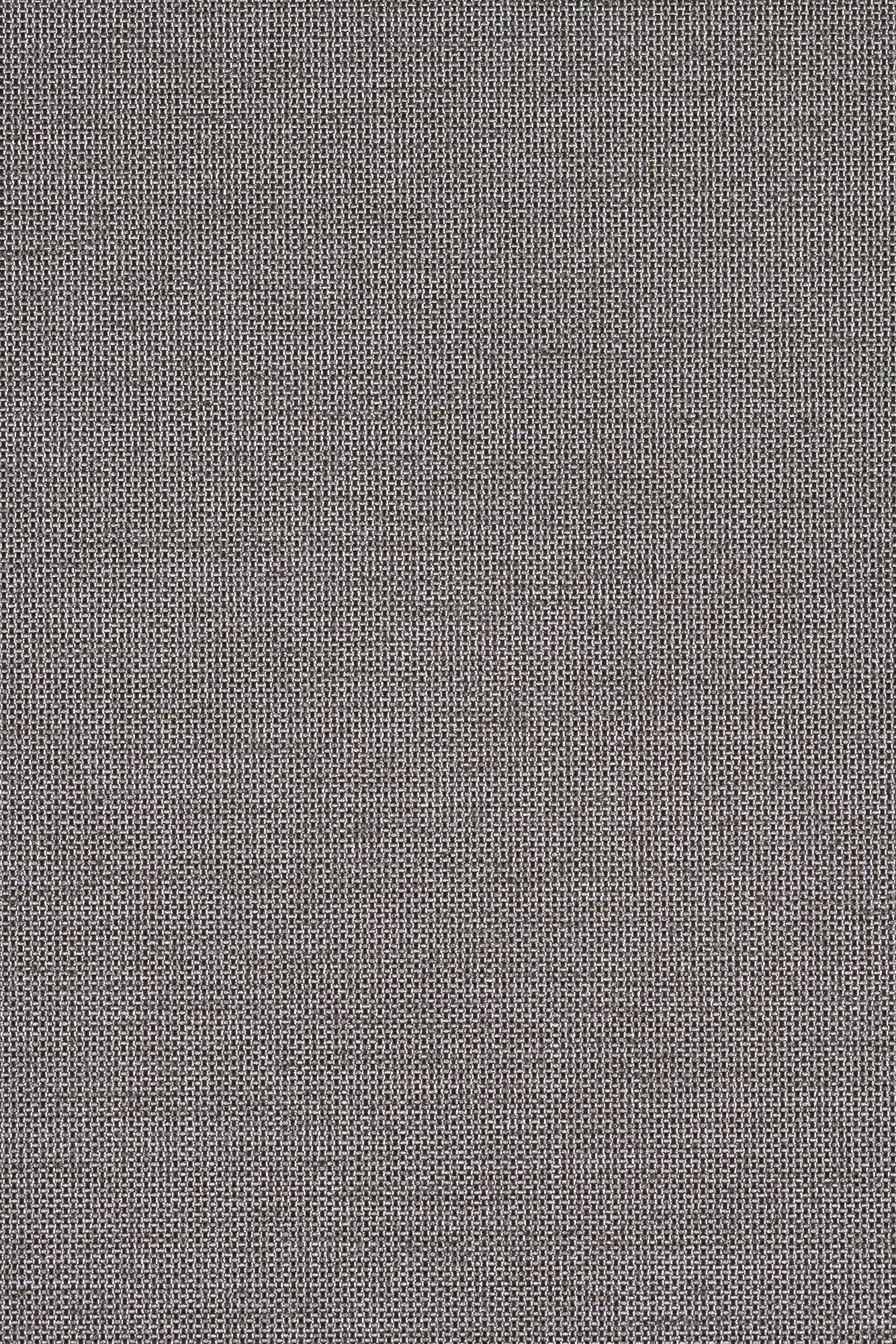

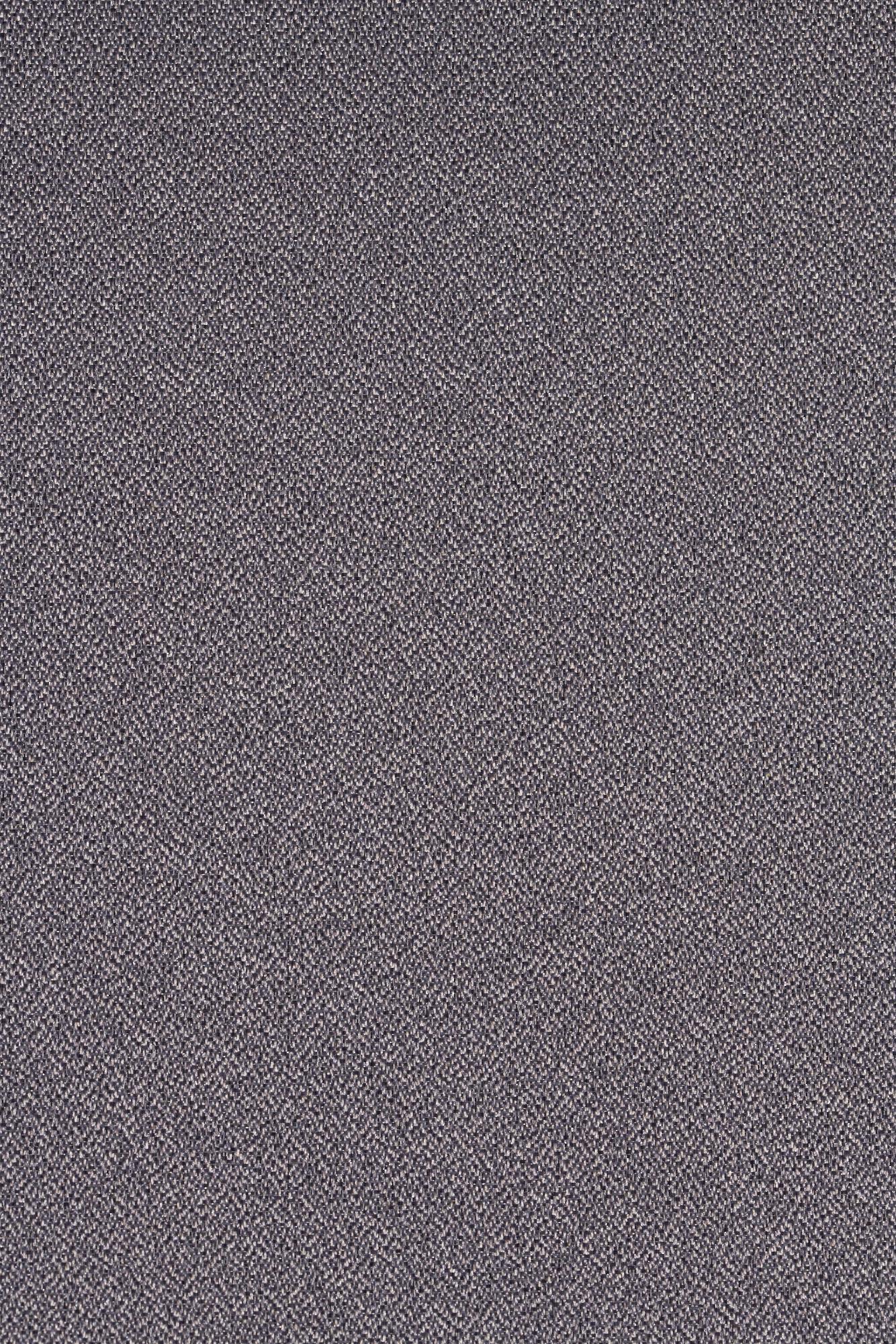

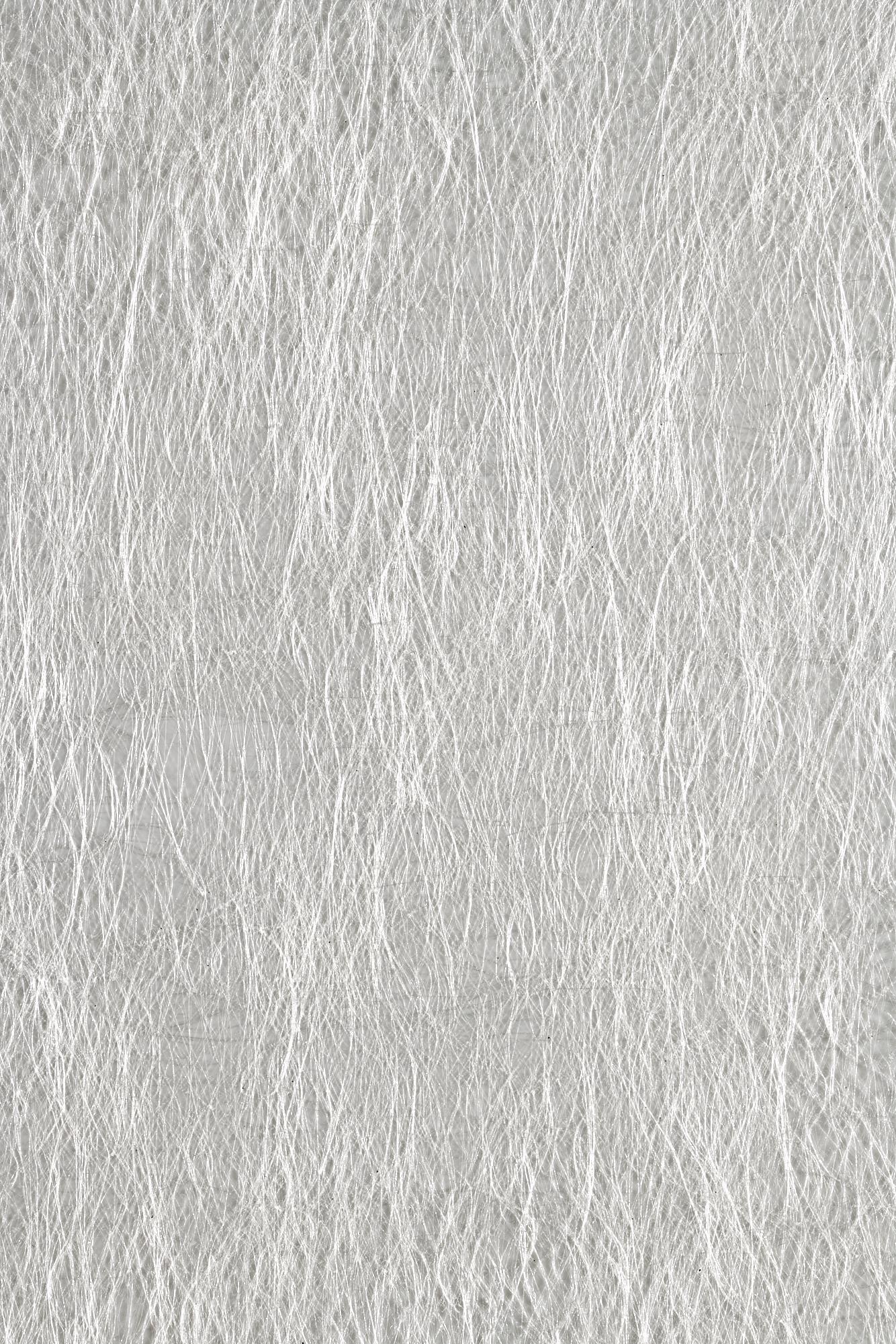

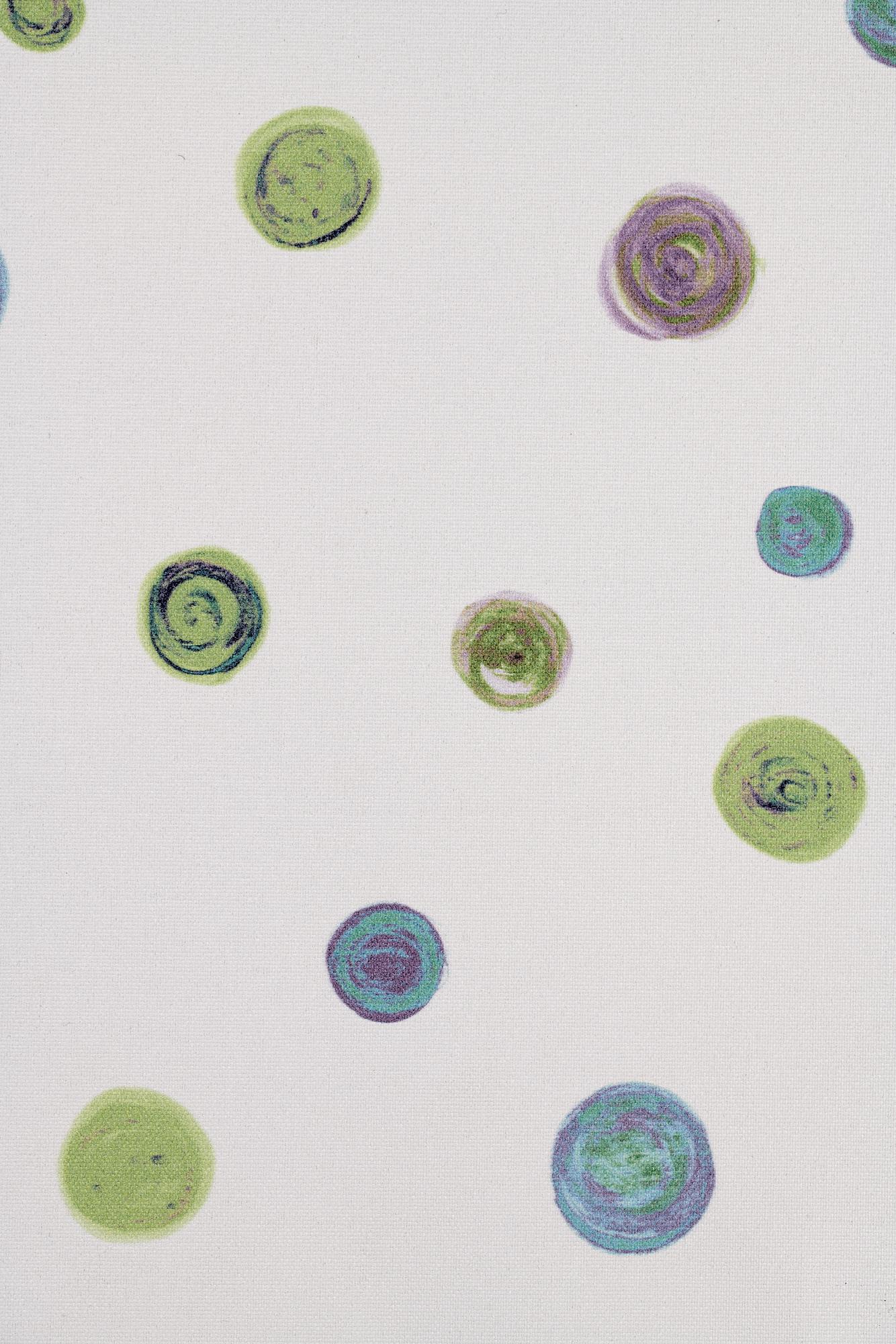

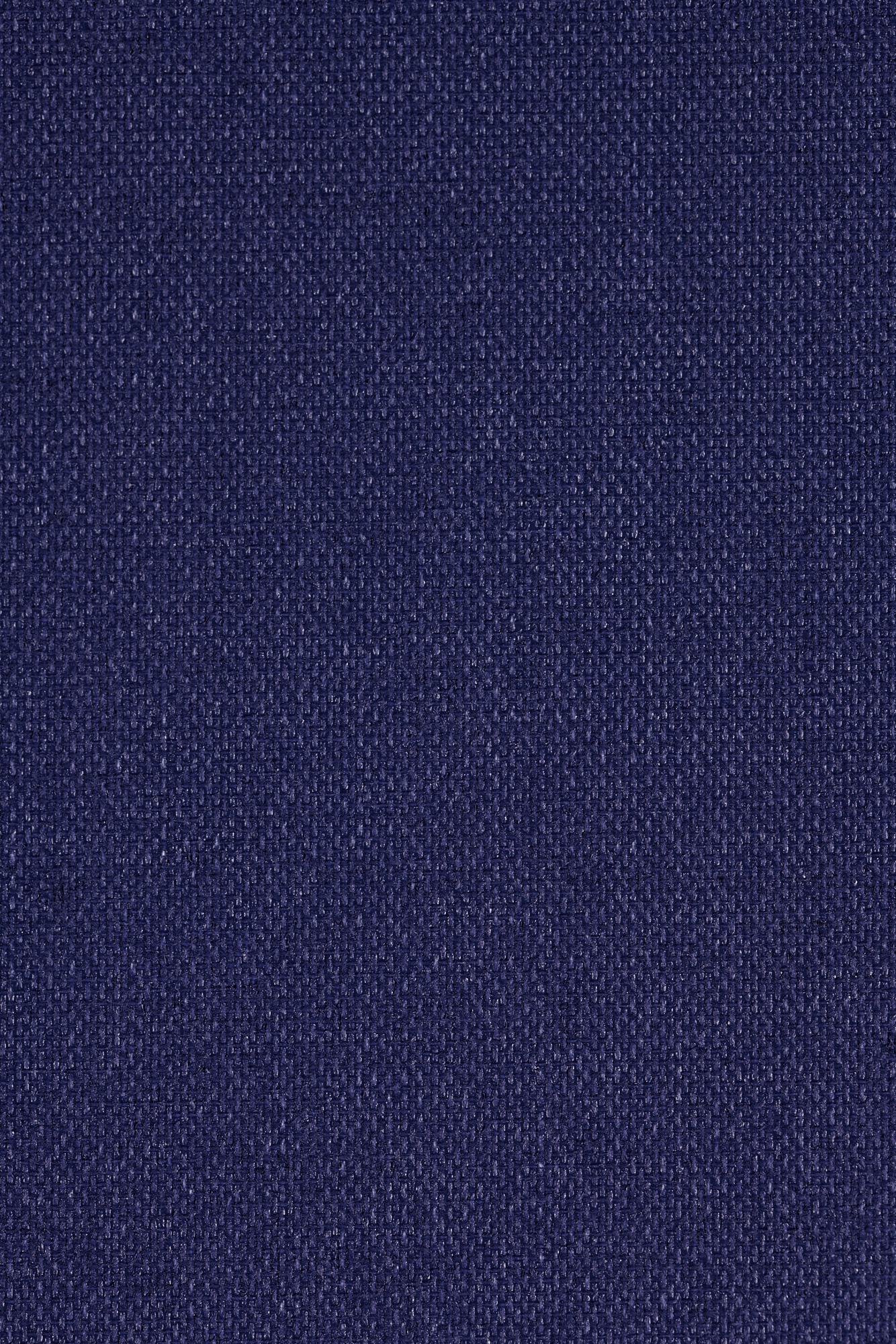

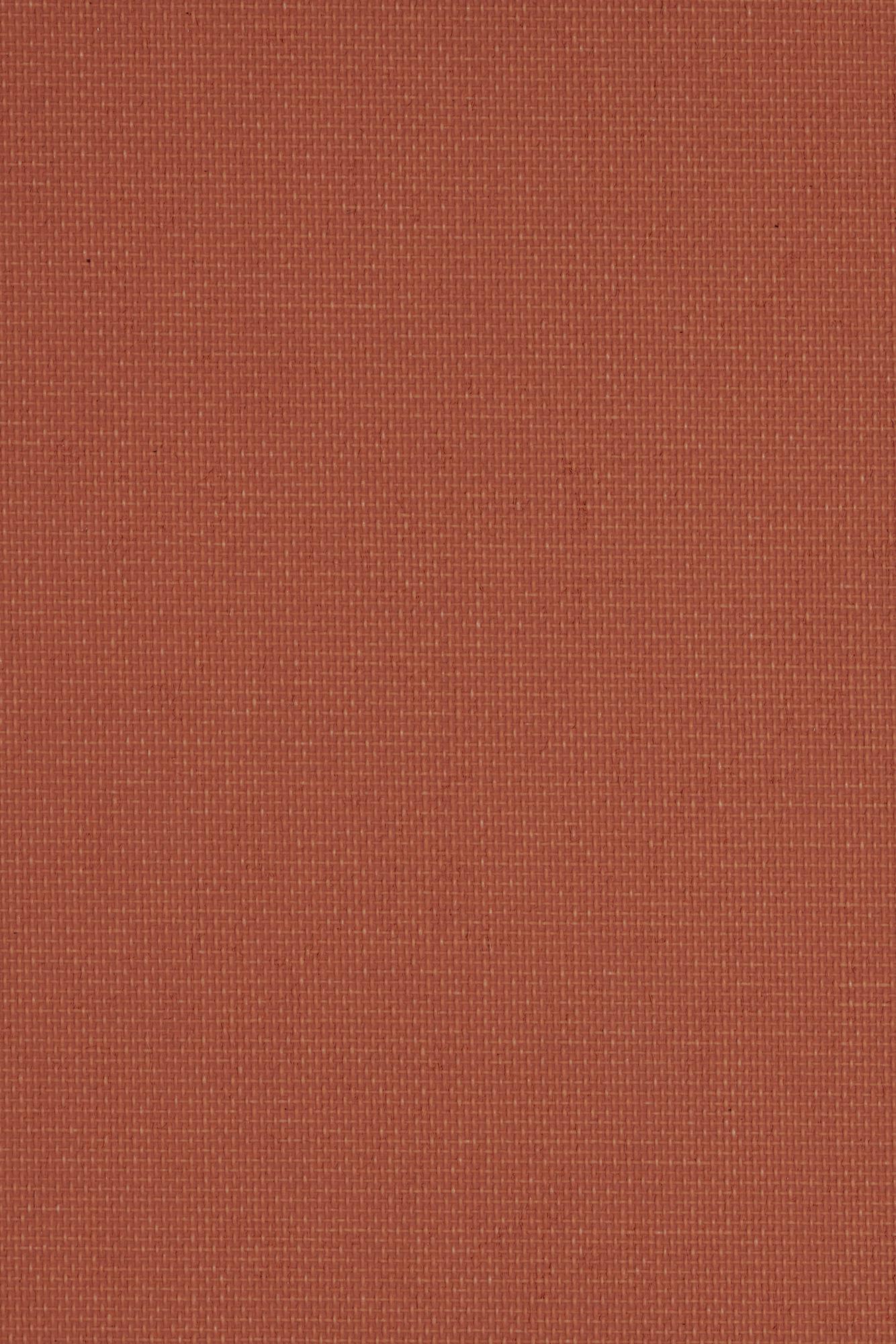

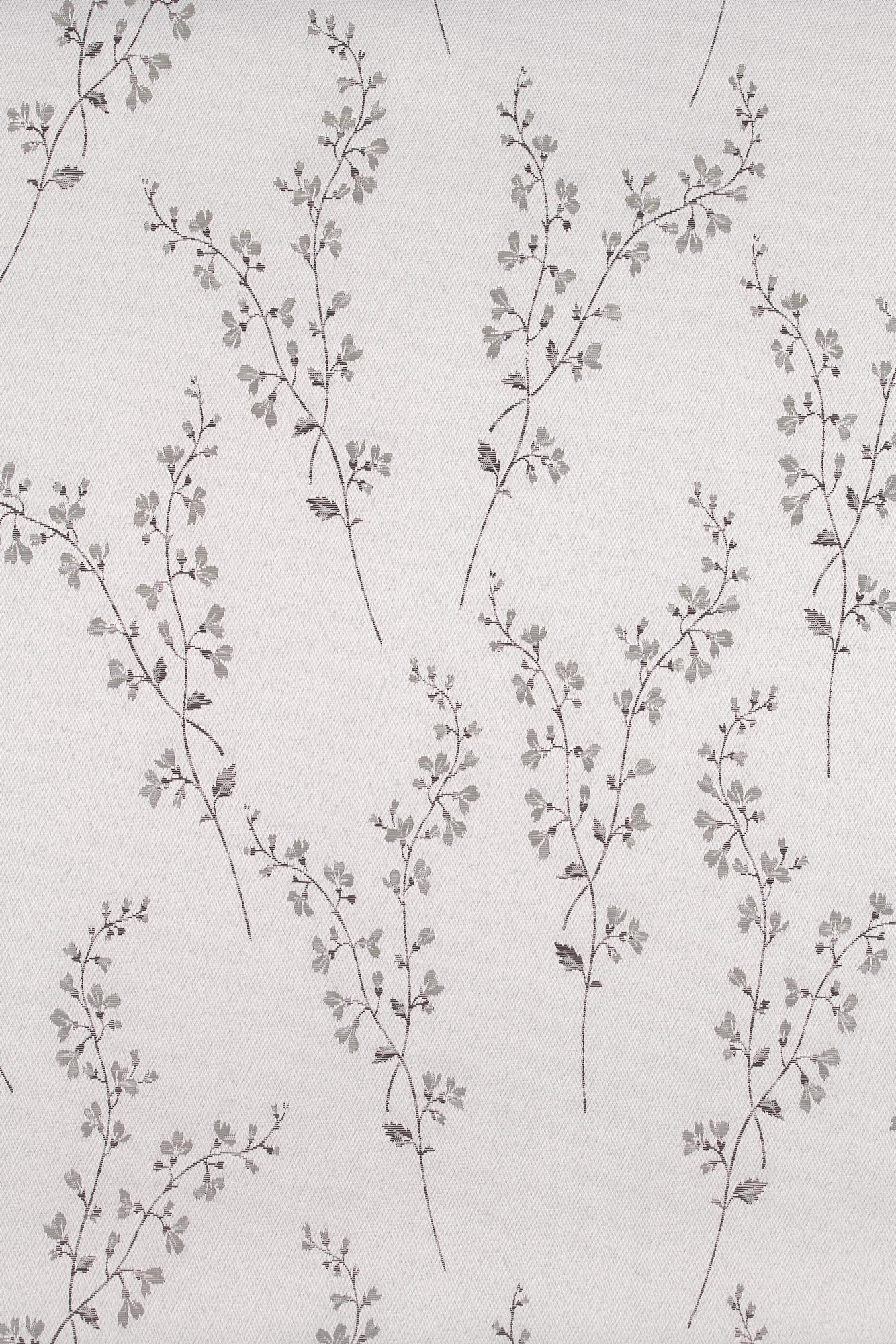

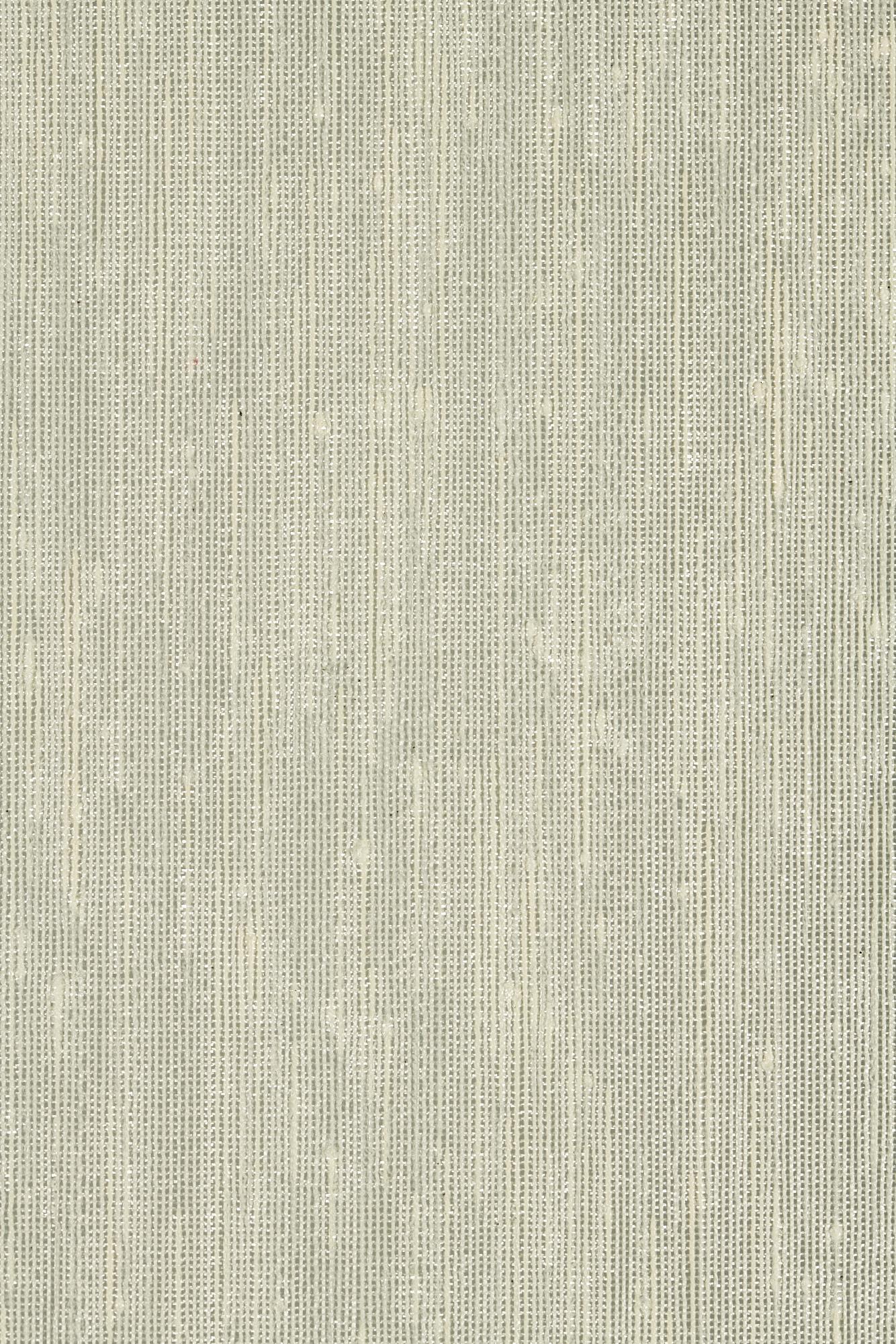

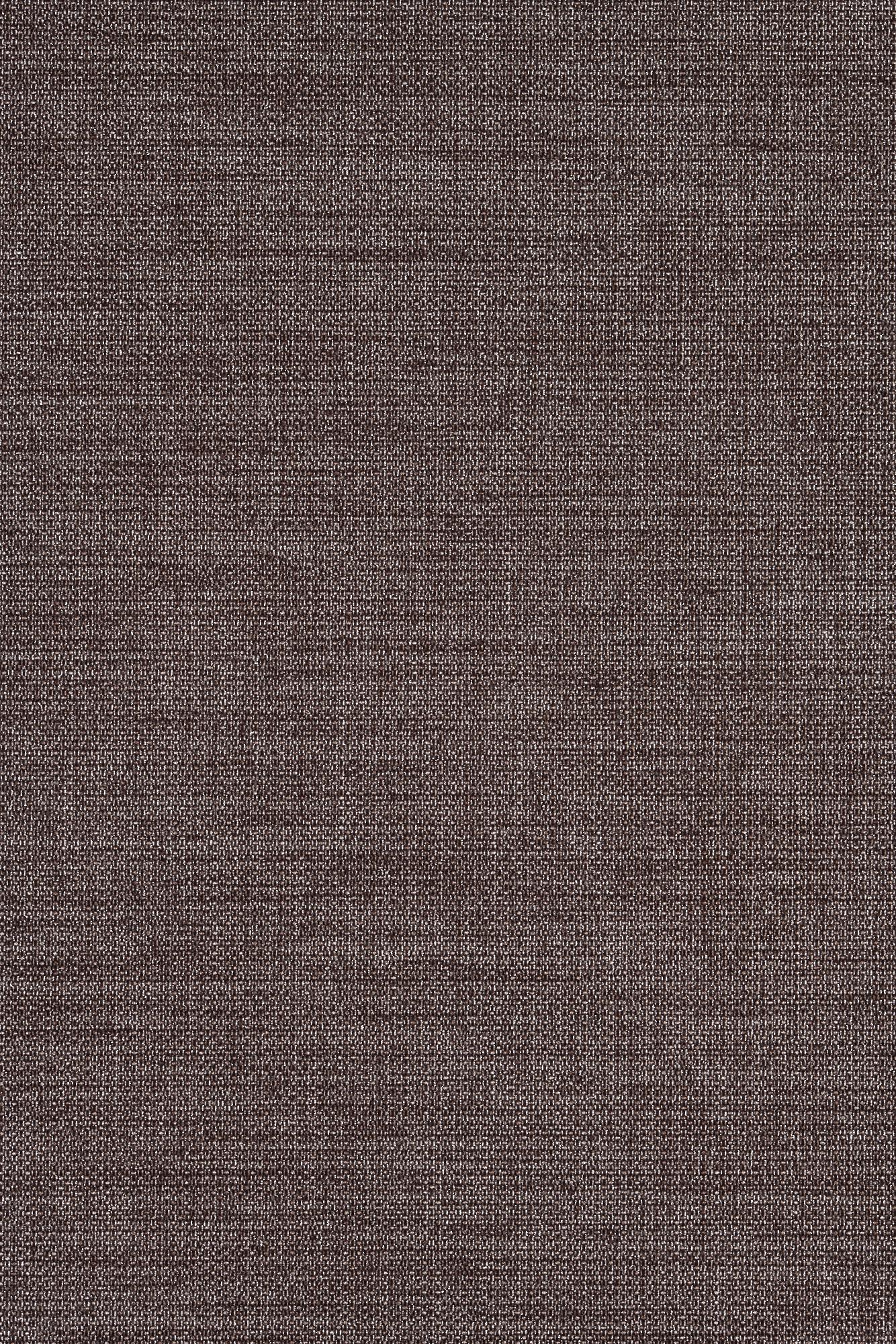

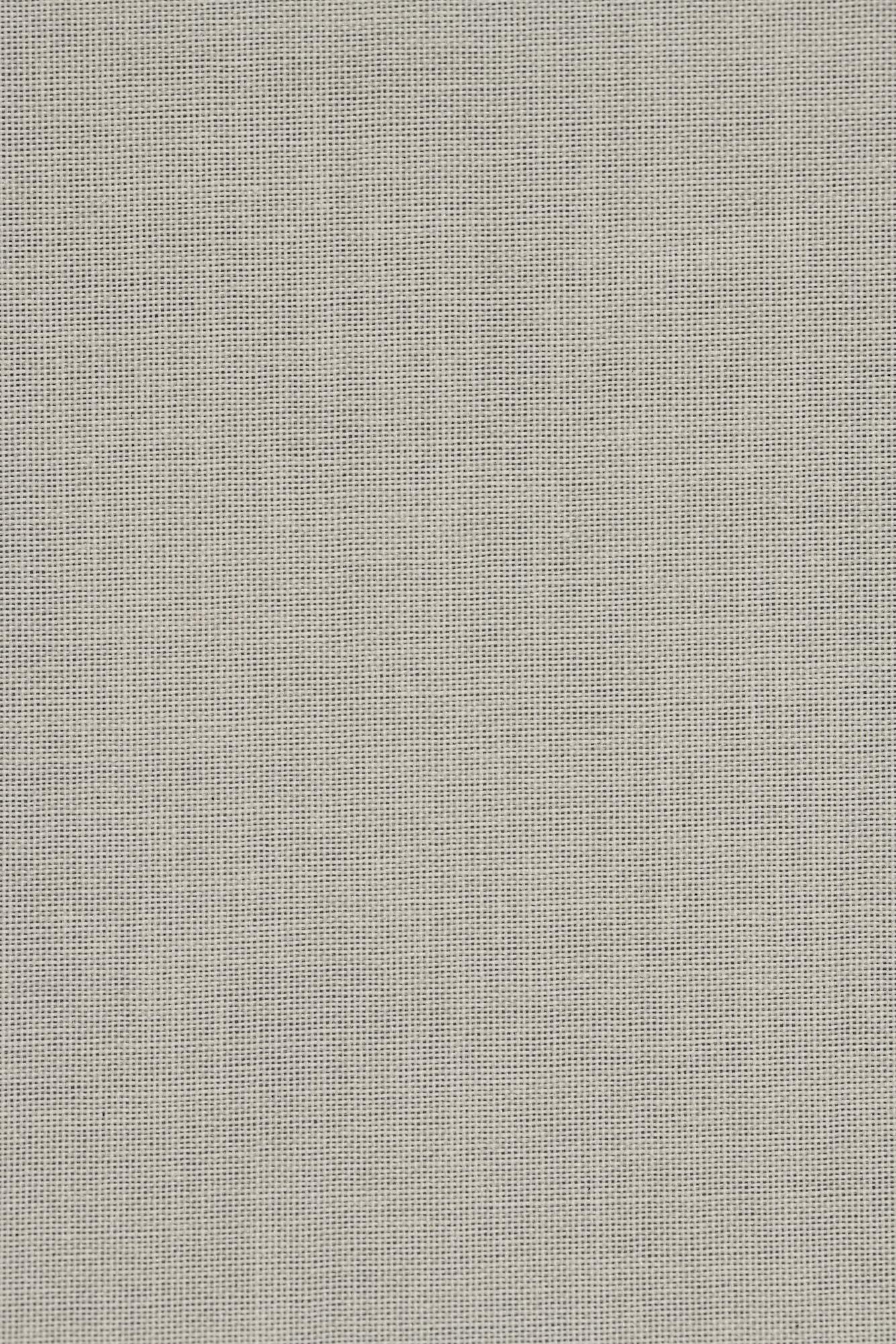

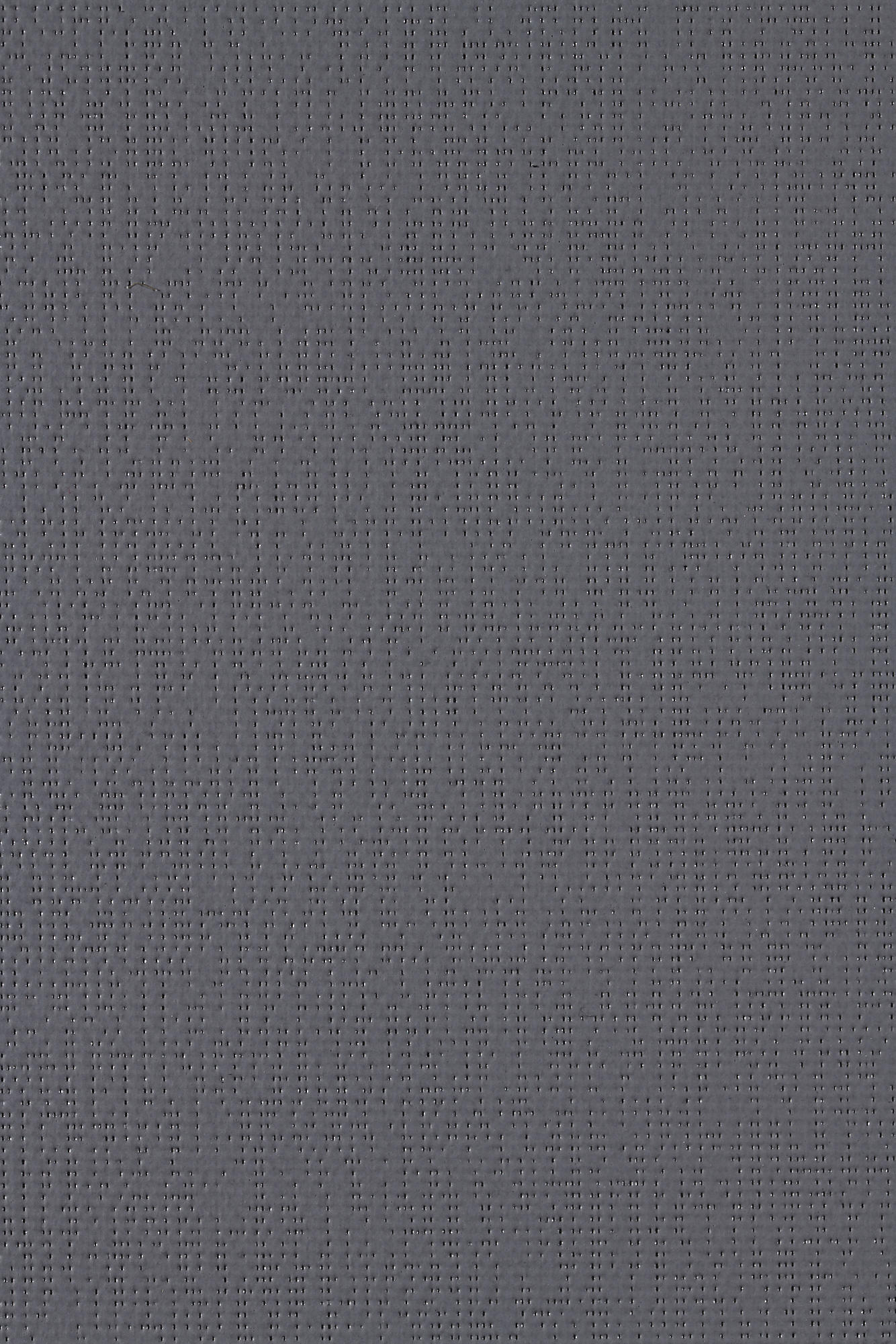

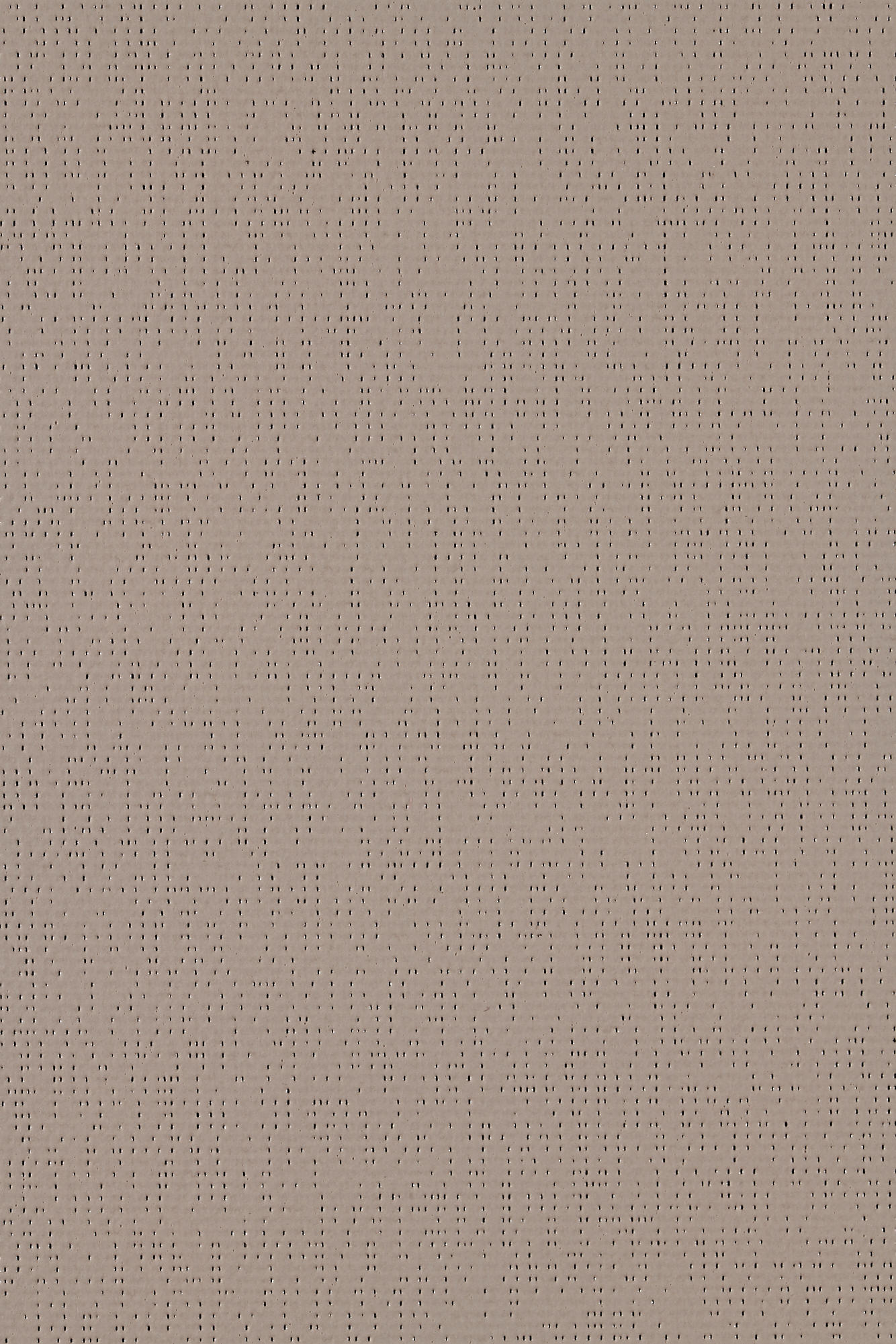

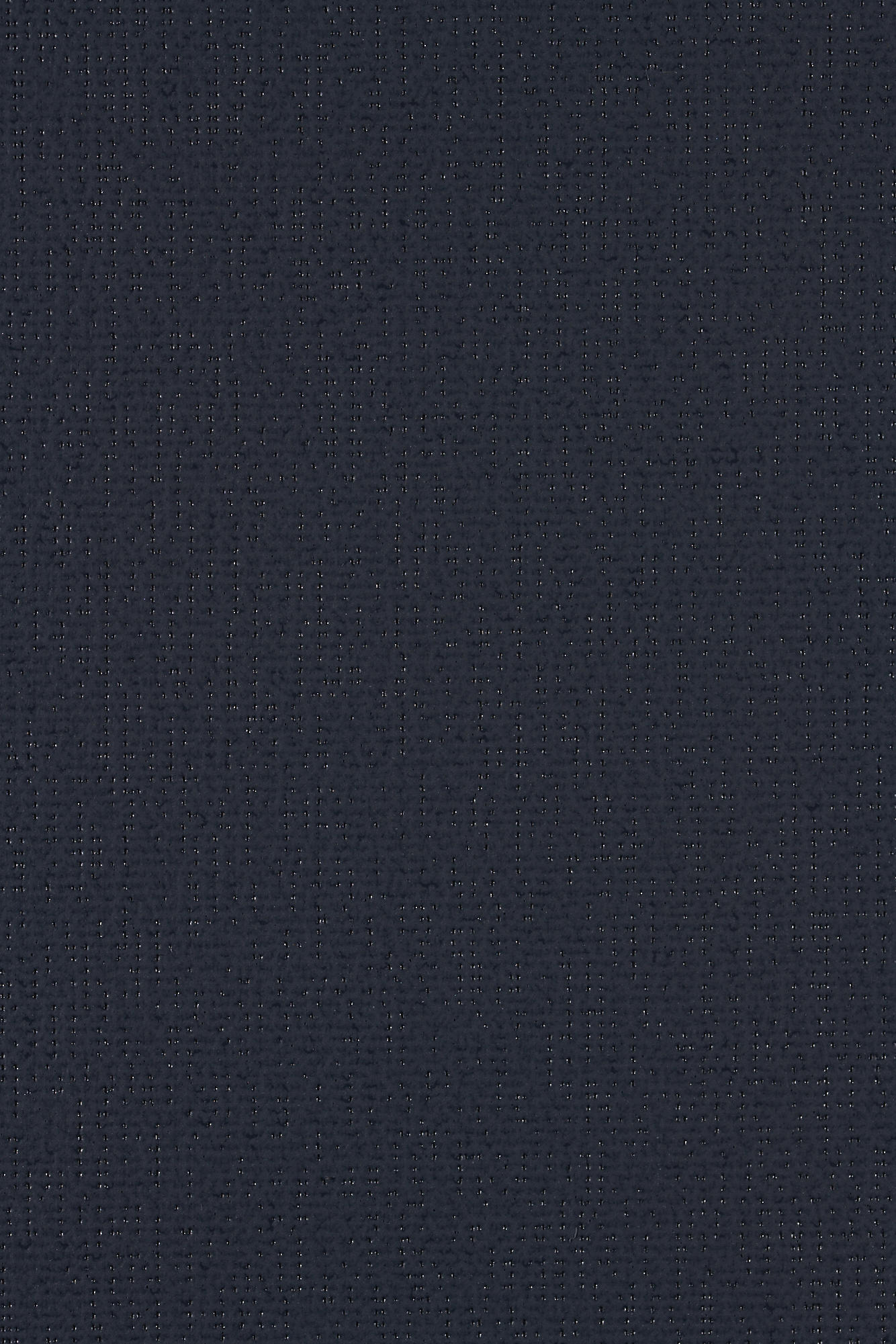

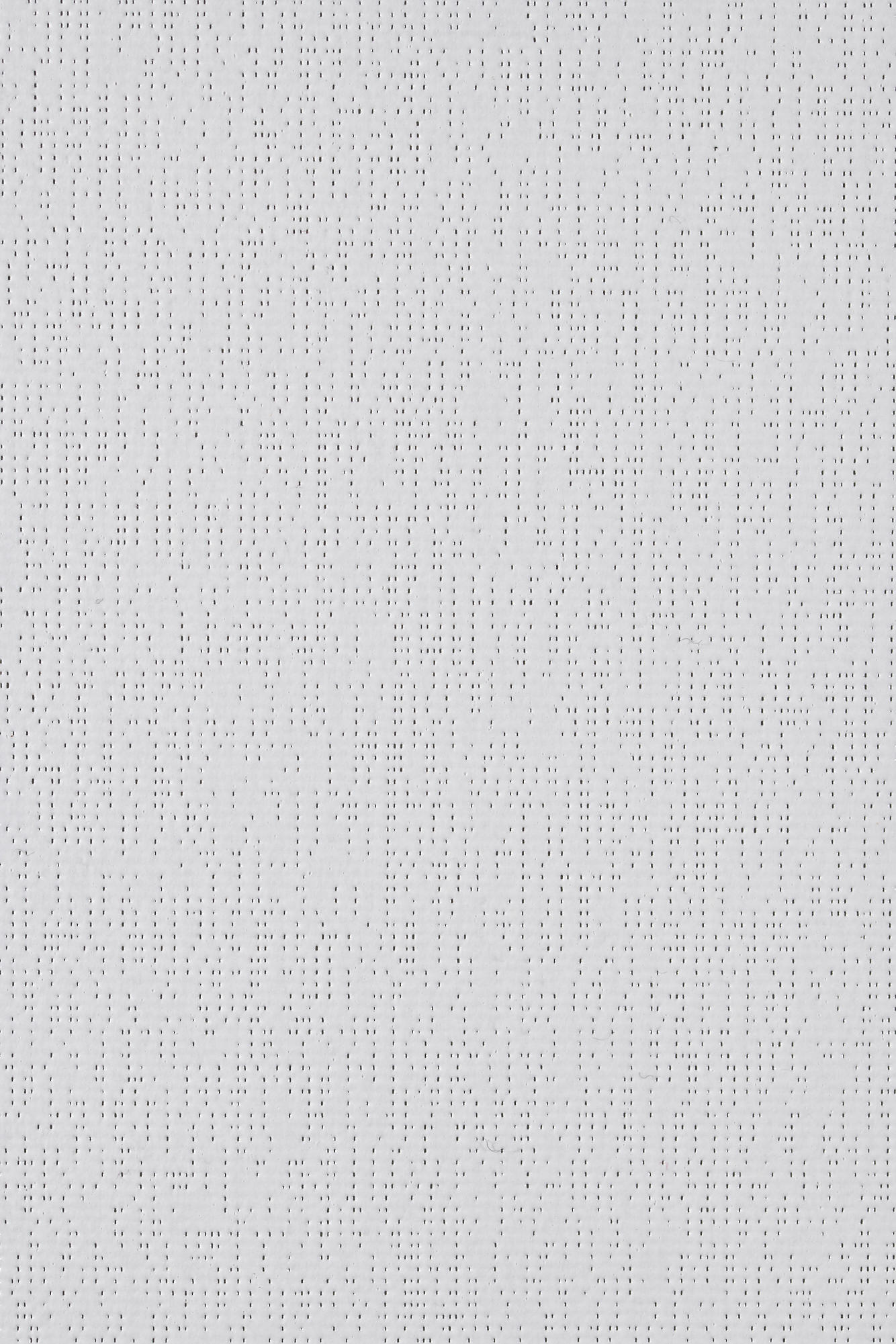

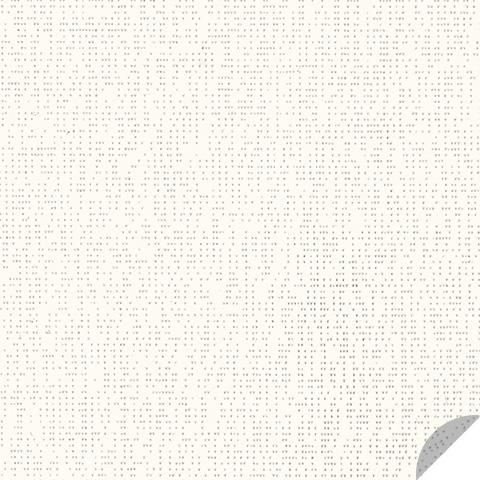

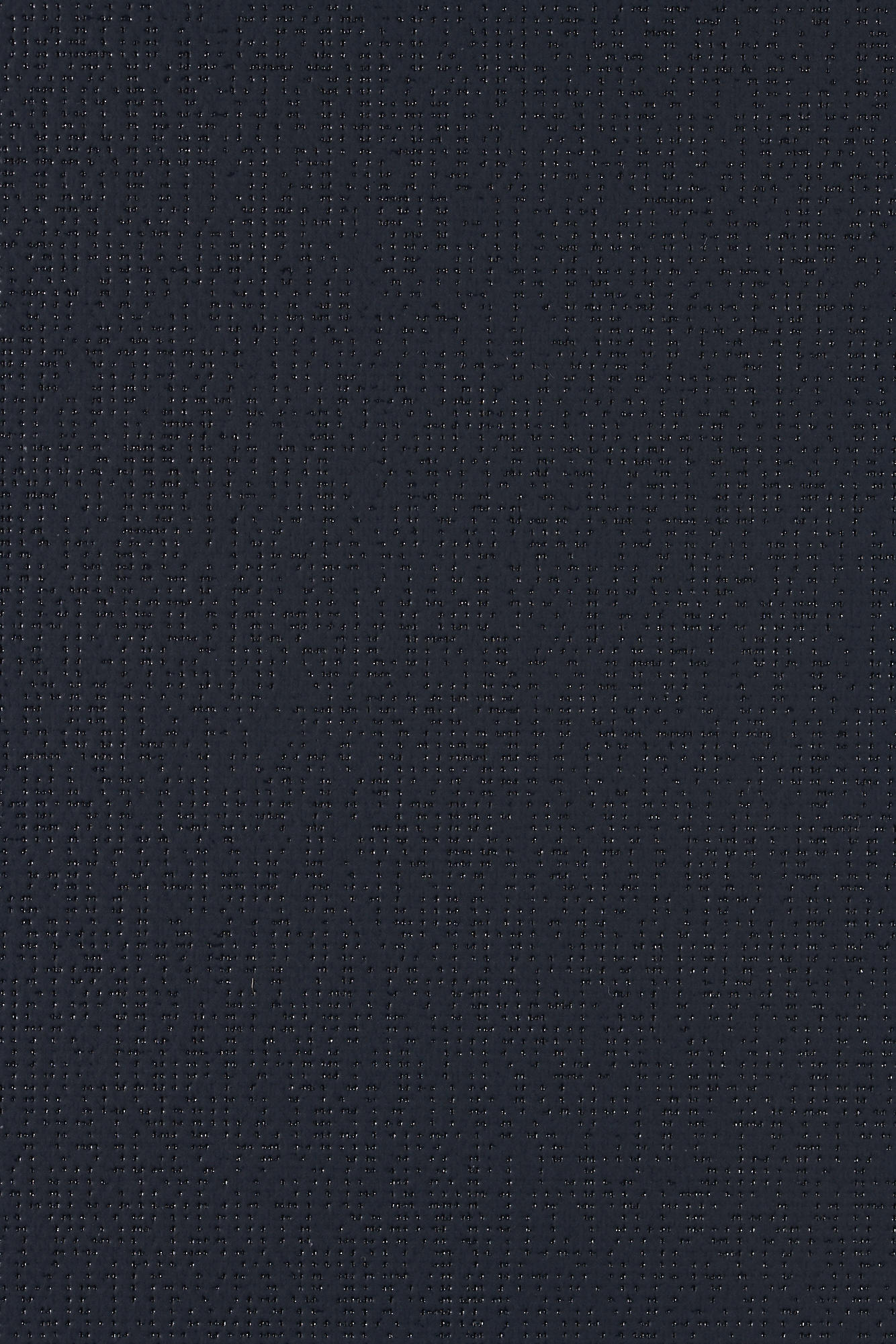

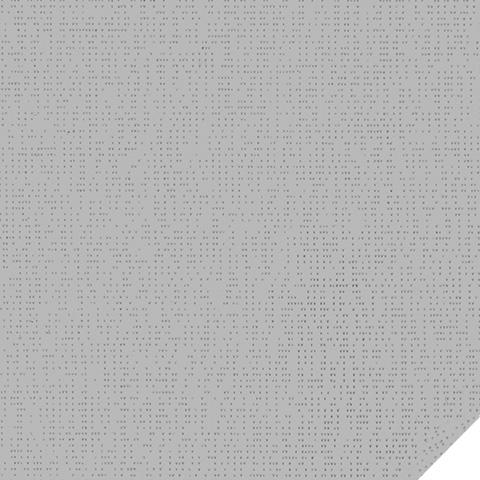

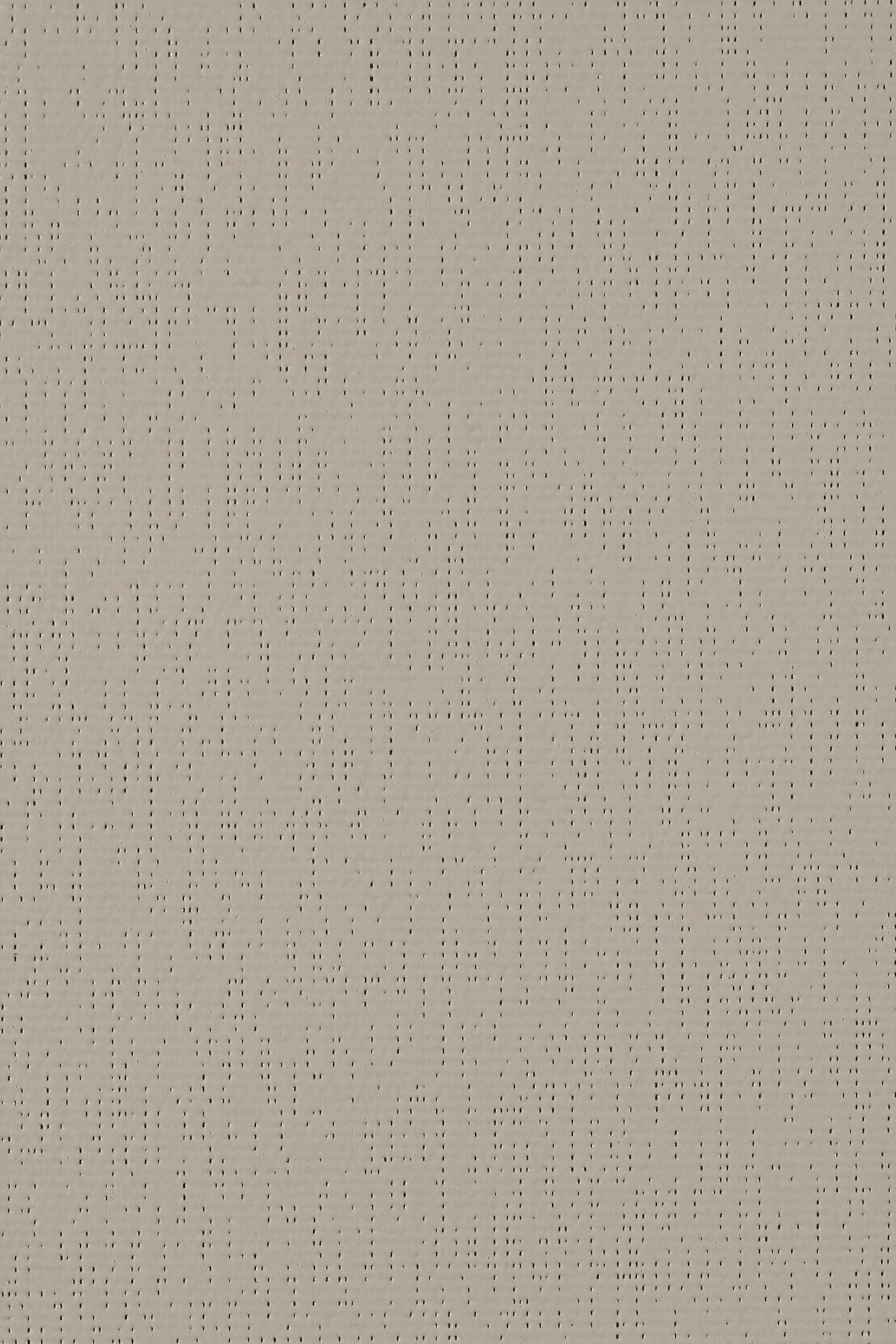

Colour variants

* until the stock breaks out (necessary to check for the material coverage of the order)
† Temporarily unavailable

Material design: 100% PES, 100% TREVIRA CS, GLASS FIBRE-PVC, PES/CV, PES/VISCOSE, PES/PA, PVC/PES

The colours listed here are indicative only. If you really want to see your chosen colour, we recommend that you visit one of our business partners and request a tangible sampler. We cannot accept any complaints due to the selection of an inappropriate colour according to the sampler displayed electronically.
Methods

Handling

manual
plastic chain (Ø 4,5 mm)
electric drive*
remote control or switch
* only for pipe Ø 28 mm
* only for pipe Ø 28 mm

Guaranteed dimensions

Interior fabrics
(thickness; weight)
Verra – pipe Ø 28 Verra – pipe Ø 40 Verra – pipe Ø 50
Width (mm) Height (mm) Guaranteed area (m2) Width (mm) Height (mm) Guaranteed area (m2) Width (mm) Height (mm) Guaranteed area (m2)
max max max max max max max max max
up to 0,3 mm; up to 170 g/m2 2000 4600 6 3000 5500 11,8 3500 5500 117,5
up to 0,5 mm; up to 170 g/m2 2000 2800 6 3000 4600 11,8 3500 5200 117,5
up to 0,3 mm; up to 260 g/m2 2000 4600 4,4 3000 5500 7,7 3500 5500 113,9
up to 0,5 mm; up to 260 g/m2 2000 2800 4,4 3000 4600 7,7 3500 5200 113,9
up to 0,7 mm; up to 260 g/m2 2000 2000 4 3000 5500 5,5 3500 3800 113,3
up to 0,5 mm; up to 365 g/m2 2000 2800 3,2 3000 5500 7,7 3500 5200 99,9
up to 0,7 mm; up to 170 g/m2 2000 2000 6 3000 5500 11,8 3500 3800 117,5
up to 0,5 mm; over 365 g/m2 2000 2800 3 3000 5500 5 3500 5200 9
Corfu 2000 2500 5 2450 5400 12 2450 4500 10,8
Cyprus 2000 1500 3 2750 3200 6,7 2750 2650 5,4
Fiji 2000 2900 5,8 2750 5500 12 2750 5000 13,5
Parga 2000 4600 8,3 2800 5500 12 2800 5500 15,4
Rhodos 2000 2100 4,2 2450 4400 10,5 2450 3700 8,8
Zakynthos 2000 2700 4,6 2500 5500 12 2500 4800 112

The minimum width and height for all fabrics and pipe diameters is 300 mm.
For the motor version, the minimum blind width is 500 mm (only for Ø 28 mm pipe).

Screen fabrics Verra – pipe Ø 28
Width (mm) Height (mm) Guaranteed area (m2)
max max max
Satiné, Satiné Metal 3000 3200 9,8
Screen Nature 3000 5500 16,5
SCR 3005 3000 4100 12,5
Soltis 92 3000 4000 12,2
Cristal plus 500 3S 3000 2830 8,4
SCR 4005 3000 3500 9,4
Soltis 86 3000 4200 13,1
Soltis 99 3000 4500 117,2

The minimum width and height for all fabrics and pipe diameters is 300 mm.
For the motor version, the minimum blind width is 500 mm (only for Ø 28 mm pipe).

Technical parameters

Pipe Ø 28 mm (up to 2 m blind width), pipe Ø 42 mm (up to 3.0 m blind width) and Ø 50 mm (up to 3.5 m blind width)
Classic design: without guide rail and without mounting profile
Day/night design: with mounting profile.

Mounting profile (with a clip) Lower profile Lower profile (day/night)* Mounting holder
Business name RCUP-25W RCUP-42W RBR/1 DRC-05-W + DRC 04 DRC-07 + DRC 09 RC 2009-W/GR
RC 3010-W/GR
Dimension (mm) 45×13 62×13 15×30 39×17 Ø 15
Material Al Al Al Al Plast
Cross-section Cross-section of profile Cross-section of profile Cross-section of profile Cross-section of profile Cross-section of profile
Colour white white
grey
white
elox
white
grey

Caps for RBR / 1 profile in transparent color. The profile can be covered with fabric.
* for Rhodos fabric bottom rail DRC07 only

Mounting variants

The blind is suitable for plastic windows, euro windows, aluminium windows. Installation is possible:

  • to the window opening (ceiling)
  • in front of the window opening (wall)
