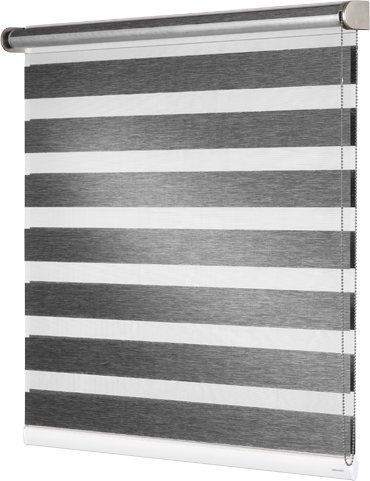

Advantages

Benefits & advantages

  • simple and modern design
  • wide range of colour shades of fabrics
  • easy handling and assembly
  • electric control option
  • shading of large areas (up to 17.5 m2 depending on the type of fabric and the diameter of the pipe)
  • suitable as a blind for plastic windows (but also other types of windows)
Explore

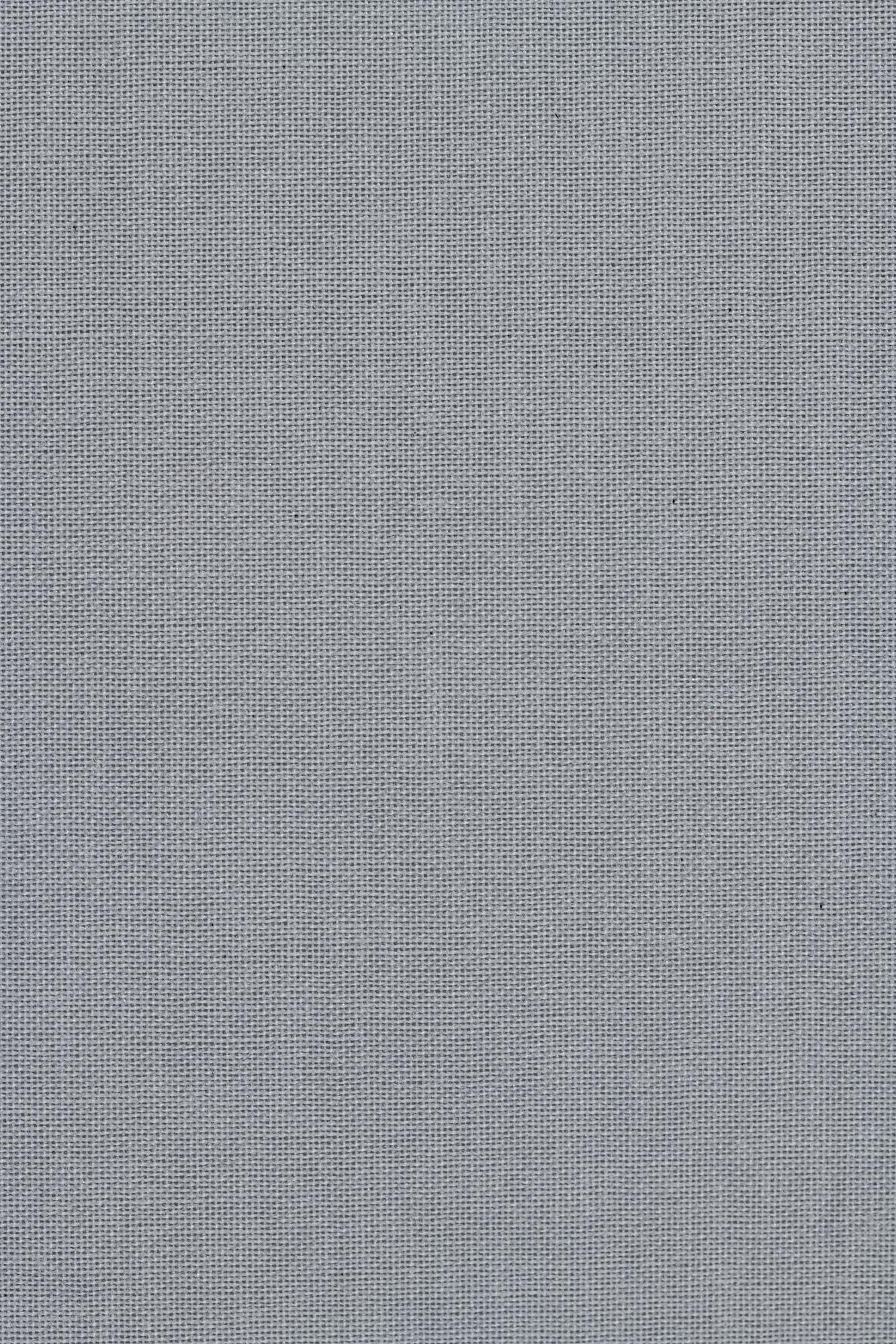

Colour variants

* until the stock breaks out (necessary to check for the material coverage of the order)
† Temporarily unavailable

Material design: 100% PES, 100% TREVIRA CS, GLASS FIBRE-PVC, PES/CV, PES/VISCOSE, PES/PA, PVC/PES

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.
Methods

Handling

manually
by metal chain (Ø 4,5 mm)
electric drive*
remote control or switch
*only for Ø 40 and 50 mm tube

Guaranteed dimensions

Interior fabrics (thickness; weight) Verra metal – tube Ø 28 Verra metal – tube Ø 40 Verra metal – tube Ø 50
Width (mm) Height (mm) Guaranteed area (m2) Width (mm) Height (mm) Guaranteed area (m2) Width (mm) Height (mm) Guaranteed area (m2)
max max max max max max max max max
up to 0,3 mm; up to 170 g/m2 2000 5000 6 3000 5500 11,8 3500 5500 17,5
up to 0,5 mm; up to 170 g/m2 2000 3600 6 3000 4600 11,8 3500 5200 17,5
up to 0,3 mm; up to 260 g/m2 2000 2600 6 3000 5500 7,7 3500 5500 13,9
up to 0,5 mm; up to 260 g/m2 2000 5000 4,4 3000 4600 7,7 3500 5200 13,9
up to 0,7 mm; up to 260 g/m2 2000 3600 4,4 3000 5500 5,5 3500 3800 13,3
up to 0,5 mm; up to 365 g/m2 2000 2600 4,4 3000 5500 7,7 3500 5200 9,9
up to 0,7 mm; up to 170 g/m2 2000 3600 3,2 3000 5500 11,8 3500 3800 17,5
up to 0,5 mm; above 365 g/m2 2000 3600 3 3000 5500 5 3500 5200 9
Corfu 2000 2500 5 2450 5400 12 2450 4500 10,8
Cyprus 2000 1500 3 2750 3200 6,7 2750 2650 5,4
Fiji 2000 2900 5,8 2750 5500 12 2750 5000 13,5
Parga 2000 4600 8,3 2800 5500 12 2800 5500 15,4
Rhodos 2000 2100 4,2 2450 4400 10,5 2450 3700 8,8

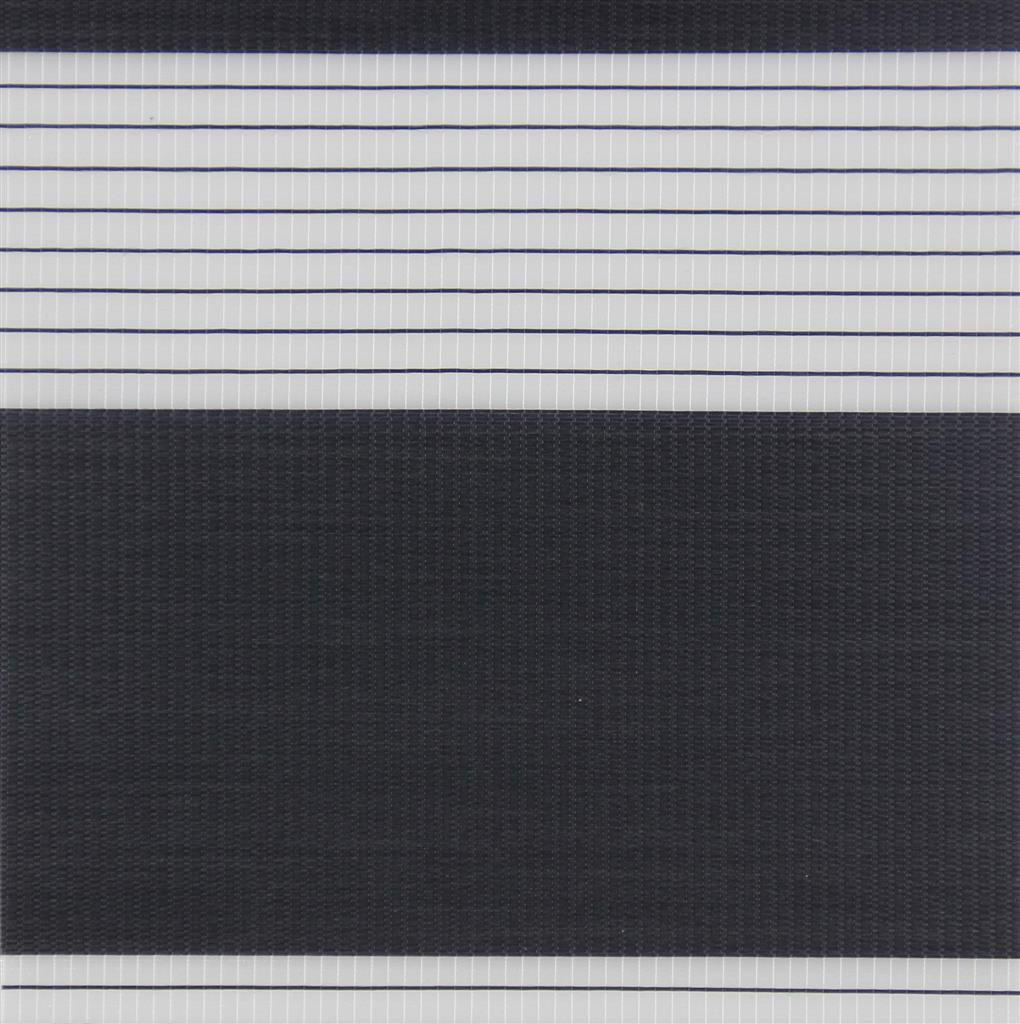

Zakynthos 2000 2700 4,6 2500 5500 12 2500 4800 12

The minimum width and height for all fabrics and tube diameters is 300mm. For the motor version, the minimum blind width is 700mm (only for Ø40 and 50mm tubes).

Screen fabrics Verra – tube Ø 28
Width (mm) Height (mm) Guaranteed area (m2)
max max max
Satin, Satin Metal 3000 3200 9,8
Screen Nature 3000 5500 16,5
SCR 3005 3000 4100 12,5
Soltis 92 3000 4000 12,2
Cristal plus 500 3S 3000 2830 8,4
SCR 4005 3000 3500 9,4
Soltis 86 3000 4200 13,1
Soltis 99 3000 4500 17,2
The minimum width and height for all fabrics and tube diameters is 300mm. For the motor version, the minimum blind width is 700mm (only for Ø40 and 50mm tubes)..

Technical parameters

Tube, diameter 28 mm (up to 2,0 m width of the blind), tube, diameter 42 mm (up to 3.0 m of the width of the blind) and iameter 50 mm (up to 3.5 m of the width of the blind)
traditional variation: without guiding and without profile assembly,
day / night variation: with profile assembly

Assembly profile (with clap) dolní profil Lower profile (day-night)* Assembly holders
Business name
RCUP-25W RCUP-42W RBR/1 DRC-05-W + DRC 04 DRC-07 + DRC 09 RC 2006-W/GR
RC 3006-W/GR
RC 3007-W/GR
RC 2011-W/STS
RC 3012-W/STS
Dimension (mm) 45×13 62×13 15×30 39×17 Ø 15
Material Al Al Al Al Al
Al
plastic
Al
Al
Cross-section Řez profilu Řez profilu Řez profilu Řez profilu Řez profilu Řez profilu
Colour white white
elox
white
elox
white
matt silver
white
grey
satine

Covers for profi le RBR/1 in transparent color. Profi le is possible to coveer by fabric.
*for Rhodos fabric only lower bar DRC07
