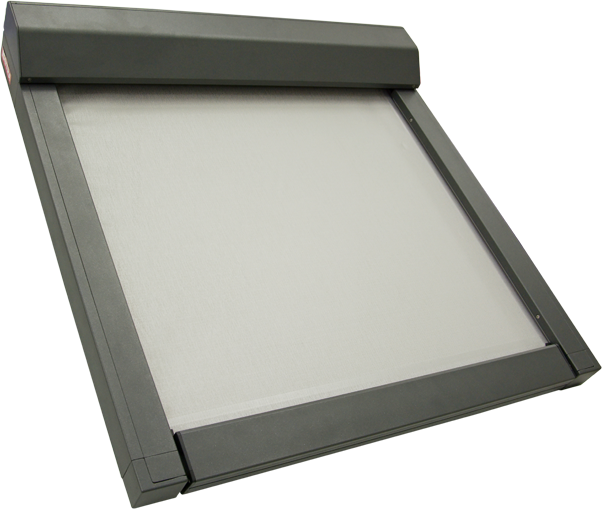

Veranda HRV08-ZIP

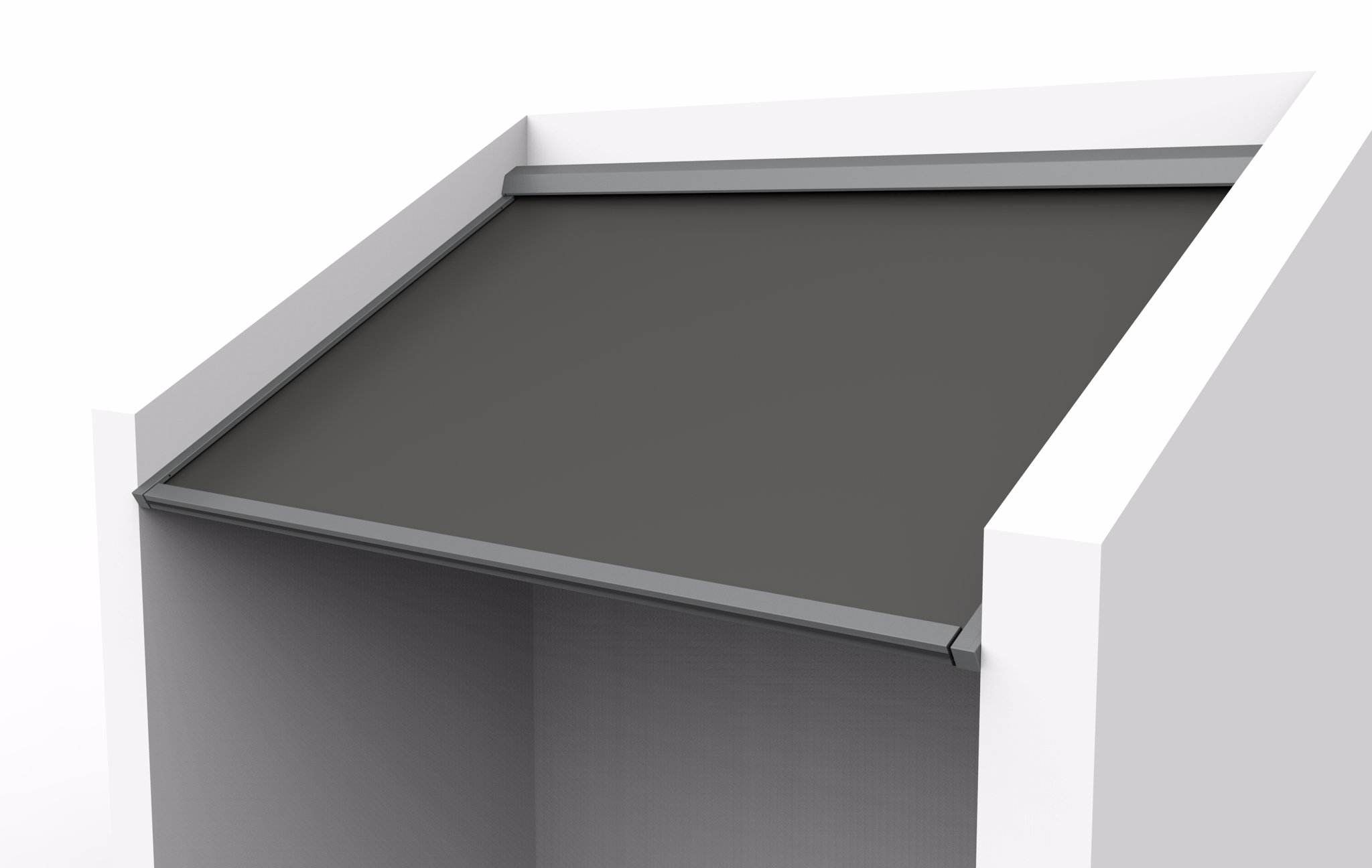

Get the most from your veranda, skylight or rooflight with VZ080-ZIP blinds. Enjoy the perfect amount of shade beneath this great example of timeless design.

Veranda HR V08-ZIP allows regulating sun light penetration into a room and avoids unpleasant high amount of light and heat. Fabric is protected, rolled in the box which is closed by bottom profile in retracted position. Box is fixed on guiding rails. In opened state the fabric is kept in sufficient distance from the glass thanks to guiding rails and spring system which keeps the fabric in constant tension.

This system is designed to easily overcome any small tolerances of roof construction. Whole system is produced from corrosion resistant materials.

Veranda HR V08-ZIP is equipped with zip system which ensures the fabric stays properly stretched in every position of bottom profile and avoids fabric slip out from guiding rails. Zip is sewed on the fabric on sides which fits into plastic profile inserted in aluminum guiding rail.

Features and advantages

  • Fabric stays stretched longer due to innovative ZIP system with metal spring,
  • compact box helps to create timeless design,
  • possibility to connect up to 4 pcs together (common box up to 6 m width of the blind),
  • system variability (fabric can be rolled sideways, bottom-top and top-bottom),
  • can be mounted from exterior or interior,
  • high wind resistance (up to 140 km/h).

Reference

Manner of control

Motor – tubular motor 230 V (50 Hz) fitted far left and/or far right as required. As standard there is supplied 3 meters long cable (optionally 5 or 10 m), a single-pole surface-mounted switch and plug. Optionally motor with automatic readjustment Orea WT, motor with built-in RTS receiver Orea RTS or motor with built-in IO receiver Sunea IO.

Guaranteed dimensions

Width (mm) Height (mm) Guaranteed area (m2)
min max max max
850 3000 3500 10,5

Technical parameters

  Upper profile Bottom profile Suide guidance Assembly
Guide rail
Dimension 134 × 118 mm 65 × 50 mm 57,5 × 56 mm 109 × 56 mm internal and exteral
Material Al Al Al Al
  274583   274584   274585   274586
Colour RAL 9010, RAL 9006, RAL 9007, RAL 8014, RAL 7016, RAL 7016S, DECORAL only up to 4000 mm width

Basic colors of profiles and guide rails

  • RAL 9010 RAL 9010
  • RAL 9006 RAL 9006
  • RAL 9007 RAL 9007
  • RAL 8014 RAL 8014
  • RAL 7016 RAL 7016
  • RAL 7016 Scructure RAL 7016 Scructure

Colour performance Isotra System Decoral 1 at extra charge (cover box, guiding rail, bottom rail)

  • ISD110 ISD110
  • ISD120 ISD120
  • ISD130 ISD130
  • ISD140 ISD140
  • ISD150 ISD150
  • ISD152 ISD152
  • ISD154 ISD154
  • ISD160 ISD160
  • ISD200 ISD200
  • ISD210 ISD210
  • ISD212 ISD212
  • ISD214 ISD214
  • ISD220 ISD220
  • ISD222 ISD222
  • ISD230 ISD230
  • ISD310 ISD310

Colour performance Isotra System Decoral 2 at extra charge (cover box, guiding rail, bottom rail)

  • ISD500 ISD500
  • ISD510 ISD510
  • ISD600 ISD600
  • ISD610 ISD610
  • ISD620 ISD620
  • ISD630 ISD630
  • ISD640 ISD640
  • ISD700 ISD700

Fabric selection

For Veranda HRV08-ZIP we can use all types of ISOTRA awning fabrics besides rubberized fabrics, then screen fabrics Soltis 86, 92 and B92.

Screen fabrics SOLTIS

Industrial fabrics Soltis are specially designed to provide maximum protection against solar radiation and the penetration of heat while preserving an optimal level of natural light in the interior.

The material is made from a fabric woven from a high-strength polyester fibre, with surface treatment by pigmented PVC. The material is pre-stressed using the Precontraint technology in two directions, ensuring high dimensional stability and strength.

Further advantages of the material include excellent heat-insulating properties, optimal visual and lighting properties, colour fastness (UV-stability), and flame resistance (B1, M1).

Soltis scheme

Pattern chart of fabrics

show all fabric patterns hide extended selection of fabric patterns

DICKSON awning´s fabrics

Awning´s fabrics have special surface treatment CLEANGARD which uses ultra-modern fabric protection NPP (Nanotechnology Protection Process). This technology brings maximal water resistancy and protects the fabric against water and dirt from long term view.

Elimination of up to 95% of sunlight / heat. Used fiber SUN ACRYL and technology of fabric coloring (solution dyed acrylic) ensures high color stability of awning´s fabrics.

Awning´s fabrics are non-toxic and therefore health-consciousness and environmental friendliness is guaranteed. We provide warranty for mold resistance and for color stability (min. 7/8 color stability after ultraviolet rays exposure and bad wind conditions according to standards NF ISO 105 B02 a NF EN ISO 105 B04) for all fabrics for 10 years.

Pattern chart of fabrics

show all fabric patterns hide extended selection of fabric patterns

SATTLER awning´s fabrics

The fabrics feature special TEXgard surface finish, distinguished by superior quality and long-term protection. This technology prevents ageing and the fabric retains its appearance for a much longer time. Each strand is carefully covered with this protective layer, preventing penetration of water, moisture, and dirt, and supporting the self-cleaning effect. Dirty drops therefore cannot penetrate the fabric, but they remain on its surface and flow down. Each fabric from this collection is made of 100% premium acrylic. The fabric manufacture is environmentally-friendly and is ISO certified.

If the awning fabric is properly maintained, it will remain protected and retain its modern appearance for many years thanks to the technology used. SATTLER fabrics are distinguished by their design, they are very pleasant to the touch, colour-fast, they feature high UV protection, protect from various vagaries of the weather, and repel dirt.

According to their composition and properties, SATTLER awning fabrics are classified in three categories: ELEMENTS, LUMERA, and LUMERA 3D. Fabrics in ELEMENTS category are made of 100% basic acrylic fibre, constituting the unique textile surface of all fabrics within this category. Due to the added TEXgard technology, the fabrics give the product excellent properties like rain and sunlight protection and resistance to dirt. Thanks to the acrylic yarn, the fabrics remain bright and attractive. This category includes Design and Stripes collections.

Fabrics in LUMERA category are composed of 66% basic acrylic fibre and 33% CBA (Clean Brilliant Acrylic). This means one third of the fabric is pure, high-quality acrylic, providing smoother and firmer fabric surface, increasing the self-cleaning effect, the colours are shinier and remain cleaner for a longer time. This category includes Landscape, Landscape Mini, Solids 1, and Solids 2 collections.

The last category is LUMERA 3D, with fabrics composed of 33% basic acrylic fibre and 66% CBA. Fabrics in this category contain twice as much pure, high-quality acrylic than LUMERA fabrics, making them unique in appearance and extremely pleasant to the touch. Fine structure of the fabric is combined with a special optical effect. LUMERA category includes Surface collection fabrics.

Pattern chart of fabrics

show all fabric patterns hide extended selection of fabric patterns


Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

Assembly options

Veranda HR V08-ZIP can be mounted from exterior or interior (different ways of mounting based on bracket type).

274591
