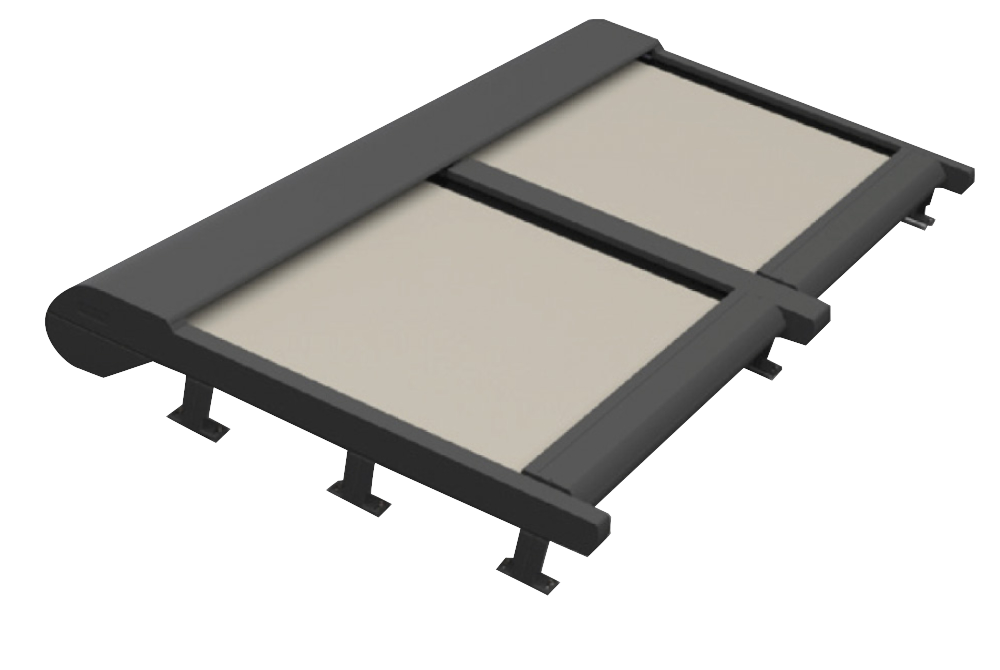

Veranda HRV52

Veranda HRV52 is especially designed for mounting above winter garden or pergola. Main function of this shading type is to avoid sunlight transfer to the glass. Air space between glass and fabric allows sufficient air circulation is ensured and there is no heat accumulation.

Veranda HR V52 combines high quality surface treatment with modern design. It is suitable for mounting on any winter garden or pergola construction. Whole system is produced from corrosion resistant materials and fabric is fully hidden in the box. This product is characterized by high resistance against weather conditions and long service life.

Features and advantages

  • Shades large spaces of winter garden or pergola,
  • thermo regulation and protection effect,
  • possibility to connect up to 4 pcs (do not have common box),
  • box is produced from extruded aluminum profiles.

References

Manner of control

Motor – tubular motor 230 V (50 Hz) with automatic post-regulation, this means the motor slows at approx. 10 cm before the bottom bar closes against the roller box so that it stops without forcibly hitting it. As standard there is supplied 3 meters long cable (optionally 5 or 10 m), a single-pole surface-mounted switch and plug.

Guaranteed dimensions

Width (mm) Height (mm) Guaranteed area (m2)
min max max max
2000 5500 6000 25

Technical parameters

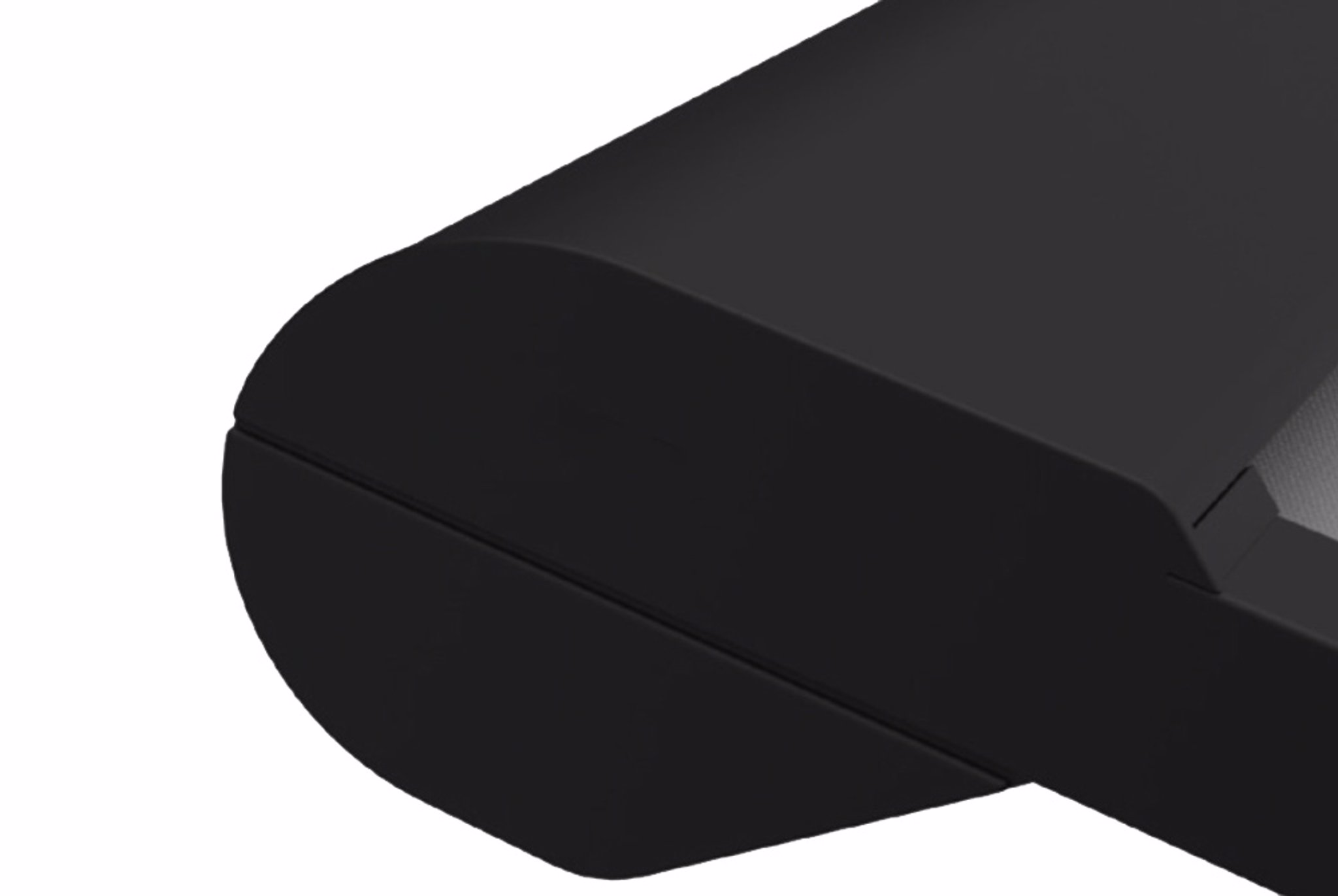

  Upper profile Bottom profile Suide guidance Assembly
Guide rail
Dimension 145 × 215 mm 62 × 46 mm 56 × 115 mm 61 × 94 mm Above the winter garden
Material Al Al Al Al
    272189   272190   272191   272192
Colour RAL 9010, RAL 9006, RAL 9007, RAL 8014, RAL 7016, RAL 7016S, DECORAL only up to 4000 mm width

Basic colors of profiles and guide rails

  • RAL 9010 RAL 9010
  • RAL 9006 RAL 9006
  • RAL 9007 RAL 9007
  • RAL 8014 RAL 8014
  • RAL 7016 RAL 7016
  • RAL 7016 Structure RAL 7016 Structure

Colour performance Isotra System Decoral 1 at extra charge (cover box, guiding rail, bottom rail)

  • ISD110 ISD110
  • ISD120 ISD120
  • ISD130 ISD130
  • ISD140 ISD140
  • ISD150 ISD150
  • ISD152 ISD152
  • ISD154 ISD154
  • ISD160 ISD160
  • ISD200 ISD200
  • ISD210 ISD210
  • ISD212 ISD212
  • ISD214 ISD214
  • ISD220 ISD220
  • ISD222 ISD222
  • ISD230 ISD230
  • ISD310 ISD310

Colour performance Isotra System Decoral 2 at extra charge (cover box, guiding rail, bottom rail)

  • ISD500 ISD500
  • ISD510 ISD510
  • ISD600 ISD600
  • ISD610 ISD610
  • ISD620 ISD620
  • ISD630 ISD630
  • ISD640 ISD640
  • ISD700 ISD700

Colors of profiles and guide rails for an additional price

RAL Colors – upon request.

Fabric selection

For Veranda HRV52 we can use all types of ISOTRA awning fabrics besides rubberized fabrics, then screen fabrics Soltis 86, 92.

Screen fabrics SOLTIS

Industrial fabrics Soltis are specially designed to provide maximum protection against solar radiation and the penetration of heat while preserving an optimal level of natural light in the interior.

The material is made from a fabric woven from a high-strength polyester fibre, with surface treatment by pigmented PVC. The material is pre-stressed using the Precontraint technology in two directions, ensuring high dimensional stability and strength.

Further advantages of the material include excellent heat-insulating properties, optimal visual and lighting properties, colour fastness (UV-stability), and flame resistance (B1, M1).

Soltis scheme

Pattern chart of fabrics

show all fabric patterns hide extended selection of fabric patterns

DICKSON awning´s fabrics

Awning´s fabrics have special surface treatment CLEANGARD which uses ultra-modern fabric protection NPP (Nanotechnology Protection Process). This technology brings maximal water resistancy and protects the fabric against water and dirt from long term view.

Elimination of up to 95% of sunlight / heat. Used fiber SUN ACRYL and technology of fabric coloring (solution dyed acrylic) ensures high color stability of awning´s fabrics.

Awning´s fabrics are non-toxic and therefore health-consciousness and environmental friendliness is guaranteed. We provide warranty for mold resistance and for color stability (min. 7/8 color stability after ultraviolet rays exposure and bad wind conditions according to standards NF ISO 105 B02 a NF EN ISO 105 B04) for all fabrics for 10 years.

Pattern chart of fabrics

show all fabric patterns hide extended selection of fabric patterns

SATTLER awning´s fabrics

The fabrics feature special TEXgard surface finish, distinguished by superior quality and long-term protection. This technology prevents ageing and the fabric retains its appearance for a much longer time. Each strand is carefully covered with this protective layer, preventing penetration of water, moisture, and dirt, and supporting the self-cleaning effect. Dirty drops therefore cannot penetrate the fabric, but they remain on its surface and flow down. Each fabric from this collection is made of 100% premium acrylic. The fabric manufacture is environmentally-friendly and is ISO certified.

If the awning fabric is properly maintained, it will remain protected and retain its modern appearance for many years thanks to the technology used. SATTLER fabrics are distinguished by their design, they are very pleasant to the touch, colour-fast, they feature high UV protection, protect from various vagaries of the weather, and repel dirt.

According to their composition and properties, SATTLER awning fabrics are classified in three categories: ELEMENTS, LUMERA, and LUMERA 3D. Fabrics in ELEMENTS category are made of 100% basic acrylic fibre, constituting the unique textile surface of all fabrics within this category. Due to the added TEXgard technology, the fabrics give the product excellent properties like rain and sunlight protection and resistance to dirt. Thanks to the acrylic yarn, the fabrics remain bright and attractive. This category includes Design and Stripes collections.

Fabrics in LUMERA category are composed of 66% basic acrylic fibre and 33% CBA (Clean Brilliant Acrylic). This means one third of the fabric is pure, high-quality acrylic, providing smoother and firmer fabric surface, increasing the self-cleaning effect, the colours are shinier and remain cleaner for a longer time. This category includes Landscape, Landscape Mini, Solids 1, and Solids 2 collections.

The last category is LUMERA 3D, with fabrics composed of 33% basic acrylic fibre and 66% CBA. Fabrics in this category contain twice as much pure, high-quality acrylic than LUMERA fabrics, making them unique in appearance and extremely pleasant to the touch. Fine structure of the fabric is combined with a special optical effect. LUMERA category includes Surface collection fabrics.

Pattern chart of fabrics

show all fabric patterns hide extended selection of fabric patterns


Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

Assembly options

Veranda HR V52 can be mounted only above winter garden or pergola.
