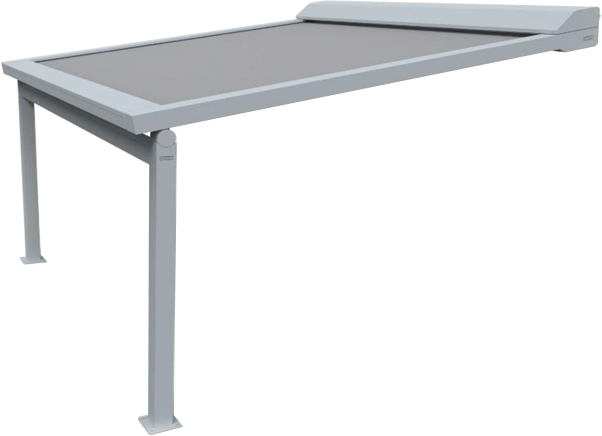

Veranda HRV80-ZIP-2P

Veranda HRV80-ZIP-2P is an elegant solution thanks to which you can enjoy staying at your terrace, pool, or garden even longer. Discover clean design combined with perfect comfort. The super-thin guide rail, neat box, and slim stands give this veranda refined appearance.

The system is designed to easily overcome any small tolerances of the roof structure seating. The whole system is made from corrosion-resistant materials. Veranda HRV80-ZIP-2P is equipped with a ZIP-system ensuring that the fabric remains properly stretched in every position of the bottom profile for a long time and prevents fabric slip out from guiding rails. Thanks to the integrated LED lighting, you will be able to enjoy the veranda even longer, and the long summer evening will be even more pleasant.

Unlike the lattice roof or folding fabric, the fabric of Veranda HRV80-ZIP-2P rolls completely to the box, ensuring that the fabric colours will remain bright for many years. The fabric establishes a visual comfort in the interior, provides thermal and sound insulation, can be in the blackout as well as translucent version. It is extremely durable, fire-resistant and repels dirt, and will perfectly harmonise with your home.

Features and advantages

  • Elegant thanks to simple design,
  • completely closed box, ensuring that the fabric colours will remain bright for many years,
  • perfectly completes any terrace thanks to the flexible stand positioning,
  • the fabric remains taut thanks to the innovative ZIP system,
  • the compact box helps create a sophisticated appearance of the veranda,
  • possibility to install LED lighting.

References

Manner of control

Serves for opening and retracting the veranda. All box sizes can only be controlled by motor.

Motor – tubular motor 230 V (50 Hz) located on the far left or far right, as necessary. The standard supply includes a 3-metre cable (optionally 10 m), Sunea IO motor type without push buttons, being controlled by an IO transmitter (can also be without the wall-mounted IO transmitter). Optionally, it is possible to supply the Orea WT motor with automatic readjustment, or the Orea RTS motor with built-in RTS receiver.

The controls are always located when viewed from the outside.

Guaranteed dimensions

Control Width (mm) Height/projection (mm) Height H2 Guaranted area (m2)
min max max max max
motor 1500 6000 5000 2900 25

Technical parameters

Upper profile Bottom profile Suide guidance Assembly
Guide rail
Dimension (mm) 245 × 175 140 × 63 76,5 × 65 133 × 65 from the exterior
Material Al Al Al Al
Cut 370354 370355 370356 370357
Colour Colour RAL 9010, RAL 9006, RAL 9007, RAL 8014, RAL 7016, RAL 7016S, DECORAL only up to 4000 mm width

Basic colors of profiles and guide rails

  • RAL 7016 RAL 7016
  • RAL 7016S RAL 7016S
  • RAL 8014 RAL 8014
  • RAL 9006 RAL 9006
  • RAL 9007 RAL 9007
  • RAL 9010 RAL 9010

Colour performance Isotra System Decoral 1 at extra charge (cover box, guiding rail, bottom rail)

  • ISD110 ISD110
  • ISD120 ISD120
  • ISD130 ISD130
  • ISD140 ISD140
  • ISD150 ISD150
  • ISD152 ISD152
  • ISD154 ISD154
  • ISD160 ISD160
  • ISD200 ISD200
  • ISD210 ISD210
  • ISD212 ISD212
  • ISD214 ISD214
  • ISD220 ISD220
  • ISD222 ISD222
  • ISD230 ISD230
  • ISD310 ISD310

Colour performance Isotra System Decoral 2 at extra charge (cover box, guiding rail, bottom rail)

  • ISD500 ISD500
  • ISD510 ISD510
  • ISD600 ISD600
  • ISD610 ISD610
  • ISD620 ISD620
  • ISD630 ISD630
  • ISD640 ISD640
  • ISD700 ISD700

Fabric selection

For Veranda HRV80-ZIP-2P we can use screen fabrics Soltis 86, 92 and B92.

Screen fabrics SOLTIS

Industrial fabrics Soltis are specially designed to provide maximum protection against solar radiation and the penetration of heat while preserving an optimal level of natural light in the interior.

The material is made from a fabric woven from a high-strength polyester fibre, with surface treatment by pigmented PVC. The material is pre-stressed using the Precontraint technology in two directions, ensuring high dimensional stability and strength.

Further advantages of the material include excellent heat-insulating properties, optimal visual and lighting properties, colour fastness (UV-stability), and flame resistance (B1, M1).

Schéma látky Soltis

Fabric selection



show all fabric patterns hide extended selection of fabric patterns

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

The fabrics are welded horizontally.
