Advantages

Benefits & advantages

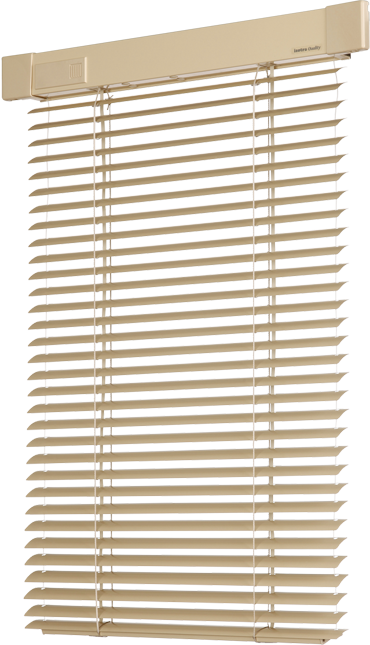

  • electric blind using solar energy for operation
  • zero electricity consumption
  • fully automated wireless control
  • colour constructions of the profile according to the RAL pattern
Methods

Handling

RZOVL remote control unit
Using the remote control unit, individual blinds and groups of blinds can be separately controlled from a distance up to 150m. Up to 20 time starts can be individually set (using the automated system according to the adjusted time) for various blinds or groups of blinds.
Supply for the remote control unit: two 1.5V batteries
Using the remote control unit, individual blinds and groups of blinds can be separately controlled from a distance up to 150m. Up to 20 time starts can be individually set (using the automated system according to the adjusted time) for various blinds or groups of blinds.
RZTL wireless button
This button serves for tilting lamellas and for lifting up and lowering individual blinds or groups of blinds at the same time. This enables the possibility to set the end positions (stops) of the blind.
Supply for the button: small lithium battery
This button serves for tilting lamellas and for lifting up and lowering individual blinds or groups of blinds at the same time. This enables the possibility to set the end positions (stops) of the blind.
SRZSR Solar regulator
The solar regulator serves for tilting the lamellas of one blind or groups of blinds at the same time depending on the intensity of the sunlight.
The regulator is resistant to standard atmospheric conditions.
The solar regulator can only be used when combined with the programmable remote control unit.
Regulator supply: solar energy
The solar regulator serves for tilting the lamellas of one blind or groups of blinds at the same time depending on the intensity of the sunlight.<br> The regulator is resistant to standard atmospheric conditions.<br> The solar regulator can only be used when combined with the programmable remote control unit.
Guaranteed

Dimensions

minimum width
400 mm
maximum width
2000 mm
maximum height
2200 mm
maximum area
2,5 m2
non-standard dimensions for bevel and broken windows are not produced.
Guaranteed dimensions

Technical parameters


Upper profile Lower profile Lamella Side guilding Assembly
Construction Width (mm) Thickness
Business name
IS 08
IS 16
whole shading
25
0,21 / 0,18
silon Ø 0,8 mm for window wing
Dimensions (mm) 27 × 48 × 0,220 × 8 × 0,9standard 25 0,21 / 0,18
Material AlAlstandard 16 0,21
Cross-section řez profilu řez profilu
Colour Standard:
RAL 9010 white
RAL 1015 ivory
RAL 1002 pine
RAL 9006 silver
RAL 8004 chestnut
RAL 8014 brown

Surcharge:
other RAL colors sprayed
according to the actual sampler silon - clear

Plastic components in the colour of the profile.
Ladder and cord which are colour coordinated with the lamella.

Method of control

electric drive using solar energy – by remote control unit, button or solar regulator in combination with the remote control unit

Control diagram

Control diagram

Control variations

RZOVL remote control unit

RZOVL remote control unitUsing the remote control unit, individual blinds and groups of blinds can be separately controlled from a distance up to 150 m. Up to 20 time starts can be individually set (using the automated system according to the adjusted time) for various blinds or groups of blinds.
Supply for the remote control unit: two 1.5 V batteries

RZTL wireless button

RZTL wireless buttonThis button serves for tilting lamellas and for lifting up and lowering individual blinds or groups of blinds at the same time. This enables the possibility to set the end positions (stops) of the blind.
Supply for the button: small lithium battery

SRZSR Solar regulator

SRZSR Solar regulatorThe solar regulator serves for tilting the lamellas of one blind or groups of blinds at the same time depending on the intensity of the sunlight.
The regulator is resistant to standard atmospheric conditions.
The solar regulator can only be used when combined with the programmable remote control unit.
Regulator supply: solar energy

Assembly options

  • for window wing

Height of roll-up

Height of packet
Height of the blind (mm) Lamella 25 Lamella 25 CS*
500 55 mm 60 mm
1000 65 mm 70 mm
1500 75 mm 80 mm
2000 95 mm 100 mm
2500 115 mm 120 mm

Height of the packet = height of the lowered blind, including the upper profile.
CS* = whole-shading construction.
Hereby stated values are only indicative.
