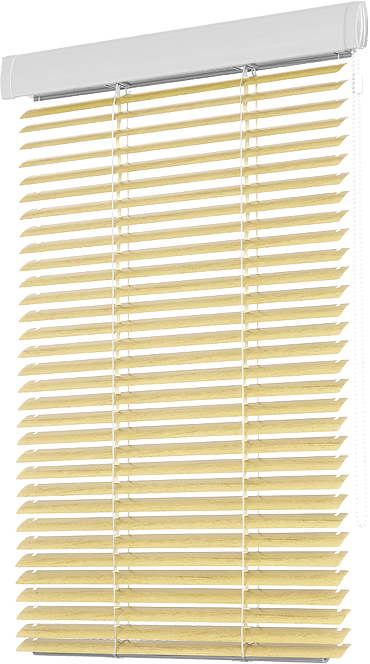

High-quality ISOTRA HIT II blind system

Timeless design, precise construction of individual lamellas and easy control – these are the features of the high-quality ISOTRA HIT II blind system. The extraordinary character of the interior shading is based on the construction of the upper profile. This solution will ensure the minimum penetration of light between the first lamella and the profile.

The ISOTRA HIT II blind system is a practical aid that allows as much light through as you need. If you wish, we can cover the upper profile, lower profile and lamellas in proportionate wood imitation.

Advantages and benefits

  • timeless design
  • minimum penetration of light between the first lamella and the upper profile
  • greater rigidity of the upper profile
  • low control force
  • colour of the profile according to the RAL sampler or coated in renolite with imitation wood
  • high-quality blinds as a result of the manufacturing procedure.

References

Manner of control

  • manually – by chain (ø 3.2 mm)
    The blind can be fitted with a brake to prevent falling of lamellas due to their own weight.

Guaranteed dimensions

  • minimum width: 300 mm
  • maximum width: 2,000 mm
  • maximum height: 2,200 mm
  • maximum area: 2.5 m2(4.4 m2)*
  • Non-standard dimensions for bevel and broken windows are not produced.
  • * with Planet gearing box

Technical parameters


UPPER PROFILE LOWER PROFILE LAMELLA SIDE GUILDING SIDE GUILDING ASSEMBLY BRAKE
CONSTRUCTION WIDTH (MM) THICKNESS
Business name
Dimensions (mm)
Material
IS 08 / 2
27,5 × 43 × 0,4
Fe
644
IS 16 / 1
19 × 8 × 0,4
Fe
643
whole shading
standard
standard
25
25
16
0,21 / 0,18
0,21 / 0,18
0,21
silon ø 0,8 mm for window wing on the basis of the order
Colour

Standard:
RAL 1002 Beige
RAL 1015 Ivory
RAL 7016 Anthracite gray
RAL 8003 Golden Oak
RAL 8004 Chestnut
RAL 8014 Brown
RAL 9006 Silver
RAL 9010 White

Extra Charges:
Other RAL
Renolit - according to actual sampler
Isotra System Decoral -
according to actual sampler

according to the actual sampler silon - clear

Plastic components in the colour of the profile.
Ladder and cord which are colour coordinated with the lamella.

Profile colour

3877

Standard RAL colours

  • RAL 1002 RAL 1002
  • RAL 1015 RAL 1015
  • RAL 7016 RAL 7016
  • RAL 8003 RAL 8003
  • RAL 8004 RAL 8004
  • RAL 8014 RAL 8014
  • RAL 9006 RAL 9006
  • RAL 9010 RAL 9010

Colour performance Isotra System Decoral 1 at extra charge (head profile)

  • ISD110 ISD110
  • ISD120 ISD120
  • ISD130 ISD130
  • ISD140 ISD140
  • ISD150 ISD150
  • ISD160 ISD160
  • ISD210 ISD210
  • ISD220 ISD220
  • ISD230 ISD230
  • ISD310 ISD310
  • ISD152 ISD152
  • ISD154 ISD154
  • ISD200 ISD200
  • ISD212 ISD212
  • ISD214 ISD214
  • ISD222 ISD222

Colour performance Isotra System Decoral 2 at extra charge (head profile)

  • ISD500 ISD500
  • ISD510 ISD510
  • ISD600 ISD600
  • ISD610 ISD610
  • ISD620 ISD620
  • ISD630 ISD630
  • ISD640 ISD640
  • ISD700 ISD700

Colour lamela

Dimension 16 mm × 0,21 mm

Show all colour of lamella Hide extended selection colour of lamella

Dimension 25 mm × 0,18 mm

Show all colour of lamella Hide extended selection colour of lamella

Dimension 25 mm × 0,21 mm

Show all colour of lamella Hide extended selection colour of lamella


EN: *temporarily unavailable

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

Assembly options

  • • for window wing

Height of roll-up

Height of blind (mm) Height of blind (mm)
lamella 25 mm - strip/ thin chain lamella 25 mm CS*- strip/ thin chain
500 50 50
1000 60 65
1500 70 80
2000 80 95
2500 90 115

Height of the packet = height of the lowered blind, including the upper profile
CS* = whole-shading construction
