Horizontal blinds
Isotra system HIT blinds

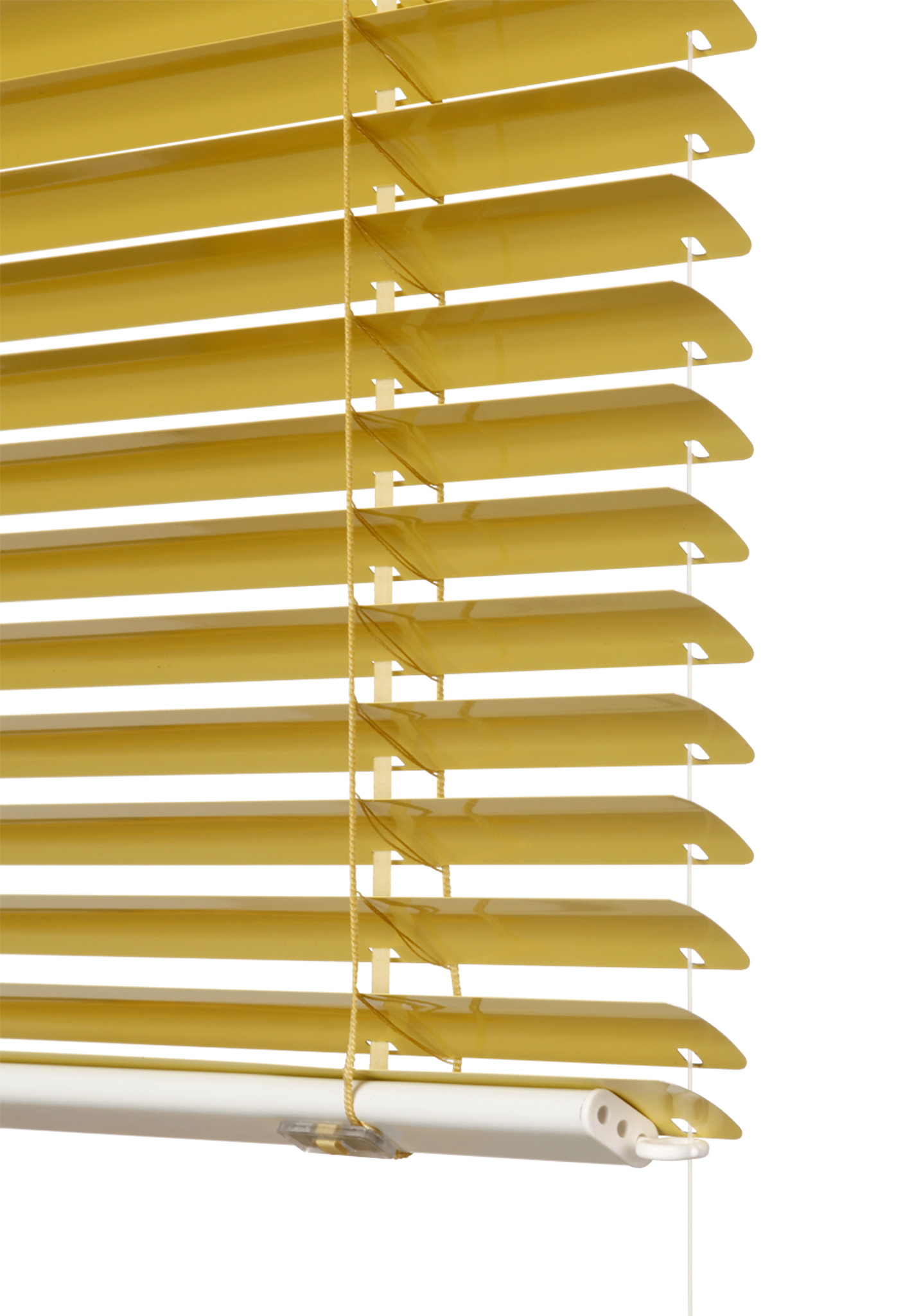

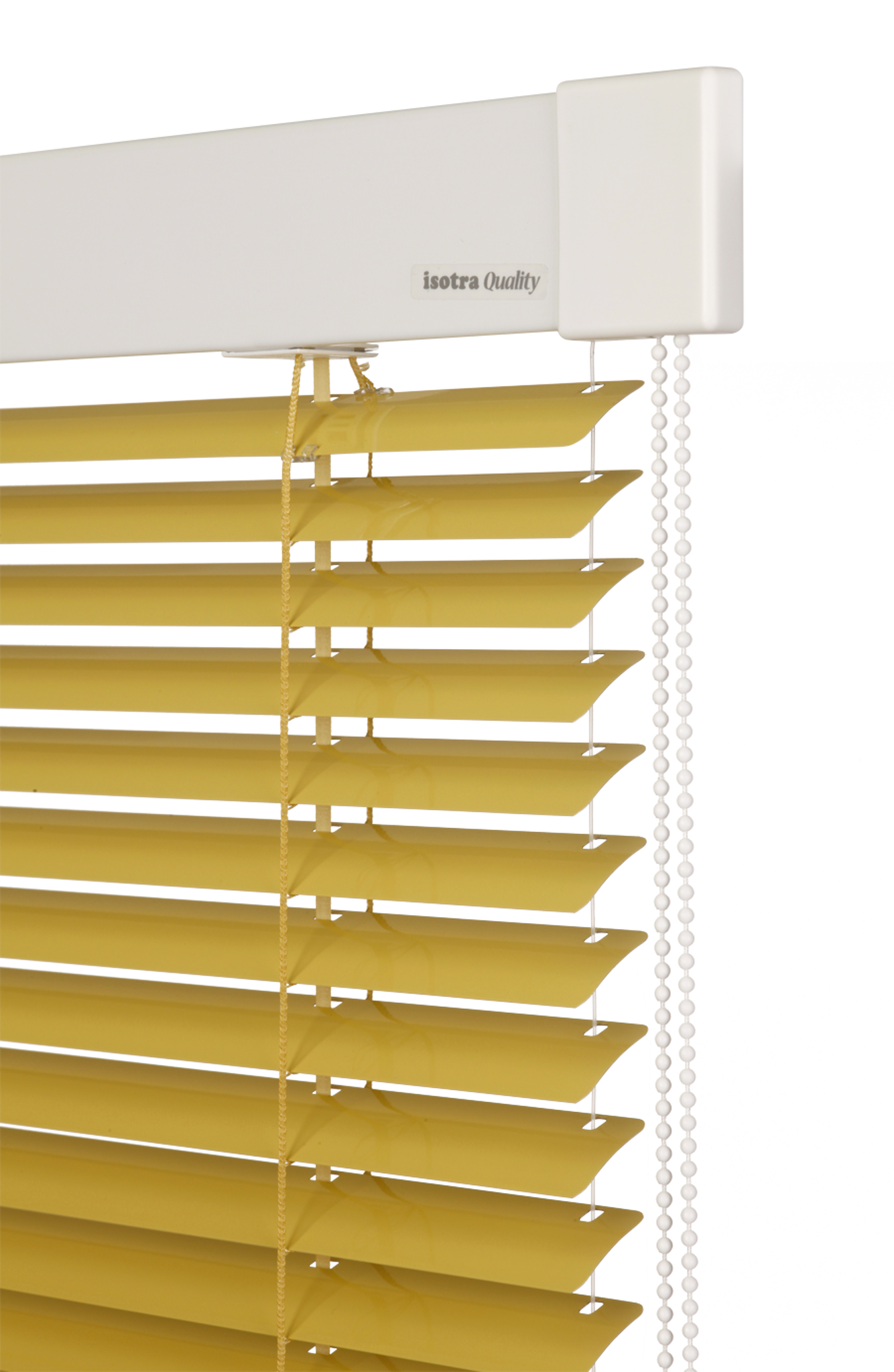

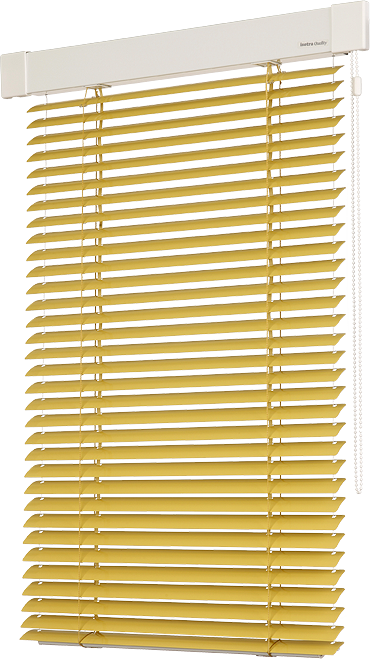

Product gallery
If looking for optimal price and quality, the ISOTRA HIT system interior shading is the best option. With the simple upper profile design, ISOTRA HIT system blinds perfectly shade interiors.
The price of the blind is low; on the contrary, the functionality is very high: 100%.
Advantages
Benefits & advantages
- optimal quality-price ratio
- simple upper profile design
- low control force
- colour constructions of the profile according to the RAL pattern
Get

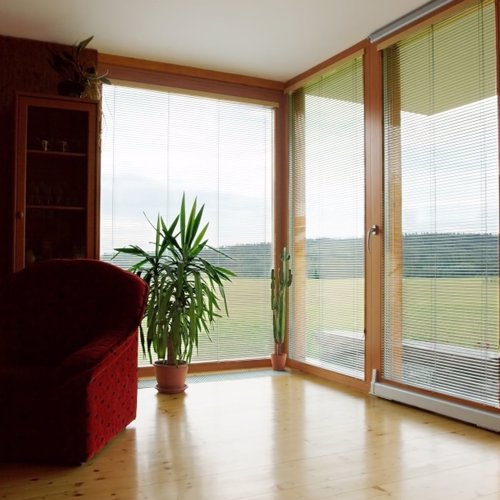

Inspiration
Explore
Colour variants
Colour performance Isotra System Decoral 1 at extra charge profiles
Colour performance Isotra System Decoral 2 at extra charge profiles
Basic colours lamella dimension 16 mm × 0,21 mm
Basic colours lamella dimension 25 mm × 0,18 mm
Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.
Methods
Handling
manually by chain (Ø 3,2 mm)
The blind can be fitted with a brake to prevent falling of lamellas due to their own weight.
Guaranteed
Dimensions
minimum width
300 mm
300 mm
maximum width
2000 mm
2000 mm
maximum height
2200 mm
2200 mm
maximum area
2,5 m2 (4,4 m2)*
2,5 m2 (4,4 m2)*
Non-standard dimensions for bevel and broken windows are not produced.
* with Planet gearing box
* with Planet gearing box
Technical parameters
| Upper profile | Lower profile | Lamella | Side guilding | Assembly | Brake | |||
|---|---|---|---|---|---|---|---|---|
| Construction | Width (mm) | Thickness | ||||||
| Business name |
IS 08 / 1 |
IS 16 / 1 |
whole shading |
25 |
0,21 / 0,18 |
silon Ø 0,8 mm | for window wing | on the basis of the order |
| Dimension (mm) | 25 × 45 × 0,4 | 19 × 8 × 0,4 | standard | 25 | 0,21 / 0,18 | |||
| Material | Fe | Fe | standard | 16 | 0,21 | |||
| Cross-section |  |
 |
||||||
| Colour | Standard: RAL 1002 pine RAL 1015 ivory RAL 8003 golden oak RAL 8004 chestnut RAL 8014 brown RAL 9006 silver RAL 9010 white Surcharge: Other RAL colors sprayed Isotra System Decoral - according to the sampler |
according to the actual sampler | silon - clear | |||||
Plastic components in the colour of the profile.
Ladder and cord which are colour coordinated with the lamella.
Assembly options
- for window wing
Height of roll-up
| Height of the packet | ||
|---|---|---|
| Height of the blind (mm) | Lamella 25 | LAMELLA 25 CS* |
| 500 | 55 mm | 60 mm |
| 1000 | 65 mm | 70 mm |
| 1500 | 75 mm | 80 mm |
| 2000 | 95 mm | 100 mm |
| 2500 | 115 mm | 120 mm |
Height of the packet = height of the lowered blind, including the upper profile.
CS* = whole-shading construction.
Hereby stated values are only indicative.
Notice
Notice for slats in wood colour imitations
Please note that when selecting slats in any wood colour imitation (793-797, 81-87), different bevelled stripes may be visible at a certain light refraction. This effect must be taken into account in advance. Complaints made for this reason will not be considered.
Please note that when selecting slats in any wood colour imitation (793-797, 81-87), different bevelled stripes may be visible at a certain light refraction. This effect must be taken into account in advance. Complaints made for this reason will not be considered.
