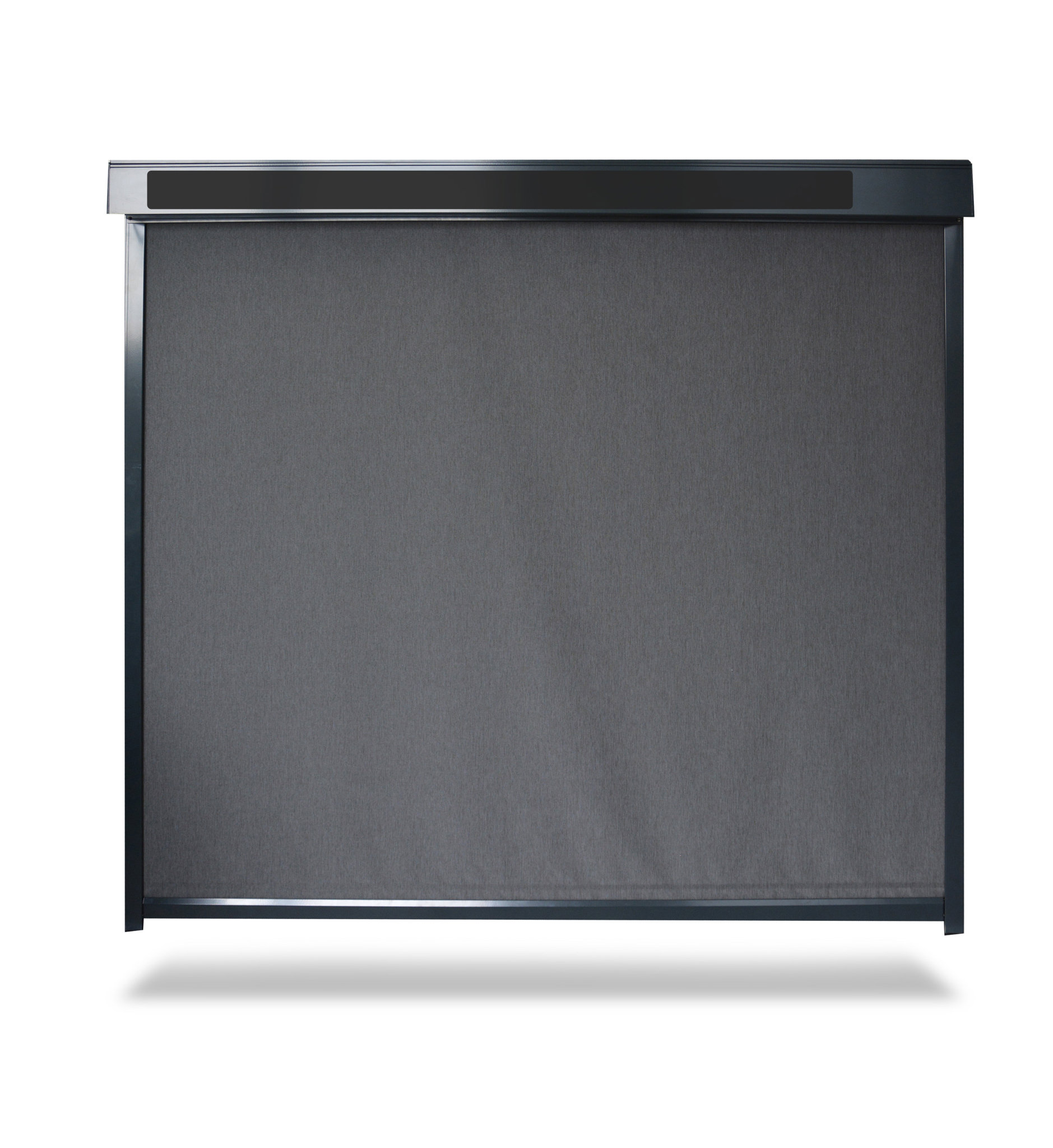

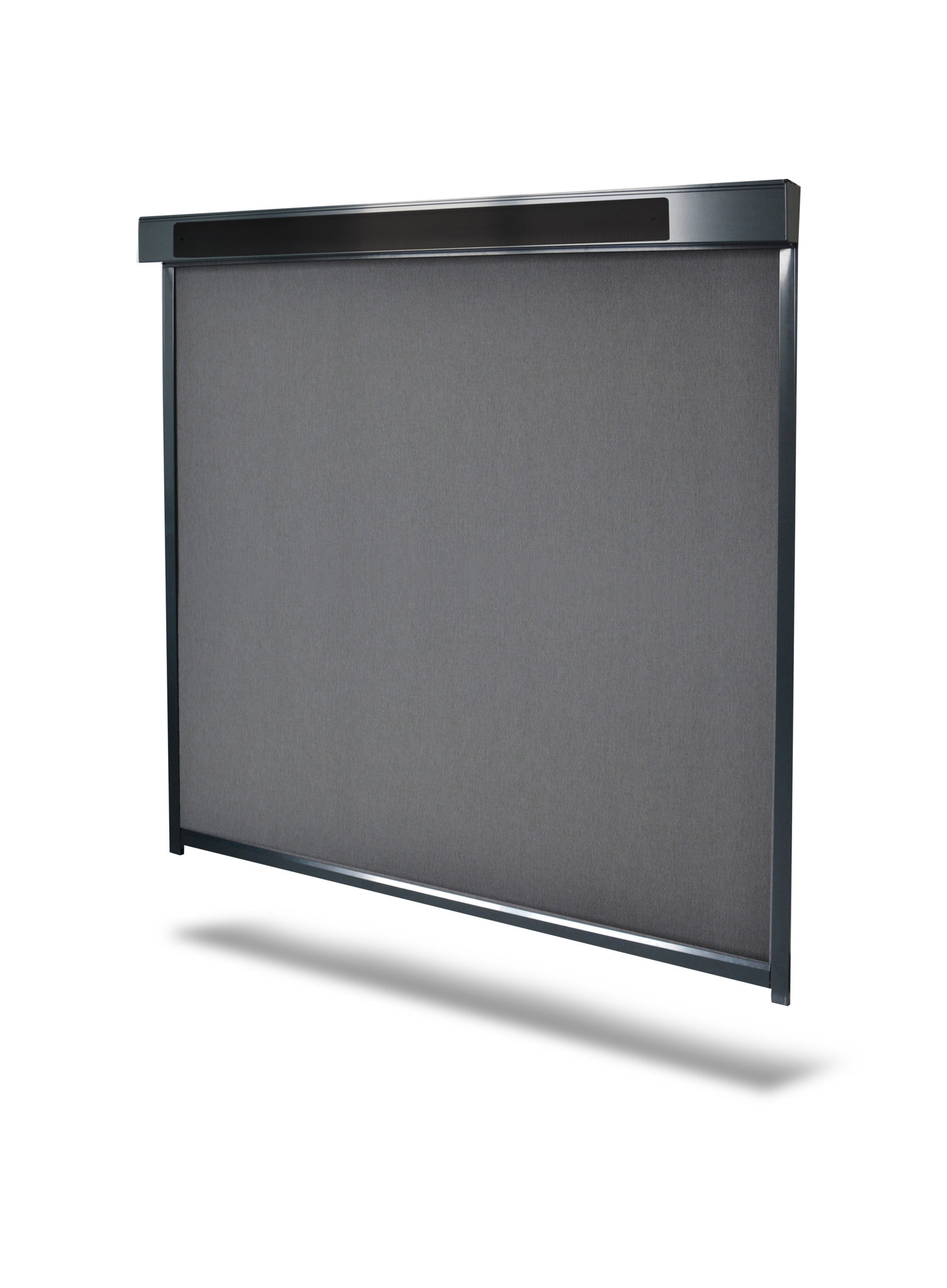

Screen roller shutter SCREEN ALFA SOLAR – ZIP
Product gallery
The Alfa Solar screen roller shutter with exterior solar power is a unique and fully automated roller shutter that is no-wire controlled and has zero electricity consumption. This roller shutter works on the principle of the so-called photovoltaic effect – i.e. the conversion of sunlight into electricity.
This is the most ecological and energy-efficient drive solution for roller shutters. The drive is powered by a long-life battery recharged by a solar panel that works in all weather conditions. The maximum area is 18 m2. One solar unit is adapted for only one screen roller shutter.
For the Alfa Solar screen roller shutter, you can choose from two solar sets offered, namely SUNEA and ISOTRA BASIC SOLAR.

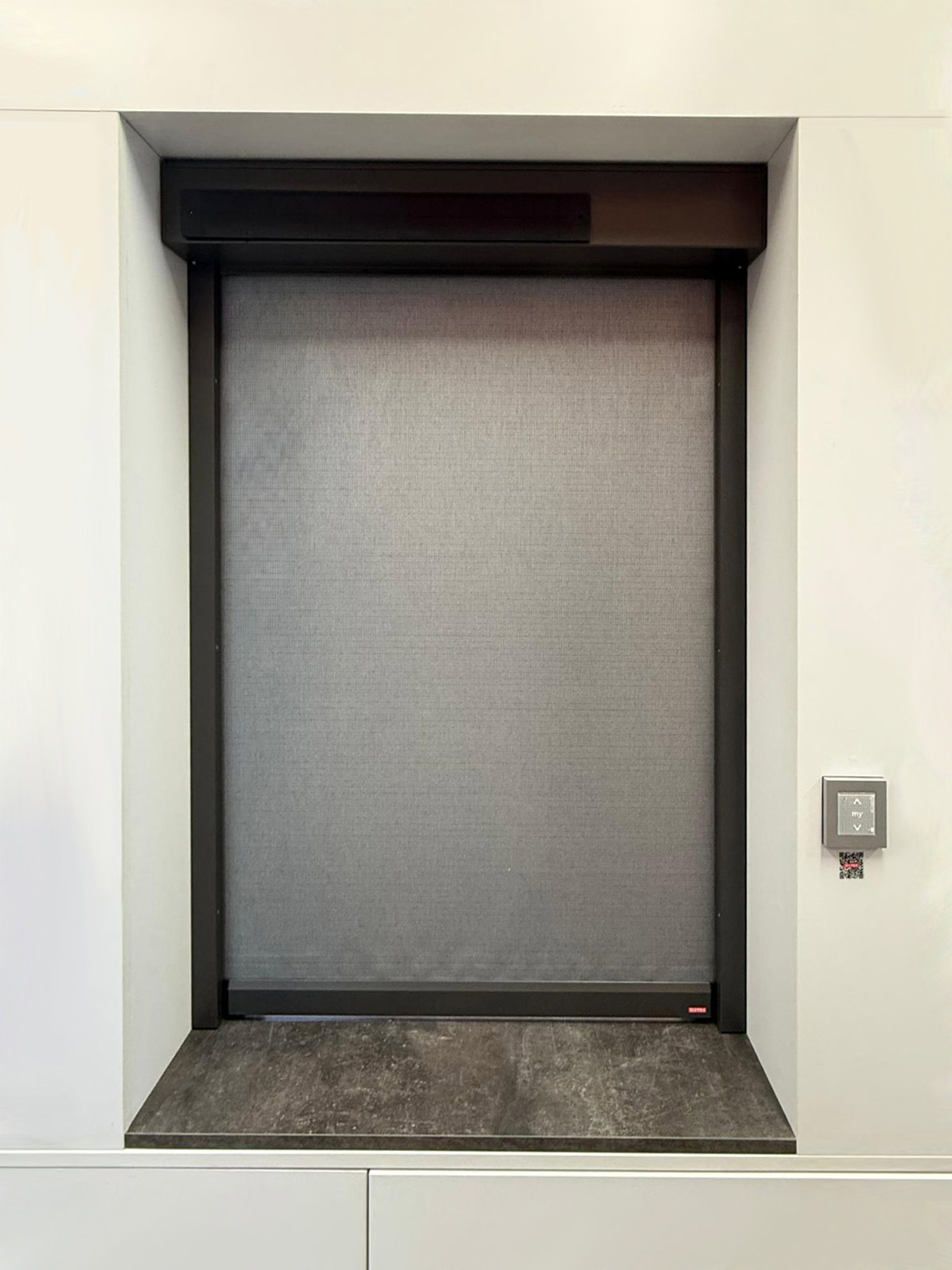

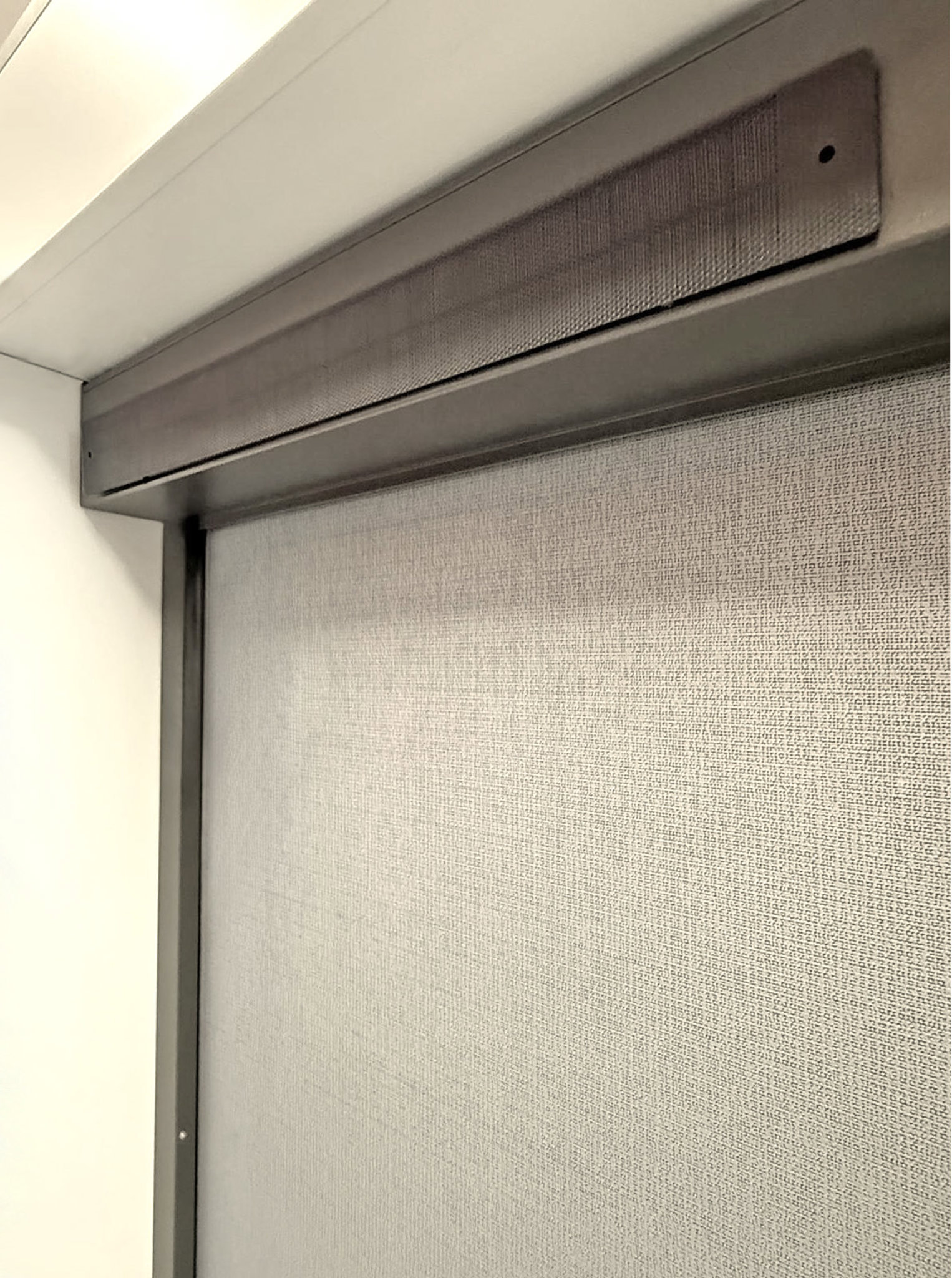

This roller shutter has a unique system of rails that ensures its high resistance to wind and keeps the fabric perfectly taut and in place in the guide rails. The box can be mounted in front of the window opening on the facade or in the window opening in the window reveal using mounting brackets that match the design of the box, while there is no gap between them and the box.
Benefits & advantages
- ecological and most energy-efficient solution for roller shutter drive
- installation independence from the power supply
- roller shutter detects an obstacle and stops automatically
- quick and easy installation without interfering with the interior
- battery operating temperature is from −20 °C to +70 °C
- panel supplies energy even when the sky is cloudy
- Zigbee control: compatibility with the Zigbee 3.0 protocol (ISOTRA Basic Solar set)
Design variants

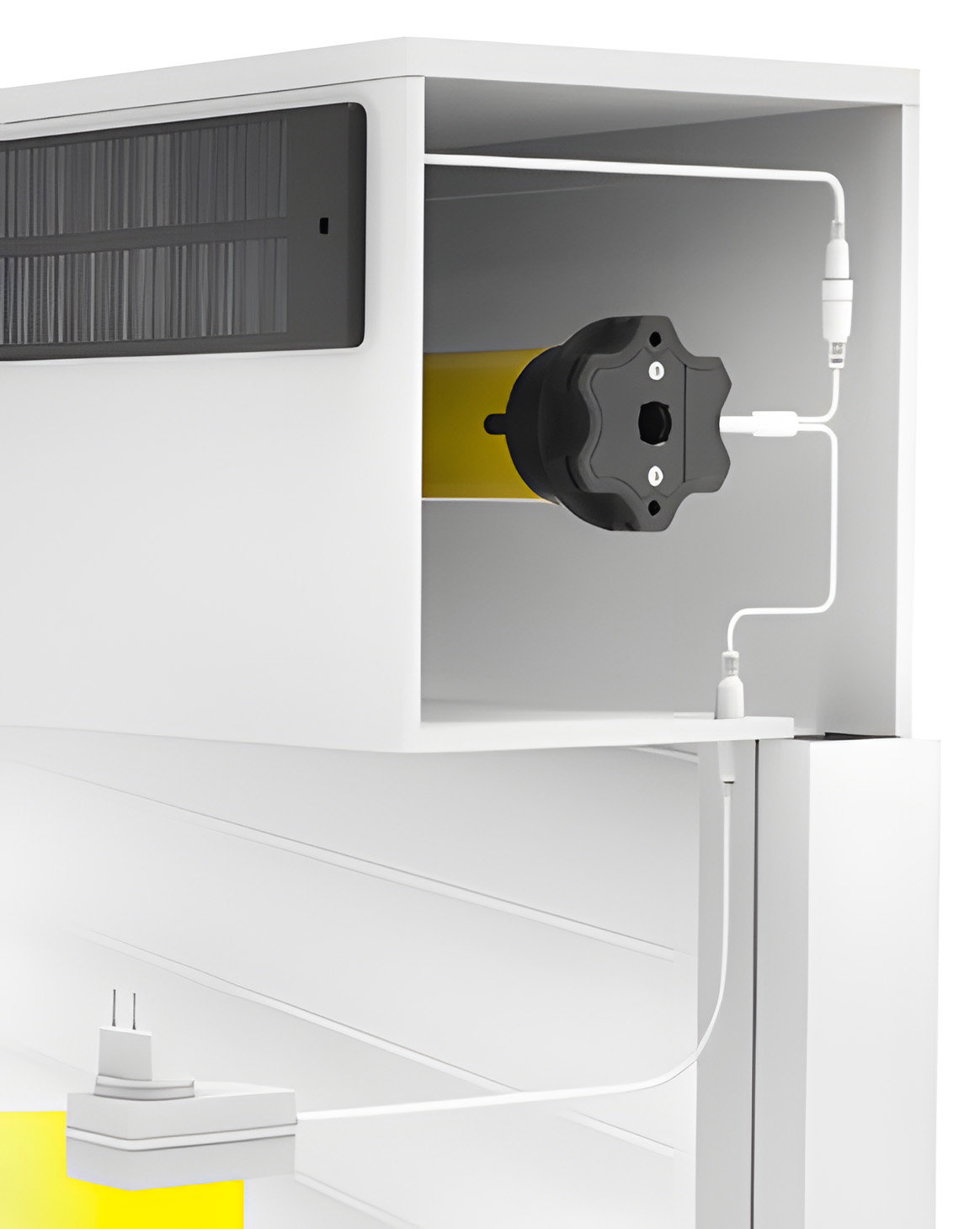

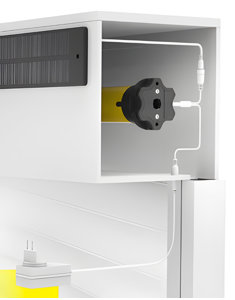

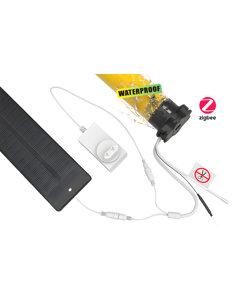

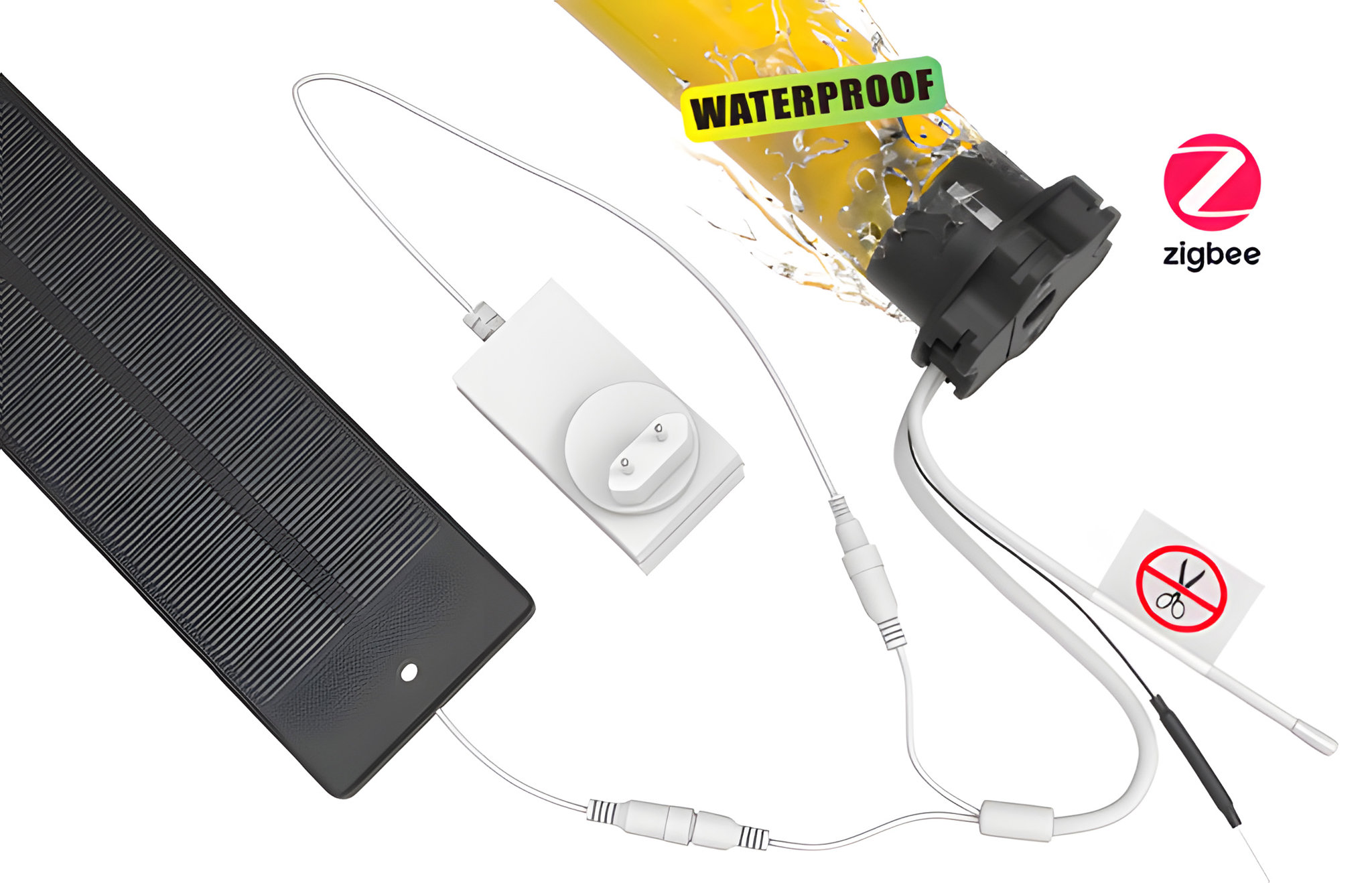

ISOTRA BASIC SOLAR set
- Built-in Li-ion battery: voltage 12 V, capacity 2500 mAh, long life and rechargeable
- Obstacle detection: automatic stop when in contact with an obstacle
- Zigbee control: compatibility with the Zigbee 3.0 protocol - can be connected to your smart home network (Smart Zigbee unit required)
- Quiet and economical operation
- Solar kit price
- Compatible ISOTRA Basic controllers: 1-channel Zigbee, 16-channel Zigbee
- Possibility of multiple roller shutters in a common box, provided that each roller shutter has its own motor

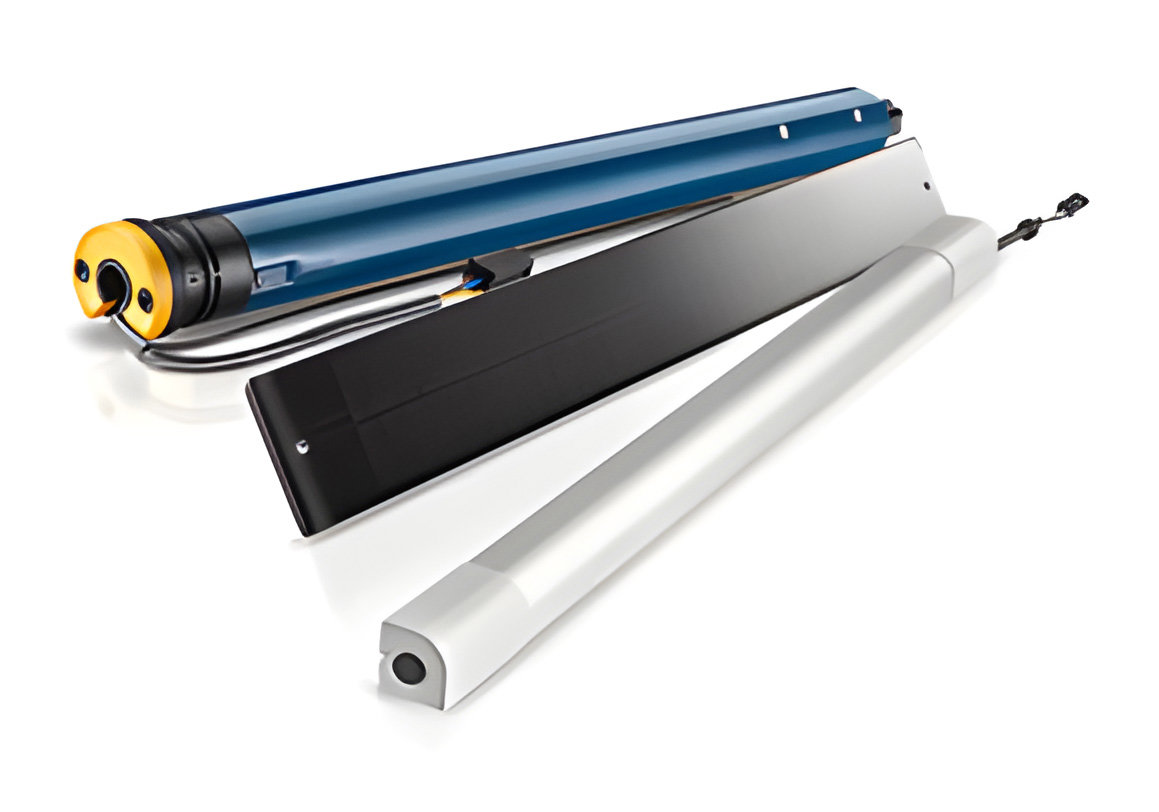

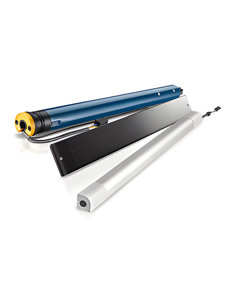

SUNEA solar kit
- Reverse impulse - after each downward movement, motor revs are briefly reversed to ensure that the fabric remains perfectly taut
- Obstacle detection - detection via ABS carrier (ZIP Screen).
- Compatibility with the TaHoma Standard system: internal battery only for box 150
- Optional: use of external battery for box 90 and 110
- Solar panel is always on the motor side
- B-BE type mounting (into a window reveal) is not possible
- Possibility of multiple roller shutters in a common box, provided that each roller shutter has its own motor and external battery.
Colour variants
Basic colour profiles
Special fabrics for screen rollos
Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.
Handling

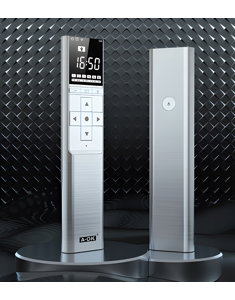

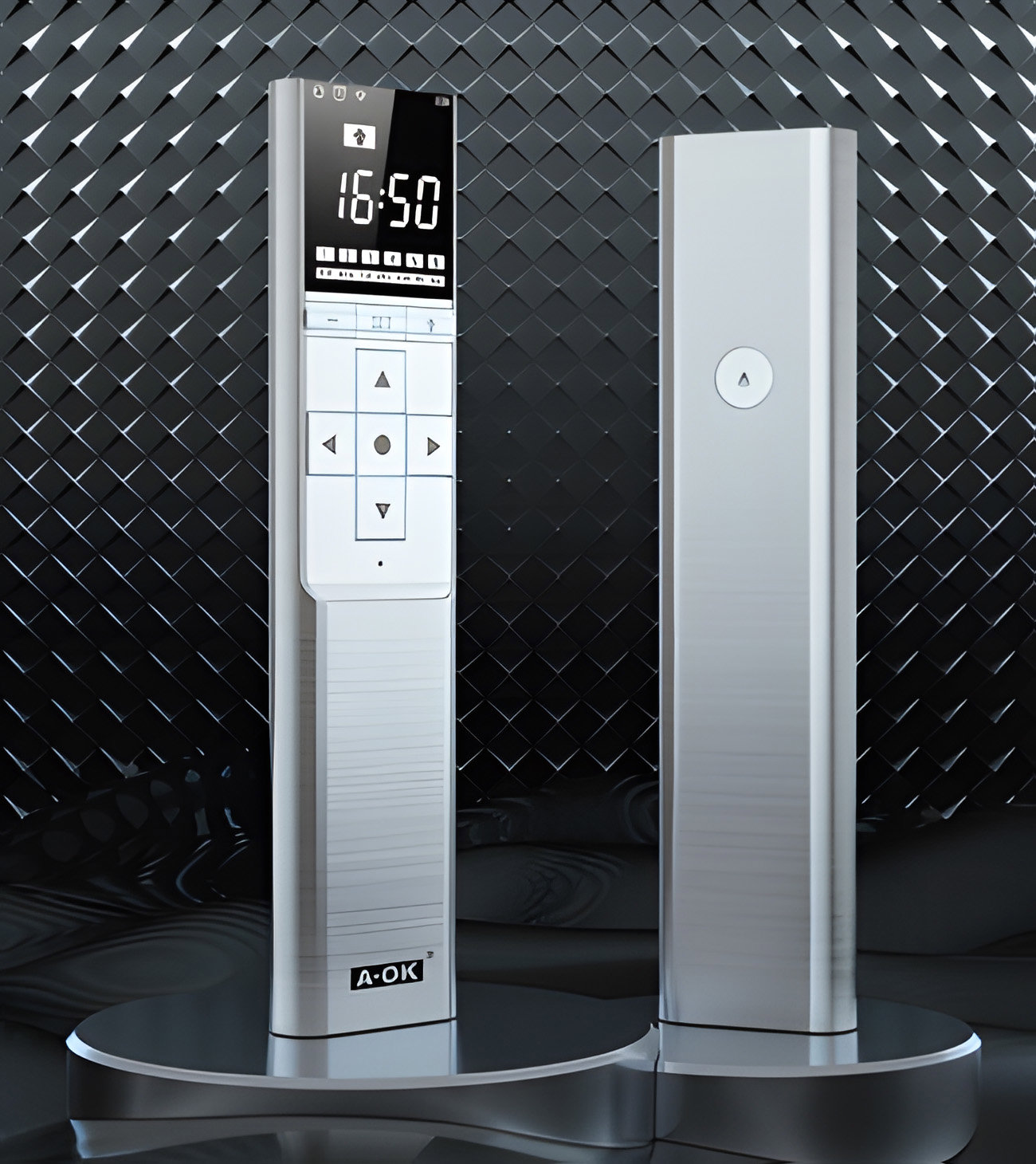

Switch, remote control, Zigbee system, Tahoma
| STANDARD DIMENSIONS/MANUFACTURABLE DIMENSIONS FOR BOX 90 (mm, m2) | |||||
|---|---|---|---|---|---|
| min. W | max. W | min. H | max. H | max. area | |
| Sunea solar system | 595 | 2500 | 400 | 3000 | 8 |
| self-supporting design | 795 | 1500 | 400 | 2500 | 8 |
| STANDARD DIMENSIONS/MANUFACTURABLE DIMENSIONS FOR BOX 110 (mm, m2) | |||||
|---|---|---|---|---|---|
| min. W | max. W | min. H | max. H | max. area | |
| solární systém ISOTRA Basic | 795 | 4200 | 400 | 3500 | 15 |
| Sunea solar system | 595 | 3200 | 400 | 3500 | 8 |
| self-supporting design | 795 | 3500 | 400 | 3000 | 15 |
| STANDARD DIMENSIONS/MANUFACTURABLE DIMENSIONS FOR BOX 150 (mm, m2) | |||||
|---|---|---|---|---|---|
| min. W | max. W | min. H | max. H | max. area | |
| ISOTRA Basic solar system | 795 | 6000 | 400 | 5000 | 18 |
| Sunea solar system | 595 | 3500 | 400 | 3500 | 8 |
| Head rail | Bottom rail | Side guidance | ||||||
|---|---|---|---|---|---|---|---|---|
| square | high | guide rail | ||||||
| Business name | BOX pro SCREEN ALFA | ZPA012 | ZPA016/839 | ZPA016/830 | ZPH214 | ZPA016/838 | ZPA036/840-1 | ZPA037/849 |
| Dimension (mm) | 90 × 90 110 × 110 150 × 150 |
18 × 50 27 × 36 |
30 × 40 | 20 × 40 | 70 × 40 | 40 × 40 | 31,8 × 40 | 41,8 × 40 |
| Material | Al | Al | Al | Al | Al | Al | Al | Al |
| Cross-section |
 |
 18 × 50 |
Typ 839 |
Typ 830 |
 Typ 837 |
Typ 838 |
 Typ 840-1 |
 Typ 849 |
| Colour |
Standard: |
|||||||
*except of plastic parts
The materials offered for screen blinds are as follows
- Glass fiber covered with a PVC layer
- Polyester fiber with a PVC layer
Serge
- Specifically weaved screen fabrics, that are very flexible and therefore suitable to interiors as well as exteriors.
- They consist of 58,8 % PVC and 41,5 % glass fibre.
Satiné, Satiné Blackout
- PVC-coated fibreglass provides excellent dimension stability, protection against fire and chemicals, UV stability and excellent resistance to weather conditions.
- In the basic version, the fabric is composed of 42 % fiberglass and 58 % PVC coating (except for the blackout-type fabrics).
- Soltis 99 and B99 can only be used indoors
Soltis 86, 92, B92, 99, B99
- The material is made from a fabric woven from a high-strength polyester fibre, with surface treatment by pigmented PVC. The material is pre-stressed using the Precontraint technology in two directions, ensuring high dimensional stability and strength.
- Further advantages of the material include excellent heat-insulating properties, optimal visual and lighting properties, colour fastness (UV-stability), and flame resistance (B1, M1).
- Soltis 99 and B99 can only be used indoors
SCR 4005
- Internal and external use
- Lower price with keeping high quality standard
Cristal Plus 500 FSR
- The fabric is made of PVC -P compound (PVC + plasticizers + additives). It´s a thermoplastic material, it means that the polymer chains change behaviour depending on the temperatures.
- In the temperature range 55 °C / –10 °C the fabric does not change its structure.
- The material also has a very low thermal conductivity, which means that it does not absorb too much heat, and will not overheat.
- Into the window opening (ceiling)
- In front of the window opening (wall)
- By the special mounting profile (into the pergola)
