SCREEN HR10-ZIP

Modern solution for strčit energy performance and indoor climate requirements for passive and low-energy dwellings – concealing screen roller blinds HR10-ZI P meets all this.

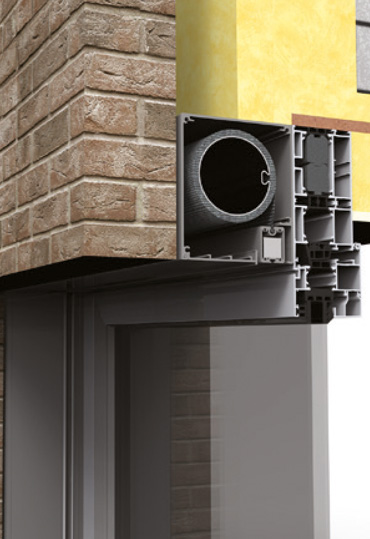

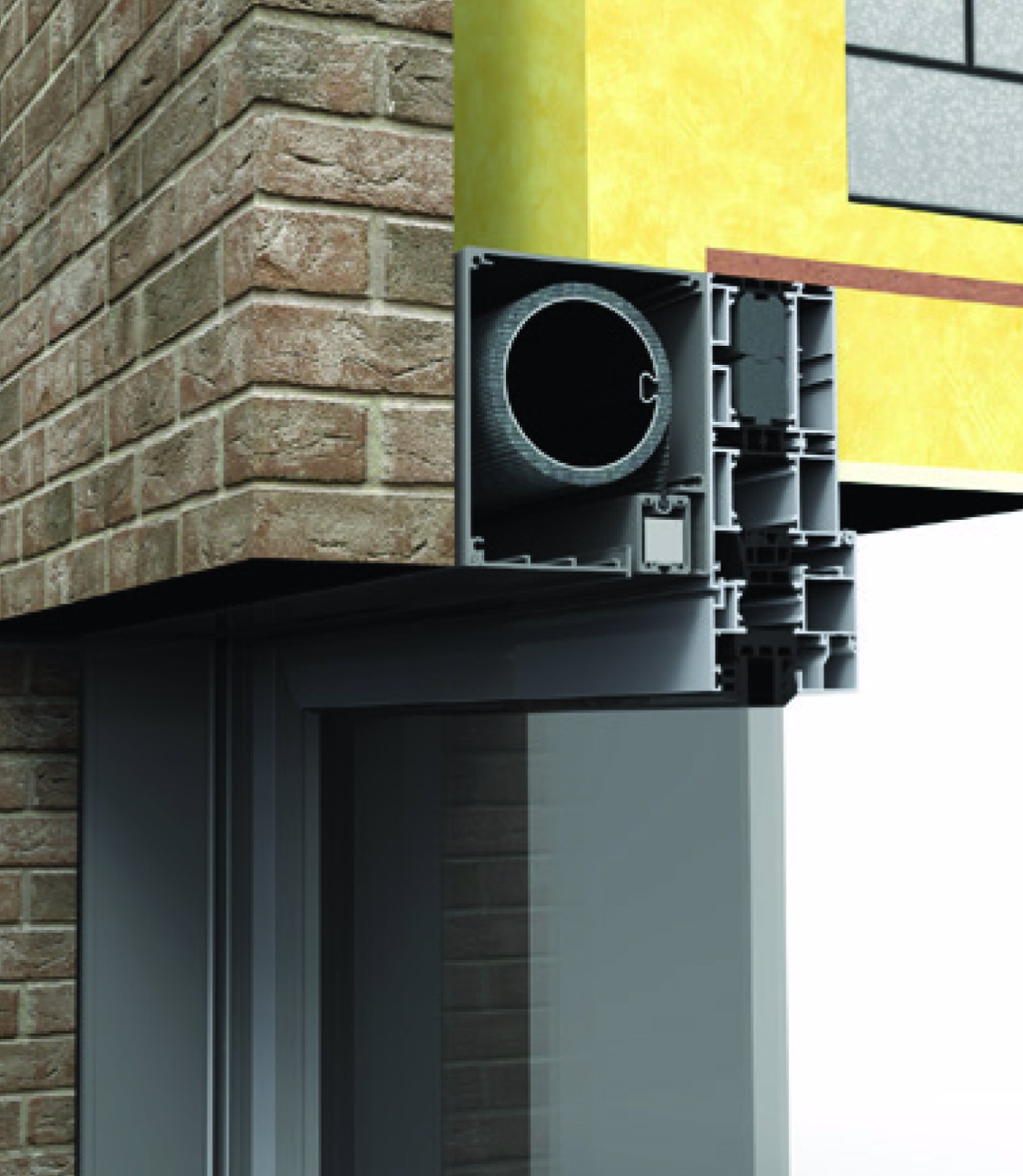

Screen roller blind HR10-ZI P has been made invisible, due to the box hidden in the cavity in the front of the window. The building shell is not perforated, there is no thermal bridge, and it does not affect the plaster or paintwork. The bottom lath his fully integrated, which means that in the retracted position the screen is invisible from the outside of your home. That also delivers a sleek look and excellent protection for your fabric against wind and weather.

The assembly of all system is very easy. Would you like a new screen fabric? This can be done very efficiently and easily from the bottom by simply extending the fabric roll and motor.

Advantages and benefits

  • The box integrated in the cavity wall in the front of the window,
  • no perforation of the building shell,
  • fully integrated bottom lath in retracted position,
  • ideal for passive construction and energy-neutral living,
  • the wind resistance up to 140 km/h.

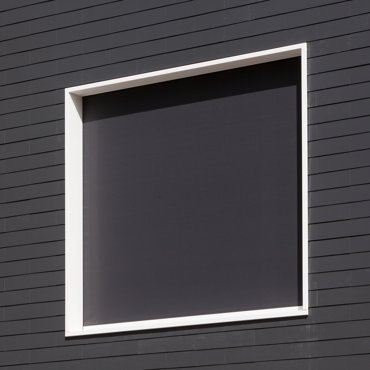

References

Systém of control

Screen HR10-ZIP is always electrically operated.

Motor – can be either on the left or on the rights. On the selected operating side there is the choice to have the cable run along the lateral guide or through a hole to be drilled in the top or back of the box profile. You can choose motor Altus 50 RTS, Sunea 50 IO, Maestria +50 IO, LS 40 or Sunea 40 IO.

Guaranteed dimensions

Control Width (mm) Height (mm) Guaranteed area (m2)
MIN MAX MIN MAX MAX
motor 655    4500 501 4500 14

We do not manufacture atypical dimensions.

Technical parameters

Head rail Bottom rail Suide guidance
Guide rail
Dimension (mm)
Material
122 × 47,4
Al
řez
x36,
Al



řez
122 × 40
Al



řez
38 × 40
Al



řez
Colour Standard::
RAL 9006 light silver
RAL 9007 dark silver
RAL 9010 white
RAL 7016 anthracite grey
RAL 7016 anthracite grey structure
RAL 8014 brown
Other RAL colours and ISOTRA SYSTEM DECORAL upon request*
*except of plastic parts

Basic colors available for the profiles and guide rails

  • RAL 7016 RAL 7016
  • RAL7016 structure RAL7016 structure
  • RAL 8014 RAL 8014
  • RAL 9006 RAL 9006
  • RAL 9007 RAL 9007
  • RAL 9010 RAL 9010

Colour performance Isotra System Decoral 1 at extra charge (cover box, guiding rail, bottom rail)

  • ISD110 ISD110
  • ISD120 ISD120
  • ISD130 ISD130
  • ISD140 ISD140
  • ISD150 ISD150
  • ISD160 ISD160
  • ISD210 ISD210
  • ISD220 ISD220
  • ISD230 ISD230
  • ISD310 ISD310
  • ISD152 ISD152
  • ISD154 ISD154
  • ISD200 ISD200
  • ISD212 ISD212
  • ISD214 ISD214
  • ISD222 ISD222

Colour performance Isotra System Decoral 2 at extra charge (cover box, guiding rail, bottom rail)

  • ISD500 ISD500
  • ISD510 ISD510
  • ISD600 ISD600
  • ISD610 ISD610
  • ISD620 ISD620
  • ISD630 ISD630
  • ISD640 ISD640
  • ISD700 ISD700

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler

Colors of profiles and guide rails for an additional price

RAL Colors – upon request.

Fabric selection

The materials offered for screen blinds are as follows

  • Glass fiber covered with a PVC layer
  • Polyester fiber with a PVC layer

Satiné, Satiné Blackout, Satiné Metal

  • PVC-coated fibreglass provides excellent dimension stability, protection against fire and chemicals, UV stability and excellent resistance to weather conditions.
  • In the basic version, the fabric is composed of 42 % fiberglass and 58 % PVC coating (except for the blackout-type fabrics).

Soltis 86, 92, B92

  • The material is made from a fabric woven from a high-strength polyester fibre, with surface treatment by pigmented PVC. The material is pre-stressed using the Precontraint technology in two directions, ensuring high dimensional stability and strength.
  • Further advantages of the material include excellent heat--insulating properties, optimal visual and lighting properties, colour fastness (UV-stability), and flame resistance (B1, M1).

Schéma látky Soltis 92

SCR 4005

  • Internal and external use
  • Lower price with keeping high quality standard



Pattern chart of fabrics
