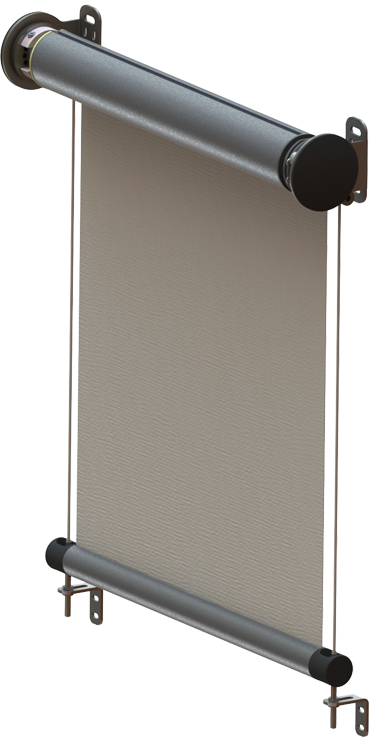

SCREEN LITE

‹ ›

The SCREEN LITE introduces a “light-weight variant” of the SCREEN GW blind. In its standard version, we offer the screen blind with the possibility of side guidance by a cabel or guide rail, however, without the covering profile.

With its design, it creates an overall atmosphere of the interior and adds stylish simplicity and modern appearance to buildings. This type of screen blind is suitable for indoor as well as for outdoor use. In its standard version, we offer the SCREEN LITE blind with a motorized drive, however it is also possible to use the handle manual control.

Fabrics for these modern screen blinds are offered in several alternatives of material composition based on the purposes of use – glass fiber, PVC, polyester, including the possibility of a blackout type material. The selected types of material and its combinations ensure excellent resistance against climate conditions.

Thanks to its wide range of fabrics and versions, the SCREEN LITE blind offers an excellent price alternative for indoor or outdoor use and allows the regulation of the heat conditions indoors.

Advantages and benefits

Light-weight variant without the cover moulding,
cost-effective alternative to the SCREEN ZIP and SCREEN GW models,
screening of both the interior and the exterior areas,
side guidance by a cable or by a guide rail,
possibility of electric control,
frame colour as per the RAL chart

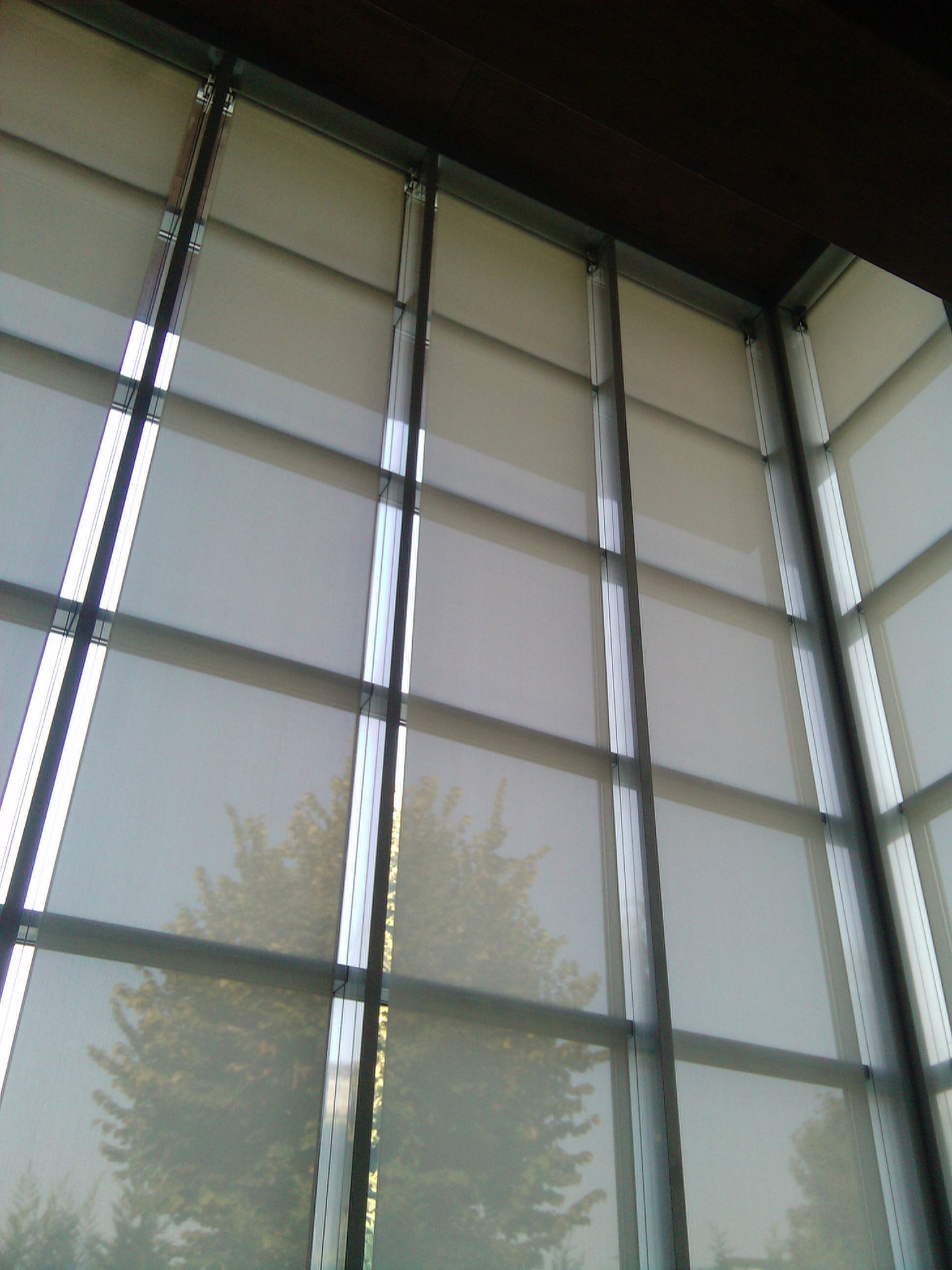

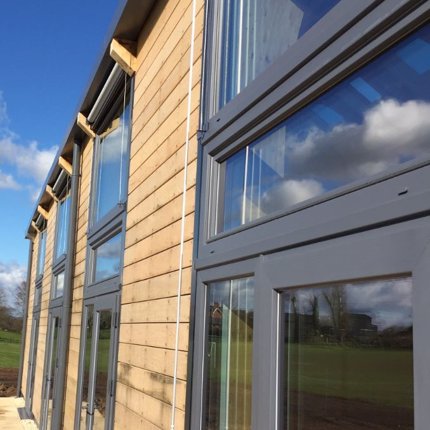

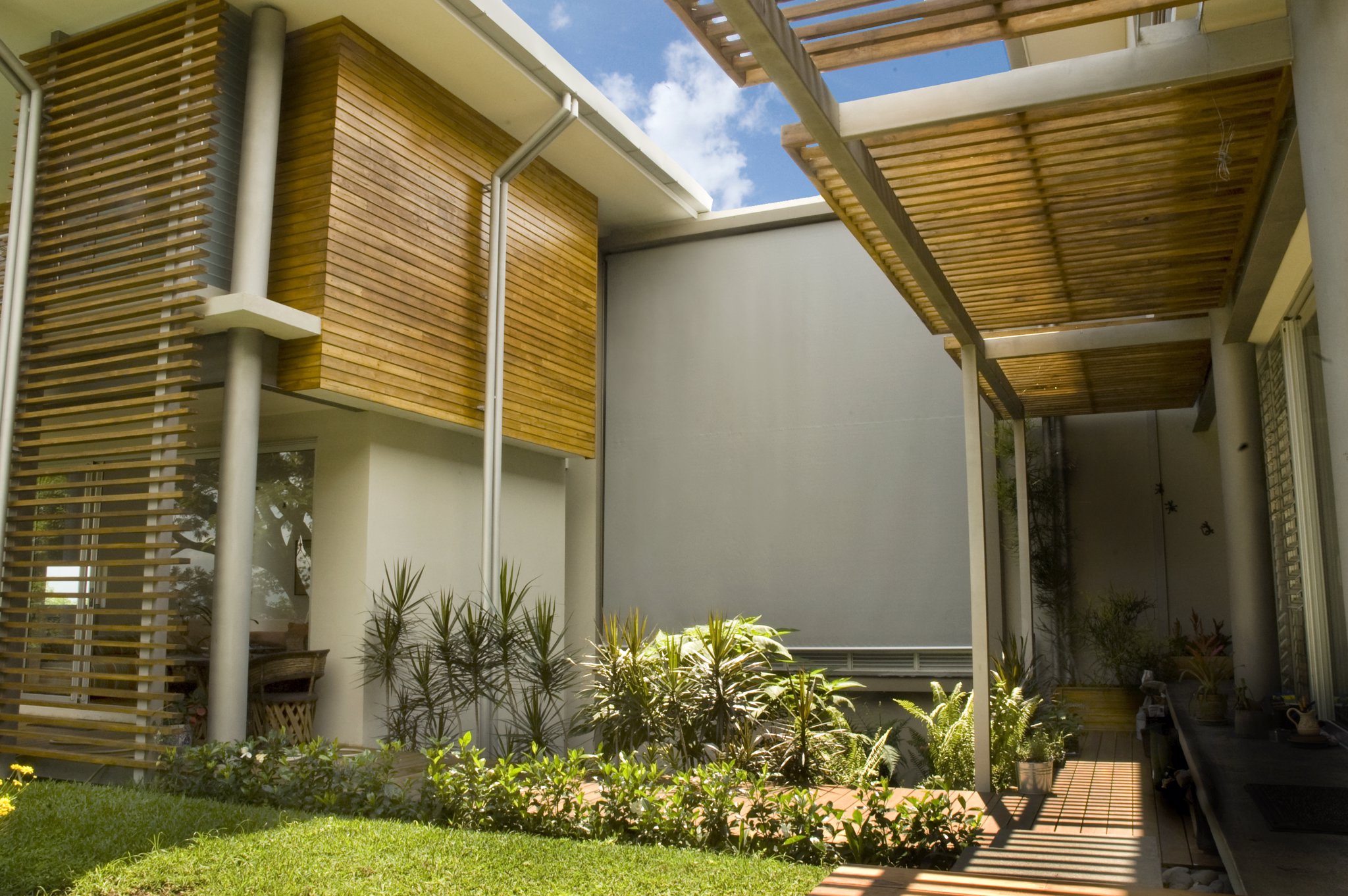

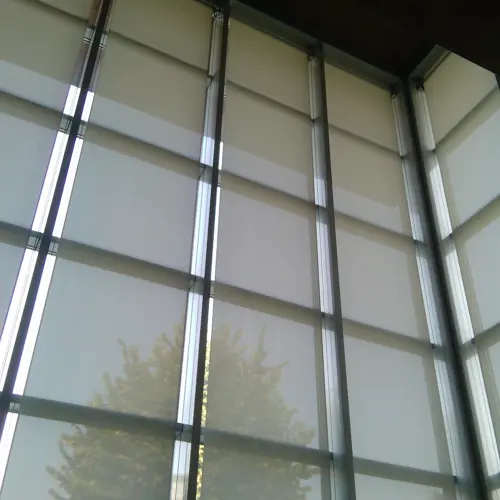

References

System of operation

Electrically driven – by a switch or a remote control unit
Manual - handle

Guaranteed dimensions

Design	Width (mm)		Height (mm)
Design	min	max	min	max
handle	500	4500	500	4000
motor	800	4500	500	4000

We do not manufacture atypical dimensions.

Technical parameters

	Pipe	Dolní profil	Side guidance		Assembly
	Pipe	Dolní profil	Guide rail	Cabel	Assembly
Business name Dimension (mm) Material	Ø 78 mm Fe	FD 42 Ø 42 mm Fe	GC 20 33 × 19 mm Al	Ø 4 mm Fe	into the ceiling (into the window opening) on the wall (in front of the window opening)
Color	grey	Standard: RAL 9006 Light silver RAL 9007 Dark silver RAL 7016 Anthracite coal grey Other RAL colors upon request*	Standard: RAL 9006 Light silver RAL 9007 Dark silver RAL 7016 Anthracite coal grey Other RAL colors upon request*	grey

*except of plastic parts

Basic colors available for the profiles and guide rails

RAL 9006
RAL 9007
RAL 7016

Colors of profiles and guide rails for an additional price

RAL Colors – upon request.

Fabric selection

The materials offered for screen blinds are as follows

Glass fiber covered with a PVC layer
Glass fiber without PVC and halogen content
Polyester fiber with a PVC layer

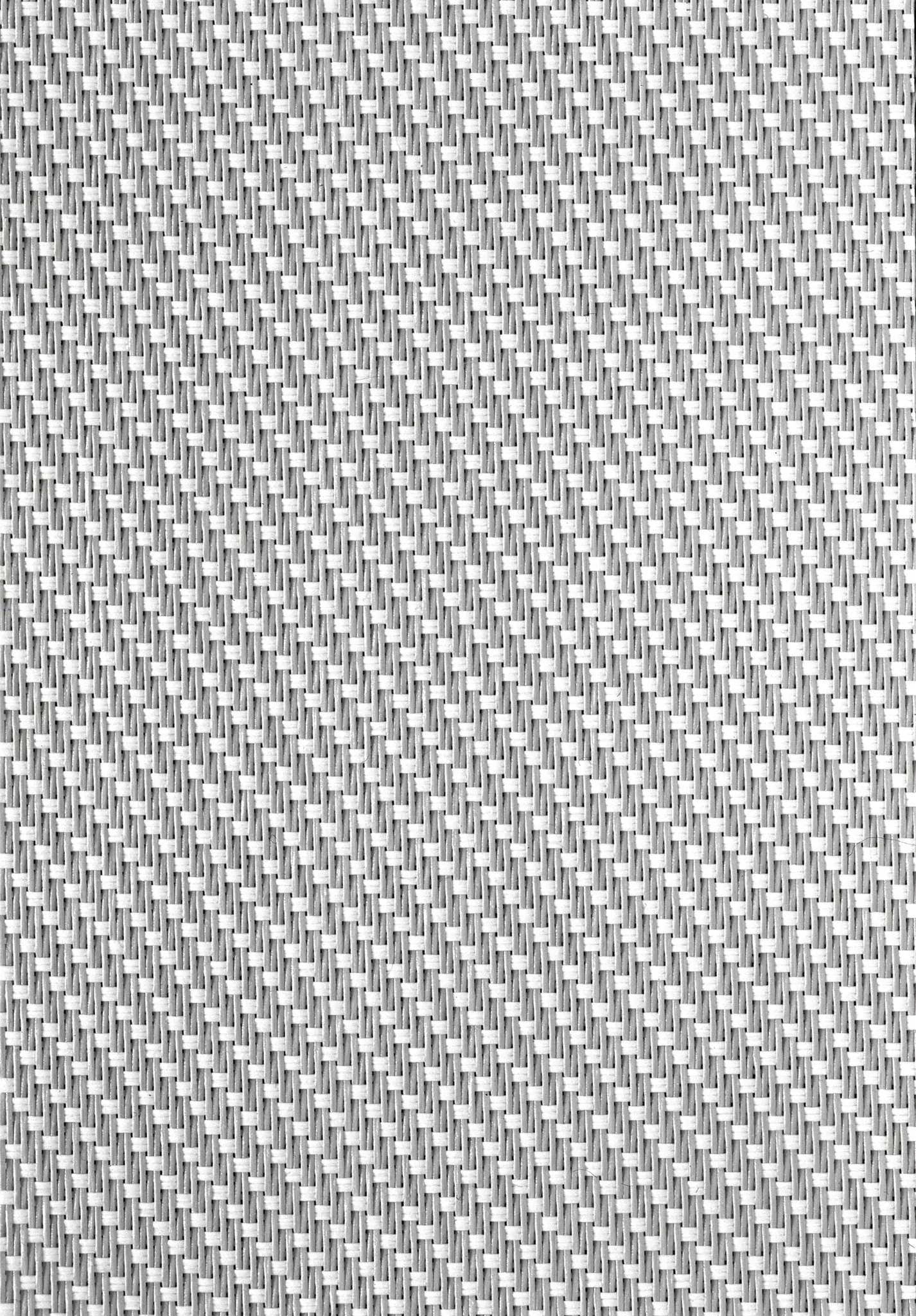

Serge

Specifically weaved screen fabrics, that are very flexible and therefore suitable to interiors as well as exteriors.
They consist of 58,8 % PVC and 41,5 % glass fibre.

Satiné, Satiné Blackout, Satiné Metal

PVC-coated fibreglass provides excellent dimension stability, protection against fire and chemicals, UV stability and excellent resistance to weather conditions.
In the basic version, the fabric is composed of 42 % fiberglass and 58 % PVC coating (except for the blackout-type fabrics).

Screen Nature

The SCREEN NATURE fabrics are of a special composition: they are made of 100% fibreglass without PVC and halogens – they meet high requirements for ecology with minimum environmental impacts, for the protection of health, safety and flame resistance (A2, M0).

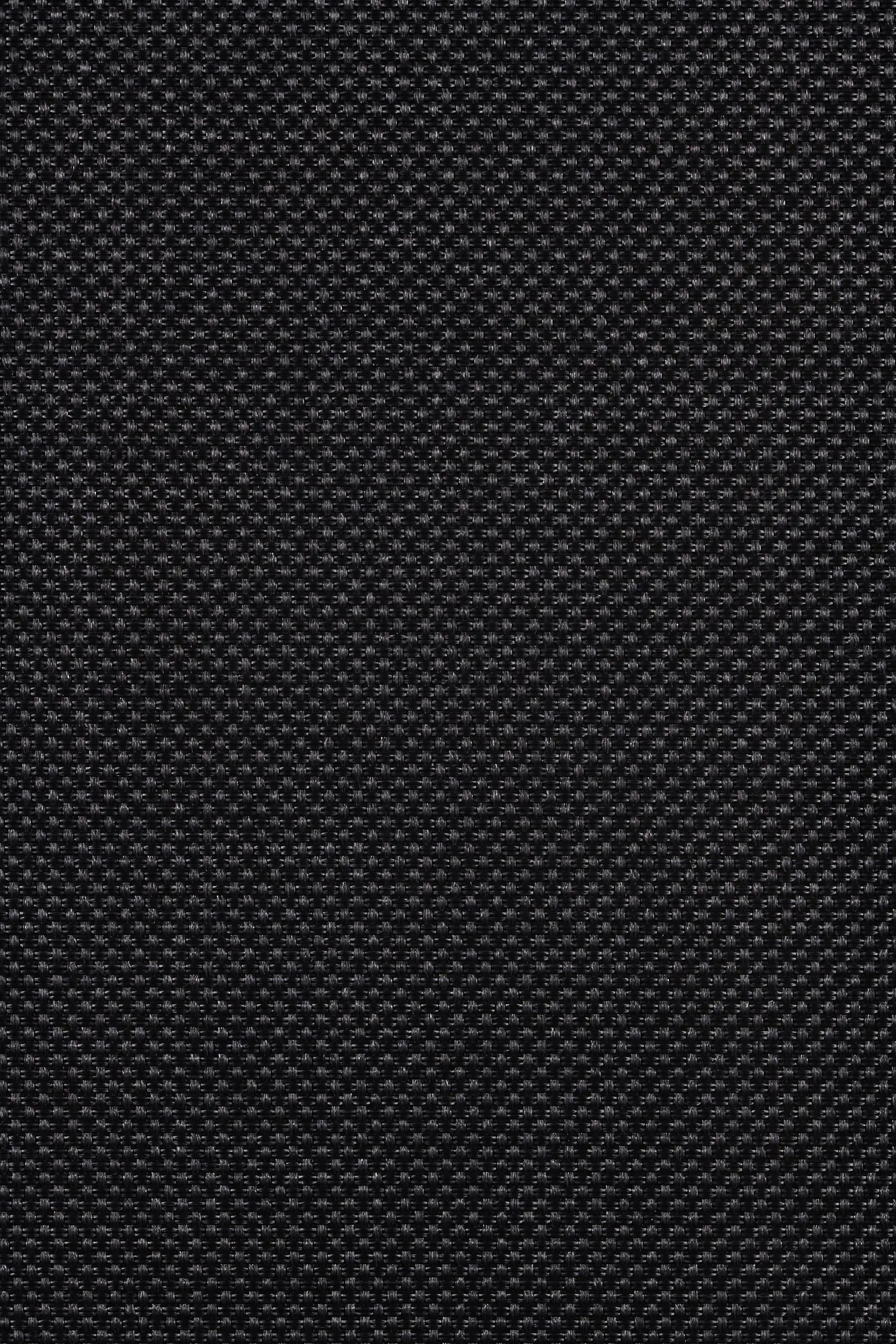

SCR

The combination of 30 % polyester fiber and 70 % PVC offers a wide range of fabrics for indoor use, which fulfills the basic requirements of functionality, design, heat and visual comfort.

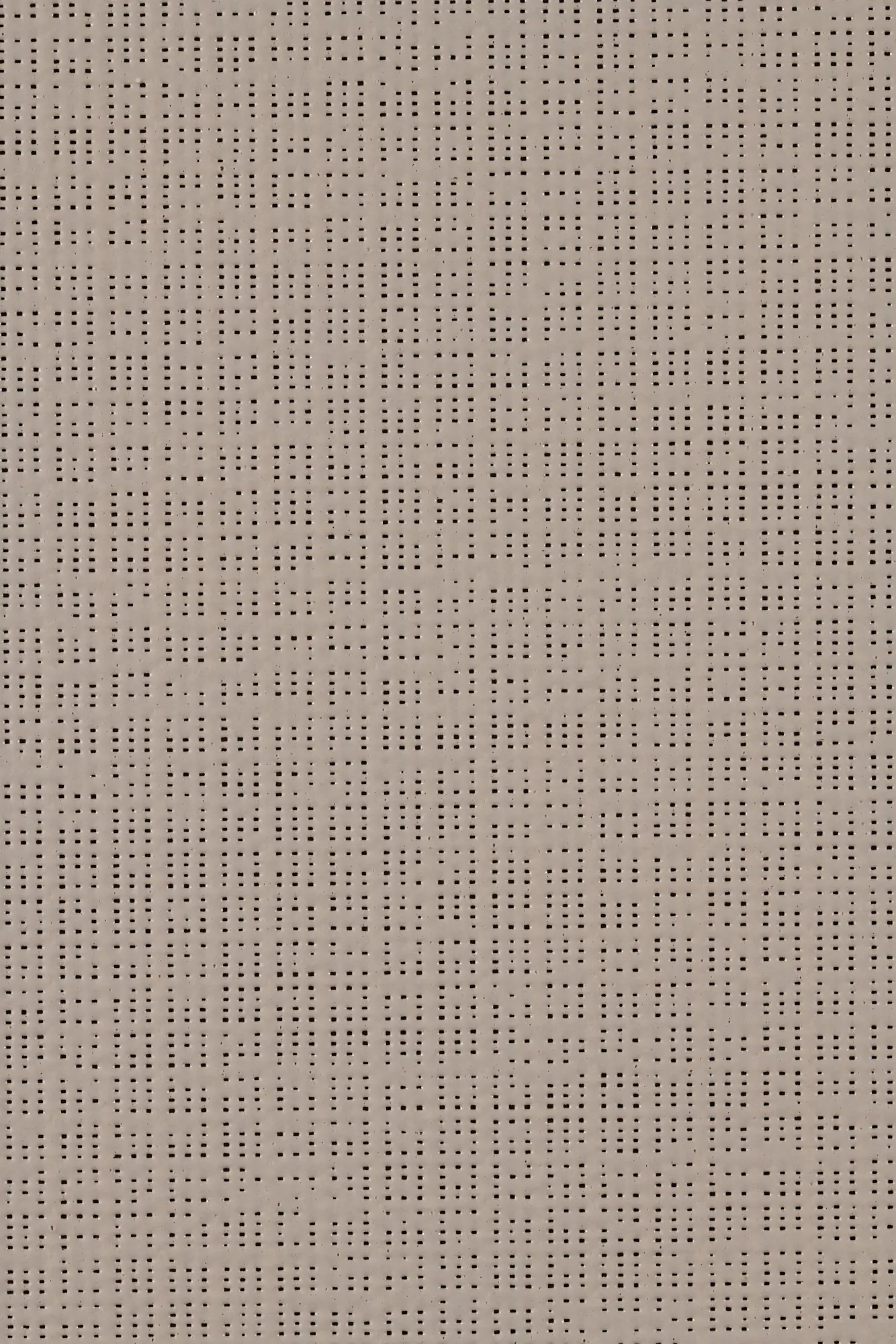

Soltis 86, 92, 99

The material is made from a fabric woven from a high-strength polyester fibre, with surface treatment by pigmented PVC. The material is pre-stressed using the Precontraint technology in two directions, ensuring high dimensional stability and strength.
Further advantages of the material include excellent heat--insulating properties, optimal visual and lighting properties, colour fastness (UV-stability), and flame resistance (B1, M1).

Soltis diagram

SCR 4005

Internal and external use
Lower price with keeping high quality standard

Cristal Plus 500 FSR

The fabric is made of PVC -P compound (PVC + plasticizers + additives). It´s a thermoplastic material, it means that the polymer chains change behaviour depending on the temperatures.
In the temperature range 55 °C / –10 °C the fabric does not change its structure.
The material also has a very low thermal conductivity, which means that it does not absorb too much heat, and will not overheat.

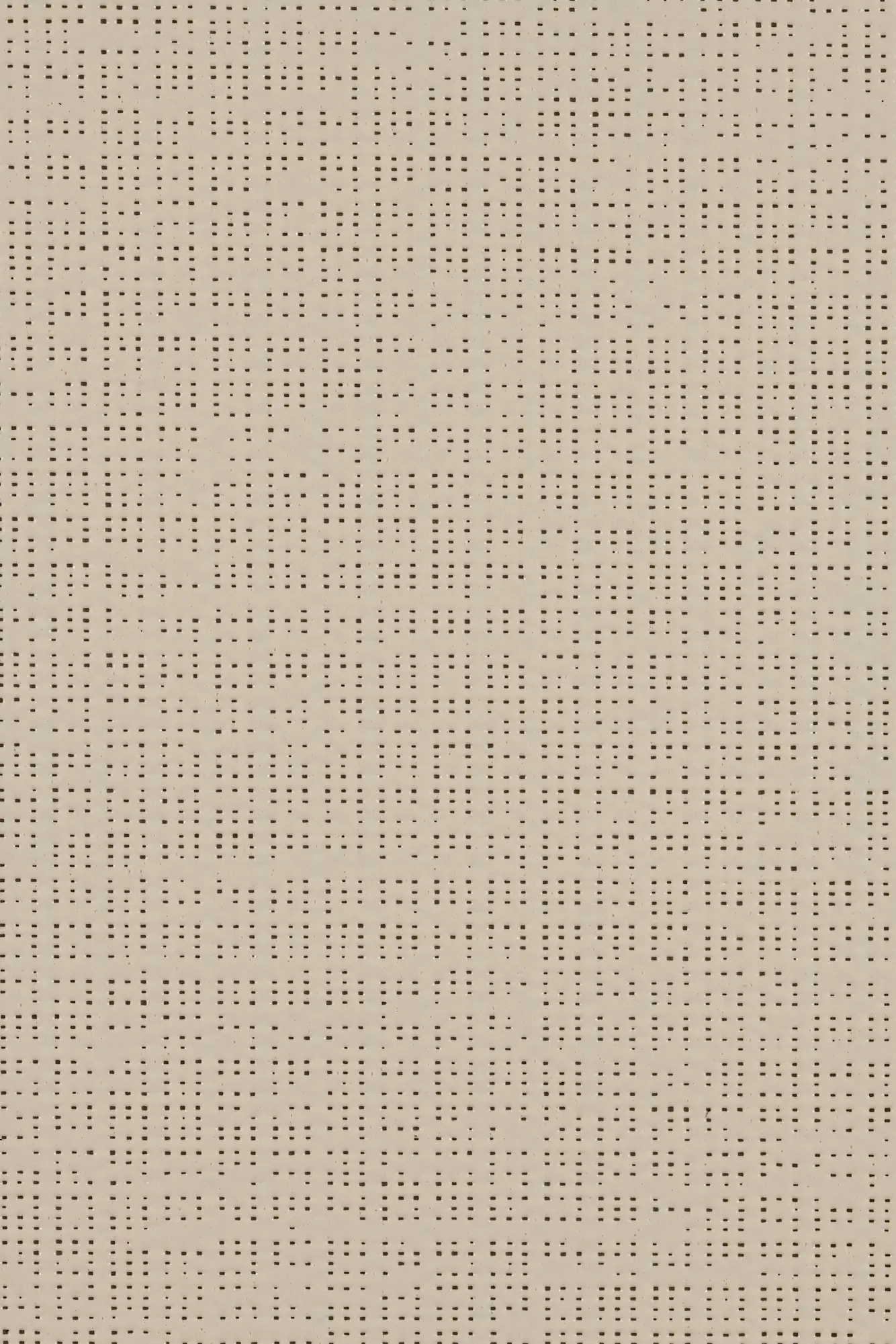

Pattern chart of fabrics

show all fabric patterns hide extended selection of fabric patterns

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.

Assembly Options

Into the window opening (ceiling)
In front of the window opening (wall)
