Screen roller blinds SCREEN HR8-ZIP
Product gallery
Are you looking for an extremely robust screen but also want to keep insects out? Then the screen HR8-ZIP meets both requirements. This screen has a unique track system which makes it wind-proof and keeps the fabric perfectly tensioned and in position in the guide rails.

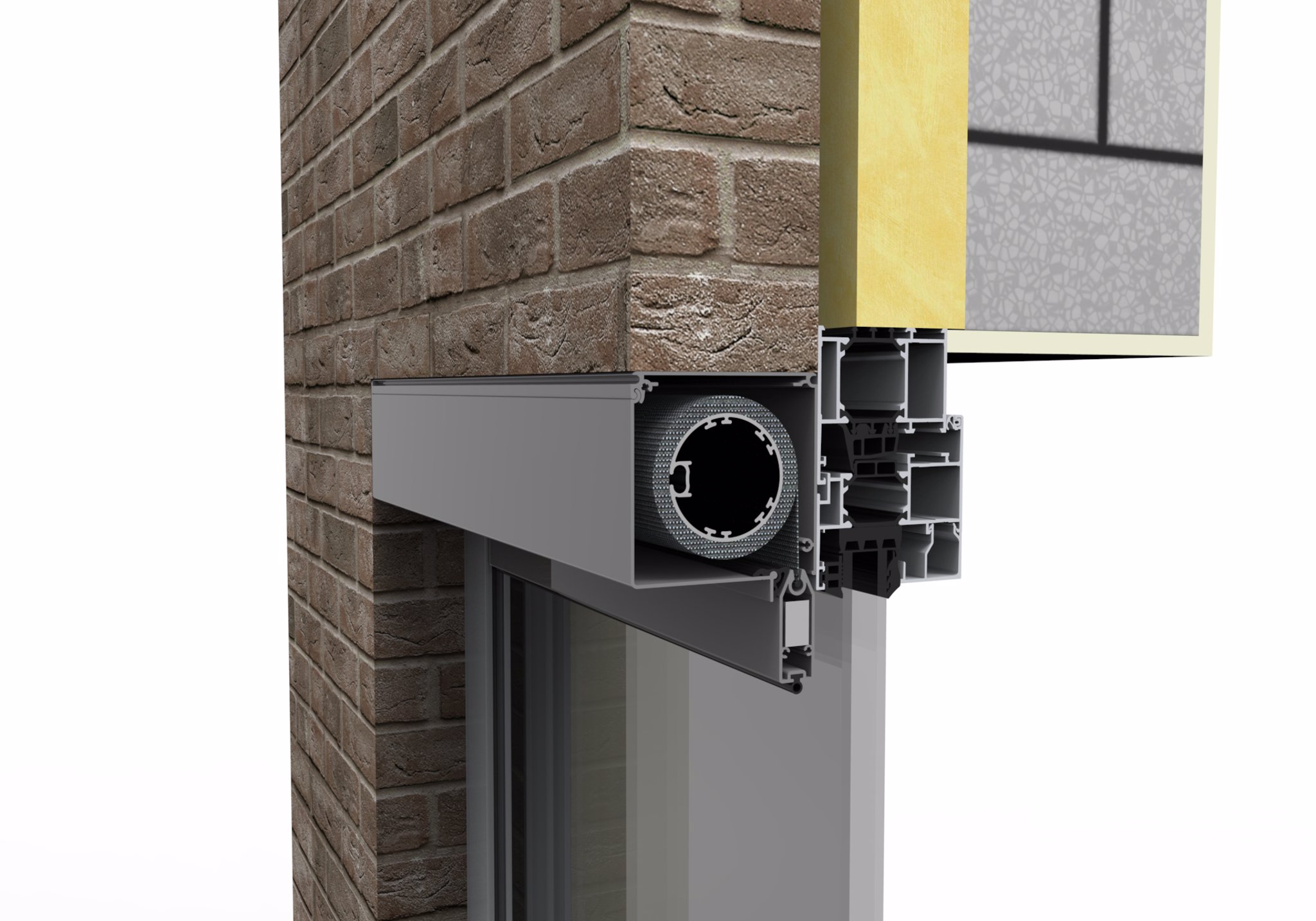

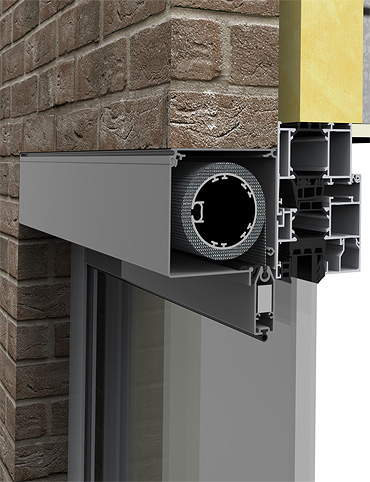

The HR8-ZIP screen offers practical protection against insects as the space between the box, the guide rails and the fabric is completely sealed off. The box is assembled in a decent position in front of the window, so the building shell is not perforated and the house insulation remains intact. The ZIP system is unique thanks to the hidden stainless spring in the guide rail. The spring does not wear and so the fabric remains taut for longer. You can use this screen - which complies with wind resistance class 3 - to screen an area of up to 18 m2 with a single piece of screen.
Advantages
Benefits & advantages
- perfect for passive construction: the building shell is not perforated
- fabrics remain taut for longer, thanks to the innovative ZIP system with metal spring
- choice of 2 box designs: modern or classic, both types available in 4 sizes
- possibility of coupling up to 3 pcs of screen roller blinds
- wind resistance class 3
- guaranteed area 18 m2
Explore
Colour variants
Basic colours profile
Special fabrics for screen roller
Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.
Methods
Handling
electric drive
remote control or switch
remote control or switch
manually
handle with self-braking worm-worm wheel mechanism
handle with self-braking worm-worm wheel mechanism
Fabric selection
The materials offered for screen blinds are as follows
- glass fiber covered with a PVC layer
- polyesterové vlákno s PVC vrstvou
Serge
- Specifically weaved screen fabrics, that are very flexible and therefore suitable to interiors as well as exteriors.
- They consist of 58,8 % PVC and 41,5 % glass fibre.
Satiné, Satiné Blackout
- PVC-coated fibreglass provides excellent dimension stability, protection against fire and chemicals, UV stability and excellent resistance to weather conditions
- in the basic version, the fabric is composed of 42 % fiberglass and 58 % PVC coating (except for the blackout-type fabrics).
Soltis 86, 92, B92, 99, B99
- The material is made from a fabric woven from a high-strength polyester fibre, with surface treatment by pigmented PVC. The material is pre-stressed using the Precontraint technology in two directions, ensuring high dimensional stability and strength.
- Further advantages of the material include excellent heat-insulating properties, optimal visual and lighting properties, colour fastness (UV-stability), and flame resistance (B1, M1).
- Soltis 99 and B99 can only be used indoors
SCR 4005
- internal and external use
- lower price with keeping high quality standard
Cristal Plus 500 FSR
- The fabric is made of PVC -P compound (PVC + plasticizers + additives). It´s a thermoplastic material, it means that the polymer chains change behaviour depending on the temperatures.
- In the temperature range 55 °C / –10 °C the fabric does not change its structure.
- The material also has a very low thermal conductivity, which means that it does not absorb too much heat, and will not overheat.
Guaranteed dimensions
Standard dimensions for box 70
| Execution | Width (mm) | Height (mm) | Guaranteed area (m2) | ||
|---|---|---|---|---|---|
| min | max | min | max | max | |
| Handle | 400 | 2500 | 400 | 1200 | 3 |
| Motor LS40 | 580 | 2500 | 400 | 1200 | 3 |
| Motor 40 iO | 635 | 2500 | 400 | 1200 | 3 |
** Max. height with STNZ, STNBZ, SCR4005, SLTZB92, SERGE 3Z fabrics is only 1800 mm
Standard dimensions for box 90
| Execution | Width (mm) | Height (mm) | Guaranteed area (m2) | ||
|---|---|---|---|---|---|
| min | max | min | max | max | |
| Handle | 400 | 2800 | 400 | 2500 | 7 |
| Motor LT50 | 665 | 2800 | 400 | 2500 | 7 |
| Motor RTS, iO, WT | 795 | 2800 | 400 | 2500 | 7 |
** Max. height with STNZ, STNBZ, SCR4005, SLTZB92, SERGE 3Z fabrics is only 1800 mm
Standard dimensions for box 110
| Execution | Width (mm) | Height (mm) | Guaranteed area (m2) | ||
|---|---|---|---|---|---|
| min | max | min | max | max | |
| Handle | 400 | 3500 | 400 | 3000 | 10 |
| Motor LT50 | 665 | 3800 | 400 | 3500 | 13 |
| Motor RTS, iO, WT | 795 | 3800 | 400 | 3500 | 7.5 |
** Max. height with STNZ, STNBZ, SCR4005, SLTZB92, SERGE 3Z fabrics is only 2600 mm
Standard dimensions for box 150
| Execution | Width (mm) | Height (mm) | Guaranteed area (m2) | ||
|---|---|---|---|---|---|
| min | max | min | max | max | |
| Handle | 400 | 3000 | 400 | 5000 | 12 |
| Motor LT50 | 665 | 6000 | 400 | 5000 | 18 |
| Motor RTS, iO, WT | 795 | 6000 | 400 | 5000 | 7.5 |
** Max. height with STNZ, STNBZ, SCR4005, SLTZB92, SERGE 3Z fabrics is only 4500 mm
Technical parameters
| Head rail | Bottom rail | Side guidance | ||||||
|---|---|---|---|---|---|---|---|---|
| square | rounded | high | guide rail | |||||
| Bussiness name | SCREEN HR8-ZIP box 110 | ZPH074 | ZPH070 | ZPA016/830 | ZPH069 | ZPH071 | ZPH072 | |
| Dimension (mm) |
70 × 70 90 × 90 110 × 110 150 × 150 |
70 × 70 90 × 90 110 × 110 150 × 150 |
18 × 36 | 30 × 40 |
20 × 40 |
40 × 40 |
30 × 80 |
20 × 80 |
| Material | Al | Al | Al | Al | Al | Al | Al | Al |
| Cross-section |  |
 |
 |
 |
 |
 |
 |
 |
| Colour | Standard: RAL 7016 anthracite grey RAL 7016 anthracite grey structure RAL 9006 light silver RAL 9007 dark silver RAL 9010 white RAL 8014 brown Other colors RAL upon request* |
|||||||
Assembly options
- on the wall
- into the spelled
Construction variants
Screen ALFA SOLAR -ZIP
Screen roller blind with an external solar power represents a unique and fully automatized roller blind, that is controlled wirelessly and has zero consumption of electric power. This roller blind runs on the principle of photovoltaic effect, that means the conversion of sunshine to electric power. This represents an ecological an energetically the most economical solution of power drive for roller blinds. The drive is powered by a battery with long lifetime, charged by a solar panel that operates in all weather conditions. Maximal area 7,5 m2. One solar unit is adapted to one screen roller blind only.
Parameters
- box – squared only
- roller tube Ø 55
- dimensions: width 595 – 2500 mm, height 400 mm – 3000 mm
- standard: internal battery for box 150 only
- optional: the use of external battery for box 90 and 110
- the solar panel is always on the engine side
- B-BE assembly (to scuntion) is not possible
- possibility of several roller blinds in common box – only in case that each roller blind has its own engine and an external battery
Advantages
- ecological and energetically the most economical solution of roller blind drive
- independence of installation upon the electric energy access
- comfortable remote control with the choice of any semi-position of the roller blind
- the propulsion consumes the energy only when it really needs and it was tested by 10 000 cycles – this ensures its extensive lifetime
- the drive thwarts the hostile opening of the roller blind and therefore protects it from unauthorized penetration
- the roller blind detects an obstacle and stops automatically
- if the bottom rail freezes up, the drive stops automatically
- quick and simple installation, without effects on interior
- running temperature of battery from -20 °C to +70 °C
- the solar panel supplies the energy even by the cloudy sky
Construction variants
Screen HR8 SOLAR-ZIP
Screen roller blind with an external solar power represents a unique and fully automatized roller blind, that is controlled wirelessly and has zero consumption of electric power. This roller blind runs on the principle of photovoltaic effect, that means the conversion of sunshine to electric power. This represents an ecological an energetically the most economical solution of power drive for roller blinds. The drive is powered by a battery with long lifetime, charged by a solar panel that operates in all weather conditions. Maximal area 7,5 m2. One solar unit is adapted to one screen roller blind only.
Parameters
- box – squared only
- roller tube Ø 55
- dimensions: width 595 – 2500 mm, height 400 mm – 3000 mm
- standard: internal battery for box 150 only
- optional: the use of external battery for box 90 and 110
- the solar panel is always on the engine side
- B-BE assembly (to scuntion) is not possible
- possibility of several roller blinds in common box – only in case that each roller blind has its own engine and an external battery
Advantages
- ecological and energetically the most economical solution of roller blind drive
- independence of installation upon the electric energy access
- comfortable remote control with the choice of any semi-position of the roller blind
- the propulsion consumes the energy only when it really needs and it was tested by 10 000 cycles – this ensures its extensive lifetime
- the drive thwarts the hostile opening of the roller blind and therefore protects it from unauthorized penetration
- the roller blind detects an obstacle and stops automatically
- if the bottom rail freezes up, the drive stops automatically
- quick and simple installation, without effects on interior
- running temperature of battery from -20 °C to +70 °C
- the solar panel supplies the energy even by the cloudy sky
