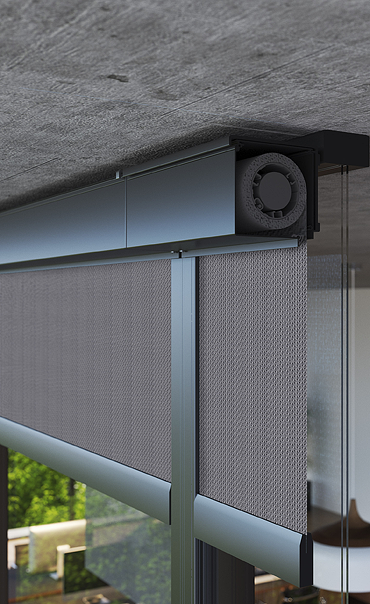

SCREEN HR8-ZIP INTERIOR BO

Are you looking for elegant interior shading? Then the HR8-ZIP screen blind will be the perfect choice for you. This blind has a unique rail system that keeps the fabric perfectly stretched and in place in the rails.

The space between the box, the guide rails and the fabric is completely closed. The ZIP system used is unique thanks to the hidden stainless steel spring in the guide rail. The spring does not wear out, so the fabric retains tension for many years. With this roller shutter you can shade an area of up to 18 m2 with one piece of a roller shutter. The blind is designed for the interior, a box of sizes 70, 90, 110 and 150 mm and blackout type of interior fabrics designed for both screen blinds and interior blinds can be used.

Advantages and Benefits

  • Fabric stays stretched longer thanks to the innovative metal spring zip system,
  • Option of 2 types of box design: classic square or modern rounded,
  • Both types of boxes available in 4 sizes,
  • Guaranteed area of up to 18 m2,
  • Easy assembly,
  • Possibility to use both interior and screen blackout fabrics designed for interior use,
  • Balanced bottom rail for fabric guidance and tension.

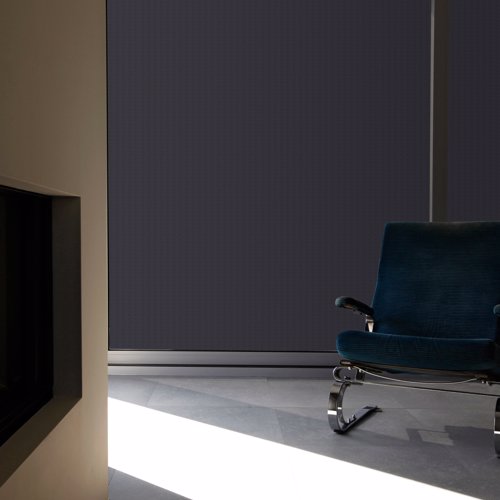

References

Control method

  • Motor - only Sunea IO motor can be used for 70 × 70 box, Altus RTS, Sunea IO and Maestria IO motors (min. 795 mm blind width) can be used for box 90 × 90 and Altus RTS, Sunea IO, Maestria IO and Geiger Solid Air Line motors can be used for 110 × 110 and 150 × 150 boxes.
  • Crank with loop - standard mechanism with self-locking worm and worm wheel, 1:4 ratio, built-in end stop (prevents incorrect fabric winding).

Variants of Assembly

  • in the window opening (ceiling)
  • in front of the window opening (wall)

Guaranteed dimensions

Standard dimensions for box 70

EXECUTION WIDTH (mm) HEIGHT (mm) GUARANTEED AREA (m2)
MIN MAX MIN MAX MAX
Handle 400 2500 400 1200 3
Motor Sunea, IO 635 2500 400 1200 3

Standard dimensions for box 90

EXECUTION WIDTH (mm) HEIGHT (mm) GUARANTEED AREA (m2)
MIN MAX MIN MAX MAX
Handle 400 2800 400 2500 7
Motor RTS, IO 795 2800 400 2500 7

Standard dimensions for box 110

EXECUTION WIDTH (mm) HEIGHT (mm) GUARANTEED AREA (m2)
MIN MAX MIN MAX MAX
Handle 400 3500 400 3000 10
Motor RTS, IO, Geiger 795 3500 400 3800 13

Standard dimensions for box 150

EXECUTION WIDTH (mm) HEIGHT (mm) GUARANTEED AREA (m2)
MIN MAX MIN MAX MAX
Handle 400 3000 400 5000 18
Motor RTS, IO, Geiger 795 6000 400 5000 18

We do not manufacture atypical dimensions.

Technical parameters

Motor

Head rail Side guidance
square rounded bottom rail guide rail
Dimension (mm)



Material
70 × 70
90 × 90
110 × 110
150 × 150
Al
368189
70 × 70
90 × 90
110 × 110
150 × 150
Al
368190



18 × 50
Al
368191



30 × 40
Al
368192



20 × 40
Al
368193
Colour Standard:
RAL 7016 anthracite grey
RAL 7016 anthracite grey structure
RAL 8014 brown
RAL 9006 light silver
RAL 9007 dark silver
RAL 9010 white
Other colors RAL and ISOTRA SYSTEM DECORAL upon request*

*except plastic parts

Handle

Head rail Side guidance
square rounded bottom rail guide rail
Dimension (mm)



Material
70 × 70
90 × 90
110 × 110
150 × 150
Al
368189
70 × 70
90 × 90
110 × 110
150 × 150
Al
368190



18 × 50
Al
368191



30 × 55
Al
368192



20 × 55
Al
368193
Colour Standard:
RAL 7016 anthracite grey
RAL 7016 anthracite grey structure
RAL 8014 brown
RAL 9006 light silver
RAL 9007 dark silver
RAL 9010 white
Other colors RAL and ISOTRA SYSTEM DECORAL upon request*
*except plastic parts

Basic color design of profiles and guide rails

  • RAL 7016 RAL 7016
  • RAL7016 structure RAL7016 structure
  • RAL 8014 RAL 8014
  • RAL 9006 RAL 9006
  • RAL 9007 RAL 9007
  • RAL 9010 RAL 9010

Colour performance Isotra System Decoral 1 at extra charge (cover box, guiding rail, bottom rail)

  • ISD110 ISD110
  • ISD120 ISD120
  • ISD130 ISD130
  • ISD140 ISD140
  • ISD150 ISD150
  • ISD160 ISD160
  • ISD210 ISD210
  • ISD220 ISD220
  • ISD230 ISD230
  • ISD310 ISD310
  • ISD152 ISD152
  • ISD154 ISD154
  • ISD200 ISD200
  • ISD212 ISD212
  • ISD214 ISD214
  • ISD222 ISD222

Colour performance Isotra System Decoral 2 at extra charge (cover box, guiding rail, bottom rail)

  • ISD500 ISD500
  • ISD510 ISD510
  • ISD600 ISD600
  • ISD610 ISD610
  • ISD620 ISD620
  • ISD630 ISD630
  • ISD640 ISD640
  • ISD700 ISD700

Colors of profiles and guide rails for an additional price

RAL Colors – upon request.

Selection of fabrics

For the SCREEN HR8-ZIP INTERIOR BO can be used screen blackout fabrics designed for the interior and selected fabrics for interior fabric blinds.

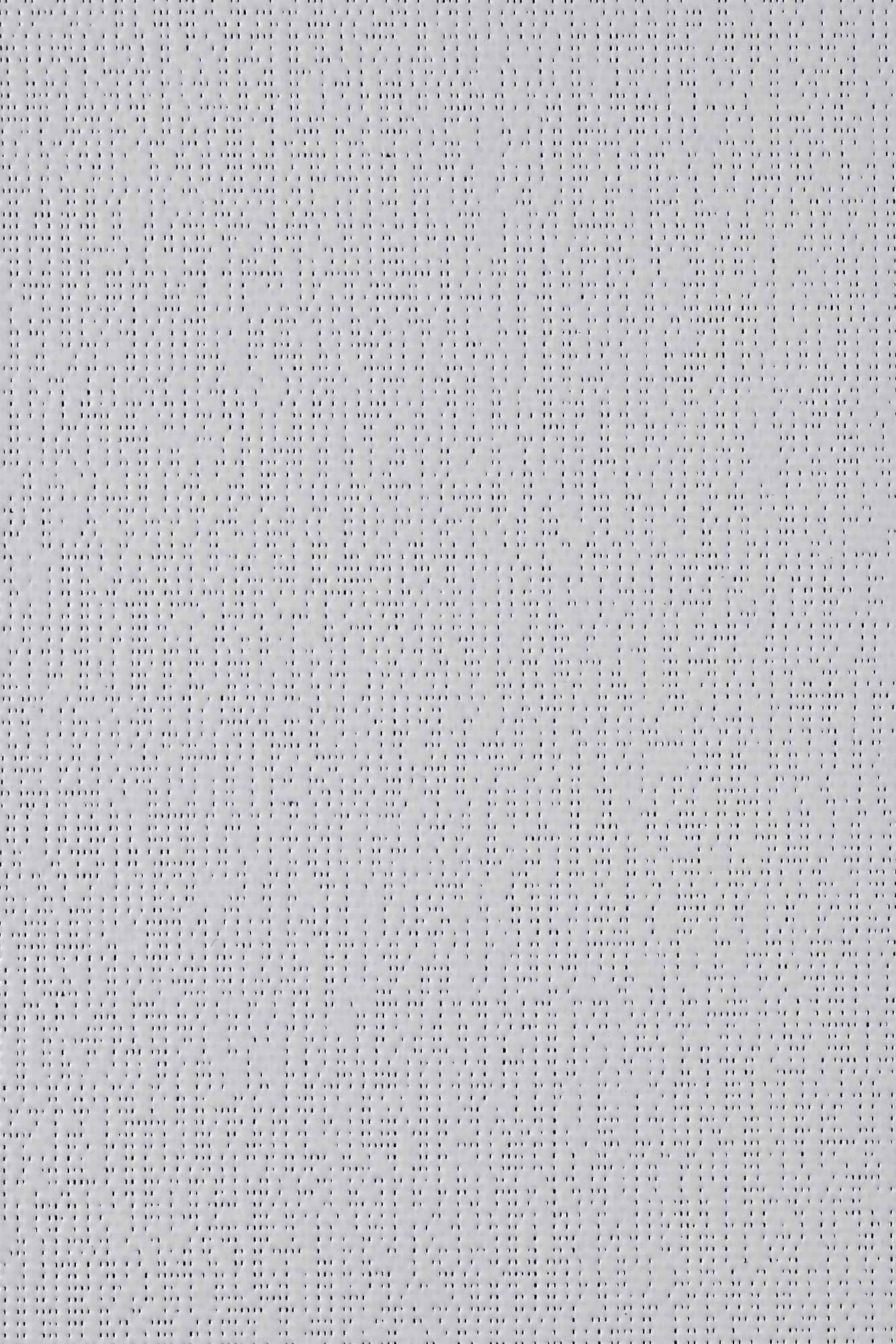

Screen fabrics Soltis B99

show all fabric patterns hide extended selection of fabric patterns

Fabrics for interior blinds

show all fabric patterns hide extended selection of fabric patterns

Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.
