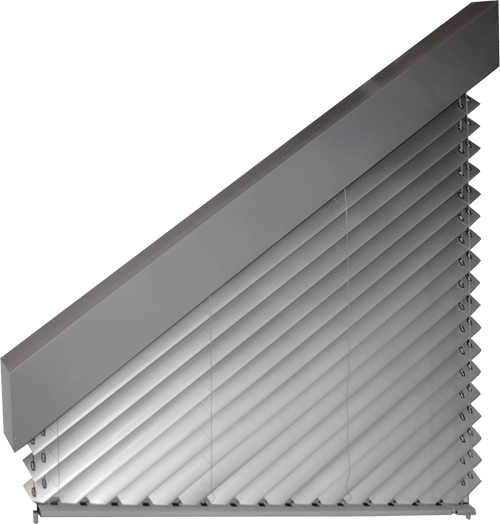

Sloped Exterior Blind Cetta 80F TE
The sloped blind is an ideal solution for shading asymmetrical window shapes, where the upper frame is not horizontal, but inclined under a specific angle. The aluminium slats copy the angle of the upper frame and are parallel to it. The slats are guided in a steel cord. The blind contains a special mechanism compensating for the different lengths of textile straps when sliding down and lifting the blind. The telescopic bottom rail is used to compensate for the different width of the blind in the lower position (window width) and the upper position (length of the window inclined part). Low roll height is achieved by using slats without longitudinal folds (Flexi system). Only the Cetta 80 slat and only the motor control can be used for the sloped blind.
Advantages
Benefits & advantages
- solution for shading asymmetrical window shapes (upper frame is not horizontal, but inclined at a certain angle)
- slats copy the angle of the upper frame and are parallel to it
- the aluminium slats are guided in a steel string
- a special mechanism compensating for the different lengths of textile straps when sliding down and lifting the blind
- telescopic bottom slat, which is used to compensate for the different width of the bottom slat in the lower position (window width) and upper position (length of the sloping part of the window)
- low height of the roll is achieved by using slats without a longitudinal fold of the slat
Methods
Handling
electrically
remote control or power switch
remote control or power switch

Guaranteed
Dimensions
minimum width
600 mm
600 mm
maximum width
2500 mm
2500 mm
maximum height
4000 mm
4000 mm
maximum area
7 m2
7 m2
maximum angle
50°
50°
* Note: As the width of the blind increases, its wind resistance class decreases - see Wind resistance, below on the page.
We do not produce atypical dimensions.
We do not produce atypical dimensions.
Technical parameters
Upper profile | Lower profile | Slat | Side Guidance | Ladder | Textile strip |
|
---|---|---|---|---|---|---|
Steel Wire | ||||||
Business name | P 001/2 | P 012/6 + P 012/7 |
80 × 0,42 |
P 036 See Technical Manual |
P 30/4 P30/5 P30/6 P30/7 104 × 85 74 × 85 93,5 × 85 83 × 85 PES |
RHD 09 6 mm PES |
Dimensions (mm) | 58 × 60 | 21 × 80 | Ø 3,2 | |||
Material | Al | Al | Fe / PVC | |||
Cross-section | ![]() |
![]() |
![]() |
|||
Colours | Standard: galvanized steel plate natural (Al profil) Other RAL colors sprayed, DECORAL* |
Standard: anodized aluminum Other RAL colors sprayed, DECORAL* |
According to current ISOTRA a.s. scheme |
Standard: anodized Other RAL colors sprayed, DECORAL* |
grey | black |
Wind resistance
Essential characteristics | Performance | ||||
---|---|---|---|---|---|
Wind resistance | Width of construction hole L (mm) | L <= 2 000 | 2 000 < L <= 2 500 | ||
Standard EN/Beaufort | 13659 | Beaufort | 13659 | Beaufort | |
Wind resistance class | 2 | 5 | 1 | 4 | |
Max. wind speed vmax (km/h) | 38 | 28 | |||
Max. effective height wing | 2 500 | ||||
Width of construction hole L (mm) | 2 500 | 2 500 | |||
Wind resistance class | 1 | 4 | 0 | 3 | |
Max. wind speed vmax (km/h) | 19 | 11 | |||
Max. effective height wing | 4 000 | ||||
Additional thermal resistance ΔR | 0,08 (m2.K/W) | ||||
Total solar energy transmittance gtot | 0,032 - 0,094 (according to chosen slat colour)* |
