Zetta 70 external horizontal blinds
Product gallery

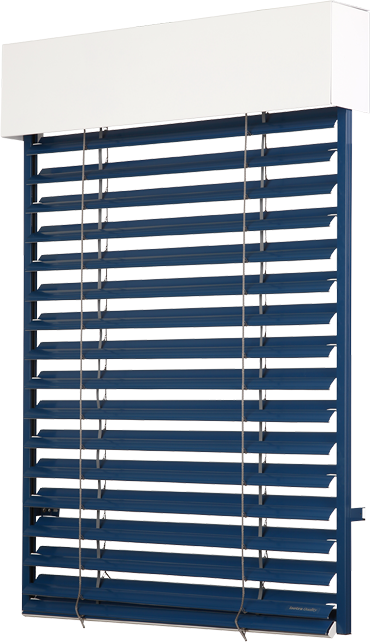

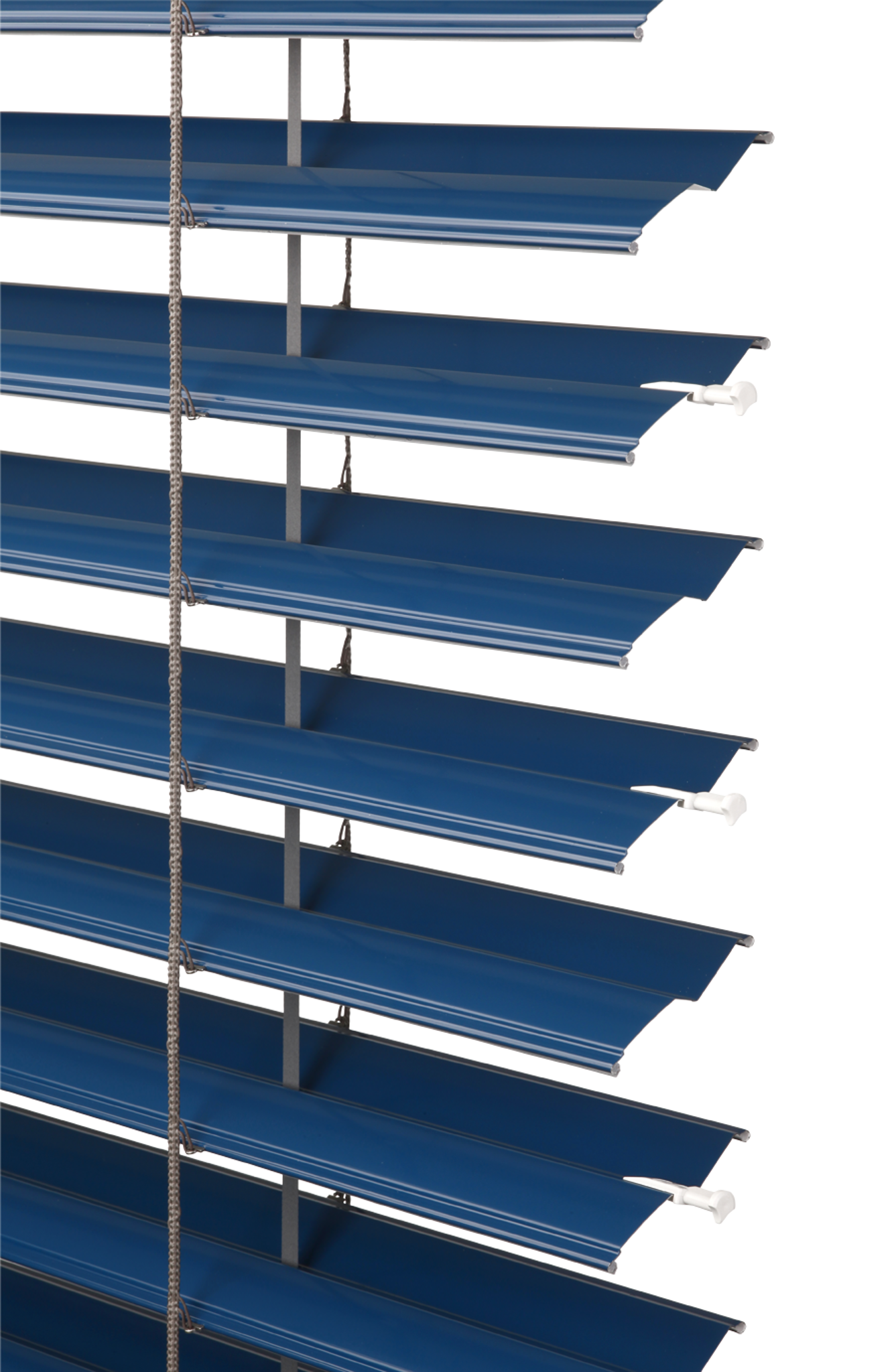

Zetta 70 external horizontal blinds together with Zetta 90 external blinds are technologically the most developed blinds in the area of exterior shading technology, and are recommended for the shading family houses and administrative buildings. Lamellas with a width of 7cm are in the form of the letter “Z”. When closed, the lamellas create a self-contained area which ensures perfect shading and the rubber impressed along the whole lamella increases the thermo-regulation of the blinds. Aluminium guiding bars ensure the stability of the blind during windy conditions and function as a supporting element for securing the property against break-ins. The variability of the assembly, the modern technical design and perfect shading enables this external horizontal blind to create a unique shading element for all types of objects.
Advantages
Benefits & advantages
- high level of shading
- thermoregulation and protective effect
- decrease in the level of outside noise
- lower profile from the extruded aluminium
- electric control option
- decrease in the noise from the blinds (impressed rubber)
- guaranteed area of up to 18 m2.
Explore
Colour variants
Basic colours lamella
.jpg)
Colour performance Isotra System Decoral 1 at extra charge cover box, guiding rail, guiding rail holder, head + bottom rail
Colour performance Isotra System Decoral 2 at extra charge cover box, guiding rail, guiding rail holder, head + bottom rail
clearance sale
Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.
Methods
Handling
manually
by handle
by handle
electrically
by remote control unit or switch
by remote control unit or switch
Guaranteed
Dimensions
minimum width
600 mm
600 mm
maximum width
6000* mm
6000* mm
maximum height
4000 mm
4000 mm
maximum area
8 m2 (for handle control)
18 m2 (for motor control)
8 m2 (for handle control)
18 m2 (for motor control)
* Note: The wider the blind, the lower its wind resistance class – see Wind resistance, further down the page.
Non-standard dimensions are not produced.
Non-standard dimensions are not produced.
Technical parameters
| Upper profile | Lower profile | Lamella | Side guiding | Ladder | Textile strip | |||
|---|---|---|---|---|---|---|---|---|
| Leading bar | Cord | |||||||
| Business name |
P 001/1 | P 001/2 | P 012/2 |
P 038 |
see Technical manual | P 036 |
P 029/2 | P 531, P531/1 |
| Dimensions (mm) | 56 × 58 | 58 × 60 | 67 × 13 | 0,42 × 83 | see Technical manual | Ø 3,2 | 60 × 9,5 | 6 × 0,28 |
| Material | Fe | Al | Al | Al | see Technical manual | Fe / PVC | PES | PES |
| Cross-section |  |
 |
 |
 |
||||
| Colour | Standard: galvanized steel plate natural (Al profil) Other RAL colors sprayed, DECORAL* |
Standard: anodized aluminum Other RAL colors sprayed, DECORAL* |
According to the actual sampler from ISOTRA a.s. |
Basic design – anodized Varnished in RAL colors, DECORAL* |
grey black |
grey black |
grey black |
|
*for max. width 4000 mm
Assembly options
Basic types of assembly
These three types of assembly can be in two versions: cover box visible cover box incorporated into heat-insulation system or peripheral shell.
Specific assembly
- Self-bearing variant (fixation of the blind on guiding bars)
- Façade variant (round cassette; assembly on the façade)
- Assembly into Heluz lintel (built-in guiding bars)
- Assembly into Porotherm lintel (recommended for separate constructions)
- The self-supporting blind with packet of slats outside the head rail
It is necessary to consider assembly into a lintel in the plans for a family house.
Wind resistance
Wind resistance tests performed by Centrem stavebního inženýrství, a.s. in Zlín according to ČSN EN 13659.
Guiding rope
| Essential characteristics | Performance | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Width of construction hole L (mm) | L <= 2 000 | 2 000 < L <= 3 000 | 3 000 < L <= 4 000 | 4 000 < L <= 4 500 | 4 500 < L <= 4 800 | 4 800 < L <= 5 000 | 5 000 < L <= 6 000 | ||||||||
| Standard EN/Beaufort | 13659 | Beaufort | 13659 | Beaufort | 13659 | Beaufort | 13659 | Beaufort | 13659 | Beaufort | 13659 | Beaufort | 13659 | Beaufort | |
| Wind resistance class | 3 | 6 | 2 | 5 | 1 | 4 | 0 | 3 | 0 | 2 | 0 | 1 | 0 | 0 | |
| Max. wind speed vmax (km/h) | 49 | 38 | 28 | 19 | 11 | 5 | 1 | ||||||||
| Max. effective height wing | Hmax = 2500 mm | ||||||||||||||
| Width of construction hole L (mm) | L <= 2 000 | 2 000 < L <= 3 000 | 3 000 < L <= 4 000 | 4 000 < L <= 4 500 | 4 500 < L <= 4 800 | 4 800 < L <= 5 000 | 5 000 < L <= 6 000 | ||||||||
| Wind resistance class | 2 | 5 | 1 | 4 | 0 | 3 | 0 | 2 | 0 | 1 | 0 | 0 | 0 | 0 | |
| Max. wind speed vmax (km/h) | 28 | 19 | 11 | 5 | 1 | 0 | |||||||||
| Max. effective height wing | Hmax = 4000 mm | ||||||||||||||
| Additional thermal resistance ΔR | 0,08 (m2.K/W) | ||||||||||||||
| Total solar energy transmittance gtot | 0,032 - 0,094 (according to chosen slat colour)* | ||||||||||||||
Guiding rail
| Essential characteristics | Performance | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Wind resistance | Width of construction hole L (mm) | L <= 2 000 | 2 000 < L <= 3 000 | 3 000 < L <= 4 000 | 4 000 < L <= 4 500 | ||||
| Standard EN/Beaufort | 13659 | Beaufort | 13659 | Beaufort | 13659 | Beaufort | 13659 | Beaufort | |
| Wind resistance class | 4 | 7 | 3 | 6 | 2 | 5 | 1 | 4 | |
| Max. wind speed vmax (km/h) | 61 | 49 | 38 | 28 | |||||
| Max. effective height wing | Hmax = 4000 mm | ||||||||
| Width of construction hole L (mm) | 4 500 < L <= 5 000 | 5 000 < L <= 5 500 | 5 500 < L <= 5 800 | 5 800 < L <= 6 000 | |||||
| Wind resistance class | 0 | 3 | 0 | 2 | 0 | 1 | 0 | 0 | |
| Max. wind speed vmax (km/h) | 19 | 11 | 5 | 1 | |||||
| Max. effective height wing | Hmax = 4000 mm | ||||||||
| Additional thermal resistance ΔR | 0,08 (m2.K/W) | ||||||||
| Total solar energy transmittance gtot | 0,032 - 0,094 (according to chosen slat colour)* | ||||||||
