Setta 65 exterior blind
Product gallery

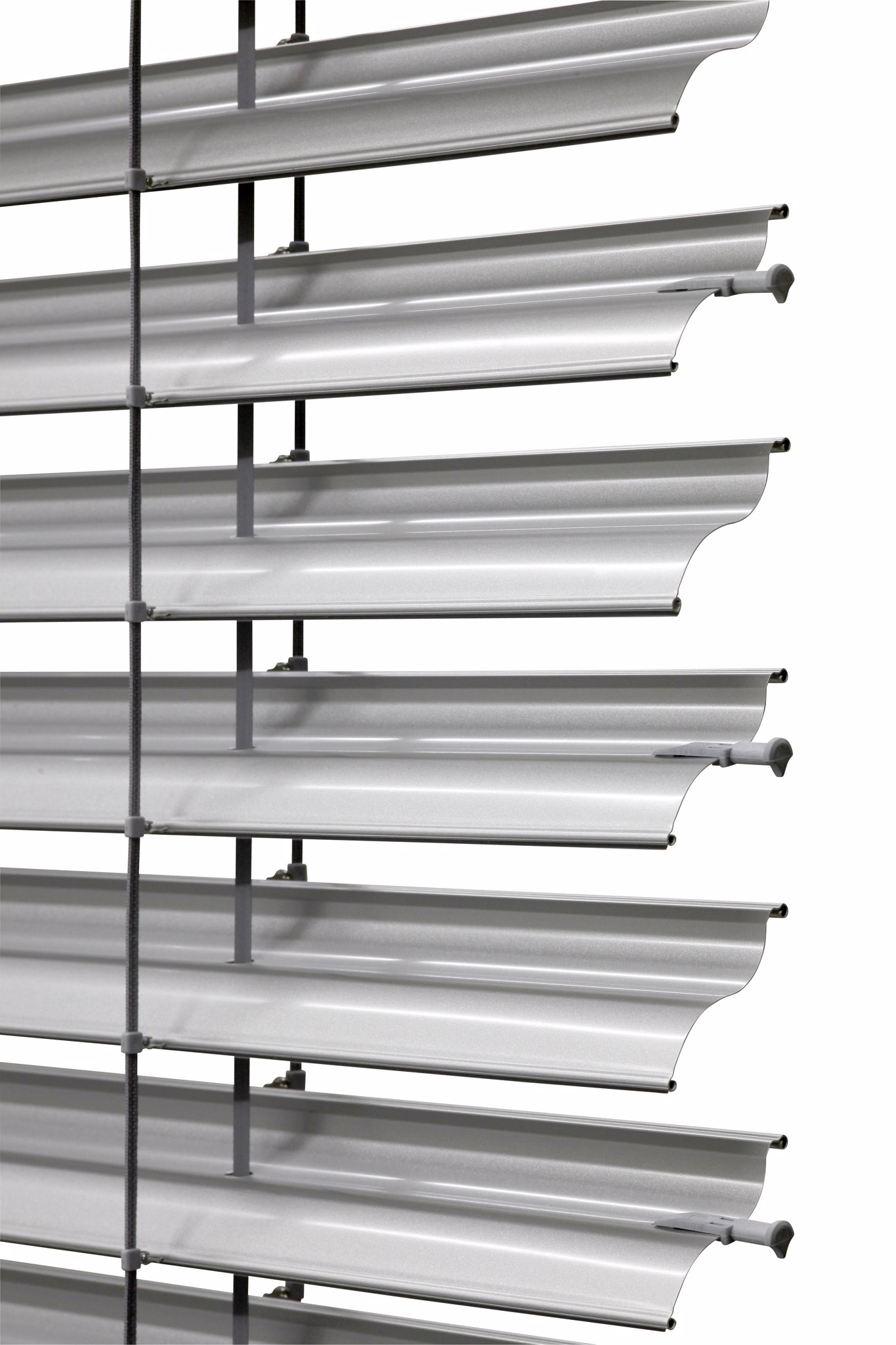

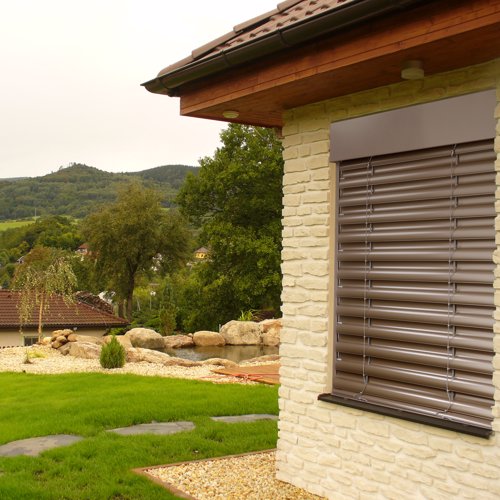

The Setta exterior blind represents top exterior shading in terms of purpose and design. The “S” shaped lamellas create a perfectly integrated area when closed. The purposefulness of the Setta outdoor blind is strengthened by its simple appearance.
Advantages
Benefits & advantages
- elegant design construction with “S“ shaped slat,
- high level of shading
- thermoregulation and protective effect
- decrease of the level of outside noise
- bottom rail from the extruded aluminium
- electric control option
- decreased noise of the blind (impressed rubber along the whole length of the blind)
- maximum guaranteed area 24 m2.
Get
Inspiration
Explore
Colour variants
Basic colours lamella
.jpg)
Colour performance Isotra System Decoral 1 at extra charge cover box, guiding rail, guiding rail holder, head + bottom rail
Colour performance Isotra System Decoral 2 at extra charge cover box, guiding rail, guiding rail holder, head + bottom rail
clearance sale
Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.
Methods
Handling
manually
by handle
by handle
electrically
by remote control unit or switch
by remote control unit or switch
Guaranteed
Dimensions
minimum width
600 mm
600 mm
maximum width
6000* mm
6000* mm
maximum height
4000 mm
4000 mm
maximum width
8 m2 (for handle control))
24 m2 (for motor control)
8 m2 (for handle control))
24 m2 (for motor control)
* Note: The wider the blind, the lower its wind resistance class – see Wind resistance, further down the page.
Non-standard dimensions are not produced
Non-standard dimensions are not produced
Technical parameters
| Upper profile | Lower profile | Lamella | Side guiding | Ladder | Textile strip | |||
|---|---|---|---|---|---|---|---|---|
| Guiding bar | Cord | |||||||
| Business name |
P 001/1 | P 001/2 | P 012/4 |
S 037 |
see Technical manual | P 036 |
P 029/2 | P 531, P531/1 |
| Dimensions (mm) | 56 × 58 | 58 × 60 | 67 × 13 | 0,42 × 83 | see Technical manual | Ø 3,2 | 60 × 9,5 | 6 × 0,28 |
| Material | Fe | Al | Al | Al | see Technical manual | Fe / PVC | PES | PES |
| Cross-section |  |
 |
 |
 |
||||
| Colour | Standard: galvanized steel plate natural (Al profil) Other RAL colors sprayed, DECORAL* |
Standard: anodized aluminum Other RAL colors sprayed, DECORAL* |
According to the actual sampler from ISOTRA a.s. |
Standard: anodized Other RAL colors sprayed, DECORAL* |
grey black |
grey black |
grey black |
|
*for max. width 4000 mm
Non-standard dimensions are not produced.
Assembly options
Basic types of assembly
These three types of assembly can be in two versions: cover box cold-wet/ cover box incorporated into heat-insulation system or peripheral shell.
Specific assembly
- Self-bearing construction (fixation of the blind on guiding bars)
- Façade version (round cassette; assembly on the facade)
- Assembly into Heluz bressumer (planted moulding bars)
- Assembly into Porotherm bressumer (recommended for self-bearing version)
- The self-supporting blind with packet of slats outside the head rail
It is necessary to consider assembly into the bressumer during the design phase of a family home
Wind resistance
Tests for resistance to the wind performed by the Center of building engineering in Zlín according to ČSN EN 13659.
Guiding rope
| Essential characteristics | Performance | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Width of construction hole L (mm) | L <= 2 000 | 2 000 < L <= 3 000 | 3 000 < L <= 4 000 | 4 000 < L <= 4 500 | 4 500 < L <= 4 800 | 4 800 < L <= 5 000 | |||||||
| Standard EN/Beaufort | 13659 | Beaufort | 13659 | Beaufort | 13659 | Beaufort | 13659 | Beaufort | 13659 | Beaufort | 13659 | Beaufort | |
| Wind resistance class | 3 | 6 | 2 | 5 | 1 | 4 | 0 | 3 | 0 | 2 | 0 | 1 | |
| Max. wind speed vmax (km/h) | 49 | 38 | 28 | 19 | 11 | 5 | |||||||
| Max. effective height wing | Hmax = 2500 mm | ||||||||||||
| Width of construction hole L (mm) | L <= 2 000 | 2 000 < L <= 3 000 | 3 000 < L <= 4 000 | 4 000 < L <= 4 500 | 4 500 < L <= 4 800 | 4 800 < L <= 5 000 | |||||||
| Wind resistance class | 2 | 5 | 1 | 4 | 0 | 3 | 0 | 2 | 0 | 1 | 0 | 0 | |
| Max. wind speed vmax (km/h) | 38 | 28 | 19 | 11 | 5 | 1 | |||||||
| Max. effective height wing | Hmax = 4000 mm | ||||||||||||
| Additional thermal resistance ΔR | 0,08 (m2.K/W) | ||||||||||||
| Total solar energy transmittance gtot | 0,032 - 0,094 (according to chosen slat colour)* | ||||||||||||
Guiding rail
| Essential characteristics | Performance | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Wind resistance | Width of construction hole L (mm) | L <= 2 000 | 2 000 < L <= 3 000 | 3 000 < L <= 4 000 | 4 000 < L <= 4 500 | ||||
| Standard EN/Beaufort | 13659 | Beaufort | 13659 | Beaufort | 13659 | Beaufort | 13659 | Beaufort | |
| Wind resistance class | 5 | 8 | 4 | 7 | 3 | 6 | 2 | 5 | |
| Max. wind speed vmax (km/h) | 74 | 61 | 49 | 38 | |||||
| Max. effective height wing | Hmax = 4000 mm | ||||||||
| Width of construction hole L (mm) | 4 500 < L <= 5 000 | 5 000 < L <= 5 500 | 5 500 < L <= 5 800 | 5 800 < L <= 6 000 | |||||
| Wind resistance class | 1 | 4 | 0 | 3 | 0 | 2 | 0 | 1 | |
| Max. wind speed vmax (km/h) | 28 | 19 | 11 | 5 | |||||
| Max. effective height wing | Hmax = 4000 mm | ||||||||
| Additional thermal resistance ΔR | 0,08 (m2.K/W) | ||||||||
| Total solar energy transmittance gtot | 0,032 - 0,094 (according to chosen slat colour)* | ||||||||
Download
Ask us
Are You interested in some product?
We will be pleased to answer your questions. Just fill in the form and we will respond till 3 workdays at least.
Looking for something else
