Screen roller blinds SCREEN HR7
Product gallery

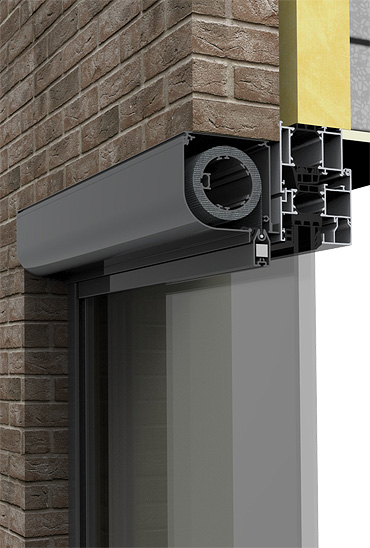

Would you like all the convenience of a screen without intrusive isntallation work? Then the screen HR7 is simple to install on any window profile or facade and keeps out excess sunlight and heat. The HR7 screen is ideal for passive houses because the building shell need not be perforated. Add to that the extra durability of the fabrics, and you will be satisfied for many years to come. Whether you opt for a modern or classic box design.
The box, bottom lath and guide rails are made of extruded aluminium with a powder coating. The weighted bottom lath is available in 2 depths - low and high. The screens can be coupled and used 1 box for 2 or 3 screens. The unique technology reduces the friction between fabric and box. The fabric slides out of the box more smoothly, causing virtually no wear and tear to the canvas. Year after year, your fabric will look as good as new.
Advantages
Benefits & advantages
- choice of 2 box designs: square box for austere architecture or rounded box for more traditional buildings, both types available in 3 sizes
- weighted bottom lath to guide and tension the fabric
- wind class 2
- option of coupled screen up to 3 pcs
- choice of 2 fitting options: with guiding wire or guiding channel
- easy assembling
- guaranteed area of up to 14 m2
Get
Inspiration
Explore
Colour variants
Special fabrics for screen roller
Hereby stated colors are only indicative. If you want to see the color in real we recommend to visit one of our business partners where you can ask for physical swatch. We cannot accept claims for inappropriately chosen color according to electronic sampler.
Methods
Handling
electric drive
remote control or switch
remote control or switch
manually
handle with self-braking worm-worm wheel mechanism
handle with self-braking worm-worm wheel mechanism
Fabric selection
The materials offered for screen blinds are as follows
- glass fiber covered with a PVC layer
- polyester fiber with a PVC layer
Serge
- Specifically weaved screen fabrics, that are very flexible and therefore suitable to interiors as well as exteriors.
- They consist of 58,8 % PVC and 41,5 % glass fibre.
Satiné, Satiné Blackout
- PVC-coated fibreglass provides excellent dimension stability, protection against fire and chemicals, UV stability and excellent resistance to weather conditions
- in the basic version, the fabric is composed of 42 % fiberglass and 58 % PVC coating (except for the blackout-type fabrics).
Screen Nature
- the SCREEN NATURE fabrics are of a special composition: they are made of 100% fibreglass without PVC and halogens – they meet high requirements for ecology with minimum environmental impacts, for the protection of health, safety and flame resistance (A2, M0)
SCR
- the combination of 30 % polyester fiber and 70 % PVC offers a wide range of fabrics for indoor use, which fulfills the basic requirements of functionality, design, heat and visual comfort

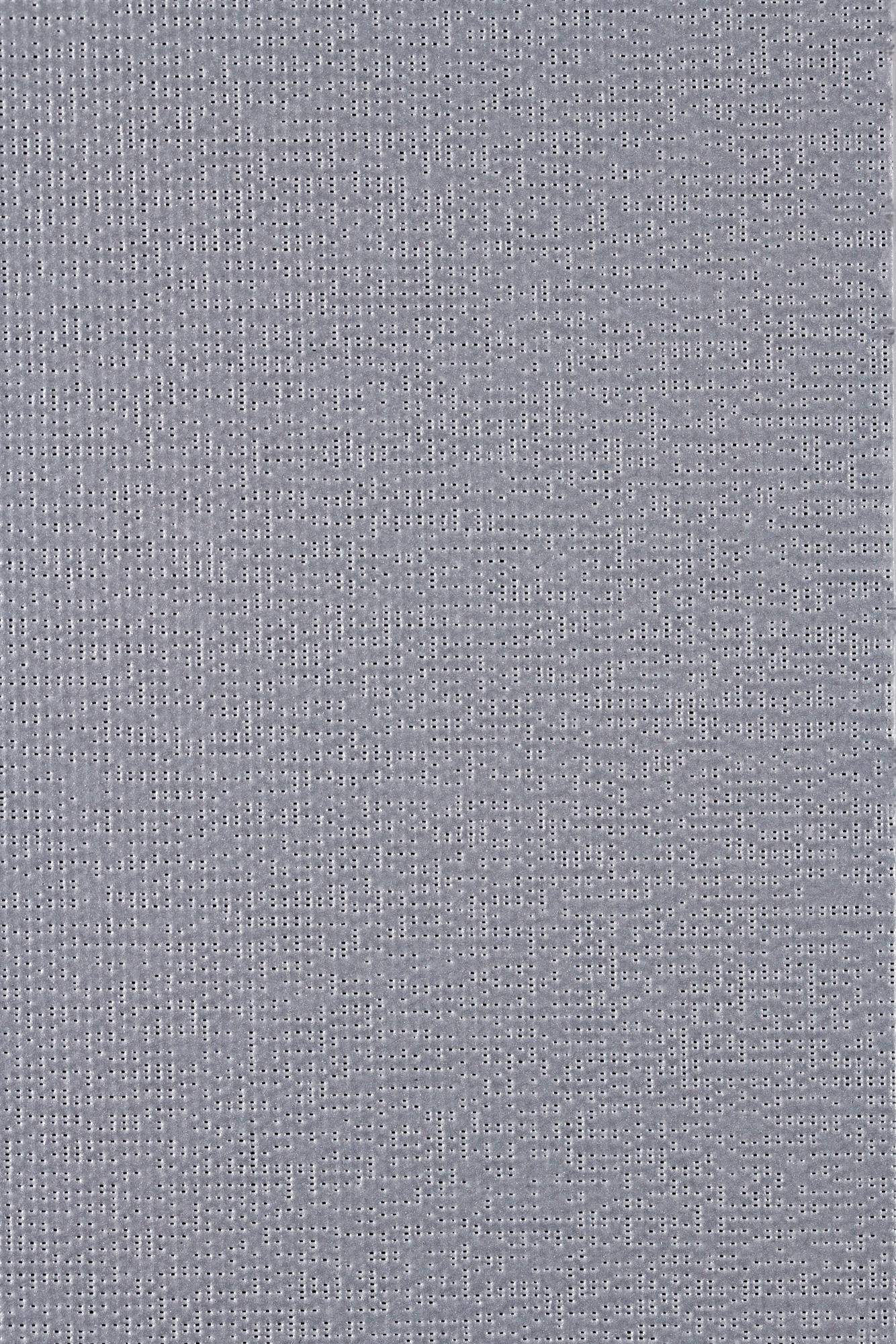

Soltis 86, 92, B92, 99, B99
- the material is made from a fabric woven from a high-strength polyester fibre, with surface treatment by pigmented PVC. The material is pre-stressed using the Precontraint technology in two directions, ensuring high dimensional stability and strength
- further advantages of the material include excellent heat--insulating properties, optimal visual and lighting properties, colour fastness (UV-stability), and flame resistance (B1, M1)
- Soltis 99 and B99 can only be used indoors
SCR 4005
- internal and external use
- lower price with keeping high quality standard
Guaranteed dimensions
Standard dimensions for box 70
| Execution | Width (mm) | Height (mm) | Guaranteed area (m2) | ||
|---|---|---|---|---|---|
| min | max | min | max | max | |
| Handle | 400 | 2200 | 400 | 2800 | 6 |
| Motor LS40 | 510 | 3000 | 400 | 1800 | 5,4 |
| Motor 40 iO | 565 | 3000 | 400 | 1800 | 5,4 |
** Max. height with STNZ, STNBZ, SCR4005, SLTZB92, SERGE 3Z fabrics is only 900 mm
Standard dimensions for box 90
| Execution | Width (mm) | Height (mm) | Guaranteed area (m2) | ||
|---|---|---|---|---|---|
| min | max | min | max | max | |
| Handle | 400 | 3000 | 400 | 3500 | 9 |
| Motor LT50 | 580 | 3500 | 400 | 3500 | 9 |
| Motor RTS, iO, WT | 685 | 3500 | 400 | 3500 | 9 |
** Max. height with STNZ, STNBZ, SCR4005, SLTZB92, SERGE 3Z fabrics is only 1800 mm
Standard dimensions for box 110
| Execution | Width (mm) | Height (mm) | Guaranteed area (m2) | ||
|---|---|---|---|---|---|
| min | max | min | max | max | |
| Handle | 400 | 3500 | 400 | 3000 | 10 |
| Motor LT50 | 580 | 3500 | 400 | 4000 | 14 |
| Motor RTS, iO, WT | 685 | 3500 | 400 | 4000 | 14 |
**Max. height with STNZ, STNBZ, SCR4005, SLTZB92, SERGE 3Z fabrics is only 2600 mm
We do not manufacture atypical dimensions.
Technical parameters
| Box | Bottom rail | Side guidance | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| square | rounded | low | high | guide rail | cable | |||||
| Bussiness name | – | – | ZPH073 | ZPH074 | ZPH064 | ZPH063 | ZPH065 | ZPH066 | ZPH067 | |
| Dimensions (mm) |
70 × 70 90 × 90 110 × 110 |
70 × 70 90 × 90 110 × 110 |
18 × 36 |
18 × 50 |
30 × 30 |
20 × 30 |
40 × 30 |
30 × 60 |
20 × 60 |
|
| Material | Al | Al | Al | Al | Al | Al | Al | Al | Al | nerez |
| Cross-section |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Colour | Standard: RAL 7016 anthracite grey RAL 7016 anthracite grey structure RAL 8014 brown RAL 9006 light silver RAL 9007 dark silver RAL 9010 white Other colors RAL upon request* |
|||||||||
Assembly options
- on the wall
- into the spelled
