Self-supporting BRAVO and STS aluminium Venetian blinds
The basis of the self-supporting blinds are guide rails, on which the entire weight of the armour lies. The representatives of this special design of exterior blinds are the BRAVO and STS self-supporting blinds. All types and sizes of slats can be used for the self-supporting blinds, except for Cetta 50. An insect mesh can also be integrated into them.

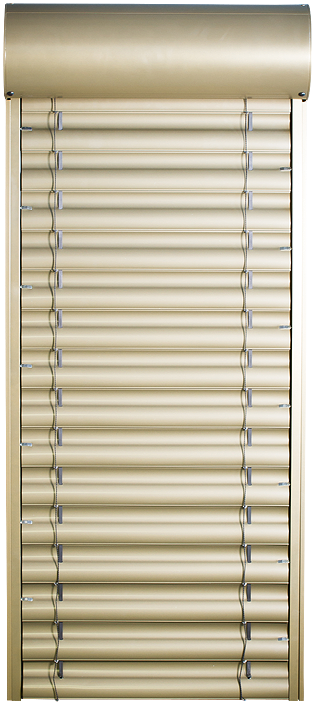

Bravo is a self-supporting blind with a blind roll outside the channel and which has a round box design. With BRAVO, the box is always only in the recognized design, which means that it is visible on the facade of the house. A foot for connection to the supporting rails is located on the sides of the boxes. BRAVO blinds are designed for installation in smaller construction openings - thanks to a special hanger and eccentric channel mounting, the height of the box is 40 mm lower than the standard design.
The STS aluminium self-supporting blind is a separate all-aluminium final product. The upper profile (box), together with the slat pack, is attached to the guide rails using a special foot and hanger of the upper profile. Then only the guide rail brackets without any blind bracket can be used, as if it were necessary in the case of an ordinary installation of an exterior blind. The separate blind therefore no longer needs to be anchored. The principle is the same as for the VIVA product. Installation is simple and quick. Motor control only. Blinds can be coupled. You can choose almost all types of slats in the given colours, including flexi and in the design of a vertical bottom rail even SLIM is possible. It is not possible to select the Cetta 35/50 slat. It is possible to paint the upper and lower profile, guide rail, guide brackets in RAL and Decoral colours.
Benefits & advantages
- faster and easier assembly
- high level of shading
- thermoregulatory and protective effect
- decrease in the level of outside noise
- lower profile from the extruded aluminium
- electric control option
- decrease in the noise from the blinds.
BRAVO self-supporting blind with the roll outside the channel
Specifications
- Control: lowering, pulling up and tilting the slats by the motor,
- location of the control is anywhere,
- box height 40 mm lower than the standard design thanks to a special hanger and eccentric channel mounting
- installation of the blind is only in the version with self-supporting guide rails,
- standard design of the cover box is 210 mm,
- choice of box, bottom and guide rails in DECORAL or RAL design,
- maximum dimension 4000 mm.
Limited dimensions for Cetta 80 blinds Bravo
BRAVO | Widht (mm) | Height (mm) | Guaranteed area (m2) | ||
---|---|---|---|---|---|
min. | without insect screen |
Using this version, you can save 40 mm of the box height (front cover height)
compared to the standard version.
The maximum height of blind, which the box
of 210 mm is suitable for.
Blind typ | Blind height (mm) |
---|---|
Cetta 60 Flexi | 1900 |
Cetta 65 | 1900 |
Cetta 80 | 2200 |
Cetta 80 Flexi | 3000 |
Cetta 80 Slim | 2600 |
Cetta 100 Flexi | 3000 |
Setta 65 | 1900 |
Setta 90 | 2700 |
Zetta 70 | 2100 |
Zetta 90 | 2500 |
Self-Supporting Exterior Blinds STS aluminium - separate all-aluminium final product
Standard blind dimensions
System STS | Width (mm) | Height (mm) | Guaranteed area (m2) | ||
---|---|---|---|---|---|
min. | max. | min. | max. | max. | |
blinds STS | 600 | 4000* | 500 | 4000 | 16 |
*From 3501 to 4000 mm, STS reinforcing profile will be supplied to the aluminium channel. The channel with the reinforcement will have by 15 mm wider roll.
Position | Item | Trade name | Drawing number |
---|---|---|---|
10 | Pre-assembled box STS | 2-01286-0000 | |
30-32 | Upper rail hanger – AL PROFIL STS | P002/6 | 2-01093-0000 |
40-41 | Double foot STS | P002/9 | 2-01628-0000 |
170 | Guide rail profile STS | P016/1 | 7-302121-PU52 |
170 | Rail STS – double | P016/2 | 7-303530-0000 |
170 | Guide rail bracket STS 56-80, 81-125, 80-230 mm | P021/5,6,17-47 | - |
